AutoGen: 我也能实现OpenAI Swarm中的handoff

AI工程化
AI工程化
AI
大模型关系型数据库智能语音交互

最近，OpenAI 推出的 Swarm 框架引发了业界对 MultiAgent框架的热议。特别是，Swarm 中的核心原语抽象——handoff（交接）， 允许代理之间高效转移任务，以其简单直观的设计，受到了好评。

picture.image

什么是 Handoff 模式？

如果想象一下四人接力赛，运动员们一棒接一棒，顺畅无比。换到 AI 的世界里，“交接”就像是代理之间互相传递工作任务。OpenAI 推出的 Swarm 框架十分灵活，这种交接模式允许一个 AI 代理把任务无缝转交给其他代理，如同在聊天中把话筒递给下一个人。

AutoGen 的回应

picture.image

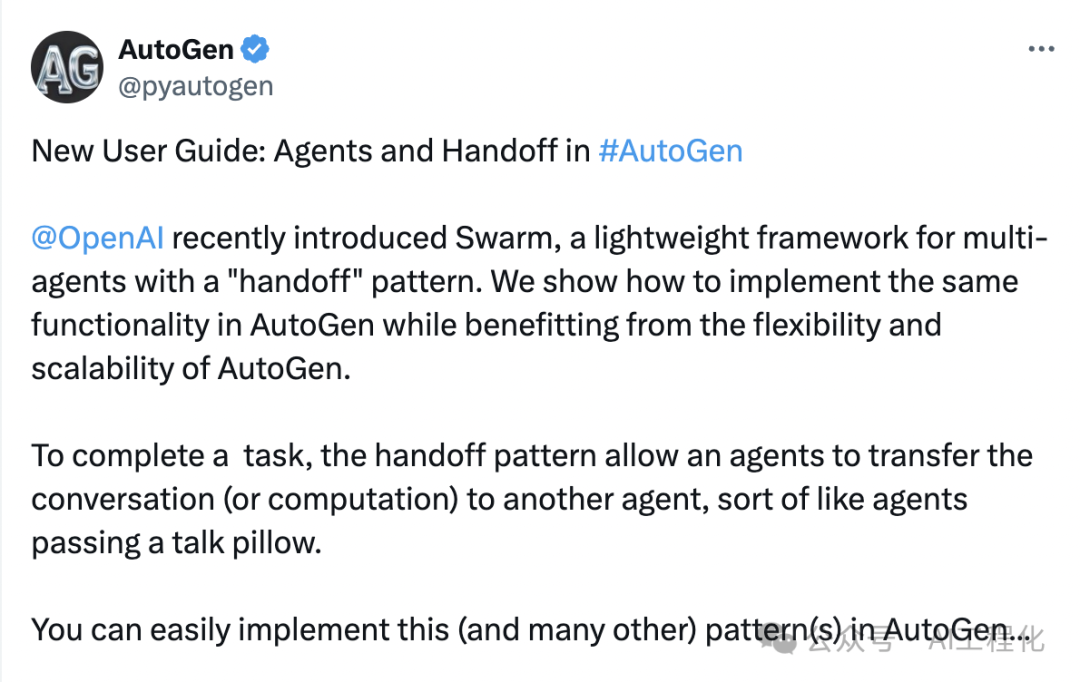

作为 MultiAgent 框架领域的代表 AutoGen 坐不住了，发文[1]表示，利用 AutoGen 的灵活和可扩展的系统设计，同样可以实现 Handoffs，并且还具备以下优势：

  1. 可扩展性 ：AutoGen 可以轻松扩展到分布式环境，支持更大规模的代理协作。
  2. 灵活性 ：开发者可以自定义代理的实现，根据需求打造专属的 AI 团队。
  3. 集成便利性 ：原生异步 API 可以轻松与 UI 和其他系统集成，适应各种应用场景。
  4. 开放性 ：作为开源项目，AutoGen 一样允许开发者自由扩展和优化系统。

在技术层面上，“交接”模式通过一些消息协议来实现，比如 UserLogin、UserTask 和 AgentResponse 等。这些协议确保了代理之间的信息传递顺畅，类似于聊天中的对话指南。在 AutoGen 中，AI 代理使用 AIAgent 类来生成回复，利用 delegate_tools 可以轻松地将任务交给其他代理。当 AI 代理遇到无法处理的问题时，人类代理（Human Agent）就会出色登场，确保用户的问题得到妥善解决。

picture.image

AutoGen 的实现示例

AutoGen 为了展示这一能力，特地使用了 OpenAI 的客服案例 [2] 进行了实现。不了解AutoGen的朋友可以阅读：一文探秘LLM应用开发(26)-Prompt(架构模式之Agent框架AutoGPT、AutoGen等)

picture.image

一个客户服务场景中，我们可能会有这样的阵容：

  • 客户 Agent（UserAgent）处理用户登录和 Agent 响应，并启动与聊天机器人的新会话。
  • 分流Agent（Triage Agent）：负责初步评估客户问题
  • 维修Agent（Issue and Repair Agent）：处理维修相关事务
  • 销售Agent（Sales Agent）：负责产品推荐和销售
  • 人类Agent（Human Agent）：处理复杂情况或需要人工干预的问题，确保系统的鲁棒性。

每个 AI Agent都由 AIAgent 类来处理，它们可以：

  • 使用 ChatCompletionClient 生成回复
  • 通过 delegate_tools 将任务委派给其他代理
  • 订阅特定的主题类型，并向用户发送消息，每个 Agent 都有自己的主题类型，如 sales_agent_topic_type、issues_and_repairs_agent_topic_type 等，便于消息的精准投递。

当你发问时，初步分流 Agent 会首先接手。如果问题超出了它的处理能力，它会把任务“交接”给维修 Agent 或者销售 Agent，或者在必要时直接转给人类客服，确保你能得到及时的帮助。这种“交接”就像是办公室里的团队协作，确保没有人被落下。

下面是一些具体实现：

  • 定义不同角色的 Agent


runtime = SingleThreadedAgentRuntime()

model_client = OpenAIChatCompletionClient(
    model="gpt-4o-mini",
    # api\_key="YOUR\_API\_KEY",
)

# Register the triage agent.
triage_agent_type = await AIAgent.register(
    runtime,
    type=triage_agent_topic_type,  # Using the topic type as the agent type.
    factory=lambda: AIAgent(
        description="A triage agent.",
        system_message=SystemMessage(
            content="You are a customer service bot for ACME Inc. "
            "Introduce yourself. Always be very brief. "
            "Gather information to direct the customer to the right department. "
            "But make your questions subtle and natural."
        ),
        model_client=model_client,
        tools=[],
        delegate_tools=[
            transfer_to_issues_and_repairs_tool,
            transfer_to_sales_agent_tool,
            escalate_to_human_tool,
        ],
        agent_topic_type=triage_agent_topic_type,
        user_topic_type=user_topic_type,
    ),
)
# Add subscriptions for the triage agent: it will receive messages published to its own topic only.
await runtime.add_subscription(TypeSubscription(topic_type=triage_agent_topic_type, agent_type=triage_agent_type.type))

# Register the sales agent.
sales_agent_type = await AIAgent.register(
    runtime,
    type=sales_agent_topic_type,  # Using the topic type as the agent type.
    factory=lambda: AIAgent(
        description="A sales agent.",
        system_message=SystemMessage(
            content="You are a sales agent for ACME Inc."
            "Always answer in a sentence or less."
            "Follow the following routine with the user:"
            "1. Ask them about any problems in their life related to catching roadrunners.\n"
            "2. Casually mention one of ACME's crazy made-up products can help.\n"
            " - Don't mention price.\n"
            "3. Once the user is bought in, drop a ridiculous price.\n"
            "4. Only after everything, and if the user says yes, "
            "tell them a crazy caveat and execute their order.\n"
            ""
        ),
        model_client=model_client,
        tools=[execute_order_tool],
        delegate_tools=[transfer_back_to_triage_tool],
        agent_topic_type=sales_agent_topic_type,
        user_topic_type=user_topic_type,
    ),
)
# Add subscriptions for the sales agent: it will receive messages published to its own topic only.
await runtime.add_subscription(TypeSubscription(topic_type=sales_agent_topic_type, agent_type=sales_agent_type.type))

# Register the issues and repairs agent.
issues_and_repairs_agent_type = await AIAgent.register(
    runtime,
    type=issues_and_repairs_agent_topic_type,  # Using the topic type as the agent type.
    factory=lambda: AIAgent(
        description="An issues and repairs agent.",
        system_message=SystemMessage(
            content="You are a customer support agent for ACME Inc."
            "Always answer in a sentence or less."
            "Follow the following routine with the user:"
            "1. First, ask probing questions and understand the user's problem deeper.\n"
            " - unless the user has already provided a reason.\n"
            "2. Propose a fix (make one up).\n"
            "3. ONLY if not satesfied, offer a refund.\n"
            "4. If accepted, search for the ID and then execute refund."
        ),
        model_client=model_client,
        tools=[
            execute_refund_tool,
            look_up_item_tool,
        ],
        delegate_tools=[transfer_back_to_triage_tool],
        agent_topic_type=issues_and_repairs_agent_topic_type,
        user_topic_type=user_topic_type,
    ),
)
# Add subscriptions for the issues and repairs agent: it will receive messages published to its own topic only.
await runtime.add_subscription(
    TypeSubscription(topic_type=issues_and_repairs_agent_topic_type, agent_type=issues_and_repairs_agent_type.type)
)

# Register the human agent.
human_agent_type = await HumanAgent.register(
    runtime,
    type=human_agent_topic_type,  # Using the topic type as the agent type.
    factory=lambda: HumanAgent(
        description="A human agent.",
        agent_topic_type=human_agent_topic_type,
        user_topic_type=user_topic_type,
    ),
)
# Add subscriptions for the human agent: it will receive messages published to its own topic only.
await runtime.add_subscription(TypeSubscription(topic_type=human_agent_topic_type, agent_type=human_agent_type.type))

# Register the user agent.
user_agent_type = await UserAgent.register(
    runtime,
    type=user_topic_type,
    factory=lambda: UserAgent(
        description="A user agent.",
        user_topic_type=user_topic_type,
        agent_topic_type=triage_agent_topic_type,  # Start with the triage agent.
    ),
)
# Add subscriptions for the user agent: it will receive messages published to its own topic only.
await runtime.add_subscription(TypeSubscription(topic_type=user_topic_type, agent_type=user_agent_type.type))
  • 执行


# Start the runtime.
runtime.start()

# Create a new session for the user.
session_id = str(uuid.uuid4())
await runtime.publish_message(UserLogin(), topic_id=TopicId(user_topic_type, source=session_id))

# Run until completion.
await runtime.stop_when_idle()

# 运行日志：
--------------------------------------------------------------------------------
User login, session ID: 7a568cf5-13e7-4e81-8616-8265a01b3f2b.
--------------------------------------------------------------------------------
User:
I want a refund
--------------------------------------------------------------------------------
TriageAgent:
I can help with that! Could I ask what item you're seeking a refund for?
--------------------------------------------------------------------------------
User:
A pair of shoes I bought
--------------------------------------------------------------------------------
TriageAgent:
[FunctionCall(id='call_qPx1DXDL2NLcHs8QNo47egsJ', arguments='{}', name='transfer_to_issues_and_repairs')]
--------------------------------------------------------------------------------
TriageAgent:
Delegating to IssuesAndRepairsAgent
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
I see you're looking for a refund on a pair of shoes. Can you tell me what the issue is with the shoes?
--------------------------------------------------------------------------------
User:
The shoes are too small
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
I recommend trying a size up as a fix; would that work for you?
--------------------------------------------------------------------------------
User:
no I want a refund
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
[FunctionCall(id='call\_Ytp8VUQRyKFNEU36mLE6Dkrp', arguments='{"search\_query":"shoes"}', name='look\_up\_item')]
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
[FunctionExecutionResult(content='item\_132612938', call_id='call\_Ytp8VUQRyKFNEU36mLE6Dkrp')]
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
[FunctionCall(id='call\_bPm6EKKBy5GJ65s9OKt9b1uE', arguments='{"item\_id":"item\_132612938","reason":"not provided"}', name='execute\_refund')]
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
[FunctionExecutionResult(content='success', call_id='call\_bPm6EKKBy5GJ65s9OKt9b1uE')]
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
Your refund has been successfully processed! If you have any other questions, feel free to ask.
--------------------------------------------------------------------------------
User:
I want to talk to your manager
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
I can help with that, let me transfer you to a supervisor.
--------------------------------------------------------------------------------
User:
Okay
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
[FunctionCall(id='call\_PpmLZvwNoiDPUH8Tva3eAwHX', arguments='{}', name='transfer\_back\_to\_triage')]
--------------------------------------------------------------------------------
IssuesAndRepairsAgent:
Delegating to TriageAgent
--------------------------------------------------------------------------------
TriageAgent:
[FunctionCall(id='call\_jSL6IBm5537Dr74UbJSxaj6I', arguments='{}', name='escalate\_to\_human')]
--------------------------------------------------------------------------------
TriageAgent:
Delegating to HumanAgent
--------------------------------------------------------------------------------
HumanAgent:
Hello this is manager
--------------------------------------------------------------------------------
User:
Hi! Thanks for your service. I give you a 5 start!
--------------------------------------------------------------------------------
HumanAgent:
Thanks.
--------------------------------------------------------------------------------
User:
exit
--------------------------------------------------------------------------------
User session ended, session ID: 7a568cf5-13e7-4e81-8616-8265a01b3f2b.
总结

AutoGen 的 Handoff 实现不仅匹敌 OpenAI 的 Swarm，还在多个方面有所超越。它为开发者提供了一个强大、灵活且可扩展的框架，以构建复杂的多代理 AI 系统。不过，相较于 OpenAI 的 Swarm 实现，AutoGen 明显感觉概念更多，依赖更重，网络上就有人这么评价，“OpenAI 发布了一个示例，大约有 12 行代码，易于阅读，除了 swarm 模块外，没有其他依赖。对于 Autogen，我找不到类似的东西；似乎所有的示例都更复杂。”

这或许也是 AutoGen 之类成熟产品最大软肋吧！

参考资料

[1] 发文: https://microsoft.github.io/autogen/dev/user-guide/core-user-guide/design-patterns/handoffs.html#creating-the-team

[2] OpenAI的客服案例: https://github.com/openai/openai-cookbook/blob/main/examples/Orchestrating\_agents.ipynb
