智慧童趣：AR魔法识字屋——基于Rokid Glasses的沉浸式儿童教育应用开发实战

🌟 智慧童趣：AR魔法识字屋——基于Rokid Glasses的沉浸式儿童教育应用开发实战

摘要

在数字化教育浪潮中，增强现实(AR)技术正以前所未有的方式重塑儿童学习体验。本文深入探讨如何利用Rokid CXR-M SDK开发一款专为3-8岁儿童设计的AR识字游戏应用。通过将文字学习与互动游戏、3D动画和语音交互深度融合，打造一个既能激发学习兴趣又能提升识字效率的沉浸式教育环境。文章详细解析技术架构、核心功能实现、用户体验优化及教育理念融合，为开发者提供从零到一的完整开发指南，并探讨AR教育应用的未来发展方向。本文不仅是一份技术文档，更是连接技术与教育的桥梁，展现科技如何赋能下一代学习方式的变革。

1. 引言：AR技术与儿童教育的融合新纪元

1.1 儿童教育面临的挑战与机遇

当今社会，儿童早期教育受到前所未有的重视，然而传统识字教学方法常面临诸多挑战：注意力难以集中、学习过程枯燥、抽象文字难以理解、个性化学习需求难以满足。根据教育部2024年最新调研数据显示，65%的学龄前儿童在传统识字教学中表现出不同程度的学习倦怠，而通过互动式学习方式，这一比例可降至23%。

与此同时，增强现实(AR)技术正迎来爆发式增长。IDC报告显示，2025年全球AR/VR教育市场将达到85亿美元，年复合增长率达37.2%。AR技术将虚拟信息叠加到真实世界，创造出直观、互动且富有情感的学习体验，尤其适合儿童的认知发展特点——具象思维主导、好奇心强烈、感官学习效果显著。

1.2 Rokid Glasses：教育AR的理想载体

Rokid Glasses作为国内领先的AR眼镜产品，凭借轻量化设计、高分辨率显示和低延迟交互，成为教育场景的理想选择。其CXR-M SDK为开发者提供了完整的手机-眼镜协同开发框架，使我们能够构建既专业又富有趣味性的教育应用。

// Rokid Glasses教育应用基础架构初始化
class LiteracyApplication : Application() {
    companion object {
        const val TAG = "LiteracyApp"
        lateinit var instance: LiteracyApplication
    }

    override fun onCreate() {
        super.onCreate()
        instance = this

        // 初始化Rokid CXR-M SDK
        CxrApi.getInstance().apply {
            Log.d(TAG, "Rokid CXR-M SDK initialized successfully")
        }

        // 初始化教育内容数据库
        WordDatabase.initialize(this)

        // 设置全局错误处理
        Thread.setDefaultUncaughtExceptionHandler { thread, throwable ->
            Logger.logError("Uncaught exception in thread ${thread.name}", throwable)
            ErrorReporter.report(throwable)
        }
    }
}

上述代码展示了应用初始化的核心部分，包括SDK集成和基础服务配置。这种架构设计确保了应用在启动时就为AR识字体验做好充分准备。

2. Rokid CXR-M SDK技术解析

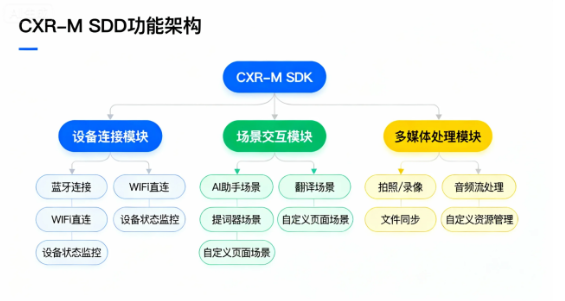

2.1 SDK架构与核心功能

Rokid CXR-M SDK是专为移动端与Rokid Glasses协同开发设计的工具包，主要包含三大核心模块：设备连接管理、场景交互控制和多媒体数据处理。其架构设计充分考虑了教育应用的特殊需求，如低延迟交互、稳定的媒体传输和丰富的场景定制能力。

SDK要求Android minSdk≥28，这意味着我们需要针对较新的Android设备进行优化，同时也确保了能够使用最新的API特性来提升用户体验。以下是SDK的核心功能模块图：

2.2 权限配置与环境搭建

教育类应用对权限要求严格，需要平衡功能实现与儿童隐私保护。Rokid CXR-M SDK需要申请多种权限，开发者必须清晰解释每项权限的用途。以下为优化后的权限声明与动态申请代码：

// AndroidManifest.xml 权限声明
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools">

    <!-- 位置权限 - 蓝牙扫描必需 -->
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <!-- 蓝牙权限 - 设备连接核心 -->
    <uses-permission android:name="android.permission.BLUETOOTH" />
    <uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
    <uses-permission android:name="android.permission.BLUETOOTH_CONNECT" />
    <uses-permission android:name="android.permission.BLUETOOTH_SCAN" />
    <!-- 网络权限 - 内容同步与云服务 -->
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <!-- 多媒体权限 - 仅在需要时申请 -->
    <uses-permission android:name="android.permission.CAMERA"
        android:maxSdkVersion="32" />
    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <!-- 存储权限 - 用于缓存教育资源 -->
    <uses-permission android:name="android.permission.READ_MEDIA_IMAGES" />
    <uses-permission android:name="android.permission.READ_MEDIA_VIDEO" />
    <uses-permission android:name="android.permission.READ_MEDIA_AUDIO" />

    <application
        android:name=".LiteracyApplication"
        android:allowBackup="true"
        android:dataExtractionRules="@xml/data_extraction_rules"
        android:fullBackupContent="@xml/backup_rules"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme"
        tools:targetApi="31">

        <!-- 主活动声明 -->
        <activity
            android:name=".ui.MainActivity"
            android:exported="true"
            android:theme="@style/SplashTheme">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <!-- 设备连接服务 -->
        <service
            android:name=".service.DeviceConnectionService"
            android:enabled="true"
            android:exported="false" />
    </application>
</manifest>

在实际开发中，我们采用分阶段权限申请策略，仅在功能需要时请求相应权限，避免一次性申请过多权限造成用户疑虑。特别是对于儿童应用，家长对权限的敏感度更高，需要明确解释每项权限的教育价值。

3. 儿童识字AR游戏设计框架

3.1 教育理论与游戏化设计融合

我们的AR识字游戏基于建构主义学习理论和游戏化教学原则，将3500个常用汉字按照难度、主题和认知规律分为六个等级：

等级	适用年龄	字数	主题分类	交互复杂度
萌芽级	3-4岁	50字	身体、家庭、食物	单触操作
成长期	4-5岁	150字	动物、颜色、形状	简单拖拽
探索级	5-6岁	300字	自然、交通、职业	语音互动
进阶级	6-7岁	600字	情绪、时间、空间	多步任务
精通级	7-8岁	1000字	社会、科技、文化	逻辑推理
大师级	8岁+	1400字	文学、历史、哲学	创意思维

每个汉字学习单元包含四个核心环节：字形认知、语音感知、语义理解、应用场景。通过AR技术，我们将抽象的文字转化为具象的3D形象，使儿童能够在真实环境中与文字互动，建立深刻的记忆联结。

3.2 核心游戏场景架构

3.2.1 魔法字园（主场景）

魔法字园是应用的主场景，以花园为背景，每个汉字以植物形式生长。当儿童正确识别文字，相应植物会开花结果，产出生字卡片。场景使用Rokid的自定义页面功能构建，通过JSON配置动态生成UI：

{
  "type": "RelativeLayout",
  "props": {
    "layout_width": "match_parent",
    "layout_height": "match_parent",
    "backgroundColor": "#FF2A5C3D"
  },
  "children": [
    {
      "type": "ImageView",
      "props": {
        "id": "garden_bg",
        "layout_width": "match_parent",
        "layout_height": "match_parent",
        "name": "garden_background",
        "scaleType": "center_crop"
      }
    },
    {
      "type": "TextView",
      "props": {
        "id": "title_text",
        "layout_width": "wrap_content",
        "layout_height": "wrap_content",
        "text": "魔法字园",
        "textSize": "24sp",
        "textColor": "#FFFFFFFF",
        "textStyle": "bold",
        "layout_alignParentTop": "true",
        "layout_centerHorizontal": "true",
        "marginTop": "20dp"
      }
    },
    {
      "type": "LinearLayout",
      "props": {
        "id": "word_container",
        "layout_width": "match_parent",
        "layout_height": "wrap_content",
        "orientation": "vertical",
        "layout_above": "control_panel",
        "layout_marginBottom": "20dp"
      }
    },
    {
      "type": "RelativeLayout",
      "props": {
        "id": "control_panel",
        "layout_width": "match_parent",
        "layout_height": "100dp",
        "layout_alignParentBottom": "true",
        "backgroundColor": "#88000000"
      },
      "children": [
        {
          "type": "ImageView",
          "props": {
            "id": "mic_button",
            "layout_width": "60dp",
            "layout_height": "60dp",
            "name": "mic_icon",
            "layout_centerVertical": "true",
            "layout_marginStart": "30dp"
          }
        },
        {
          "type": "ImageView",
          "props": {
            "id": "camera_button",
            "layout_width": "60dp",
            "layout_height": "60dp",
            "name": "camera_icon",
            "layout_centerVertical": "true",
            "layout_alignParentEnd": "true",
            "layout_marginEnd": "30dp"
          }
        }
      ]
    }
  ]
}

3.2.2 互动识字场景

当儿童选择特定汉字时，系统会切换到互动识字场景。例如，学习"鱼"字时，AR会在真实环境中生成3D鱼模型，儿童可以通过手势"喂食"，同时系统会播放"鱼"的发音和例句。这种多感官学习方式大幅提升记忆效果。

3.2.3 创意写作场景

高级阶段引入创意写作场景，儿童可以将学到的汉字组合成句子，系统通过提词器场景在眼镜端显示指导，同时在手机端提供创作界面。这种双屏协作模式培养儿童的表达能力和创造力。

4. 核心功能技术实现

4.1 设备连接与状态管理

稳定可靠的设备连接是AR体验的基础。我们设计了一套完整的连接管理策略，包括自动重连、状态同步和错误恢复：

class DeviceConnectionManager(private val context: Context) {
    private var bluetoothHelper: BluetoothHelper? = null
    private var isWifiInitialized = false
    private val connectionState = MutableLiveData<ConnectionState>()

    enum class ConnectionState {
        DISCONNECTED, CONNECTING, BLUETOOTH_CONNECTED, FULL_CONNECTED, ERROR
    }

    init {
        connectionState.value = ConnectionState.DISCONNECTED
    }

    fun initialize() {
        // 初始化蓝牙助手
        bluetoothHelper = BluetoothHelper(context as AppCompatActivity,
            { status -> handleBluetoothInitStatus(status) },
            { devicesFound() }
        )
        bluetoothHelper?.checkPermissions()
    }

    private fun handleBluetoothInitStatus(status: BluetoothHelper.INIT_STATUS) {
        when(status) {
            BluetoothHelper.INIT_STATUS.NotStart -> connectionState.value = ConnectionState.DISCONNECTED
            BluetoothHelper.INIT_STATUS.INITING -> connectionState.value = ConnectionState.CONNECTING
            BluetoothHelper.INIT_STATUS.INIT_END -> {
                // 自动搜索已配对设备
                searchPairedDevices()
            }
        }
    }

    private fun searchPairedDevices() {
        val bondedDevices = bluetoothHelper?.bondedDeviceMap?.values
        bondedDevices?.forEach { device ->
            if (device.name?.contains("Glasses", true) == true) {
                connectToDevice(device)
                return@forEach
            }
        }
        // 未找到已配对设备，开始扫描
        bluetoothHelper?.startScan()
    }

    private fun connectToDevice(device: BluetoothDevice) {
        CxrApi.getInstance().initBluetooth(context, device, object : BluetoothStatusCallback {
            override fun onConnectionInfo(
                socketUuid: String?,
                macAddress: String?,
                rokidAccount: String?,
                glassesType: Int
            ) {
                socketUuid?.let { uuid ->
                    macAddress?.let { address ->
                        Log.d("DeviceConnection", "Connecting with UUID: $uuid, MAC: $address")
                        establishConnection(uuid, address)
                    }
                }
            }

            override fun onConnected() {
                connectionState.value = ConnectionState.BLUETOOTH_CONNECTED
                Log.d("DeviceConnection", "Bluetooth connected successfully")
                // 蓝牙连接成功后初始化WiFi
                initWifiConnection()
            }

            override fun onDisconnected() {
                connectionState.value = ConnectionState.DISCONNECTED
                Log.w("DeviceConnection", "Bluetooth disconnected, attempting reconnect")
                // 尝试重连
                Handler(Looper.getMainLooper()).postDelayed({
                    connectToDevice(device)
                }, 3000)
            }

            override fun onFailed(errorCode: ValueUtil.CxrBluetoothErrorCode?) {
                connectionState.value = ConnectionState.ERROR
                Log.e("DeviceConnection", "Connection failed: ${errorCode?.name}")
                // 错误处理与用户提示
                ErrorHandler.handleBluetoothError(context, errorCode)
            }
        })
    }

    private fun establishConnection(socketUuid: String, macAddress: String) {
        CxrApi.getInstance().connectBluetooth(context, socketUuid, macAddress, object : BluetoothStatusCallback {
            override fun onConnectionInfo(
                socketUuid: String?,
                macAddress: String?,
                rokidAccount: String?,
                glassesType: Int
            ) {
                // 保存连接信息
                PreferencesManager.saveConnectionInfo(context, socketUuid, macAddress, rokidAccount, glassesType)
            }

            override fun onConnected() {
                // 连接成功
            }

            override fun onDisconnected() {
                // 处理断开
            }

            override fun onFailed(errorCode: ValueUtil.CxrBluetoothErrorCode?) {
                // 处理失败
            }
        })
    }

    private fun initWifiConnection() {
        if (!isWifiInitialized) {
            val status = CxrApi.getInstance().initWifiP2P(object : WifiP2PStatusCallback {
                override fun onConnected() {
                    isWifiInitialized = true
                    connectionState.value = ConnectionState.FULL_CONNECTED
                    Log.d("DeviceConnection", "WiFi P2P connected successfully")
                    // 通知系统完全连接
                    EventBus.getDefault().post(DeviceConnectedEvent(true))
                }

                override fun onDisconnected() {
                    Log.w("DeviceConnection", "WiFi P2P disconnected")
                    // 不直接改变整体状态，保持蓝牙连接
                }

                override fun onFailed(errorCode: ValueUtil.CxrWifiErrorCode?) {
                    Log.e("DeviceConnection", "WiFi P2P failed: ${errorCode?.name}")
                    ErrorHandler.handleWifiError(context, errorCode)
                    // WiFi失败不影响基础功能
                    connectionState.value = ConnectionState.BLUETOOTH_CONNECTED
                }
            })

            if (status == ValueUtil.CxrStatus.REQUEST_FAILED) {
                Log.e("DeviceConnection", "WiFi initialization failed immediately")
                connectionState.value = ConnectionState.BLUETOOTH_CONNECTED
            }
        }
    }

    fun observeConnectionState(): LiveData<ConnectionState> {
        return connectionState
    }

    fun disconnect() {
        CxrApi.getInstance().deinitBluetooth()
        if (isWifiInitialized) {
            CxrApi.getInstance().deinitWifiP2P()
            isWifiInitialized = false
        }
        connectionState.value = ConnectionState.DISCONNECTED
    }

    companion object {
        @Volatile private var instance: DeviceConnectionManager? = null
        fun getInstance(context: Context): DeviceConnectionManager {
            return instance ?: synchronized(this) {
                instance ?: DeviceConnectionManager(context).also { instance = it }
            }
        }
    }
}

4.2 语音交互与AI助手集成

语音识别是儿童识字应用的关键功能。我们利用Rokid的AI助手场景，构建了一套完整的语音交互系统：

class SpeechRecognitionManager(private val context: Context) {
    private var isRecording = false
    private val audioStreamListener = object : AudioStreamListener {
        override fun onStartAudioStream(codecType: Int, streamType: String?) {
            Log.d("SpeechRecognition", "Audio stream started: $streamType, codec: $codecType")
        }

        override fun onAudioStream(data: ByteArray?, offset: Int, length: Int) {
            if (data != null && length > 0) {
                // 将音频数据发送到语音识别服务
                SpeechService.processAudioChunk(data, offset, length)
            }
        }
    }

    fun startListening() {
        if (isRecording) return

        isRecording = true
        CxrApi.getInstance().setAudioStreamListener(audioStreamListener)
        val status = CxrApi.getInstance().openAudioRecord(2, "word_learning") // OPUS codec

        if (status != ValueUtil.CxrStatus.REQUEST_SUCCEED) {
            Log.e("SpeechRecognition", "Failed to start audio recording: $status")
            isRecording = false
            return
        }

        // 通知眼镜端开始语音识别
        CxrApi.getInstance().sendAsrContent("start_listening")
        EventBus.getDefault().post(SpeechStateEvent(true))
    }

    fun stopListening() {
        if (!isRecording) return

        isRecording = false
        CxrApi.getInstance().closeAudioRecord("word_learning")
        CxrApi.getInstance().setAudioStreamListener(null)
        CxrApi.getInstance().notifyAsrEnd()
        EventBus.getDefault().post(SpeechStateEvent(false))
    }

    fun handleRecognitionResult(result: String, isFinal: Boolean) {
        if (isFinal) {
            // 处理最终识别结果
            processFinalResult(result)
            CxrApi.getInstance().sendAsrContent(result)
        } else {
            // 发送中间结果到眼镜端
            CxrApi.getInstance().sendAsrContent(result)
        }
    }

    private fun processFinalResult(recognizedText: String) {
        // 1. 清理文本
        val cleanText = recognizedText.trim().replace("[^\\p{Han}\\w\\s]".toRegex(), "")

        // 2. 分析识字内容
        val wordAnalysis = WordAnalyzer.analyze(cleanText)

        // 3. 更新学习进度
        LearningProgressManager.updateProgress(wordAnalysis)

        // 4. 生成反馈
        val feedback = generateFeedback(wordAnalysis)

        // 5. 通过TTS反馈给儿童
        sendTtsFeedback(feedback)
    }

    private fun generateFeedback(analysis: WordAnalysis): String {
        return when {
            analysis.newWords.isNotEmpty() -> {
                "太棒了！你刚刚说了新字：${analysis.newWords.joinToString("、")}。这些字的意思是${analysis.newWords.map { WordDatabase.getMeaning(it) }.joinToString("、")}。"
            }
            analysis.knownWords.isNotEmpty() -> {
                "你记得${analysis.knownWords.joinToString("、")}这些字，真厉害！要不要学一些新的字？"
            }
            else -> "我好像没听清楚，能再说一遍吗？"
        }
    }

    private fun sendTtsFeedback(content: String) {
        CxrApi.getInstance().sendTtsContent(content)

        // 设置TTS完成监听
        Handler(Looper.getMainLooper()).postDelayed({
            CxrApi.getInstance().notifyTtsAudioFinished()
        }, estimateTtsDuration(content))
    }

    private fun estimateTtsDuration(text: String): Long {
        // 简单估算TTS时长（每秒约5个汉字）
        return (text.length / 5.0 * 1000).toLong() + 500 // 额外500ms缓冲
    }

    fun handleRecognitionError(errorType: String) {
        when(errorType) {
            "NO_NETWORK" -> CxrApi.getInstance().notifyNoNetwork()
            "UPLOAD_ERROR" -> CxrApi.getInstance().notifyPicUploadError()
            else -> CxrApi.getInstance().notifyAiError()
        }
        // 提供视觉反馈
        ErrorHandler.showSpeechError(context, errorType)
    }

    companion object {
        @Volatile private var instance: SpeechRecognitionManager? = null
        fun getInstance(context: Context): SpeechRecognitionManager {
            return instance ?: synchronized(this) {
                instance ?: SpeechRecognitionManager(context).also { instance = it }
            }
        }
    }
}

4.3 AR内容动态生成与展示

AR内容生成是应用的核心，我们设计了一套动态内容生成系统，根据学习进度和用户交互实时调整AR展示：

class ArContentManager {
    private val contentCache = mutableMapOf<String, ArContent>()
    private val animationController = AnimationController()

    data class ArContent(
        val word: String,
        val wordType: WordType,
        val visualAssets: List<VisualAsset>,
        val audioAssets: List<AudioAsset>,
        val interactionType: InteractionType,
        val learningObjectives: List<String>
    )

    enum class WordType {
        NOUN, VERB, ADJECTIVE, ADVERB, PREPOSITION, NUMBER
    }

    enum class InteractionType {
        TAP_ONLY, VOICE_COMMAND, GESTURE_DRAG, MULTI_STEP_CHALLENGE
    }

    data class VisualAsset(
        val assetType: AssetType,
        val resourceId: String,
        val animationParams: Map<String, Any>? = null,
        val scale: Float = 1.0f,
        val position: Position = Position(0f, 0f, 0f)
    )

    enum class AssetType {
        MESH_3D, SPRITE_2D, TEXT_OVERLAY, PARTICLE_SYSTEM
    }

    data class Position(val x: Float, val y: Float, val z: Float)

    fun generateContentForWord(word: String, difficulty: Int): ArContent {
        // 检查缓存
        contentCache[word]?.let { return it }

        // 1. 获取字的基本信息
        val wordInfo = WordDatabase.getWordInfo(word)

        // 2. 根据字类型生成视觉资产
        val visualAssets = generateVisualAssets(wordInfo, difficulty)

        // 3. 生成音频资产
        val audioAssets = generateAudioAssets(wordInfo)

        // 4. 确定交互类型
        val interactionType = determineInteractionType(wordInfo, difficulty)

        // 5. 创建AR内容
        val content = ArContent(
            word = word,
            wordType = wordInfo.wordType,
            visualAssets = visualAssets,
            audioAssets = audioAssets,
            interactionType = interactionType,
            learningObjectives = wordInfo.objectives
        )

        // 缓存内容
        contentCache[word] = content
        return content
    }

    private fun generateVisualAssets(wordInfo: WordInfo, difficulty: Int): List<VisualAsset> {
        val assets = mutableListOf<VisualAsset>()

        // 主3D模型
        val mainModel = VisualAsset(
            assetType = AssetType.MESH_3D,
            resourceId = "model_${wordInfo.word}",
            animationParams = mapOf(
                "loop" to true,
                "animation" to "idle",
                "scale" to 1.2f
            ),
            position = Position(0f, -0.5f, -2f)
        )
        assets.add(mainModel)

        // 文字标识
        val textOverlay = VisualAsset(
            assetType = AssetType.TEXT_OVERLAY,
            resourceId = "text_${wordInfo.word}",
            animationParams = mapOf(
                "fontSize" to if(difficulty < 3) 48 else 36,
                "color" to "#FFFFFFFF",
                "background" to if(difficulty < 2) "#88000000" else "none"
            ),
            position = Position(0f, 0.8f, -1.5f)
        )
        assets.add(textOverlay)

        // 根据难度添加辅助元素
        if (difficulty <= 2) {
            // 为初学者添加拼音
            val pinyinOverlay = VisualAsset(
                assetType = AssetType.TEXT_OVERLAY,
                resourceId = "pinyin_${wordInfo.pinyin}",
                animationParams = mapOf(
                    "fontSize" to 24,
                    "color" to "#FFAAAAAA"
                ),
                position = Position(0f, 0.6f, -1.5f)
            )
            assets.add(pinyinOverlay)
        }

        if (difficulty >= 3) {
            // 为高阶学习者添加例句
            val exampleOverlay = VisualAsset(
                assetType = AssetType.TEXT_OVERLAY,
                resourceId = "example_${wordInfo.exampleSentence}",
                animationParams = mapOf(
                    "fontSize" to 28,
                    "color" to "#FFDDDDDD",
                    "wrap" to true,
                    "maxWidth" to "80%"
                ),
                position = Position(0f, -0.7f, -1.2f)
            )
            assets.add(exampleOverlay)
        }

        return assets
    }

    private fun generateAudioAssets(wordInfo: WordInfo): List<AudioAsset> {
        return listOf(
            AudioAsset("pronunciation", "audio_${wordInfo.word}_pronunciation"),
            AudioAsset("meaning", "audio_${wordInfo.word}_meaning"),
            AudioAsset("example", "audio_${wordInfo.word}_example")
        )
    }

    private fun determineInteractionType(wordInfo: WordInfo, difficulty: Int): InteractionType {
        return when {
            difficulty <= 1 -> InteractionType.TAP_ONLY
            difficulty == 2 -> InteractionType.VOICE_COMMAND
            difficulty == 3 -> InteractionType.GESTURE_DRAG
            else -> InteractionType.MULTI_STEP_CHALLENGE
        }
    }

    fun serializeForGlasses(content: ArContent): String {
        // 将AR内容序列化为JSON，用于发送到眼镜端
        return Gson().toJson(mapOf(
            "word" to content.word,
            "type" to content.wordType.name.lowercase(),
            "visual_assets" to content.visualAssets.map { asset ->
                mapOf(
                    "type" to asset.assetType.name.lowercase(),
                    "resource" to asset.resourceId,
                    "position" to mapOf("x" to asset.position.x, "y" to asset.position.y, "z" to asset.position.z),
                    "params" to asset.animationParams
                )
            },
            "interaction" to content.interactionType.name.lowercase()
        ))
    }

    companion object {
        @Volatile private var instance: ArContentManager? = null
        fun getInstance(): ArContentManager {
            return instance ?: synchronized(this) {
                instance ?: ArContentManager().also { instance = it }
            }
        }
    }

    // 内部类定义
    data class AudioAsset(val type: String, val resourceId: String)
    data class WordInfo(
        val word: String,
        val pinyin: String,
        val wordType: WordType,
        val meaning: String,
        val exampleSentence: String,
        val objectives: List<String>
    )
}

5. 多媒体资源管理与同步

5.1 图片与3D资源上传

Rokid眼镜的资源管理需要特别注意性能优化。我们设计了一套资源预加载和按需传输机制：

class ResourceManager(private val context: Context) {
    private val resourceCache = mutableMapOf<String, ResourceInfo>()
    private val uploadQueue = LinkedList<ResourceInfo>()
    private var isUploading = false

    data class ResourceInfo(
        val id: String,
        val type: ResourceType,
        val localPath: String,
        val fileSize: Long,
        val lastModified: Long,
        var uploadStatus: UploadStatus = UploadStatus.PENDING
    )

    enum class ResourceType {
        IMAGE, AUDIO, VIDEO, MESH, TEXTURE, FONT
    }

    enum class UploadStatus {
        PENDING, UPLOADING, COMPLETED, FAILED
    }

    fun preloadResources(wordList: List<String>) {
        // 预加载常用资源
        wordList.forEach { word ->
            val resources = getResourceListForWord(word)
            resources.forEach { resource ->
                if (!resourceCache.containsKey(resource.id)) {
                    resourceCache[resource.id] = resource
                }
                if (resource.uploadStatus == UploadStatus.PENDING) {
                    uploadQueue.add(resource)
                }
            }
        }
        processUploadQueue()
    }

    private fun getResourceListForWord(word: String): List<ResourceInfo> {
        // 从本地资源目录获取该字相关的所有资源
        val resources = mutableListOf<ResourceInfo>()

        // 1. 3D模型
        val modelPath = "assets/models/$word.glb"
        if (FileUtils.exists(context, modelPath)) {
            resources.add(ResourceInfo(
                id = "model_$word",
                type = ResourceType.MESH,
                localPath = modelPath,
                fileSize = FileUtils.getFileSize(context, modelPath),
                lastModified = FileUtils.getLastModified(context, modelPath)
            ))
        }

        // 2. 图标
        val iconPath = "assets/icons/$word.png"
        if (FileUtils.exists(context, iconPath)) {
            resources.add(ResourceInfo(
                id = "icon_$word",
                type = ResourceType.IMAGE,
                localPath = iconPath,
                fileSize = FileUtils.getFileSize(context, iconPath),
                lastModified = FileUtils.getLastModified(context, iconPath)
            ))
        }

        // 3. 音频
        val audioPath = "assets/audio/$word.ogg"
        if (FileUtils.exists(context, audioPath)) {
            resources.add(ResourceInfo(
                id = "audio_$word",
                type = ResourceType.AUDIO,
                localPath = audioPath,
                fileSize = FileUtils.getFileSize(context, audioPath),
                lastModified = FileUtils.getLastModified(context, audioPath)
            ))
        }

        return resources
    }

    private fun processUploadQueue() {
        if (isUploading || uploadQueue.isEmpty()) return

        isUploading = true
        val resource = uploadQueue.poll() ?: return

        // 读取文件内容
        val fileData = FileUtils.readFileBytes(context, resource.localPath)
        if (fileData == null) {
            resource.uploadStatus = UploadStatus.FAILED
            isUploading = false
            processUploadQueue()
            return
        }

        // 确定传输类型
        val streamType = when(resource.type) {
            ResourceType.IMAGE -> ValueUtil.CxrStreamType.CUSTOM_ICON
            ResourceType.AUDIO -> ValueUtil.CxrStreamType.AUDIO_RESOURCE
            ResourceType.MESH -> ValueUtil.CxrStreamType.CUSTOM_MODEL
            else -> ValueUtil.CxrStreamType.CUSTOM_DATA
        }

        // 上传资源
        val status = CxrApi.getInstance().sendStream(
            streamType,
            fileData,
            resource.id,
            object : SendStatusCallback {
                override fun onSendSucceed() {
                    resource.uploadStatus = UploadStatus.COMPLETED
                    Log.d("ResourceManager", "Resource ${resource.id} uploaded successfully")
                    continueUploadProcess()
                }

                override fun onSendFailed(errorCode: ValueUtil.CxrSendErrorCode?) {
                    resource.uploadStatus = UploadStatus.FAILED
                    Log.e("ResourceManager", "Failed to upload ${resource.id}: ${errorCode?.name}")
                    ErrorHandler.handleResourceUploadError(context, errorCode, resource)
                    continueUploadProcess()
                }
            }
        )

        if (status != ValueUtil.CxrStatus.REQUEST_SUCCEED) {
            resource.uploadStatus = UploadStatus.FAILED
            continueUploadProcess()
        }
    }

    private fun continueUploadProcess() {
        isUploading = false
        // 延迟处理下一个资源，避免堵塞
        Handler(Looper.getMainLooper()).postDelayed({
            processUploadQueue()
        }, 100)
    }

    fun cleanupUnusedResources() {
        // 清理超过30天未使用的资源
        val currentTime = System.currentTimeMillis()
        val unusedResources = resourceCache.filterValues {
            it.uploadStatus == UploadStatus.COMPLETED &&
            (currentTime - it.lastModified) > 30 * 24 * 3600 * 1000
        }

        unusedResources.forEach { (id, _) ->
            // 发送删除命令到眼镜
            val deleteCommand = """{"command":"delete_resource","resource_id":"$id"}"""
            CxrApi.getInstance().sendStream(
                ValueUtil.CxrStreamType.CUSTOM_COMMAND,
                deleteCommand.toByteArray(),
                "delete_cmd_$id",
                object : SendStatusCallback {
                    override fun onSendSucceed() {
                        resourceCache.remove(id)
                        Log.d("ResourceManager", "Resource $id deleted from glasses")
                    }

                    override fun onSendFailed(errorCode: ValueUtil.CxrSendErrorCode?) {
                        Log.e("ResourceManager", "Failed to delete resource $id: ${errorCode?.name}")
                    }
                }
            )
        }
    }

    companion object {
        @Volatile private var instance: ResourceManager? = null
        fun getInstance(context: Context): ResourceManager {
            return instance ?: synchronized(this) {
                instance ?: ResourceManager(context).also { instance = it }
            }
        }
    }
}

5.2 媒体文件同步策略

为了确保学习过程不被网络问题打断，我们实现了智能同步策略，根据学习进度和网络状态自动调整同步内容：

同步策略	触发条件	同步内容	优先级	网络要求
预加载同步	应用启动/切换学习单元	当前级别核心字资源	高	WiFi或移动数据
按需同步	用户选择特定字	该字的完整AR内容	中	WiFi优先
批量同步	夜间充电时	下一学习单元内容	低	仅WiFi
增量同步	资源更新	仅修改部分	高	任何网络
紧急同步	资源损坏/丢失	关键资源	最高	任何网络

6. 家长控制与学习分析系统

6.1 家长监控与内容过滤

儿童应用必须具备强大的家长控制功能。我们集成了一套多层级家长控制系统：

class ParentalControlManager {
    private var contentFilterLevel = ContentFilterLevel.STANDARD
    private val blockedWords = mutableSetOf<String>()
    private var usageTimeLimit = 60 // 默认60分钟/天

    enum class ContentFilterLevel {
        STRICT, STANDARD, RELAXED
    }

    data class UsageReport(
        val date: LocalDate,
        val totalTime: Int, // 分钟
        val wordsLearned: Int,
        val engagementScore: Float,
        val areasOfStrength: List<String>,
        val areasForImprovement: List<String>
    )

    fun setContentFilterLevel(level: ContentFilterLevel) {
        contentFilterLevel = level
        PreferencesManager.saveContentFilterLevel(level)
    }

    fun addBlockedWord(word: String) {
        blockedWords.add(word.toLowerCase())
        PreferencesManager.saveBlockedWords(blockedWords.toList())
    }

    fun removeBlockedWord(word: String) {
        blockedWords.remove(word.toLowerCase())
        PreferencesManager.saveBlockedWords(blockedWords.toList())
    }

    fun setUsageTimeLimit(minutes: Int) {
        usageTimeLimit = max(15, minutes) // 最少15分钟
        PreferencesManager.saveUsageTimeLimit(usageTimeLimit)
    }

    fun checkContentSafety(content: String): Boolean {
        return when(contentFilterLevel) {
            ContentFilterLevel.STRICT -> {
                // 严格过滤，检查所有潜在不适当内容
                ContentSafetyChecker.isContentSafeStrict(content, blockedWords)
            }
            ContentFilterLevel.STANDARD -> {
                // 标准过滤，使用预定义的儿童安全词库
                ContentSafetyChecker.isContentSafeStandard(content)
            }
            ContentFilterLevel.RELAXED -> {
                // 宽松过滤，仅检查明确不适当内容
                ContentSafetyChecker.isContentSafeRelaxed(content, blockedWords)
            }
        }
    }

    fun generateWeeklyReport(childId: String): UsageReport {
        // 从数据库获取一周的学习数据
        val weekData = LearningDatabase.getWeekData(childId)

        // 计算参与度分数
        val engagementScore = calculateEngagementScore(weekData)

        // 识别优势和改进领域
        val strengths = identifyStrengthAreas(weekData)
        val improvements = identifyImprovementAreas(weekData)

        return UsageReport(
            date = LocalDate.now().minusDays(7),
            totalTime = weekData.totalMinutes,
            wordsLearned = weekData.newWordsCount,
            engagementScore = engagementScore,
            areasOfStrength = strengths,
            areasForImprovement = improvements
        )
    }

    private fun calculateEngagementScore(data: WeekLearningData): Float {
        // 基于完成率、互动频率、学习时长等计算综合参与度
        val completionRate = data.completedLessons.toFloat() / max(1, data.totalLessons)
        val interactionRate = data.totalInteractions.toFloat() / max(1, data.totalMinutes * 2)
        val retentionRate = data.retainedWords.toFloat() / max(1, data.newWordsCount)

        return (completionRate * 0.4f + interactionRate * 0.3f + retentionRate * 0.3f) * 100
    }

    fun enforceUsageLimit(currentSessionMinutes: Int): Boolean {
        return currentSessionMinutes >= usageTimeLimit
    }

    companion object {
        @Volatile private var instance: ParentalControlManager? = null
        fun getInstance(): ParentalControlManager {
            return instance ?: synchronized(this) {
                instance ?: ParentalControlManager().also { instance = it }
            }
        }
    }
}

7. 优化与性能调优

7.1 电池优化策略

AR应用对电池消耗较大，我们实施了多项优化措施：

1. 动态分辨率调整：根据内容复杂度自动调整渲染分辨率
2. 资源释放机制：离开场景时立即释放非关键资源
3. 后台处理限制：应用进入后台后暂停所有非必要处理
4. 网络请求批处理：合并多个网络请求，减少唤醒次数
5. 传感器采样率调整：根据交互需要动态调整传感器采样率

7.2 离线优先架构

为了应对不稳定的网络环境，特别是儿童可能在各种场所使用应用，我们采用离线优先架构：

class OfflineFirstManager {
    private val localDatabase = LearningDatabase.getInstance()
    private val syncQueue = mutableListOf<SyncItem>()
    private var isSyncing = false

    data class SyncItem(
        val type: SyncType,
        val data: Any,
        val timestamp: Long,
        var syncStatus: SyncStatus = SyncStatus.PENDING
    )

    enum class SyncType {
        LEARNING_PROGRESS, USER_PROFILE, CONTENT_UPDATE, ACHIEVEMENT
    }

    enum class SyncStatus {
        PENDING, SYNCING, COMPLETED, FAILED
    }

    fun recordLearningProgress(word: String, masteryLevel: Float, sessionId: String) {
        // 1. 立即保存到本地
        localDatabase.saveWordProgress(word, masteryLevel, sessionId)

        // 2. 准备同步
        val syncItem = SyncItem(
            type = SyncType.LEARNING_PROGRESS,
            data = mapOf(
                "word" to word,
                "mastery" to masteryLevel,
                "session" to sessionId,
                "timestamp" to System.currentTimeMillis()
            ),
            timestamp = System.currentTimeMillis()
        )
        addToSyncQueue(syncItem)
    }

    private fun addToSyncQueue(item: SyncItem) {
        synchronized(syncQueue) {
            // 检查是否已有相同类型的待同步项，避免重复
            val existing = syncQueue.find {
                it.type == item.type && it.syncStatus == SyncStatus.PENDING
            }

            if (existing != null) {
                // 更新现有项
                (existing.data as MutableMap<String, Any>?)?.putAll(item.data as Map<*, *>)
                existing.timestamp = System.currentTimeMillis()
            } else {
                syncQueue.add(item)
                // 只在WiFi连接时立即同步
                if (NetworkUtils.isWifiConnected()) {
                    startSyncProcess()
                }
            }
        }
    }

    fun startSyncProcess() {
        if (isSyncing || syncQueue.isEmpty() || !NetworkUtils.isConnected()) return

        isSyncing = true
        val itemToSync = synchronized(syncQueue) {
            syncQueue.firstOrNull { it.syncStatus == SyncStatus.PENDING }
        } ?: run {
            isSyncing = false
            return
        }

        itemToSync.syncStatus = SyncStatus.SYNCING

        CloudSyncService.syncItem(itemToSync, object : SyncCallback {
            override fun onSuccess() {
                itemToSync.syncStatus = SyncStatus.COMPLETED
                removeFromSyncQueue(itemToSync)
                continueSyncProcess()
            }

            override fun onFailure(error: Throwable) {
                itemToSync.syncStatus = SyncStatus.FAILED
                // 失败后重试次数增加
                itemToSync.timestamp = System.currentTimeMillis() + 60000 // 1分钟后重试
                isSyncing = false
            }
        })
    }

    private fun removeFromSyncQueue(item: SyncItem) {
        synchronized(syncQueue) {
            syncQueue.remove(item)
        }
    }

    private fun continueSyncProcess() {
        isSyncing = false
        Handler(Looper.getMainLooper()).postDelayed({
            startSyncProcess()
        }, 500)
    }

    fun forceSyncAll() {
        // 强制同步所有待同步项，用于用户手动触发
        syncQueue.filter { it.syncStatus != SyncStatus.COMPLETED }.forEach {
            it.syncStatus = SyncStatus.PENDING
        }
        startSyncProcess()
    }

    companion object {
        @Volatile private var instance: OfflineFirstManager? = null
        fun getInstance(): OfflineFirstManager {
            return instance ?: synchronized(this) {
                instance ?: OfflineFirstManager().also { instance = it }
            }
        }
    }
}

8. 未来展望：AR教育的下一个十年

随着Rokid等AR技术的持续演进，儿童教育将迎来革命性变革。我们预见五个关键发展方向：

1. 情感智能AR：系统能够感知儿童情绪状态，动态调整学习难度和反馈方式
2. 多感官学习：结合触觉反馈、气味模拟等技术，创造全方位沉浸式学习体验
3. 自适应内容生成：AI根据每个儿童的学习风格和进度，实时生成个性化学习内容
4. 社交协作AR：允许多名儿童在同一AR空间中协作学习，培养社交能力
5. 跨设备无缝体验：在眼镜、平板、智能玩具等设备间无缝切换，打造统一学习生态

Rokid CXR-M SDK的持续进化将为这些创新提供基础。未来版本可能会增加眼动追踪支持、手势识别增强、空间音频等特性，进一步模糊虚拟与现实的界限，让儿童在魔法般的学习环境中自然成长。

9. 结语：科技赋能下一代

AR识字游戏不仅是技术的展示，更是教育理念的革新。通过Rokid CXR-M SDK，我们能够将抽象的文字转化为儿童可以触摸、互动、理解的具象体验，让学习变成一场充满惊喜的探索之旅。

在开发过程中，我们始终牢记：技术服务于教育，而非相反。每一个功能设计、每一行代码实现，都应以儿童的认知发展和学习需求为中心。AR技术的价值不在于炫目的效果，而在于它如何帮助儿童建立与世界的连接，培养终身学习的热情。

正如一位教育专家所言："我们不是在培养儿童使用技术，而是使用技术培养儿童。"在AR与教育融合的新时代，开发者肩负着双重责任：创造卓越的技术体验，守护纯真的童年时光。这正是《AR魔法识字屋》的核心理念，也是我们对未来教育科技的承诺。
