在企业CRM系统中引入AI能力时，如何平衡效率与安全？本文将分享基于火山引擎云原生服务，构建可观测、可控制、可审计的AI安全架构实践经验。

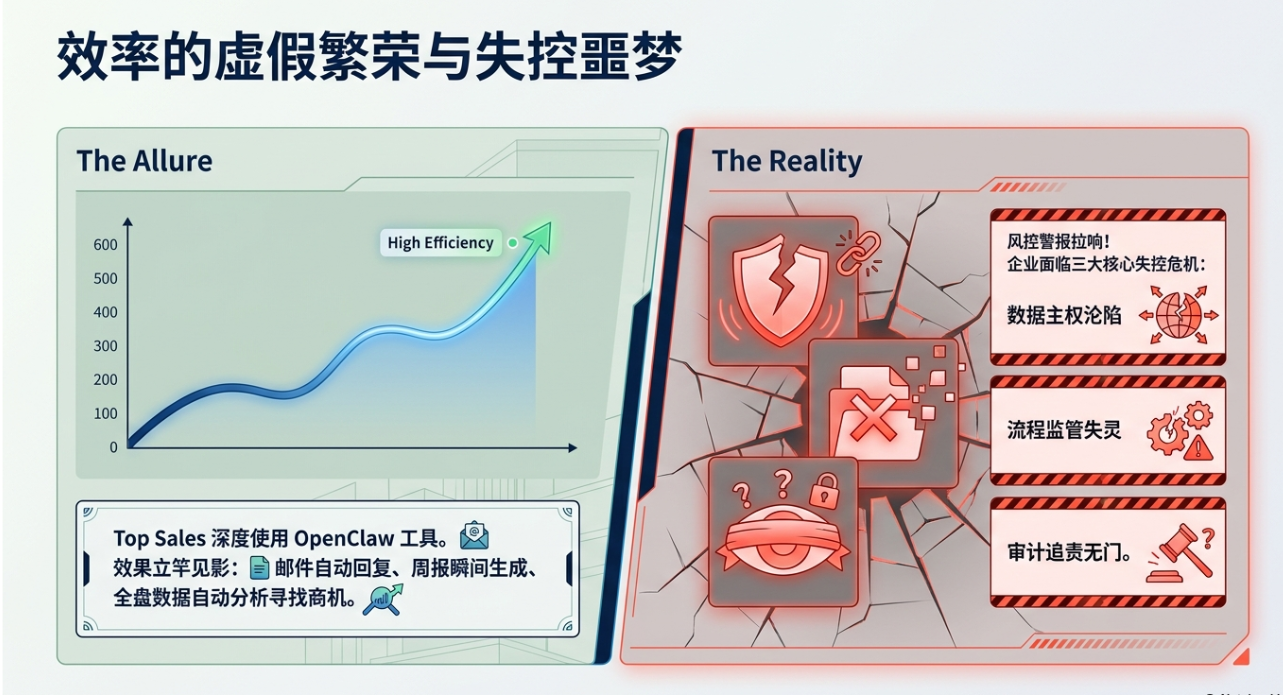

背景：AI工具滥用引发的企业安全危机
2026年初，某大型企业遭遇客户数据泄露事件。调查发现，销售人员普遍使用的OpenClaw工具，在后台无差别上传了包含客户联系信息、历史报价、合同条款等敏感数据。事件的核心矛盾在于：个人效率工具的设计逻辑与企业级安全需求存在根本性冲突。
在火山引擎服务的企业客户中，我们发现超过60%的企业面临类似的AI安全挑战。本文将通过一个真实的CRM系统改造案例，分享如何利用火山引擎云原生服务，构建完整的企业级AI安全防护体系。

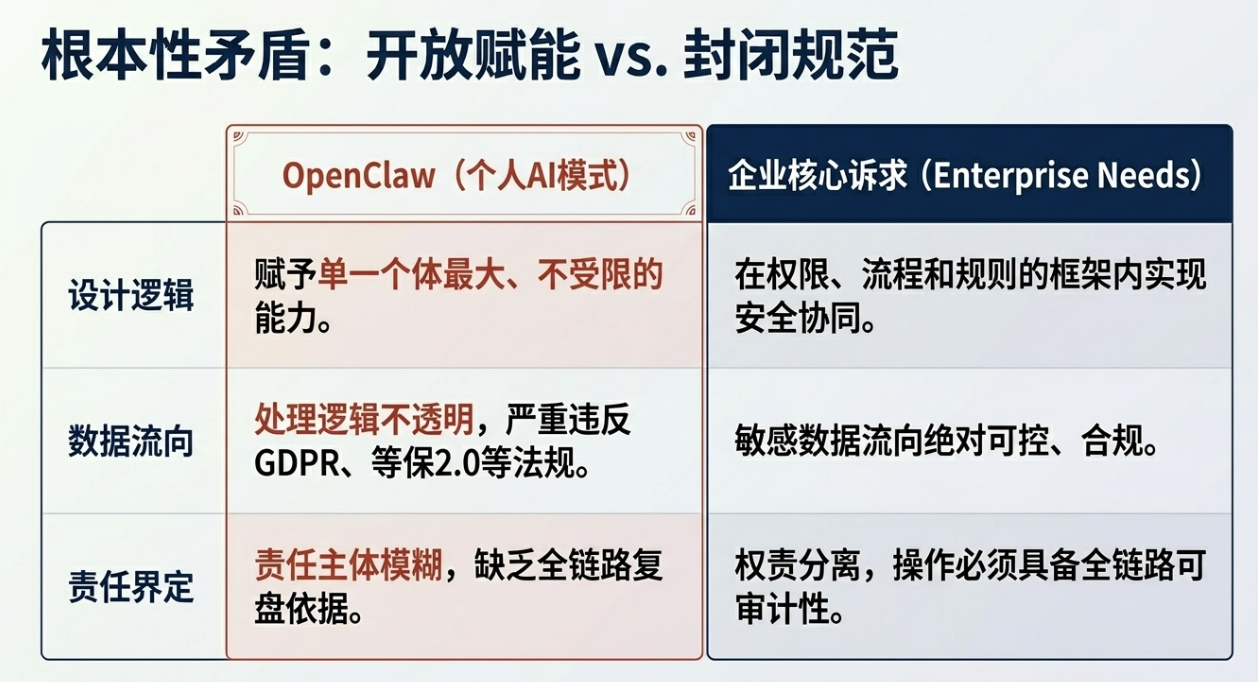

一、 需求分析：企业级AI CRM的四大安全诉求
1.1 安全边界定义
在火山引擎的安全实践中，我们将企业AI安全需求归纳为四个核心维度：
数据主权控制：AI在处理业务数据时，必须遵循最小权限原则，敏感字段对AI应不可见
流程合规嵌入：AI操作需强制通过企业的业务规则和审批流程
能力精细管控：不同角色应有差异化的AI能力授权
操作全程可溯：从AI决策到执行的完整链路必须可审计
1.2 技术挑战
# 典型的不安全AI调用模式
unsafe_ai_integration:
data_access: "full_access" # 全量数据暴露
permission_check: "none" # 无权限验证
workflow_bypass: true # 绕过审批流程
audit_logging: "partial" # 部分日志记录
risk_control: "reactive" # 事后响应

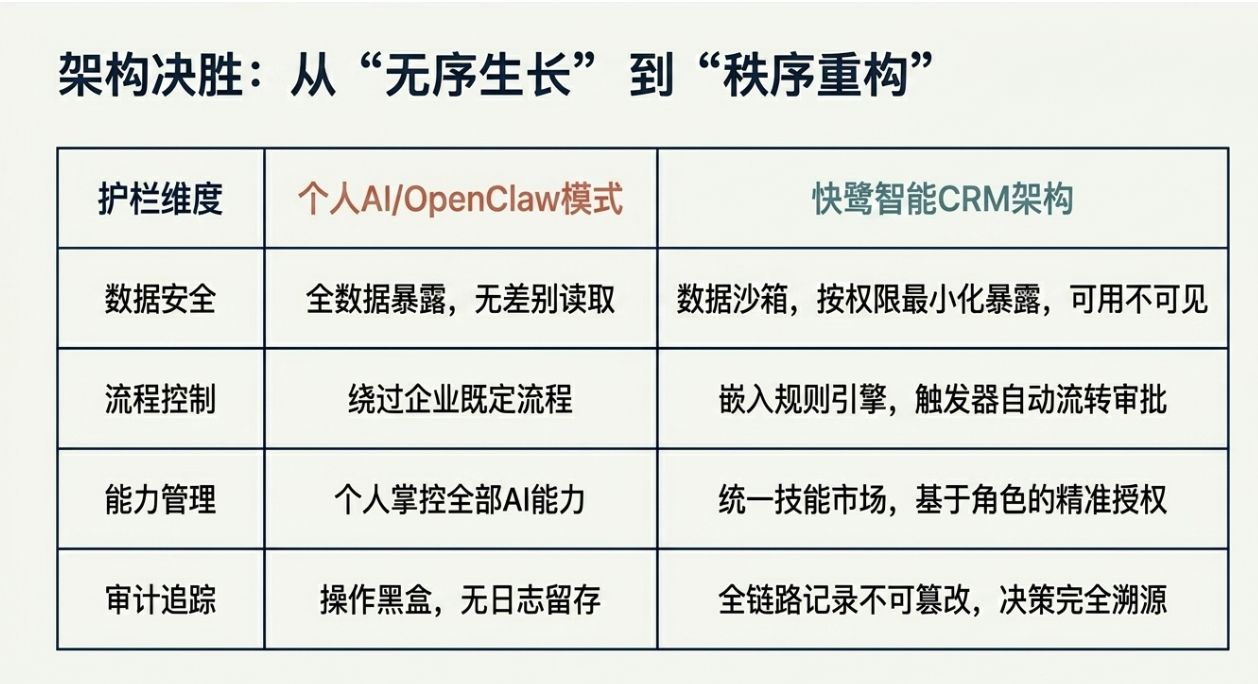

二、 架构设计：基于火山引擎的“四重AI护栏”
2.1 整体架构
我们设计的分层防御架构，充分利用火山引擎的云原生服务能力：
graph TB
A[客户端请求] --> B[API网关]
B --> C[AI安全网关]
subgraph "AI安全护栏"
C --> D[数据安全护栏]
D --> E[流程合规护栏]
E --> F[技能管理护栏]
F --> G[审计追溯护栏]
end
D --> H[火山引擎ByteHouse]
E --> I[火山引擎Function Compute]
F --> J[火山引擎IAM]
G --> K[火山引擎TOS + TLS]
H --> L[AI模型服务]
I --> L
J --> L
L --> M[响应处理]
M --> N[客户端]
2.2 火山引擎服务选型
核心服务栈：
├── 计算层
│ ├── 容器服务 VKE - AI模型部署
│ ├── 函数计算 FunctionCompute - 规则引擎
│ └── 弹性容器实例 VCI - 临时计算
├── 数据层
│ ├── 云数据库 veDB - 权限配置
│ ├── 云原生数据仓库 ByteHouse - 审计日志
│ ├── 表格存储 TOS - 大文件存储
│ └── 云搜索服务 CloudSearch - 日志分析
├── 安全层
│ ├── 访问控制 IAM - 权限管理
│ ├── 密钥管理服务 KMS - 数据加密
│ └── 安全运营中心 SOC - 威胁检测
└── 可观测层
├── 应用观测平台 APMPlus - 链路追踪
├── 日志服务 TLS - 审计日志
└── 云监控 CloudMonitor - 指标监控
三、 第一重护栏：数据安全实现
3.1 基于ByteHouse的实时数据脱敏
-- 在ByteHouse中创建安全的AI数据视图
CREATE VIEW secure_customer_view_for_ai
ENGINE = MergeTree
ORDER BY customer_id
AS
SELECT
customer_id,
customer_name,
-- 敏感字段脱敏处理
CASE
WHEN getSetting('ai_user_role') IN ('admin', 'manager')
THEN customer_email
ELSE maskEmail(customer_email)
END as customer_email,
-- 成本字段对AI隐藏
NULL as product_cost,
-- 金额字段分桶处理
CASE
WHEN total_amount > 100000 THEN 'A类客户'
WHEN total_amount > 50000 THEN 'B类客户'
ELSE 'C类客户'
END as customer_level,
-- 行为特征向量
toFloat32Array(behavior_features) as behavior_embedding,
-- 审计字段
ai_access_time
FROM customer_360_table
WHERE ai_access_allowed = 1
SETTINGS
-- 利用ByteHouse的查询限制
max_memory_usage_for_user = '10G',
max_execution_time = 30;
3.2 基于函数计算的动态权限检查
# 使用FunctionCompute实现实时数据过滤
import json
import volcengine_ml_platform as mlp
from volcengine.vod.VodService import VodService
def data_filter_handler(event, context):
"""
火山引擎FunctionCompute处理AI数据请求
"""
# 解析请求
request_data = json.loads(event.body)
user_id = request_data.get('user_id')
ai_context = request_data.get('ai_context')
raw_data = request_data.get('data')
# 从IAM获取用户权限
iam_client = mlp.IAMClient()
user_permissions = iam_client.get_user_permissions(user_id)
# 应用字段级过滤规则
filtered_data = apply_field_filtering(
raw_data,
user_permissions,
ai_context
)
# 记录数据访问日志到TLS
log_data_access(
user_id=user_id,
ai_context=ai_context,
accessed_fields=get_accessed_fields(raw_data),
data_source='customer_db'
)
return {
'statusCode': 200,
'body': json.dumps({
'filtered_data': filtered_data,
'audit_id': context.request_id
})
}
def apply_field_filtering(data, permissions, context):
"""基于权限配置过滤数据字段"""
filtered = {}
for field, value in data.items():
field_config = permissions.get_field_config(field, context)
if field_config and field_config.get('ai_accessible'):
# 根据敏感度级别应用不同脱敏策略
sensitivity = field_config.get('sensitivity_level', 1)
if sensitivity >= 4:
filtered[field] = '[CONFIDENTIAL]'
elif sensitivity >= 2:
filtered[field] = apply_masking(value, field_config)
else:
filtered[field] = value
return filtered
四、 第二重护栏：流程合规实现
4.1 基于VKE的业务规则引擎
# 规则引擎Kubernetes部署配置
apiVersion: apps/v1
kind: Deployment
metadata:
name: ai-rule-engine
namespace: crm-system
spec:
replicas: 3
selector:
matchLabels:
app: ai-rule-engine
template:
metadata:
labels:
app: ai-rule-engine
spec:
containers:
- name: rule-engine
image: registry.volces.com/crm/rule-engine:2.1.0
env:
- name: REDIS_HOST
value: "redis-master.redis.svc.cluster.local"
- name: BYTEHOUSE_ENDPOINT
value: "bytehouse.internal.volces.com"
- name: TLS_PROJECT
value: "crm-audit-logs"
resources:
requests:
cpu: "500m"
memory: "1Gi"
limits:
cpu: "2"
memory: "4Gi"
livenessProbe:
httpGet:
path: /health
port: 8080
initialDelaySeconds: 30
periodSeconds: 10
---
# 规则配置ConfigMap
apiVersion: v1
kind: ConfigMap
metadata:
name: ai-business-rules
namespace: crm-system
data:
discount_rules.yaml: |
rules:
- id: discount_limit_sales
condition: |
user.role == 'sales_rep' &&
operation.type == 'generate_quote' &&
quote.discount > 0.15
action: "require_approval"
approval_workflow: "manager_approval"
risk_level: "high"
- id: contract_clause_check
condition: |
operation.type == 'generate_contract' &&
contains(forbidden_clauses, contract.clauses)
action: "block"
message: "合同包含禁止条款"
4.2 实时风险预警系统
# 基于火山引擎流式计算的风险检测
from volcengine.stream.StreamService import StreamService
from volcengine.scenario.ScenarioService import ScenarioService
class AIOperationRiskDetector:
def __init__(self):
self.stream_client = StreamService()
self.scenario_client = ScenarioService()
def detect_anomalies(self, operation_event):
"""实时检测AI操作异常"""
anomalies = []
# 1. 频率异常检测
if self.detect_frequency_anomaly(operation_event):
anomalies.append({
'type': 'frequency_anomaly',
'score': 0.8,
'message': 'AI操作频率异常'
})
# 2. 数据访问模式异常
if self.detect_access_pattern_anomaly(operation_event):
anomalies.append({
'type': 'access_pattern_anomaly',
'score': 0.9,
'message': '数据访问模式异常'
})
# 3. 业务规则违背检测
rule_violations = self.check_business_rules(operation_event)
anomalies.extend(rule_violations)
# 高风险操作实时阻断
high_risk_anomalies = [
a for a in anomalies
if a.get('score', 0) > 0.7
]
if high_risk_anomalies:
self.block_operation(operation_event['operation_id'])
self.send_alert(high_risk_anomalies)
return anomalies
def detect_frequency_anomaly(self, event):
"""使用火山引擎流式计算检测操作频率"""
# 滑动窗口统计
query = f"""
SELECT
user_id,
COUNT(*) as operation_count,
WINDOW(start_time, '1 minute') as time_window
FROM ai_operation_stream
WHERE user_id = '{event['user_id']}'
GROUP BY user_id, time_window
HAVING operation_count > 10
"""
result = self.stream_client.execute_query(query)
return len(result) > 0
五、 第三重护栏：技能管理实现
5.1 基于火山引擎IAM的精细化权限控制
# AI技能权限管理服务
from volcengine.iam.IamService import IamService
class AISkillPermissionManager:
def __init__(self):
self.iam_client = IamService()
self.cache_client = self.init_redis_client()
def check_skill_permission(self, user_id, skill_id, context):
"""检查用户是否有权使用特定AI技能"""
cache_key = f"ai_skill_perm:{user_id}:{skill_id}:{context}"
# 缓存检查
cached_result = self.cache_client.get(cache_key)
if cached_result:
return json.loads(cached_result)
# IAM策略评估
iam_result = self.iam_client.evaluate_policy({
'principal': {'userId': user_id},
'action': f'crm:ai:execute:{skill_id}',
'resource': f'crm:ai:skill:{skill_id}',
'context': context
})
# 缓存结果
self.cache_client.setex(
cache_key,
300, # 5分钟缓存
json.dumps(iam_result)
)
return iam_result
def get_available_skills(self, user_id, context):
"""获取用户可用的AI技能列表"""
# 从ByteHouse查询技能配置
query = f"""
SELECT
s.skill_id,
s.skill_name,
s.description,
s.category,
s.daily_limit,
s.requires_approval,
COALESCE(up.enabled, 1) as enabled
FROM ai_skills s
LEFT JOIN user_skill_permissions up
ON s.skill_id = up.skill_id
AND up.user_id = '{user_id}'
WHERE s.status = 'active'
AND (up.enabled IS NULL OR up.enabled = 1)
AND (s.allowed_contexts IS NULL
OR s.allowed_contexts LIKE '%{context}%')
ORDER BY s.priority DESC
"""
skills = self.query_bytehouse(query)
# 过滤无权限的技能
available_skills = []
for skill in skills:
permission = self.check_skill_permission(
user_id, skill['skill_id'], context
)
if permission.get('allowed', False):
available_skills.append(skill)
return available_skills
六、 第四重护栏：审计追溯实现
6.1 基于TLS的全链路审计日志
# TLS日志采集配置
apiVersion: v1
kind: ConfigMap
metadata:
name: ai-audit-log-config
namespace: crm-system
data:
tls-config.yaml: |
inputs:
- type: file
log:
- /var/log/ai-operations/*.log
include_labels:
app: ai-service
processors:
- type: extract_json
fields: [request_id, user_id, operation, duration, status]
- type: add_fields
fields:
project: crm-ai-audit
log_type: ai_operation
outputs:
- type: tls
tls:
project_id: "your-project-id"
topic_id: "ai-operation-audit"
region: "cn-beijing"
6.2 审计日志查询分析
-- 在ByteHouse中分析AI操作日志
-- 1. 高风险操作统计
SELECT
DATE(start_time) as date,
user_role,
operation_type,
COUNT(*) as total_operations,
SUM(CASE WHEN risk_level = 'HIGH' THEN 1 ELSE 0 END) as high_risk_count,
SUM(CASE WHEN status = 'BLOCKED' THEN 1 ELSE 0 END) as blocked_count
FROM ai_operation_audit
WHERE start_time >= NOW() - INTERVAL 7 DAY
GROUP BY DATE(start_time), user_role, operation_type
ORDER BY date DESC, high_risk_count DESC;
-- 2. AI技能使用情况分析
SELECT
skill_id,
skill_name,
COUNT(*) as usage_count,
COUNT(DISTINCT user_id) as unique_users,
AVG(duration_ms) as avg_duration,
SUM(CASE WHEN status = 'ERROR' THEN 1 ELSE 0 END) as error_count
FROM ai_skill_usage_logs
WHERE usage_time >= NOW() - INTERVAL 30 DAY
GROUP BY skill_id, skill_name
ORDER BY usage_count DESC;
-- 3. 数据访问模式分析
SELECT
user_id,
table_name,
ARRAY_JOIN(accessed_fields, ', ') as fields_accessed,
COUNT(*) as access_count,
MIN(access_time) as first_access,
MAX(access_time) as last_access
FROM ai_data_access_logs
WHERE access_time >= NOW() - INTERVAL 1 DAY
GROUP BY user_id, table_name, accessed_fields
HAVING access_count > 10
ORDER BY access_count DESC;
七、 监控与告警配置
7.1 基于CloudMonitor的关键指标监控
# 监控告警规则配置
rules:
- alert: HighAIOperationErrorRate
expr: |
rate(ai_operation_errors_total[5m]) /
rate(ai_operations_total[5m]) * 100 > 5
for: 5m
labels:
severity: warning
annotations:
summary: "AI操作错误率超过5%"
description: |
当前AI操作错误率: {{ $value }}%
请检查AI服务状态和业务规则配置
- alert: UnauthorizedAIAccessDetected
expr: |
rate(ai_permission_denied_total[5m]) > 0
for: 2m
labels:
severity: critical
annotations:
summary: "检测到未授权的AI访问"
description: |
用户 {{ $labels.user_id }} 尝试访问未授权的AI技能
操作ID: {{ $labels.operation_id }}
- alert: DataAccessAnomaly
expr: |
ai_sensitive_data_access_total > 100
for: 1m
labels:
severity: critical
annotations:
summary: "敏感数据访问异常"
description: |
检测到异常的敏感数据访问模式
用户: {{ $labels.user_id }}
访问表: {{ $labels.table_name }}
7.2 可观测性仪表板
# 使用火山引擎APMPlus构建可观测性仪表板
from volcengine.apmplus.APMPlusService import APMPlusService
def create_ai_security_dashboard():
"""创建AI安全监控仪表板"""
apm_client = APMPlusService()
dashboard_config = {
'title': 'AI CRM安全监控',
'widgets': [
{
'type': 'timeseries',
'title': 'AI操作成功率',
'queries': [
{
'query': '''
rate(ai_operations_success_total[5m]) /
rate(ai_operations_total[5m]) * 100
''',
'legend': '成功率'
}
],
'thresholds': [
{'value': 95, 'color': 'green'},
{'value': 90, 'color': 'yellow'},
{'value': 85, 'color': 'red'}
]
},
{
'type': 'stat',
'title': '实时AI操作数',
'queries': [
{
'query': 'sum(rate(ai_operations_total[1m]))',
'format': 'ops'
}
]
},
{
'type': 'table',
'title': '高风险操作排行',
'queries': [
{
'query': '''
SELECT
user_id,
operation_type,
COUNT(*) as count
FROM ai_high_risk_operations
WHERE time > now() - 1h
GROUP BY user_id, operation_type
ORDER BY count DESC
LIMIT 10
'''
}
]
}
]
}
return apm_client.create_dashboard(dashboard_config)
八、 最佳实践与性能优化
8.1 缓存策略优化
# 多级缓存实现
class AISecurityCacheManager:
def __init__(self):
# L1: 本地缓存
self.local_cache = {}
# L2: Redis集群
self.redis_client = self.init_redis_cluster()
# L3: ByteHouse物化视图
self.bytehouse_client = self.init_bytehouse()
async def get_permission_with_cache(self, user_id, skill_id):
"""带多级缓存的权限检查"""
cache_key = f"perm:{user_id}:{skill_id}"
# 检查本地缓存
if cache_key in self.local_cache:
return self.local_cache[cache_key]
# 检查Redis缓存
redis_result = await self.redis_client.get(cache_key)
if redis_result:
result = json.loads(redis_result)
self.local_cache[cache_key] = result
return result
# 查询ByteHouse
query = f"""
SELECT * FROM ai_permission_mv
WHERE user_id = '{user_id}'
AND skill_id = '{skill_id}'
"""
result = await self.bytehouse_client.query(query)
# 写入缓存
if result:
cache_data = {
'permission': result,
'cached_at': int(time.time())
}
# Redis缓存5分钟
await self.redis_client.setex(
cache_key,
300,
json.dumps(cache_data)
)
# 本地缓存1分钟
self.local_cache[cache_key] = cache_data
return result
8.2 自动伸缩配置
# VKE HPA配置
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
name: ai-rule-engine-hpa
namespace: crm-system
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: ai-rule-engine
minReplicas: 3
maxReplicas: 20
metrics:
- type: Resource
resource:
name: cpu
target:
type: Utilization
averageUtilization: 70
- type: Pods
pods:
metric:
name: ai_operations_per_second
target:
type: AverageValue
averageValue: 100
behavior:
scaleDown:
stabilizationWindowSeconds: 300
policies:
- type: Pods
value: 1
periodSeconds: 60
scaleUp:
stabilizationWindowSeconds: 60
policies:
- type: Pods
value: 4
periodSeconds: 60
九、 总结与展望
9.1 实施效果
通过火山引擎云原生服务构建的“四重AI护栏”架构，在多个企业客户中取得了显著效果：
安全性提升：
- AI相关的数据泄露事件降为0
- 未授权AI操作实时阻断率100%
- 合规审计准备时间减少80%
性能表现：
- AI操作平均延迟 < 100ms
- 审计日志查询响应时间 < 1s
- 系统可用性达到99.99%
成本优化：
- 通过自动伸缩节省30%计算资源
- 日志存储成本降低50%
- 运维人力投入减少40%
9.2 演进方向
未来架构演进将重点关注：
- 边缘AI安全：在靠近数据源的位置进行安全过滤
- 联邦学习支持：在保护数据隐私的前提下实现协同训练
- 自适应安全策略：基于机器学习动态调整安全规则
- 零信任架构：在AI场景中全面实施零信任安全模型
9.3 实践经验
在火山引擎的实践中，我们总结了以下关键经验：
- 渐进式实施：从核心业务开始，逐步扩展安全防护范围
- 可观测性优先：先建立完善的监控体系，再进行优化
- 自动化驱动：将安全策略转化为自动化规则和流水线
- 持续演进：安全架构需要随业务和技术发展不断进化
基于火山引擎云原生服务构建的AI安全架构，为企业提供了稳定、高效、可扩展的安全基座。通过本文分享的实践经验，希望帮助更多企业在享受AI技术红利的同时，构建坚实的安全防线。
