本篇文章将剪枝后的模型作为学生模型，剪枝前的模型作为教师模型对剪枝模型进行蒸馏，从而进一步提到轻量模型的性能。
Channel-wise Distillation (CWD)
问题和方法
在计算机视觉任务中,图像分类只需要预测整张图像的类别,而密集预测需要对每个像素或对象进行预测,输出更丰富的结果,如语义分割、目标检测等。直接应用分类任务中的知识蒸馏方法于密集预测任务效果不佳。已有的方法通过建模空间位置之间（指的是图像中的像素位置）的关系来传递结构化知识。

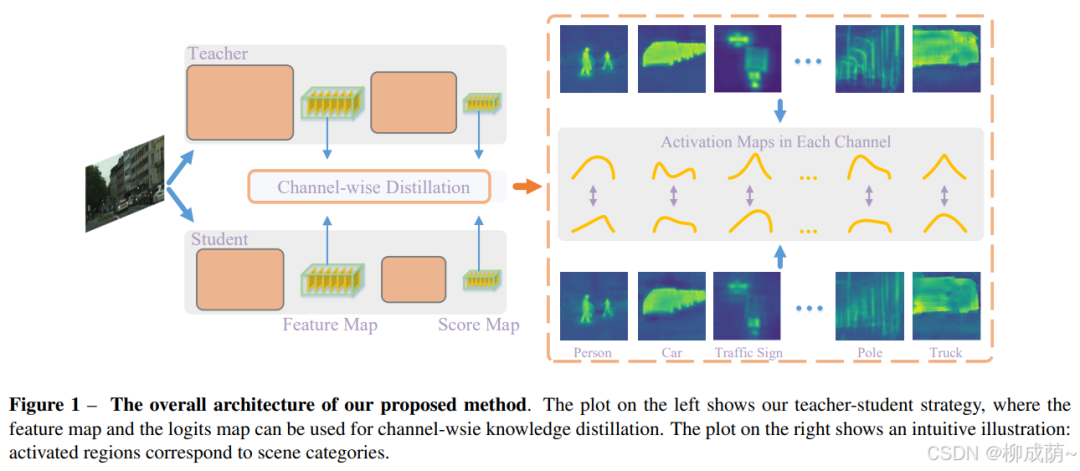

论文提出了一种通道级的知识蒸馏方法。主要分为两个步骤:
-
对特征图的每个通道进行softmax标准化，得到一个概率分布（表示了该通道中每个位置的相对重要性或响应强度）。
-
计算教师网络和学生网络相应通道概率分布之间的asymmetric KL散度作为损失，使学生网络在前景显著区域模仿教师网络。
具体实现
对特征图或logits的每个通道，对H×W个位置的激活值进行softmax计算，得到概率分布表示每个位置的相对重要性。
然后计算这个分布与教师网络中相应通道分布的asymmetric KL距离，重点对齐前景显著区域。
代码如下：
class CWDLoss(nn.Module):
"""PyTorch version of `Channel-wise Distillation for Semantic Segmentation.
<https://arxiv.org/abs/2011.13256>`_.
"""
def __init__(self, channels_s, channels_t, tau=1.0):
super(CWDLoss, self).__init__()
self.tau = tau
def forward(self, y_s, y_t):
"""Forward computation.
Args:
y_s (list): The student model prediction with
shape (N, C, H, W) in list.
y_t (list): The teacher model prediction with
shape (N, C, H, W) in list.
Return:
torch.Tensor: The calculated loss value of all stages.
"""
assert len(y_s) == len(y_t)
losses = []
for idx, (s, t) in enumerate(zip(y_s, y_t)):
assert s.shape == t.shape
N, C, H, W = s.shape
# normalize in channel diemension
import torch.nn.functional as F
softmax_pred_T = F.softmax(t.view(-1, W * H) / self.tau, dim=1) # [N*C, H*W]
logsoftmax = torch.nn.LogSoftmax(dim=1)
cost = torch.sum(
softmax_pred_T * logsoftmax(t.view(-1, W * H) / self.tau) -
softmax_pred_T * logsoftmax(s.view(-1, W * H) / self.tau)) * (self.tau ** 2)
losses.append(cost / (C * N))
loss = sum(losses)
return loss
问题和方法
知识蒸馏主要可以分为logit蒸馏和feature蒸馏。其中feature蒸馏具有更好的拓展性，已经在很多视觉任务中得到了应用。但由于不同任务的模型结构差异，许多feature蒸馏方法是针对某个特定任务设计的。
之前的知识蒸馏方法着力于使学生去模仿更强的教师的特征，以使学生特征具有更强的表征能力。我们认为提升学生的表征能力并不一定需要通过直接模仿教师实现。从这点出发，我们把模仿任务修改成了生成任务：让学生凭借自己较弱的特征去生成教师较强的特征。在蒸馏过程中，我们对学生特征进行了随机mask，强制学生仅用自己的部分特征去生成教师的所有特征，以提升学生的表征能力。
具体实现

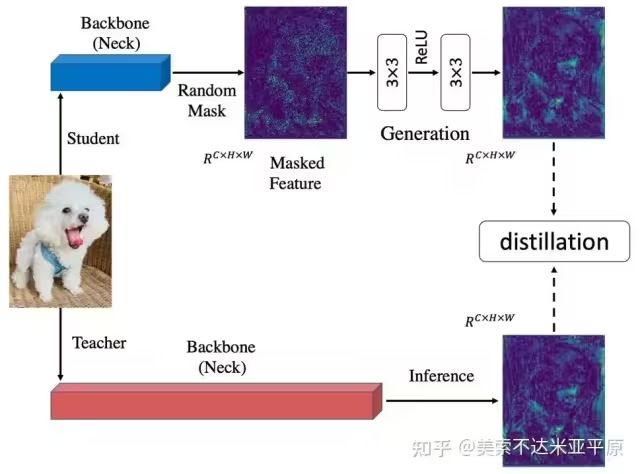

对特征图或logits生成1×H×W的随机mask，广播到所有通道然后对特征图所有通道进行掩码操作，基于masked特征图输入生成网络，输出特征与教师特征图计算mse损失进行回归训练。
代码如下：
class MGDLoss(nn.Module):
def __init__(self, channels_s, channels_t, alpha_mgd=0.00002, lambda_mgd=0.65):
super(MGDLoss, self).__init__()
device = 'cuda' if torch.cuda.is_available() else 'cpu'
self.alpha_mgd = alpha_mgd
self.lambda_mgd = lambda_mgd
self.generation = [
nn.Sequential(
nn.Conv2d(channel_s, channel, kernel_size=3, padding=1),
nn.ReLU(inplace=True),
nn.Conv2d(channel, channel, kernel_size=3, padding=1)).to(device) for channel_s, channel in
zip(channels_s, channels_t)
]
def forward(self, y_s, y_t, layer=None):
"""Forward computation.
Args:
y_s (list): The student model prediction with
shape (N, C, H, W) in list.
y_t (list): The teacher model prediction with
shape (N, C, H, W) in list.
Return:
torch.Tensor: The calculated loss value of all stages.
"""
assert len(y_s) == len(y_t)
losses = []
for idx, (s, t) in enumerate(zip(y_s, y_t)):
# print(s.shape)
# print(t.shape)
# assert s.shape == t.shape
if layer == "outlayer":
idx = -1
losses.append(self.get_dis_loss(s, t, idx) * self.alpha_mgd)
loss = sum(losses)
return loss
def get_dis_loss(self, preds_S, preds_T, idx):
loss_mse = nn.MSELoss(reduction='sum')
N, C, H, W = preds_T.shape
device = preds_S.device
mat = torch.rand((N, 1, H, W)).to(device)
mat = torch.where(mat > 1 - self.lambda_mgd, 0, 1).to(device)
masked_fea = torch.mul(preds_S, mat)
new_fea = self.generation[idx](masked_fea)
dis_loss = loss_mse(new_fea, preds_T) / N
return dis_loss
YOLOv8蒸馏
基于前一章所述的剪枝模型作为学生模型，剪枝前的模型作为教师模型
model_s = YOLO(weights="weights/prune.pt")
model_t = YOLO(weights="weights/last.pt")
为了在训练过程中使用教师模型指导学生
模型训练
，我们首先修改接口，在train函数中传入教师模型和蒸馏损失类型。
self.yolo.train(data="diagram.yaml", Distillation=model_t.model, loss_type=loss_type, amp=False, imgsz=640,
epochs=100, batch=20, device=0, workers=4, lr0=0.001)
同时修改
ultralytics
/engine/trainer.py-333行，读取Distillation参数和loss_type参数。
Args:
cfg (str, optional): Path to a configuration file. Defaults to DEFAULT_CFG.
overrides (dict, optional): Configuration overrides. Defaults to None.
# 新增=======================================
if overrides and "Distillation" in overrides:
self.Distillation = overrides["Distillation"]
overrides.pop("Distillation")
else:
self.Distillation = None
if overrides and "loss_type" in overrides:
self.loss_type = overrides['loss_type']
overrides.pop("loss_type")
else:
self.loss_type = 'None'
# 新增=======================================
self.args = get_cfg(cfg, overrides)
修改了接口处之后，在加载当前学生模型的时候，同时对教师模型进行处理。trainer.py修改481行
def _setup_train(self, world_size):
"""Builds dataloaders and optimizer on correct rank process."""
# Model
self.run_callbacks("on_pretrain_routine_start")
ckpt = self.setup_model()
self.model = self.model.to(self.device)
# 新增=======================================
if self.Distillation is not None:
# for k, v in self.Distillation.model.named_parameters():
# v.requires_grad = True
self.Distillation = self.Distillation.to(self.device)
# 新增=======================================
self.set_model_attributes()
...
...
这里新增的注释部分是打开教师模型的梯度计算，但是一般我们不需要，然后将教师模型也移动到device上。
self.amp = bool(self.amp) # as boolean
self.scaler = torch.cuda.amp.GradScaler(enabled=self.amp)
if world_size > 1:
self.model = nn.parallel.DistributedDataParallel(self.model, device_ids=[RANK], find_unused_parameters=True)
# 新增=======================================
if self.Distillation is not None:
self.Distillation = nn.parallel.DistributedDataParallel(self.Distillation, device_ids=[RANK])
self.Distillation.eval()
# 新增=======================================
# Check imgsz
然后在_setup_train
函数
的521行进行分布式训练模型处理的时候，将教师模型做同样的处理。
然后是增加蒸馏损失，这一块我们可以添加到_do_train函数中。
if self.args.close_mosaic:
base_idx = (self.epochs - self.args.close_mosaic) * nb
self.plot_idx.extend([base_idx, base_idx + 1, base_idx + 2])
# 新增=======================================
if self.Distillation is not None:
distillation_loss = Distillation_loss(self.model, self.Distillation, distiller=self.loss_type)
epoch = self.start_epoch
self.optimizer.zero_grad() # zero any resumed gradients to ensure stability on train start
while True:
self.epoch = epoch
self.run_callbacks("on_train_epoch_start")
这里Distillation_loss传入学生模型和教师模型，以及蒸馏损失的类型，该类实现如下：
class Distillation_loss:
def __init__(self, modeln, modelL, distiller="CWDLoss"): # model must be de-paralleled
self.distiller = distiller
# layers = ["2","4","6","8","12","15","18","21"]
layers = ["6", "8", "12", "15", "18", "21"]
# layers = ["15","18","21"]
# get channels_s, channels_t from modelL and modeln
channels_s = []
channels_t = []
for name, ml in modelL.named_modules():
if name is not None:
name = name.split(".")
if name[0] == "module":
name.pop(0)
if len(name) == 3:
if name[1] in layers:
if "cv2" in name[2]:
channels_t.append(ml.conv.out_channels)
for name, ml in modeln.named_modules():
if name is not None:
name = name.split(".")
if name[0] == "module":
name.pop(0)
if len(name) == 3:
if name[1] in layers:
if "cv2" in name[2]:
channels_s.append(ml.conv.out_channels)
nl = len(layers)
channels_s = channels_s[-nl:]
channels_t = channels_t[-nl:]
self.D_loss_fn = FeatureLoss(channels_s=channels_s, channels_t=channels_t, distiller=distiller[:3])
self.teacher_module_pairs = []
self.student_module_pairs = []
self.remove_handle = []
for mname, ml in modelL.named_modules():
if mname is not None:
name = mname.split(".")
if name[0] == "module":
name.pop(0)
if len(name) == 3:
if name[1] in layers:
if "cv2" in mname:
self.teacher_module_pairs.append(ml)
for mname, ml in modeln.named_modules():
if mname is not None:
name = mname.split(".")
if name[0] == "module":
name.pop(0)
if len(name) == 3:
# print(mname)
if name[1] in layers:
if "cv2" in mname:
self.student_module_pairs.append(ml)
def register_hook(self):
self.teacher_outputs = []
self.origin_outputs = []
def make_layer_forward_hook(l):
def forward_hook(m, input, output):
l.append(output)
return forward_hook
for ml, ori in zip(self.teacher_module_pairs, self.student_module_pairs):
# 为每层加入钩子，在进行Forward的时候会自动将每层的特征传送给model_outputs和origin_outputs
self.remove_handle.append(ml.register_forward_hook(make_layer_forward_hook(self.teacher_outputs)))
self.remove_handle.append(ori.register_forward_hook(make_layer_forward_hook(self.origin_outputs)))
def get_loss(self):
quant_loss = 0
# for index, (mo, fo) in enumerate(zip(self.teacher_outputs, self.origin_outputs)):
# print(mo.shape,fo.shape)
# quant_loss += self.D_loss_fn(mo, fo)
quant_loss += self.D_loss_fn(y_t=self.teacher_outputs, y_s=self.origin_outputs)
if self.distiller != 'cwd':
quant_loss *= 0.3
self.teacher_outputs.clear()
self.origin_outputs.clear()
return quant_loss
def remove_handle_(self):
for rm in self.remove_handle:
rm.remove()
这个类里面指定了一些要进行蒸馏的层，然后定义了一个注册每一层的钩子的函数，这样每一层前向传播完会得到所有层的特征，这些特征传入FeatureLoss类，进行特征损失计算。FeatureLoss类如下:
class FeatureLoss(nn.Module):
def __init__(self, channels_s, channels_t, distiller='mgd', loss_weight=1.0):
super(FeatureLoss, self).__init__()
self.loss_weight = loss_weight
self.distiller = distiller
device = 'cuda' if torch.cuda.is_available() else 'cpu'
self.align_module = nn.ModuleList([
nn.Conv2d(channel, tea_channel, kernel_size=1, stride=1, padding=0).to(device)
for channel, tea_channel in zip(channels_s, channels_t)
])
self.norm = [
nn.BatchNorm2d(tea_channel, affine=False).to(device)
for tea_channel in channels_t
]
self.norm1 = [
nn.BatchNorm2d(set_channel, affine=False).to(device)
for set_channel in channels_s
]
if distiller == 'mgd':
self.feature_loss = MGDLoss(channels_s, channels_t)
elif distiller == 'cwd':
self.feature_loss = CWDLoss(channels_s, channels_t)
else:
raise NotImplementedError
def forward(self, y_s, y_t):
assert len(y_s) == len(y_t)
tea_feats = []
stu_feats = []
for idx, (s, t) in enumerate(zip(y_s, y_t)):
if self.distiller == 'cwd':
s = self.align_module[idx](s)
s = self.norm[idx](s)
else:
s = self.norm1[idx](s)
t = self.norm[idx](t)
tea_feats.append(t)
stu_feats.append(s)
loss = self.feature_loss(stu_feats, tea_feats)
return self.loss_weight * loss
上面DistillationLoss和FeatureLoss两个类呢我们单独放到trainer.py文件开头。
回到_do_train函数，在前面声明了distillation_loss实例之后，首先我们为教师模型和学生模型注册钩子函数，这个必须在模型调用之前，因此放在了for循环训练之前。
self.tloss = None
# 新增=======================================
if self.Distillation is not None:
distillation_loss.register_hook()
# 新增=======================================
for i, batch in pbar:
self.run_callbacks("on_train_batch_start")
# Warmup
然后就是模型计算损失的部分，如下：
self.tloss = (
(self.tloss * i + self.loss_items) / (i + 1) if self.tloss is not None else self.loss_items
)
# 新增=======================================
if self.Distillation is not None:
distill_weight = ((1 - math.cos(i * math.pi / len(self.train_loader))) / 2) * (0.1 - 1) + 1
with torch.no_grad():
pred = self.Distillation(batch['img'])
self.d_loss = distillation_loss.get_loss()
self.d_loss *= distill_weight
if i == 0:
print(self.d_loss, '-----------------')
print(self.loss, '-----------------')
self.loss += self.d_loss
# 新增=======================================

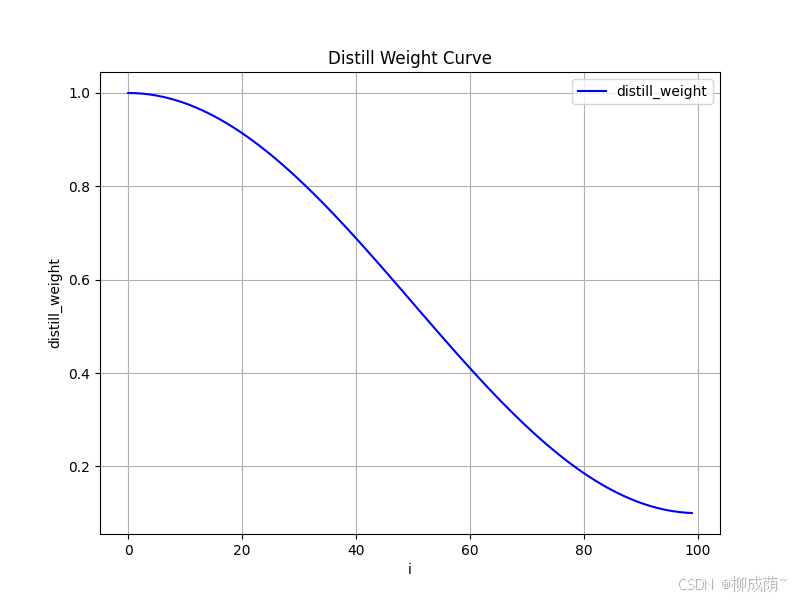

这里呢，设置了蒸馏损失的权重，大致是下面的曲线。然后把蒸馏损失加到原损失上即可。注意，在教师模型推理的时候，用了with torch.no_grad()包装，因为不需要训练教师模型，也就不计算梯度，这样做可以减少显存消耗。
最后，模型train完一轮，需要把钩子函数给去掉，如下：
if self.args.plots and ni in self.plot_idx:
self.plot_training_samples(batch, ni)
self.run_callbacks("on_train_batch_end")
# 新增=======================================
if self.Distillation is not None:
distillation_loss.remove_handle_()
self.lr = {f"lr/pg{ir}": x["lr"] for ir, x in enumerate(self.optimizer.param_groups)} # for loggers
self.run_callbacks("on_train_epoch_end")
至此，所有要修改的地方都改完了。此时，使用如下语句训练即可
self.yolo.train(data="diagram.yaml", Distillation=model_t.model, loss_type=loss_type, amp=False, imgsz=640,
epochs=100, batch=20, device=0, workers=4, lr0=0.001)
为了代码简洁方便，对稀疏训练、剪枝和蒸馏做了封装，形成如下类：
import os
from tqdm import tqdm
from prune import prune_model
from relation import find_parent_nodes, visualize_nodes, metric
from ultralytics import YOLO
class PruneModel:
def __init__(self, weights="weights/last.pt"):
# Load a model
self.yolo = YOLO(weights)
def prune(self, factor=0.7, save_dir="weights/prune.pt"):
prune_model(self.yolo, save_dir, factor)
def train(self, save_dir="weights/retrain.pt"):
self.yolo.train(data='diagram.yaml', Distillation=None, loss_type='None', amp=False, imgsz=640,
epochs=50, batch=20, device=1, workers=4, name="default")
self.yolo.save(save_dir)
def sparse_train(self, save_dir='weight/sparse.pt'):
self.yolo.train(data='diagram.yaml', Distillation=None, loss_type='sparse', amp=False, imgsz=640,
epochs=50, batch=20, device=0, workers=4, name="sparse")
self.yolo.save(save_dir)
def distill(self, t_weight, loss_type='mgd', save_dir="weights/distill.pt"):
model_t = YOLO(t_weight)
self.yolo.train(data="diagram.yaml", Distillation=model_t.model, loss_type=loss_type, amp=False, imgsz=640,
epochs=100, batch=20, device=0, workers=4, lr0=0.001)
self.yolo.save(save_dir)
def export(self, **kwargs):
self.yolo.export(**kwargs)
@staticmethod
def compare(weights=None):
# 统计压缩前后的参数量，精度，计算量
if weights is None:
weights = []
results = []
for weight in weights:
yolo = YOLO(weight)
metric = yolo.val(data='diagram.yaml', imgsz=640)
n_l, n_p, n_g, flops = yolo.info()
acc = metric.box.map
results.append((weight, n_l, n_p, n_g, flops, acc))
for weight, layer, n_p, n_g, flops, acc in results:
print(f"Weight: {weight}, Acc: {acc}, Params: {n_p}, FLOPs: {flops}")
def predict(self, source):
results = self.yolo.predict(source)[0]
nodes = results.boxes.xyxy
nodes = nodes.tolist()
ori_img = results.orig_img
parent_nodes = find_parent_nodes(nodes)
visualize_nodes(ori_img, nodes, parent_nodes)
def evaluate(self, data_path):
bboxes_list = []
pred_bboxes_list = []
parent_ids_list = []
pred_parent_ids_list = []
imgs_path = os.path.join(data_path, "images/val")
labels_path = os.path.join(data_path, "plabels/val")
# 读取标注文件
for img in tqdm(os.listdir(imgs_path)):
img_path = os.path.join(imgs_path, img)
# 检查文件后缀并构建相应的标注文件路径
if img.endswith(".png"):
label_path = os.path.join(labels_path, img.replace(".png", ".txt"))
elif img.endswith(".webp"):
label_path = os.path.join(labels_path, img.replace(".webp", ".txt"))
else:
continue
with open(label_path, "r") as f:
lines = f.readlines()
results = self.yolo.predict(img_path)[0]
pred_bboxes = results.boxes.xyxy
pred_bboxes = pred_bboxes.tolist()
pred_bboxes_list.append(pred_bboxes)
pred_parent_ids = find_parent_nodes(pred_bboxes)
pred_parent_ids_list.append(pred_parent_ids)
ih, iw = results.orig_img.shape[:2]
bboxes = []
parent_ids = []
for line in lines:
line = line.strip().split()
x, y, w, h, px, py, pw, ph, p = map(float, line[1:])
x1, y1, x2, y2 = int((x - w / 2) * iw), int((y - h / 2) * ih), int((x + w / 2) * iw), int(
(y + h / 2) * ih)
bboxes.append((x1, y1, x2, y2))
parent_ids.append(int(p))
bboxes_list.append(bboxes)
parent_ids_list.append(parent_ids)
precision, recall, f1_score = metric(bboxes_list, pred_bboxes_list, parent_ids_list, pred_parent_ids_list)
print(f"Precision: {precision}")
print(f"Recall: {recall}")
print(f"F1 Score: {f1_score}")
if __name__ == '__main__':
model = PruneModel("weights/yolov8n.pt")
model.sparse_train("weights/sparse.pt")
model.prune(factor=0.2, save_dir="weights/prune.pt")
model.train()
model.distill("weights/sparse.pt", loss_type="mgd")
model.evaluate("datasets/diagram")
model.predict("datasets/diagram/images/val/0593.png")
机器学习算法AI大数据技术
搜索公众号添加： datanlp
长按图片，识别二维码
阅读过本文的人还看了以下文章：
整理开源的中文大语言模型，以规模较小、可私有化部署、训练成本较低的模型为主
基于40万表格数据集TableBank，用MaskRCNN做表格检测
《深度学习入门：基于Python的理论与实现》高清中文PDF+源码
2019最新《PyTorch自然语言处理》英、中文版PDF+源码
《21个项目玩转深度学习：基于TensorFlow的实践详解》完整版PDF+附书代码
PyTorch深度学习快速实战入门《pytorch-handbook》
【下载】豆瓣评分8.1,《机器学习实战:基于Scikit-Learn和TensorFlow》
李沐大神开源《动手学深度学习》，加州伯克利深度学习（2019春）教材
【Keras】完整实现‘交通标志’分类、‘票据’分类两个项目，让你掌握深度学习图像分类
如何利用全新的决策树集成级联结构gcForest做特征工程并打分？
Machine Learning Yearning 中文翻译稿
斯坦福CS230官方指南：CNN、RNN及使用技巧速查（打印收藏）
中科院Kaggle全球文本匹配竞赛华人第1名团队-深度学习与特征工程
不断更新资源
深度学习、机器学习、数据分析、python
搜索公众号添加： datayx
