实战篇:手把手教你spring boot如何整合mybatis-plus，与整合出现问题如何解决

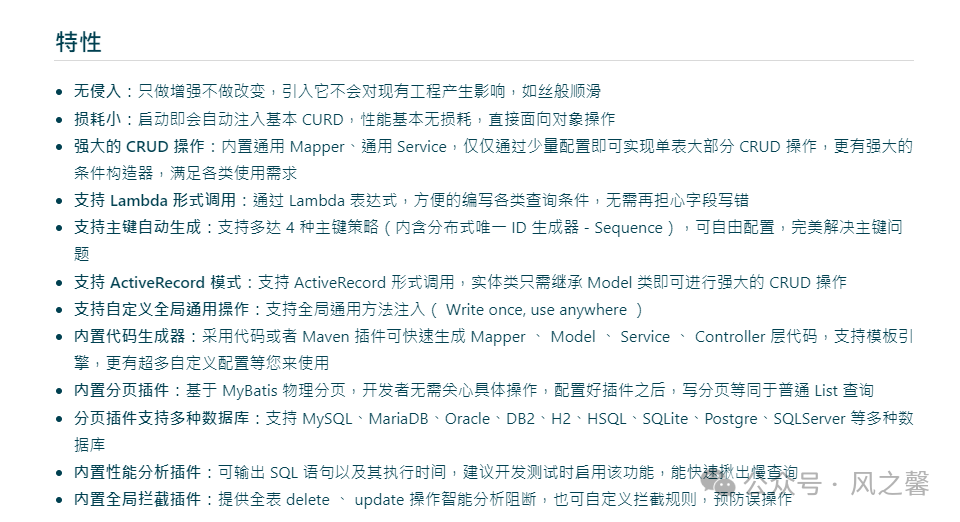

MyBatis-Plus是一个 MyBati (opens new window)的增强工具，在 MyBatis 的基础上只做增强不做改变，为简化开发、提高效率而生。

  本文教你如何根据官方文档进行引入包,与其如何查看文档和常见问题解决

1.创建一个spring boot 项目,然后引入依赖包


plugins {
 id 'java'
 id 'org.springframework.boot' version '2.4.2'
 id 'io.spring.dependency-management' version '1.1.4'
}

group = 'com.example'
version = '0.0.1-SNAPSHOT'

java {
 sourceCompatibility = JavaVersion.VERSION_1_8
}
allprojects {
 repositories {
 maven { url 'https://maven.aliyun.com/nexus/content/groups/public/' }
 maven { url "https://maven.aliyun.com/repository/spring" }
 maven { url "https://repo.spring.io/milestone/" }
 }
}

repositories {
 mavenCentral()
}
dependencies {
 implementation 'org.springframework.boot:spring-boot-starter'
 implementation 'org.springframework.boot:spring-boot-starter-web'
 implementation 'cn.hutool:hutool-all:5.8.16'
 implementation 'org.springframework.kafka:spring-kafka'
 implementation 'com.baomidou:mybatis-plus-boot-starter:3.0.1'
 implementation 'com.h2database:h2:2.2.224'
 testImplementation 'org.springframework.boot:spring-boot-starter-test'
}

tasks.named('test') {
 useJUnitPlatform()
}

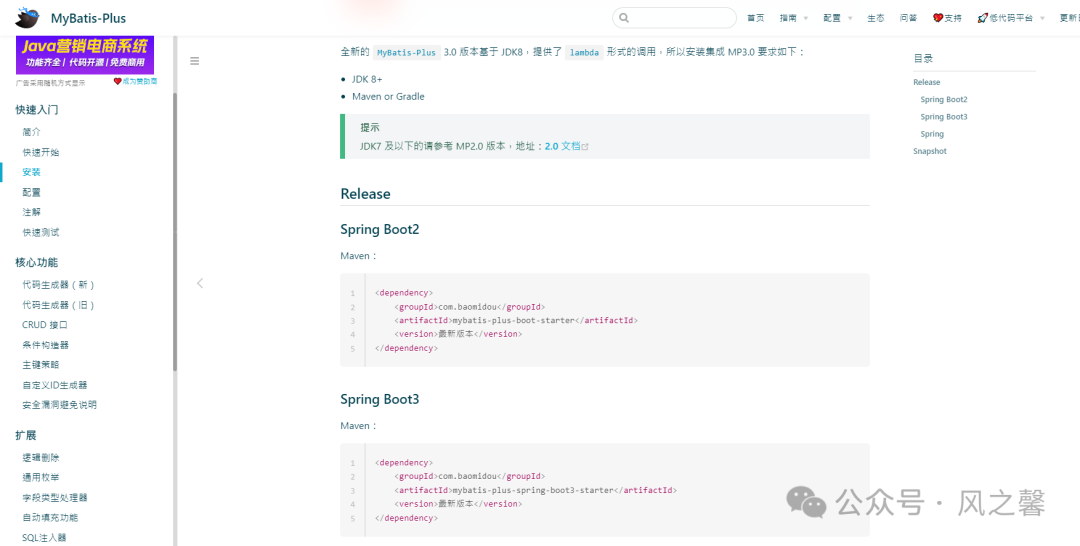

新手一般不知道引包怎么引，或者不知道要用什么版本，这时候我们可以去官网看,一般官网教我们使用,所以介绍先从官网入手,不行再百度,此时我也是看官网来写这篇文章的


https://baomidou.com/pages/bab2db/#release

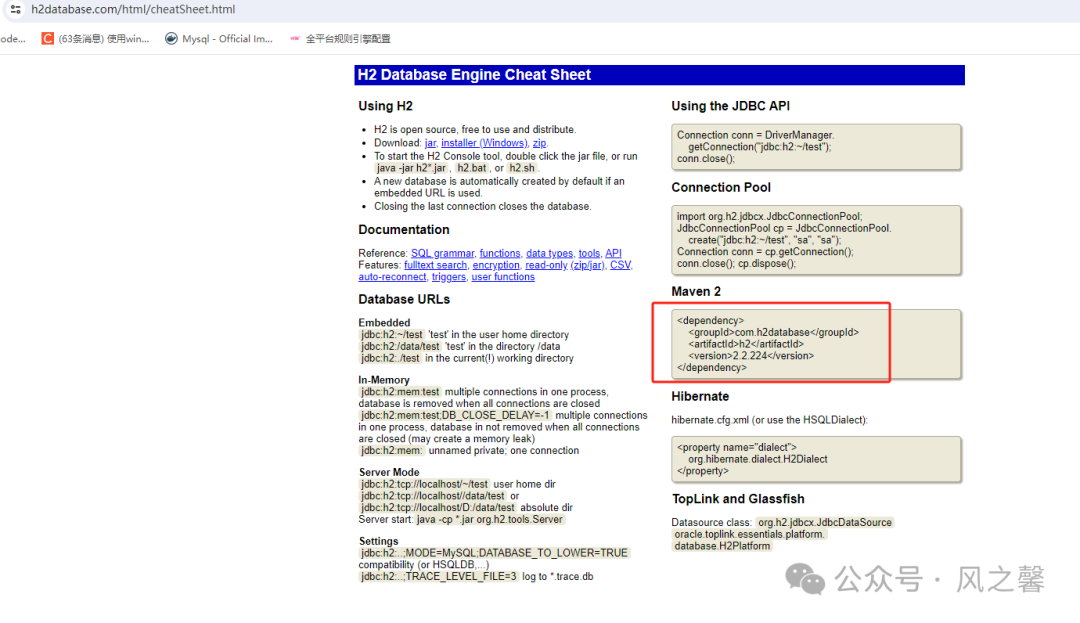

2.引入依赖包,我们要选择使用的数据驱动,常用的mysql、oracle、h2等等,本文就用H2本地数据库来进行演示,接下来我们就看官网文档,按照文档来操作


https://www.h2database.com/html/cheatSheet.html

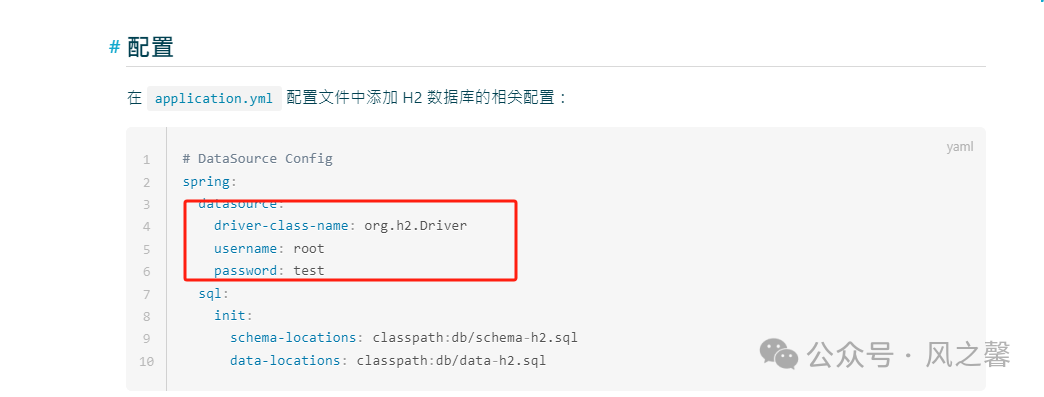

3.依赖引入后,我们需要添加配置,配置怎么加呢？还是看文档


server:
 port: 9099
 datasource:
 driver-class-name: org.h2.Driver
 url: jdbc:h2:tcp://localhost/~/test
 username: sa
 password:
 initialization-mode: always

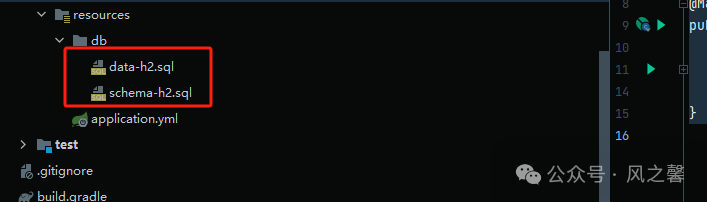

 schema: classpath:db/schema-h2.sql
 data: classpath:db/data-h2.sql
 platform: h2
 h2:
 console:
 enabled: true
      path: /h2-console

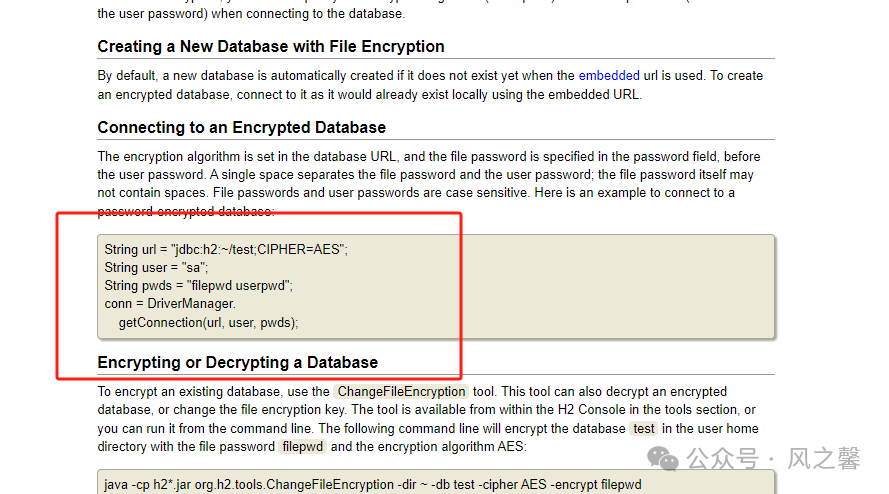

那你要用h2库,是不是要配置连接地址，账号、密码等等,那你就从官方文档里面找使用配置上相关内容

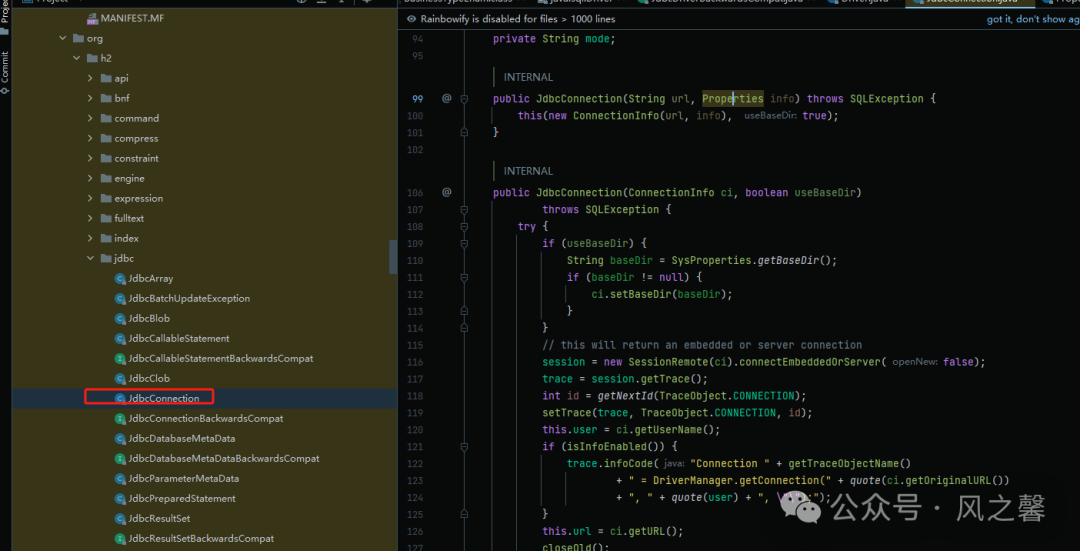

也可以从你引入的包去查看源码,看连接类需要什么配置。

4.创建一个实体类


package com.example.entity;

import com.baomidou.mybatisplus.annotation.TableName;

/**
 * @author limingfa
 * @date 2024/4/25 9:51
 */
@TableName("`user`")
public class User {
 private Long id;
 private String name;
 private Integer age;
 private String email;

 public Long getId() {
 return id;
 }

 public void setId(Long id) {
 this.id = id;
 }

 public String getName() {
 return name;
 }

 public void setName(String name) {
 this.name = name;
 }

 public Integer getAge() {
 return age;
 }

 public void setAge(Integer age) {
 this.age = age;
 }

 public String getEmail() {
 return email;
 }

 public void setEmail(String email) {
 this.email = email;
 }
}

5.创建UserMapper


package com.example.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.example.entity.User;
import org.springframework.stereotype.Repository;

/**
 * @author limingfa
 * @date 2024/4/25 9:51
 */
@Repository
public interface UserMapper extends BaseMapper<User> {
}

6.编写controller


package com.example.controller;

import com.example.service.DemoService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;



/**
 * @author limingfa
 * @date 2024/4/23 11:49
 */

@RestController
public class DemoController {
 private Logger LOGGER= LoggerFactory.getLogger(DemoController.class);

 @Autowired
 DemoService demoService;

 @GetMapping("/sendMsg")
 public void sendMsg(){
 demoService.sendMsg();
 }

 @GetMapping("/getUser")
 public void getUser(){
 demoService.getUser();
 }
}

7.编写service


package com.example.service;

import cn.hutool.json.JSONUtil;
import com.example.entity.User;
import com.example.mapper.UserMapper;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.stereotype.Service;

import java.util.List;

import static com.example.common.KafkaTopicConstant.TOPIC_TEST_NAME;

/**
 * @author limingfa
 * @date 2024/4/24 11:40
 */
@Service
public class DemoService {
 private static final Logger LOGGER = LoggerFactory.getLogger(DemoService.class);
 @Autowired
 private KafkaTemplate<String, String> kafkaTemplate;
 @Autowired
 private UserMapper userMapper;

 public void sendMsg() {
 //todo 作一些逻辑
 kafkaTemplate.send(TOPIC_TEST_NAME, "test1", "sdfsf");
 LOGGER.info("发送消息完成");
 }

 public void getUser() {
 List<User> userList = userMapper.selectList(null);
 LOGGER.info("查询到的数据为{}", JSONUtil.toJsonStr(userList));
 }
}

8.启动类添加mapper的路径


package com.example;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.example.mapper")
public class DemoApplication {

 public static void main(String[] args) {
 SpringApplication.run(DemoApplication.class, args);
 }

}

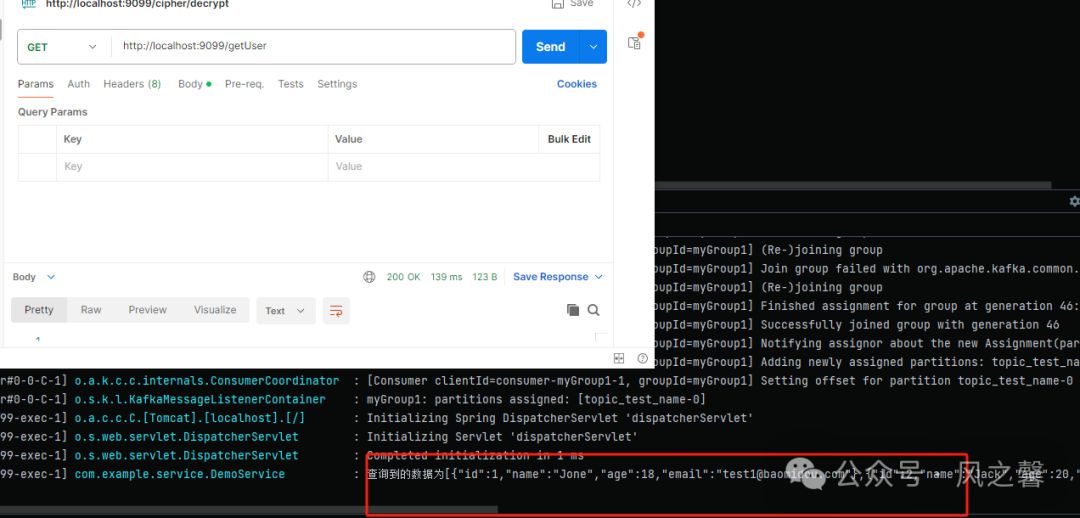

9.启动并调用接口进行测试,至此mybatis-plus集合完成,更多的操作看官方文档就可以

易错问题点:

1.在Spring2.x新版本中 要执行sql文件 还须配置spring.datasource.initialization-mode=always 表示始终执行初始化,否则你会发现脚本一直无法执行

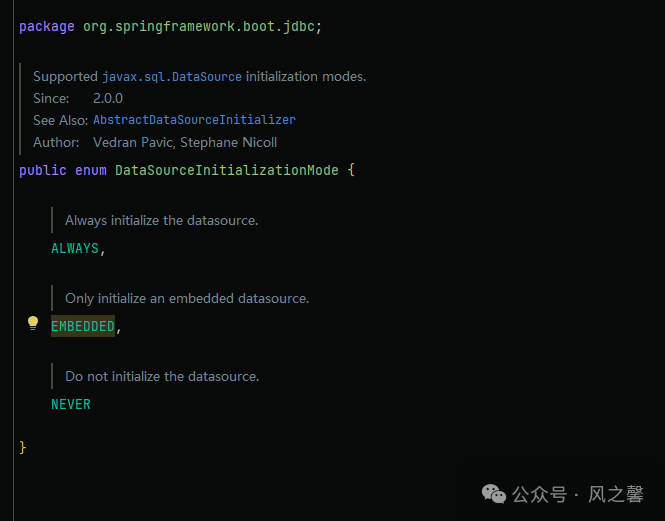

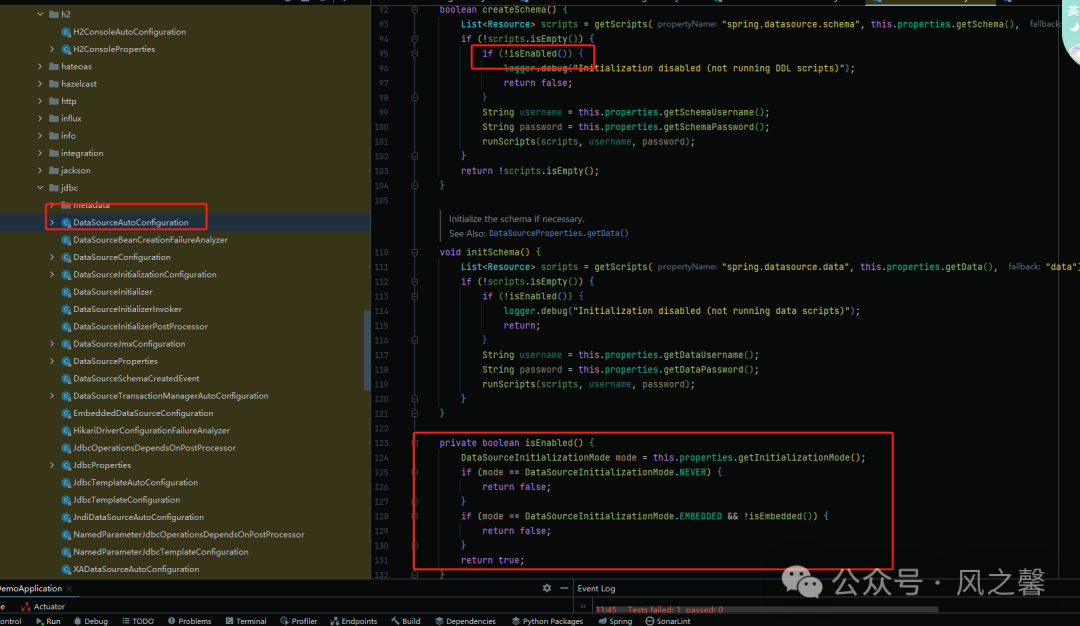

查看源码

就可以知道需要配置才能去执行脚本相关操作,所以配置上去初始化脚本就能正常的执行。

2.启动类没有加@MapperScan注解

后续会针对mybatis-plus源码进行解读，感兴趣的朋友可以关注我。
