传统的spring事务管理与myibatis整合方式

通过配置文件的方式:


      1. `<master-slave:data-source id="shardingDataSource"`
2. `master-data-source-name="userDataSource" slave-data-source-names="userDataSourceSlave"`
3. `strategy-ref="randomStrategy" />`
4.
5. `<!-- 配置MyBatis session工厂 -->`
6. `<bean id="userSqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">`
7. `<property name="dataSource" ref="shardingDataSource" />`
8. `<property name="configLocation" value="classpath:/conf/mybaits-config.xml" />`
9. `<property name="mapperLocations">`
10. `<list>`
11. `<value>classpath:/**/dao/mapper/*Mapper.xml</value>`
12. `</list>`
13. `</property>`
14. `<property name="plugins">`
15. `<array>`
16. `<bean class="com.github.pagehelper.PageInterceptor">`
17. `<property name="properties">`
18. `<value>`
19. `helperDialect=mysql`
20. `reasonable=true`
21. `supportMethodsArguments=true`
22. `params=count=countSql`
23. `autoRuntimeDialect=true`
24. `</value>`
25. `</property>`
26. `</bean>`
27. `</array>`
28. `</property>`
29.
30. `</bean>`
31.
32. `<bean id="userSqlSession" class="org.mybatis.spring.SqlSessionTemplate">`
33. `<constructor-arg index="0">`
34. `<ref bean="userSqlSessionFactory" />`
35. `</constructor-arg>`
36. `</bean>`
37.
38. `<!--动态代理实现 不用写dao的实现 -->`
39. `<bean id="userMapperScannerConfigurer" class="tk.mybatis.spring.mapper.MapperScannerConfigurer">`
40. `<!-- 这里的basePackage 指定了dao层接口路劲，这里的dao接口不用自己实现 -->`
41. `<property name="basePackage" value="com.**.dao.mapper" />`
42. `<!-- 如果只有一个数据源的话可以不用指定，但是如果有多个数据源的话必须要指定 -->`
43. `<property name="sqlSessionFactoryBeanName" value="userSqlSessionFactory"/>`
44. `<!--直接指定了sqlsessionTemplate名称，这个和上面的其实是一样的 -->`
45. `<!-- <property name="sqlSessionTemplateBeanName" value="userSqlSession" /> -->`
46. `</bean>`
47.
48. `<!--事务管理器 -->`
49. `<bean id="txUserManager"`
50. `class="org.springframework.jdbc.datasource.DataSourceTransactionManager">`
51. `<property name="dataSource" ref="shardingDataSource" />`
52. `</bean>`
53.
54. `<!-- 只对业务逻辑层实施事务 -->`
55. `<aop:config expose-proxy="true">`
56.
57.
58. `<aop:pointcut id="txUserPointcut"`
59. `expression="execution(* com..dao..*.*(..)) " />`
60. `<aop:advisor advice-ref="txUserAdvice" pointcut-ref="txUserPointcut" />`
61. `</aop:config>`
62.
63. `<tx:advice id="txUserAdvice" transaction-manager="txUserManager">`
64. `<tx:attributes>`
65. `<tx:method name="create*" propagation="REQUIRED"`
66. `rollback-for="Exception" />`
67. `<tx:method name="insert*" propagation="REQUIRED"`
68. `rollback-for="Exception" />`
69. `<tx:method name="delete*" propagation="REQUIRED"`
70. `rollback-for="Exception" />`
71. `<tx:method name="update*" propagation="REQUIRED"`
72. `rollback-for="Exception" />`
73. `<tx:method name="query*" read-only="true" />`
74. `<tx:method name="count*" read-only="true" />`
75. `<tx:method name="select*" read-only="true" />`
76. `<tx:method name="*" propagation="REQUIRED" />`
77. `</tx:attributes>`
78. `</tx:advice>`

注解的方式:


      1. `<master-slave:data-source id="shardingDataSource"`
2. `master-data-source-name="userDataSource" slave-data-source-names="userDataSourceSlave"`
3. `strategy-ref="randomStrategy" />`
4.
5. `<bean id="userSqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">`
6. `<property name="dataSource" ref="shardingDataSource" />`
7. `<property name="configLocation" value="classpath:/conf/mybaits-config.xml" />`
8. `<property name="mapperLocations">`
9. `<list>`
10. `<value>classpath:/**/dao/mapper/*Mapper.xml</value>`
11. `</list>`
12. `</property>`
13. `<property name="plugins">`
14. `<array>`
15. `<bean class="com.github.pagehelper.PageInterceptor">`
16. `<property name="properties">`
17. `<value>`
18. `helperDialect=mysql`
19. `reasonable=true`
20. `supportMethodsArguments=true`
21. `params=count=countSql`
22. `autoRuntimeDialect=true`
23. `</value>`
24. `</property>`
25. `</bean>`
26. `</array>`
27. `</property>`
28.
29. `</bean>`
30.
31. `<bean id="userSqlSession" class="org.mybatis.spring.SqlSessionTemplate">`
32. `<constructor-arg index="0">`
33. `<ref bean="userSqlSessionFactory" />`
34. `</constructor-arg>`
35. `</bean>`
36.
37. `<!--动态代理实现 不用写dao的实现 -->`
38. `<bean id="userMapperScannerConfigurer" class="tk.mybatis.spring.mapper.MapperScannerConfigurer">`
39. `<!-- 这里的basePackage 指定了dao层接口路劲，这里的dao接口不用自己实现 -->`
40. `<property name="basePackage" value="com.**.dao.mapper" />`
41. `<!-- 如果只有一个数据源的话可以不用指定，但是如果有多个数据源的话必须要指定 -->`
42. `<property name="sqlSessionFactoryBeanName" value="userSqlSessionFactory"/>`
43. `<!--直接指定了sqlsessionTemplate名称，这个和上面的其实是一样的 -->`
44. `<!-- <property name="sqlSessionTemplateBeanName" value="userSqlSession" /> -->`
45. `</bean>`
46.
47. `<!--事务管理器 -->`
48. `<bean id="txUserManager"`
49. `class="org.springframework.jdbc.datasource.DataSourceTransactionManager">`
50. `<property name="dataSource" ref="shardingDataSource" />`
51. `</bean>`
52. `<!-- 使用全注释事务 -->`
53. `<tx:annotation-driven transaction-manager="txUserManager" />`

注解的方式主要是使用tx:annotation-driven实现的，这样在代码里的方法上或类上就可以使用@Transactional注解来灵活地控制事务了。

这里的dataSource使用的是shardingjdbcDatasource实现主从的方式，具体的使用请参考官方文档或关注之后的推文。

springboot中使用的方式:

下面的方式与注解的配置作用是相同的:


      1. `@Configuration`
2. `@EnableTransactionManagement`
3. `public class AppConfig {`
4. `@Bean`
5. `public FooRepository fooRepository() {`
6. `// configure and return a class having @Transactional methods`
7. `return new JdbcFooRepository(dataSource());`
8. `}`
9.
10. `@Bean`
11. `public DataSource dataSource() {`
12. `// configure and return the necessary JDBC DataSource`
13. `}`
14.
15. `@Bean`
16. `public PlatformTransactionManager txManager() {`
17. `return new DataSourceTransactionManager(dataSource());`
18. `}`
19. `}`

看下@EnableTransactionManagement注解:


      1. `@Target(ElementType.TYPE)`
2. `@Retention(RetentionPolicy.RUNTIME)`
3. `@Documented`
4. `@Import(TransactionManagementConfigurationSelector.class)`
5. `public @interface EnableTransactionManagement {`
6. `boolean proxyTargetClass() default false;`
7. `AdviceMode mode() default AdviceMode.PROXY;`

可以看到有个AdviceMode，代表的是代理的模式，默认使用的是jdk动态代理，与标签的使用方式类似，主要分为两种:

默认使用的是org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration:


      1. `/**`
2. `* {@code @Configuration} class that registers the Spring infrastructure beans`
3. `* necessary to enable proxy-based annotation-driven transaction management.`
4. `*`
5. `* @author Chris Beams`
6. `* @since 3.1`
7. `* @see EnableTransactionManagement`
8. `* @see TransactionManagementConfigurationSelector`
9. `*/`
10. `@Configuration`
11. `public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {`
12.
13. `@Bean(name = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME)`
14. `@Role(BeanDefinition.ROLE_INFRASTRUCTURE)`
15. `public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor() {`
16. `// 创建BeanFactoryTransactionAttributeSourceAdvisor`
17. `BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();`
18. `advisor.setTransactionAttributeSource(transactionAttributeSource());`
19. `//设置事务拦截器`
20. `advisor.setAdvice(transactionInterceptor());`
21. `advisor.setOrder(this.enableTx.<Integer>getNumber("order"));`
22. `return advisor;`
23. `}`
24.
25. `@Bean`
26. `@Role(BeanDefinition.ROLE_INFRASTRUCTURE)`
27. `public TransactionAttributeSource transactionAttributeSource() {`
28. `return new AnnotationTransactionAttributeSource();`
29. `}`
30.
31. `@Bean`
32. `@Role(BeanDefinition.ROLE_INFRASTRUCTURE)`
33. `public TransactionInterceptor transactionInterceptor() {`
34. `TransactionInterceptor interceptor = new TransactionInterceptor();`
35. `interceptor.setTransactionAttributeSource(transactionAttributeSource());`
36. `if (this.txManager != null) {`
37. `//设置事务管理器`
38. `interceptor.setTransactionManager(this.txManager);`
39. `}`
40. `return interceptor;`
41. `}`
42.
43. `}`

通过类的注释可以知道，这个类的作用是enable proxy-based annotation-driven transaction management。

aspectj代理的方式org.springframework.transaction.aspectj.AspectJTransactionManagementConfiguration:


      1. `/**`
2. `* {@code @Configuration} class that registers the Spring infrastructure beans necessary`
3. `* to enable AspectJ-based annotation-driven transaction management.`
4. `*`
5. `* @author Chris Beams`
6. `* @since 3.1`
7. `* @see EnableTransactionManagement`
8. `* @see TransactionManagementConfigurationSelector`
9. `*/`
10. `@Configuration`
11. `public class AspectJTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {`
12.
13. `@Bean(name = TransactionManagementConfigUtils.TRANSACTION_ASPECT_BEAN_NAME)`
14. `@Role(BeanDefinition.ROLE_INFRASTRUCTURE)`
15. `public AnnotationTransactionAspect transactionAspect() {`
16. `AnnotationTransactionAspect txAspect = AnnotationTransactionAspect.aspectOf();`
17. `if (this.txManager != null) {`
18. `txAspect.setTransactionManager(this.txManager);`
19. `}`
20. `return txAspect;`
21. `}`
22.
23. `}`

上面两种方式都可以进行事务管理的注册，但是基于标签的方式需要传入一个指定的txManager，因为它没法自行找到一个叫txManager的bean。但是@EnableTransactionManagement 注解的方式就灵活很多了，它可以通过类型寻找到容器内的任何的基于PlatformTransactionManager实现的bean。

如果想要将@EnableTransactionManagement和transaction manager之间建立直接的联系，需要用到org.springframework.transaction.annotation.TransactionManagementConfigurer的回调方法:


      1. `/**`
2. `* Return the default transaction manager bean to use for annotation-driven database`
3. `* transaction management, i.e. when processing {@code @Transactional} methods.`
4. `* <p>There are two basic approaches to implementing this method:`
5. `* <h3>1. Implement the method and annotate it with {@code @Bean}</h3>`
6. `* In this case, the implementing {@code @Configuration} class implements this method,`
7. `* marks it with {@code @Bean} and configures and returns the transaction manager`
8. `* directly within the method body:`
9. `* <pre class="code">`
10. `* @Bean`
11. `* @Override`
12. `* public PlatformTransactionManager annotationDrivenTransactionManager() {`
13. `* return new DataSourceTransactionManager(dataSource());`
14. `* }</pre>`
15. `* <h3>2. Implement the method without {@code @Bean} and delegate to another existing`
16. `* {@code @Bean} method</h3>`
17. `* <pre class="code">`
18. `* @Bean`
19. `* public PlatformTransactionManager txManager() {`
20. `* return new DataSourceTransactionManager(dataSource());`
21. `* }`
22. `*`
23. `* @Override`
24. `* public PlatformTransactionManager annotationDrivenTransactionManager() {`
25. `* return txManager(); // reference the existing {@code @Bean} method above`
26. `* }</pre>`
27. `* If taking approach #2, be sure that <em>only one</em> of the methods is marked`
28. `* with {@code @Bean}!`
29. `* <p>In either scenario #1 or #2, it is important that the`
30. `* {@code PlatformTransactionManager} instance is managed as a Spring bean within the`
31. `* container as all {@code PlatformTransactionManager} implementations take advantage`
32. `* of Spring lifecycle callbacks such as {@code InitializingBean} and`
33. `* {@code BeanFactoryAware}.`
34. `*/`
35. `PlatformTransactionManager annotationDrivenTransactionManager();`

实现方式为:


      1. `@Configuration`
2. `@EnableTransactionManagement`
3. `public class AppConfig implements TransactionManagementConfigurer {`
4.
5. `@Bean`
6. `public DataSource dataSource() {`
7. `// configure and return the necessary JDBC DataSource`
8. `}`
9.
10. `@Bean`
11. `public PlatformTransactionManager txManager() {`
12. `return new DataSourceTransactionManager(dataSource());`
13. `}`
14.
15. `@Override`
16. `public PlatformTransactionManager annotationDrivenTransactionManager() {`
17. `return txManager();`
18. `}`
19. `}`

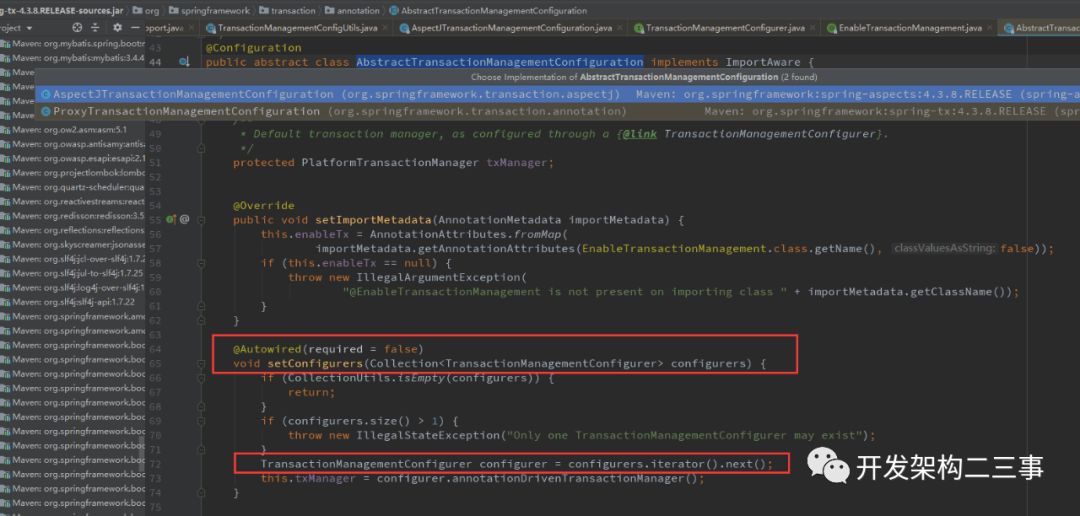

这个方法会在设置transactionManager时被调用，可以看下ProxyTransactionManagementConfiguration和AspectJTransactionManagementConfiguration的父类中的方法:

picture.image

这时再回过头来看org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration#transactionInterceptor:


      1. `@Bean`
2. `@Role(BeanDefinition.ROLE_INFRASTRUCTURE)`
3. `public TransactionInterceptor transactionInterceptor() {`
4. `TransactionInterceptor interceptor = new TransactionInterceptor();`
5. `interceptor.setTransactionAttributeSource(transactionAttributeSource());`
6. `if (this.txManager != null) {`
7. `interceptor.setTransactionManager(this.txManager);`
8. `}`
9. `return interceptor;`
10. `}`

它父类中的实现为:


      1. `它的父类的签名为:`
2. `public abstract class TransactionAspectSupport implements BeanFactoryAware, InitializingBean`
3.
4. `/**`
5. `* Return the BeanFactory to use for retrieving PlatformTransactionManager beans.`
6. `*/`
7. `protected final BeanFactory getBeanFactory() {//注入beanFactory来获取PlatformTransactionManager实例`
8. `return this.beanFactory;`
9. `}`
10.
11. `/**`
12. `* Determine the specific transaction manager to use for the given transaction.`
13. `*/`
14. `protected PlatformTransactionManager determineTransactionManager(TransactionAttribute txAttr) {`
15. `// Do not attempt to lookup tx manager if no tx attributes are set`
16. `if (txAttr == null || this.beanFactory == null) {`
17. `return getTransactionManager();`
18. `}`
19. `String qualifier = txAttr.getQualifier();`
20. `if (StringUtils.hasText(qualifier)) {`
21. `return determineQualifiedTransactionManager(qualifier);`
22. `}`
23. `else if (StringUtils.hasText(this.transactionManagerBeanName)) {`
24. `return determineQualifiedTransactionManager(this.transactionManagerBeanName);`
25. `}`
26. `else {`
27. `PlatformTransactionManager defaultTransactionManager = getTransactionManager();`
28. `if (defaultTransactionManager == null) {`
29. `defaultTransactionManager = this.transactionManagerCache.get(DEFAULT_TRANSACTION_MANAGER_KEY);`
30. `if (defaultTransactionManager == null) {`
31. `defaultTransactionManager = this.beanFactory.getBean(PlatformTransactionManager.class);`
32. `this.transactionManagerCache.putIfAbsent(`
33. `DEFAULT_TRANSACTION_MANAGER_KEY, defaultTransactionManager);`
34. `}`
35. `}`
36. `return defaultTransactionManager;`
37. `}`
38. `}`

添加TransactionInterceptor，保存了事务信息，并且是一个MethodInterceptor，会拦截带有@Transactional的方法。先获取事务相关的信息，然后获取PlatformTransactionManager
见org.springframework.transaction.interceptor.TransactionAspectSupport#determineTransactionManager，如果事先没有指定transactionManager，则会通过beanFactory从容器中获取一个。

参考：http://www.lanxinbase.com/?p=1777

springboot注入transactionManager的方式为:

org.springframework.boot.autoconfigure.jdbc.DataSourceTransactionManagerAutoConfiguration:


      1. `/**`
2. `* {@link EnableAutoConfiguration Auto-configuration} for`
3. `* {@link DataSourceTransactionManager}.`
4. `*`
5. `* @author Dave Syer`
6. `* @author Stephane Nicoll`
7. `* @author Andy Wilkinson`
8. `* @author Kazuki Shimizu`
9. `*/`
10. `@Configuration`
11. `@ConditionalOnClass({ JdbcTemplate.class, PlatformTransactionManager.class })`
12. `@AutoConfigureOrder(Ordered.LOWEST_PRECEDENCE)`
13. `@EnableConfigurationProperties(DataSourceProperties.class)`
14. `public class DataSourceTransactionManagerAutoConfiguration {`
15.
16. `@Configuration`
17. `@ConditionalOnSingleCandidate(DataSource.class)`
18. `static class DataSourceTransactionManagerConfiguration {`
19.
20. `private final DataSource dataSource;`
21.
22. `private final TransactionManagerCustomizers transactionManagerCustomizers;`
23.
24. `DataSourceTransactionManagerConfiguration(DataSource dataSource,`
25. `ObjectProvider<TransactionManagerCustomizers> transactionManagerCustomizers) {`
26. `this.dataSource = dataSource;`
27. `this.transactionManagerCustomizers = transactionManagerCustomizers`
28. `.getIfAvailable();`
29. `}`
30.
31. `@Bean`
32. `@ConditionalOnMissingBean(PlatformTransactionManager.class)`
33. `public DataSourceTransactionManager transactionManager(`
34. `DataSourceProperties properties) {`
35. `DataSourceTransactionManager transactionManager = new DataSourceTransactionManager(`
36. `this.dataSource);`
37. `if (this.transactionManagerCustomizers != null) {`
38. `this.transactionManagerCustomizers.customize(transactionManager);`
39. `}`
40. `return transactionManager;`
41. `}`
42.
43. `}`
44.
45. `}`

如果没有指定transactionManager时，使用springboot时会自动配置PlatformTransactionManager。
springboot项目中会使用这个transactionManager来进行事务的管理(如果没有使用@Transactional注解，springboot则不会进行事务管理)。
有了autoConfiguration，@EnableTransactionManagement注解可加可不加，如果需要修改代理模式时最好加上。

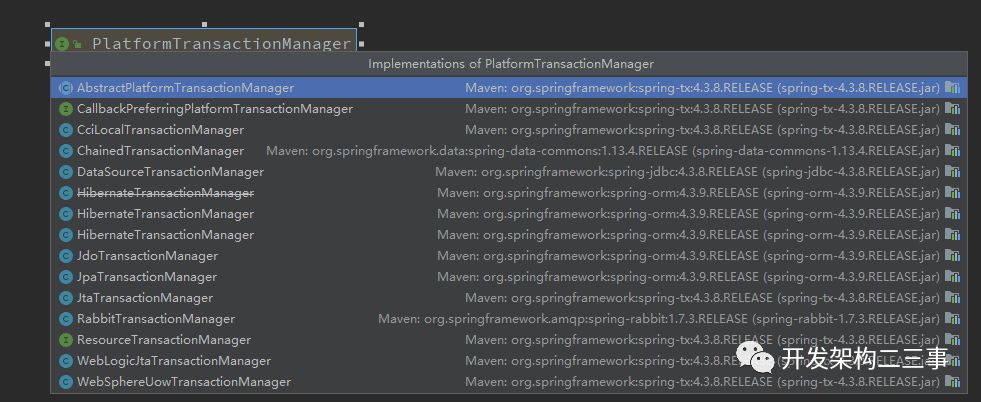

关于PlatformTransactionManager:

picture.image

关于DataSourceTransactionManager中事务的提交设置，可以看看doBegin方法:


      1. `protected void doBegin(Object transaction, TransactionDefinition definition) {`
2. `DataSourceTransactionManager.DataSourceTransactionObject txObject = (DataSourceTransactionManager.DataSourceTransactionObject)transaction;`
3. `Connection con = null;`
4.
5. `try {`
6. `if (txObject.getConnectionHolder() == null || txObject.getConnectionHolder().isSynchronizedWithTransaction()) {`
7. `Connection newCon = this.dataSource.getConnection();`
8. `if (this.logger.isDebugEnabled()) {`
9. `this.logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");`
10. `}`
11.
12. `txObject.setConnectionHolder(new ConnectionHolder(newCon), true);`
13. `}`
14.
15. `txObject.getConnectionHolder().setSynchronizedWithTransaction(true);`
16. `con = txObject.getConnectionHolder().getConnection();`
17. `Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);`
18. `txObject.setPreviousIsolationLevel(previousIsolationLevel);`
19. `if (con.getAutoCommit()) {`
20. `txObject.setMustRestoreAutoCommit(true);`
21. `if (this.logger.isDebugEnabled()) {`
22. `this.logger.debug("Switching JDBC Connection [" + con + "] to manual commit");`
23. `}`
24.
25. `con.setAutoCommit(false);`
26. `}`
27. `--------------------------省略部分代码------------------------`
28. `}`

主要看下这段代码:


      1. `if (con.getAutoCommit()) {`
2. `txObject.setMustRestoreAutoCommit(true);`
3. `if (this.logger.isDebugEnabled()) {`
4. `this.logger.debug("Switching JDBC Connection [" + con + "] to manual commit");`
5. `}`
6.
7. `con.setAutoCommit(false);`
8. `}`

也就是说，当把事务管理交给spring之后，不管在mysql server中事务是设置成手动提交还是自动提交的，这里都会被设置成手动提交，然后由spring接管事务管理。

附:tk myibatis插件注入datasource的方式

自动配置的类:tk.mybatis.mapper.autoconfigure.MapperAutoConfiguration


      1. `@Bean`
2. `@ConditionalOnMissingBean`
3. `public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {`
4. `SqlSessionFactoryBean factory = new SqlSessionFactoryBean();`
5. `------------省略部分代码-------------`
6. `return factory.getObject();`
7. `}`
8.
9. `@Bean`
10. `@ConditionalOnMissingBean`
11. `public SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {`
12. `ExecutorType executorType = this.properties.getExecutorType();`
13. `if (executorType != null) {`
14. `return new SqlSessionTemplate(sqlSessionFactory, executorType);`
15. `} else {`
16. `return new SqlSessionTemplate(sqlSessionFactory);`
17. `}`
18. `}`

获取datasource的方式为:


      1. `public SqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType) {`
2. `this(sqlSessionFactory, executorType,`
3. `new MyBatisExceptionTranslator(`
4. `sqlSessionFactory.getConfiguration().getEnvironment().getDataSource(), true));`
5. `}`

sqlSessionFactory.getConfiguration().getEnvironment().getDataSource()获取到的是当前环境中使用的datasource。

扫描mapper文件的类为:tk.mybatis.spring.annotation.MapperScannerRegistrar
