摘要

为了尽可能加快训练，我们会使用两种GPU并行手段，DP和DDP，但是DP其实只会开一个进程去管理，计算资源分配不均，DDP上我们倾向于一张卡开一个进程，使得我们的计算资源能够最大化的利用。本次的文章会快速地形象地过一下DP和DDP并且告诉大家如何代码层面上实践。

DP（你只需要知道它垃圾就行，可以跳过）

picture.image

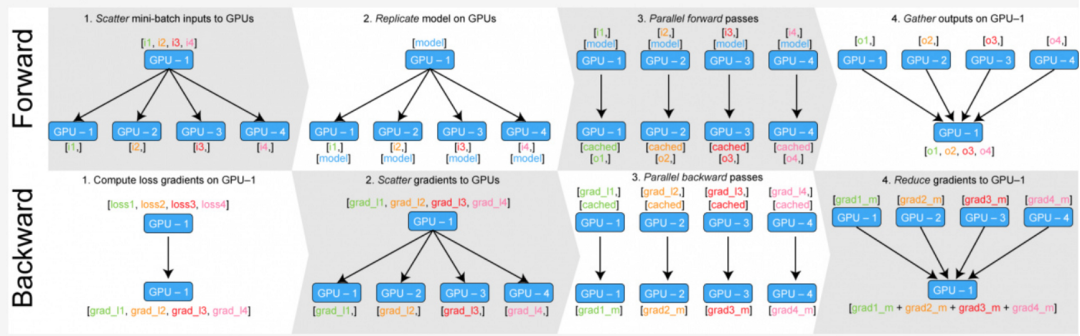

从图中我们可以看出，在forward环节，gpu1会先把所有的数据拿到，然后分发给其他的gpu，当然它自己也拿一份，接着它把自己的模型也复制成4份，每个gpu也拿一份，每个gpu自己跑自己的forward，跑完后将output传给gpu1，gpu1处理所有的output对应的梯度，然后进行backward，将要反向传播的梯度分配给其他的gpu，然后其他的gpu又各自进行自己的反向计算，计算完后将最后的梯度交给gpu1进行更新。我们可以看到，在gpu1分配任务和更新的时候，其实其他的gpu其实都是闲置的，所以利用率没法上来，全部人都得等gpu1。那么我们可不可以想一种新方法来让每个gpu自己拿到数据后，自己跑前后向，而且自己更新梯度呢？DDP这不就来了嘛！

DDP

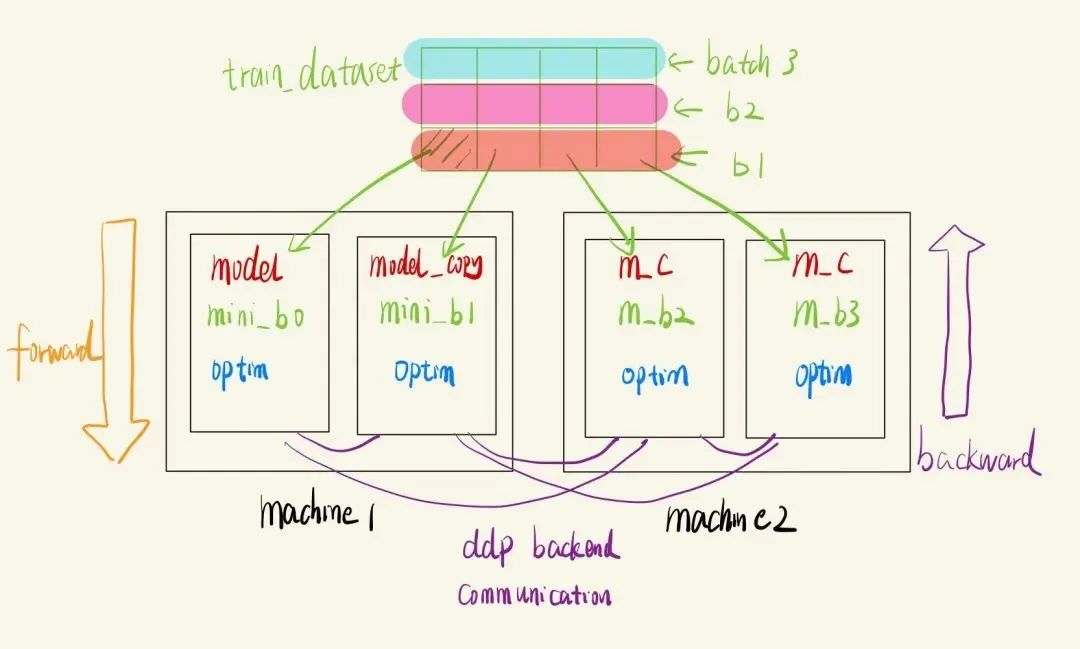

picture.image 秉着尽量少理论，多形象的原则，加速理解，看图。我们将我们的数据以一个一个的batch传入网络，我们有两台machine，两台machine上各有两台gpu。每台gpu上都有自己的model（都是同一个model的复制品）和optimizer。每次来一个batch的数据，我们都会让Distributed sampler去将数据分配好发给指定的gpu，然后gpu们自己跑自己的，跑完前向后，每个gpu通过DDP的后端通讯可以知道其他所有gpu跑的结果，同步了所有gpu的梯度，拿到所有的信息后就吭哧吭哧自己去反向传播更新梯度。DDP就这么简单。

DDP代码实践

代码实践以前需要交代的概念

picture.image






          # 1. 导包：一些需要导入的库
# 模型相关
from torch.nn.parallel import DistributedDataParallel as DDP
# 数据相关
from torch.utils.data.distributed import DistributedSampler
# ddp自身的机制相关
import torch.distributed as dist

# 2.后端多卡通讯及GPU序号（RANK）
if DDP\_ON:
    init\_process\_group(backend="nccl")
    LOCAL\_RANK = device\_id = int(os.environ["LOCAL\_RANK"])
    WORLD\_SIZE = torch.cuda.device\_count()

    device = torch.device('cuda', device\_id) # note that device\_id is an integer but device is a datetype.
    print(f"Start running basic DDP on rank {LOCAL\_RANK}.")
    logging.info(f'Using device {device\_id}')

# 3. DDP model
net = DDP(net, device\_ids = [device\_id], output\_device=device\_id)


# 4.喂数据给多卡
loader\_args = dict(batch\_size=batch\_size, num\_workers=WORLD\_SIZE*4, pin\_memory=True) # batchsize is for a single proc
if DDP\_ON:
    train\_sampler = DistributedSampler(train\_set)
    train\_loader = DataLoader(train\_set, sampler=train\_sampler, **loader\_args)
else:
    train\_loader = DataLoader(train\_set, shuffle=True, **loader\_args)

# no need for distributed sampler for val
val\_loader = DataLoader(val\_set, shuffle=False, drop\_last=True, **loader\_args)

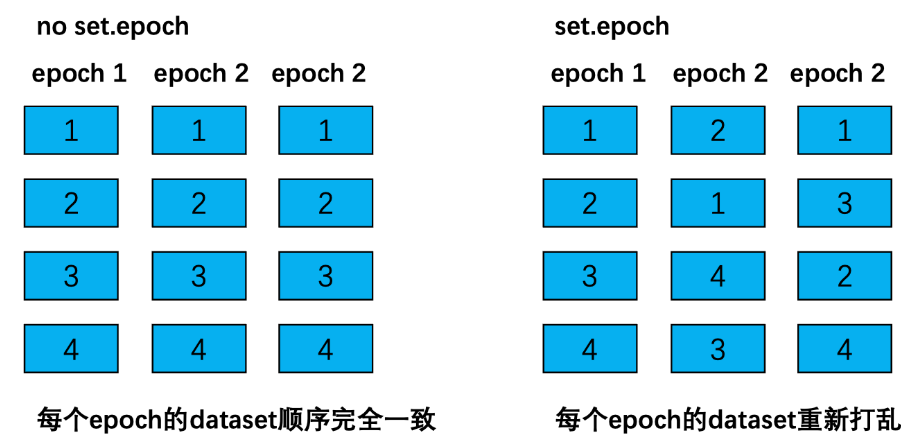

# 5.set\_epoch 防止每次数据都是一样的（如下图）
# ref: https://blog.csdn.net/weixin\_41978699/article/details/121742647
for epoch in range(start, start+epochs):
    if LOCAL\_RANK == 0:
        print('lr: ', optimizer.param\_groups[0]['lr'])

    net.train()
    epoch\_loss = 0

    # To avoid duplicated data sent to multi-gpu
    train\_loader.sampler.set\_epoch(epoch)

picture.image

如何启动






          torchrun --nproc\_per\_node=4 \
          multigpu\_torchrun.py \
          --batch\_size 4 \
          --lr 1e-3

torchrun 是torch 1.11后的版本才可以用，以前的版本需要用






          python -m torch.distributed.launch \
      --nproc\_per\_node = 4 \
        train.py \
      --batch\_size 4

参考资料

pytorch官方

完整代码布局可参考






          import argparse
import logging
import sys
from pathlib import Path

import torch
import torch.nn as nn
import torch.nn.functional as F
import wandb
from torch import optim
from torch.utils.data import DataLoader, random\_split
from tqdm import tqdm

from utils.data\_loading import BasicDataset, CarvanaDataset
from utils.dice\_score import dice\_loss
from evaluate import evaluate
from unet import UNet
import os
import torch.distributed as dist

# for reproducibility
import random
import numpy as np
import torch.backends.cudnn as cudnn

# ABOUT DDP
# for model loading in ddp mode
from torch.nn.parallel import DistributedDataParallel as DDP
# for data loading in ddp mode
from torch.utils.data.distributed import DistributedSampler

import torch.multiprocessing as mp
from torch.distributed import init\_process\_group, destroy\_process\_group



def init\_seeds(seed=0, cuda\_deterministic=True):
    random.seed(seed)
    np.random.seed(seed)
    torch.manual\_seed(seed)
    # Speed-reproducibility tradeoff https://pytorch.org/docs/stable/notes/randomness.html
    if cuda\_deterministic:  # slower, more reproducible
        cudnn.deterministic = True
        cudnn.benchmark = False
    else:  # faster, less reproducible
        cudnn.deterministic = False
        cudnn.benchmark = True

def train\_net(net,
              device,
              start: int = 0,
              epochs: int = 5,
              batch\_size: int = 1,
              learning\_rate: float = 1e-5,
              val\_percent: float = 0.1,
              save\_checkpoint: bool = True,
              img\_scale: float = 0.5,
              amp: bool = False):


    if DDP\_ON: # modify the net's attributes when using ddp
        net.n\_channels = net.module.n\_channels
        net.n\_classes  = net.module.n\_classes

    # 1. Create dataset
    try:
        dataset = CarvanaDataset(dir\_img, dir\_mask, img\_scale)
    except (AssertionError, RuntimeError):
        dataset = BasicDataset(dir\_img, dir\_mask, img\_scale)

    # 2. Split into train / validation partitions
    n\_val = int(len(dataset) * val\_percent)
    n\_train = len(dataset) - n\_val
    train\_set, val\_set = random\_split(dataset, [n\_train, n\_val], generator=torch.Generator().manual\_seed(0))

    # 3. Create data loaders
    loader\_args = dict(batch\_size=batch\_size, num\_workers=WORLD\_SIZE*4, pin\_memory=True) # batchsize is for a single process(GPU)

    if DDP\_ON:
        train\_sampler = DistributedSampler(train\_set)
        train\_loader = DataLoader(train\_set, sampler=train\_sampler, **loader\_args)
    else:
        train\_loader = DataLoader(train\_set, shuffle=True, **loader\_args)


    # no need for distributed sampler for val
    val\_loader = DataLoader(val\_set, shuffle=False, drop\_last=True, **loader\_args)

    # (Initialize logging)
    if LOCAL\_RANK == 0:
        experiment = wandb.init(project='U-Net-DDP', resume='allow', anonymous='must')
        experiment.config.update(dict(epochs=epochs, batch\_size=batch\_size, learning\_rate=learning\_rate,
                                  val\_percent=val\_percent, save\_checkpoint=save\_checkpoint, img\_scale=img\_scale,
                                  amp=amp))

        logging.info(f'''Starting training:
                Epochs:          {epochs}
                Start from:      {start}
                Batch size:      {batch\_size}
                Learning rate:   {learning\_rate}
                Training size:   {n\_train}
                Validation size: {n\_val}
                Checkpoints:     {save\_checkpoint}
                Device:          {device.type}
                Images scaling:  {img\_scale}
                Mixed Precision: {amp}
            ''')

    # 4. Set up the optimizer, the loss, the learning rate scheduler and the loss scaling for AMP
    criterion = nn.CrossEntropyLoss()

    optimizer = optim.AdamW(net.parameters(), lr=learning\_rate, weight\_decay=1e-8)
    scheduler = optim.lr\_scheduler.CosineAnnealingLR(optimizer, T\_max=epochs, eta\_min=1e-7)
    grad\_scaler = torch.cuda.amp.GradScaler(enabled=amp)
    global\_step = 0

    # 5. Begin training
    for epoch in range(start, start+epochs):
        if LOCAL\_RANK == 0:
            print('lr: ', optimizer.param\_groups[0]['lr'])

        net.train()
        epoch\_loss = 0

        # To avoid duplicated data sent to multi-gpu
        train\_loader.sampler.set\_epoch(epoch)

        disable = False if LOCAL\_RANK == 0 else True

        with tqdm(total=n\_train, desc=f'Epoch {epoch}/{epochs+start}', unit='img', disable=disable) as pbar:
            for batch in train\_loader:
                images = batch['image']
                true\_masks = batch['mask']

                assert images.shape[1] == net.n\_channels, \
                    f'Network has been defined with {net.n\_channels} input channels, ' \
                    f'but loaded images have {images.shape[1]} channels. Please check that ' \
                    'the images are loaded correctly.'

                images = images.to(device=device, dtype=torch.float32)
                true\_masks = true\_masks.to(device=device, dtype=torch.long)

                with torch.cuda.amp.autocast(enabled=amp):
                    masks\_pred = net(images)
                    loss = criterion(masks\_pred, true\_masks) \
                           + dice\_loss(F.softmax(masks\_pred, dim=1).float(),
                                       F.one\_hot(true\_masks, net.n\_classes).permute(0, 3, 1, 2).float(),
                                       multiclass=True)

                optimizer.zero\_grad(set\_to\_none=True)
                grad\_scaler.scale(loss).backward()
                grad\_scaler.step(optimizer)
                grad\_scaler.update()

                pbar.update(images.shape[0])
                global\_step += 1
                epoch\_loss += loss.item()

                if LOCAL\_RANK == 0:
                    experiment.log({
                        'train loss': loss.item(),
                        'step': global\_step,
                        'epoch': epoch
                    })
                pbar.set\_postfix(**{'loss (batch)': loss.item()})

                # Evaluation round
                division\_step = (n\_train // (5 * batch\_size))
                if division\_step > 0:
                    if global\_step % division\_step == 0:
                        histograms = {}
                        for tag, value in net.named\_parameters():
                            tag = tag.replace('/', '.')
                            if not torch.isinf(value).any():
                                histograms['Weights/' + tag] = wandb.Histogram(value.data.cpu())
                            if not torch.isinf(value.grad).any():
                                histograms['Gradients/' + tag] = wandb.Histogram(value.grad.data.cpu())

                        val\_score = evaluate(net, val\_loader, device, disable\_log = disable)

                        if LOCAL\_RANK == 0:
                            logging.info('Validation Dice score: {}'.format(val\_score))
                            experiment.log({
                                'learning rate': optimizer.param\_groups[0]['lr'],
                                'validation Dice': val\_score,
                                'images': wandb.Image(images[0].cpu()),
                                'masks': {
                                    'true': wandb.Image(true\_masks[0].float().cpu()),
                                    'pred': wandb.Image(masks\_pred.argmax(dim=1)[0].float().cpu()),
                                },
                                'step': global\_step,
                                'epoch': epoch,
                                **histograms
                            })
        scheduler.step()
        if save\_checkpoint and LOCAL\_RANK == 0 and (epoch % args.save\_every == 0):
            Path(dir\_checkpoint).mkdir(parents=True, exist\_ok=True)
            torch.save(net.module.state\_dict(), str(dir\_checkpoint / 'DDP\_checkpoint\_epoch{}.pth'.format(epoch)))

            logging.info(f'Checkpoint {epoch} saved!')


##################################### arguments ###########################################
parser = argparse.ArgumentParser(description='Train the UNet on images and target masks')
parser.add\_argument('--epochs', '-e', metavar='E', type=int, default=5, help='Number of epochs')
parser.add\_argument('--batch-size', '-b', dest='batch\_size', metavar='B', type=int, default=1, help='Batch size')
parser.add\_argument('--learning-rate', '-l', metavar='LR', type=float, default=1e-5,
                    help='Learning rate', dest='lr')
parser.add\_argument('--load', '-f', type=str, default=False, help='Load model from a .pth file')
parser.add\_argument('--scale', '-s', type=float, default=0.5, help='Downscaling factor of the images')
parser.add\_argument('--validation', '-v', dest='val', type=float, default=10.0,
                    help='Percent of the data that is used as validation (0-100)')
parser.add\_argument('--amp', action='store\_true', default=False, help='Use mixed precision')
parser.add\_argument('--bilinear', action='store\_true', default=False, help='Use bilinear upsampling')
parser.add\_argument('--classes', '-c', type=int, default=2, help='Number of classes')
parser.add\_argument('--exp\_name', type=str, default='hgb\_exp')
parser.add\_argument('--ddp\_mode', action='store\_true')
parser.add\_argument('--save\_every', type=int, default=5)
parser.add\_argument('--start\_from', type=int, default=0)




args = parser.parse\_args()

dir\_img = Path('./data/imgs/')
dir\_mask = Path('./data/masks/')
dir\_checkpoint = Path('./checkpoints/')

DDP\_ON = True if args.ddp\_mode else False

#########################################################################################

if DDP\_ON:
    init\_process\_group(backend="nccl")
    LOCAL\_RANK = device\_id = int(os.environ["LOCAL\_RANK"])
    WORLD\_SIZE = torch.cuda.device\_count()

    device = torch.device('cuda', device\_id) # note that device\_id is an integer but device is a datetype.
    print(f"Start running basic DDP on rank {LOCAL\_RANK}.")
    logging.info(f'Using device {device\_id}')


if \_\_name\_\_ == '\_\_main\_\_':
    #!highly recommended]
    # ref: pytorch org ddp tutorial
    # 1. https://pytorch.org/tutorials/beginner/ddp\_series\_multigpu.html#multi-gpu-training-with-ddp
    # 2. https://pytorch.org/tutorials/beginner/ddp\_series\_multigpu.html

    init\_seeds(0)
    # Change here to adapt to your data
    # n\_channels=3 for RGB images
    # n\_classes is the number of probabilities you want to get per pixel
    net = UNet(n\_channels=3, n\_classes=args.classes, bilinear=args.bilinear)

    if LOCAL\_RANK == 0:
        print(f'Network:\n'
            f'\t{net.n\_channels} input channels\n'
            f'\t{net.n\_classes} output channels (classes)\n'
            f'\t{"Bilinear" if net.bilinear else "Transposed conv"} upscaling')

    if args.load:
        # ref: https://blog.csdn.net/hustwayne/article/details/120324639  use method 2 with module
        # net.load\_state\_dict(torch.load(args.load, map\_location=device))
        net.load\_state\_dict({k.replace('module.', ''): v for k, v in
                       torch.load(args.load, map\_location=device).items()})

        logging.info(f'Model loaded from {args.load}')


    torch.cuda.set\_device(LOCAL\_RANK)
    net.to(device=device)
    # wrap our model with ddp
    net = DDP(net, device\_ids = [device\_id], output\_device=device\_id)

    try:
        train\_net(net=net,
                  start=args.start\_from,
                  epochs=args.epochs,
                  batch\_size=args.batch\_size,
                  learning\_rate=args.lr,
                  device=device,
                  img\_scale=args.scale,
                  val\_percent=args.val / 100,
                  amp=args.amp)
    except KeyboardInterrupt:
        torch.save(net.module.state\_dict(), 'INTERRUPTED\_DDP.pth')
        logging.info('Saved interrupt')
        raise
    destroy\_process\_group()
