pytorch模型线上部署最常见的方式是转换成onnx然后再转成tensorRT 在cuda上进行部署推理。
本文介绍将pytorch模型转换成onnx模型并进行推理的方法。
#!pip install onnx
#!pip install onnxruntime
#!pip install torchvision
公众号算法美食屋后台回复关键词：源码，获取本文notebook源代码。
一，准备pytorch模型
我们先导入torchvision中的resnet18模型，演示它的推理效果。
以便和onnx的结果进行对比。
`import torch`
`import torchvision.models as models`
`import numpy as np`
`import torchvision`
`import torchvision.transforms as T`
`from PIL import Image`
`def create_net():`
`net = models.resnet18(weights=torchvision.models.ResNet18_Weights.IMAGENET1K_V1)`
`return net`
`net = create_net()`
`torch.save(net.state_dict(),'resnet18.pt')`
`net.eval();`
`def get_test_transform():`
`return T.Compose([`
`T.Resize([320, 320]),`
`T.ToTensor(),`
`T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),`
`])`
`image = Image.open("dog.png") # 289`
`img = get_test_transform()(image)`
`img = img.unsqueeze_(0)`
`output = net(img)`
`score, indice = torch.max(torch.softmax(output,axis=-1),1)`
`info = {'score':score.tolist()[0],'indice':indice.tolist()[0]}`
`def show_image(image, title):`
`import matplotlib.pyplot as plt`
`ax=plt.subplot()`
`ax.imshow(image)`
`ax.set_title(title)`
`ax.set_xticks([])`
`ax.set_yticks([])`
`plt.show()`

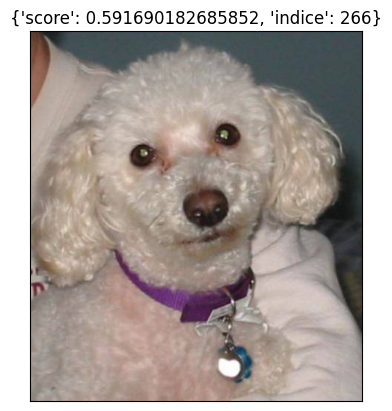

`show_image(image, title = info)`
二，pytorch模型转换成onnx模型
1， 简化版本
`import onnxruntime`
`import onnx`
`batch_size = 1`
`input_shape = (3, 320, 320)`
`x = torch.randn(batch_size, *input_shape)`
`onnx_file = "resnet18.onnx"`
`torch.onnx.export(net,x,onnx_file,`
`opset_version=10,`
`do_constant_folding=True, # 是否执行常量折叠优化`
`input_names=["input"],`
`output_names=["output"],`
`dynamic_axes={`
`"input":{0:"batch_size"},`
`"output":{0:"batch_size"}})`
!du -s -h resnet18.pt
45M resnet18.pt
!du -s -h resnet18.onnx
45M resnet18.onnx
可以在 https://netron.app/ 中拖入 resnet18.onnx 文件查看模型结构
2，全面版本
下面的代码包括了设置输入输出尺寸，以及动态可以变batch等等。
`import argparse`
`from argparse import Namespace`
`import time`
`import sys`
`import os`
`import torch`
`import torch.nn as nn`
`import torchvision.models as models`
`import onnx`
`import onnxruntime`
`from io import BytesIO`
`ROOT = os.getcwd()`
`if str(ROOT) not in sys.path:`
`sys.path.append(str(ROOT))`
`params = Namespace(weights='resnet18.pt',`
`img_size=[320,320],`
`batch_size=1,`
`half=False,`
`dynamic_batch=True`
`)`
`parser = argparse.ArgumentParser()`
`parser.add_argument('--weights', type=str, default='checkpoint.pt', help='weights path')`
`parser.add_argument('--img-size', nargs='+', type=int, default=[320, 320], help='image size') # height, width`
`parser.add_argument('--batch-size', type=int, default=1, help='batch size')`
`parser.add_argument('--half', action='store_true', help='FP16 half-precision export')`
`parser.add_argument('--inplace', action='store_true', help='set Detect() inplace=True')`
`parser.add_argument('--simplify', action='store_true', help='simplify onnx model')`
`parser.add_argument('--dynamic-batch', action='store_true', help='export dynamic batch onnx model')`
`parser.add_argument('--trt-version', type=int, default=8, help='tensorrt version')`
`parser.add_argument('--device', default='cpu', help='cuda device, i.e. 0 or 0,1,2,3 or cpu')`
`args = parser.parse_args(args='',namespace=params)`
`args.img_size *= 2 if len(args.img_size) == 1 else 1 # expand`
`print(args)`
`t = time.time()`
`# Check device`
`cuda = args.device != 'cpu' and torch.cuda.is_available()`
`device = torch.device(f'cuda:{args.device}' if cuda else 'cpu')`
`assert not (device.type == 'cpu' and args.half), '--half only compatible with GPU export, i.e. use --device 0'`
`# Load PyTorch model`
`model = create_net()`
`model.to(device)`
`model.load_state_dict(torch.load(args.weights)) # pytorch模型加载`
`# Input`
`img = torch.zeros(args.batch_size, 3, *args.img_size).to(device) # image size(1,3,320,192) iDetection`
`# Update model`
`if args.half:`
`img, model = img.half(), model.half() # to FP16`
`model.eval()`
`prediction = model(img) # dry run`
`# ONNX export`
`print('\nStarting to export ONNX...')`
`export_file = args.weights.replace('.pt', '.onnx') # filename`
`with BytesIO() as f:`
`dynamic_axes = {"input":{0:"batch_size"}, "output":{0:"batch_size"} } if args.dynamic_batch else None`
`torch.onnx.export(model, img, f, verbose=False, opset_version=13,`
`training=torch.onnx.TrainingMode.EVAL,`
`do_constant_folding=True,`
`input_names=['input'],`
`output_names=['output'],`
`dynamic_axes=dynamic_axes)`
`f.seek(0)`
`# Checks`
`onnx_model = onnx.load(f) # load onnx model`
`onnx.checker.check_model(onnx_model) # check onnx model`
`if args.simplify:`
`try:`
`import onnxsim`
`print('\nStarting to simplify ONNX...')`
`onnx_model, check = onnxsim.simplify(onnx_model)`
`assert check, 'assert check failed'`
`except Exception as e:`
`print(f'Simplifier failure: {e}')`
`onnx.save(onnx_model, export_file)`
`print(f'ONNX export success, saved as {export_file}')`
`# Finish`
`print('\nExport complete (%.2fs)' % (time.time() - t))`
Namespace(weights='resnet18.pt', img_size=[320, 320], batch_size=1, half=False, dynamic_batch=True, inplace=False, simplify=False, trt_version=8, device='cpu')
Starting to export ONNX...
ONNX export success, saved as resnet18.onnx
Export complete (0.57s)
三，使用onnx模型进行推理
1，函数风格
`onnx\_sesstion = onnxruntime.InferenceSession(export\_file)`
`def pipe(img_path,`
`onnx_sesstion = onnx_sesstion):`
`image = Image.open(img_path)`
`img = get_test_transform()(image)`
`img = img.unsqueeze_(0)`
`to_numpy = lambda tensor: tensor.data.cpu().numpy()`
`inputs = {onnx_sesstion.get_inputs()[0].name: to_numpy(img)}`
`outs = onnx_sesstion.run(None, inputs)[0]`
`score, indice = torch.max(torch.softmax(torch.as_tensor(outs),axis=-1),1)`
`info = {'score':score.tolist()[0],'indice':indice.tolist()[0]}`
`return info`
`img_path = 'dog.png'`
`image = Image.open(img_path)`
`info = pipe(img_path)`
`show_image(image,info)`
2，对象风格
`import os, sys`
`import onnxruntime`
`import onnx`
`class ONNXModel():`
`def __init__(self, onnx_path):`
`self.onnx_session = onnxruntime.InferenceSession(onnx_path)`
`self.input_names = [node.name for node in self.onnx_session.get_inputs()]`
`self.output_names = [node.name for node in self.onnx_session.get_outputs()]`
`print("input_name:{}".format(self.input_names))`
`print("output_name:{}".format(self.output_names))`
`def forward(self, x):`
`if isinstance(x,np.ndarray):`
`assert len(self.input_names)==1`
`input_feed = {self.input_names[0]:x}`
`elif isinstance(x,(tuple,list)):`
`assert len(self.input_names)==len(x)`
`input_feed = {k:v for k,v in zip(self.input_names,x)}`
`else:`
`assert isinstance(x,dict)`
`input_feed = x`
`outs = self.onnx_session.run(self.output_names, input_feed=input_feed)`
`return outs`
`def predict(self,img_path):`
`image = Image.open(img_path)`
`img = get_test_transform()(image)`
`img = img.unsqueeze_(0)`
`to_numpy = lambda tensor: tensor.data.cpu().numpy()`
`outs = self.forward(to_numpy(img))[0]`
`score, indice = torch.max(torch.softmax(torch.as_tensor(outs),axis=-1),1)`
`return {'score':score[0].data.numpy().tolist(),`
`'indice':indice[0].data.numpy().tolist()}`
`onnx_model = ONNXModel(export_file)`
`info = onnx_model.predict(img_path)`

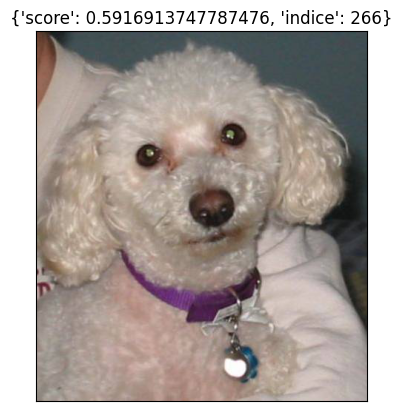

`show_image(image, title = info)`
input_name:['input']
output_name:['output']
