Bert源码解析

我创建这个公众号的目的是为了写自己关于paper、算法或者某个应用的理解，并不打算转载其他人的文章。最近一直在使用bert家族的模型来完成自己的任务，准备写关于bert源码的解析，恰好发现已经有人完成了这个工作，由于工作量比较大，还是为了bert打算破一次例。

原文章可以参考https://carlos9310.github.io/2019/09/30/pre-trained-bert/

之前总是直接用预训练好的BERT模型，对预训练部分的认识只停留在其同时训练两个无监督的任务：masked LM和Next Sentence Prediction (NSP)。而之后的SOTA模型如XLNet、RoBERTa、ALBERT等都属于BERT的追随者。因此有必要详细了解BERT预训练的细节。

本篇post主要从代码角度解读BERT的预训练的思路与细节。

数据解读

官方给出了一个作为初始训练语料的.txt格式的demo文件sample_text.txt，其中每一行表示一句话，不同文档用空格区分。如果想训练自己的数据，整理成上述形式即可。

数据预处理

先直观地看一下数据预处理时执行脚本。


python create_pretraining_data.py \
  --input_file=./sample_text.txt \
  --output_file=/tmp/tf_examples.tfrecord \
  --vocab_file=$BERT_BASE_DIR/vocab.txt \
  --do_lower_case=True \
  --max_seq_length=128 \
  --max_predictions_per_seq=20 \
  --masked_lm_prob=0.15 \
  --random_seed=12345 \
  --dupe_factor=5



其中input_file为初始训练语料的文件路径，可有多个(用逗号分隔)；output_file指定了生成.tfrecord格式的文件路径，可有多个(用逗号分隔)；vocab_file预训练的词表文件，直接用google提供的即可。若使用自己生成的 词表需重新训练，但需保证自己有足够多的文本语料；max_seq_length 表示拼接后的句子对组成的序列中包含Wordpiece级别的token数的上限，超过部分，需将较长的句子进行首尾截断；max_predictions_per_seq表示每个序列中需要预测的token数的上限；masked_lm_prob表示生成的序列中被masked的token占总token数的比例(这里的masked是广义的mask，即将选中的token替换成[mask]或保持原词汇或随机替换成词表中的另一个词)，且有如下关系max_predictions_per_seq 约等于 max_seq_length * masked_lm_prob；random_seed为随机种子，便于复现结果；dupe_factor表示重复因子，即重复创建TrainingInstance的次数，因每次随机生成mask,所以需预测的mask的token是不同的。

create_pretraining_data.py模块主要是将上述.txt格式的初始训练语料先转化为TrainingInstance对象组成的list，然后将生成的每一个TrainingInstance对象依此转成tf.train.Example对象后，序列化到.tfrecord格式的文件中。最终生成的.tfrecord格式的文件是BERT预训练时的数据源。

下面分步骤依此看下各个处理过程。

首先是从原始的.txt格式的语料中生成由TrainingInstance对象组成的list。其主流程代码如下：


def create_training_instances(input_files, tokenizer, max_seq_length,
                              dupe_factor, short_seq_prob, masked_lm_prob,
                              max_predictions_per_seq, rng):
  """Create `TrainingInstance`s from raw text."""
  all_documents = [[]]

  # Input file format:
  # (1) One sentence per line. These should ideally be actual sentences, not
  # entire paragraphs or arbitrary spans of text. (Because we use the
  # sentence boundaries for the "next sentence prediction" task).
  # (2) Blank lines between documents. Document boundaries are needed so
  # that the "next sentence prediction" task doesn't span between documents.
  for input_file in input_files:
    with tf.gfile.GFile(input_file, "r") as reader:
      while True:
        line = tokenization.convert_to_unicode(reader.readline())
        if not line:
          break
        line = line.strip()

        # Empty lines are used as document delimiters
        if not line:
          all_documents.append([])
        tokens = tokenizer.tokenize(line)
        if tokens:
          all_documents[-1].append(tokens)

  # Remove empty documents
  all_documents = [x for x in all_documents if x]
  rng.shuffle(all_documents)

  vocab_words = list(tokenizer.vocab.keys())
  instances = []
  for _ in range(dupe_factor):
    for document_index in range(len(all_documents)):
      instances.extend(
          create_instances_from_document(
              all_documents, document_index, max_seq_length, short_seq_prob,
              masked_lm_prob, max_predictions_per_seq, vocab_words, rng))

  rng.shuffle(instances)
  return instances



先遍历可用的语料，依次读取每个语料中的每一行，如果没有行可读，停止当前语料的遍历；如果扫描到换行符(空行)，往all_documents中追加一个空list；其他情况则先将读取的行分割成wordpiece级别的list，然后追加到all_documents中的最后一个文档中。最终形成如下形式的文档list:[[[d1_s1],[d1_s2],…,[d1_sn]],[[d2_s1],[d2_s2],…,[d2_sm]],…,[[dk_s1],[dk_s2],…,[dk_sz]]]。上述表示一个语料中有k个文档，第一个文档有n句话，第二个文档有m句话，第k个文档有z句话，d1_s1表示第一个文档中的第一句话被分割成wordpiece级别的list。

接着过滤掉all_documents中的空文档并随机打乱其中的文档顺序。然后对all_documents中的每一个文档生成由TrainingInstance对象组成的instances列表，即create_instances_from_document，并拼接(extend)所有的instances到一个instances中。重复上述all_documents–>instances的过程dupe_factor次。最后再随机打乱生成的instances并返回。

上述最重要的操作是如何从单个文档中生成由TrainingInstance对象组成的instances列表，即create_instances_from_document函数。该函数涉及masked LM和Next Sentence Prediction (NSP)的具体实现细节。 具体代码如下：


def create_instances_from_document(
    all_documents, document_index, max_seq_length, short_seq_prob,
    masked_lm_prob, max_predictions_per_seq, vocab_words, rng):
  """Creates `TrainingInstance`s for a single document."""
  document = all_documents[document_index]

  # Account for [CLS], [SEP], [SEP]
  max_num_tokens = max_seq_length - 3

  # We *usually* want to fill up the entire sequence since we are padding
  # to `max_seq_length` anyways, so short sequences are generally wasted
  # computation. However, we *sometimes*
  # (i.e., short_seq_prob == 0.1 == 10% of the time) want to use shorter
  # sequences to minimize the mismatch between pre-training and fine-tuning.
  # The `target_seq_length` is just a rough target however, whereas
  # `max_seq_length` is a hard limit.
  target_seq_length = max_num_tokens
  if rng.random() < short_seq_prob:
    target_seq_length = rng.randint(2, max_num_tokens)

  # We DON'T just concatenate all of the tokens from a document into a long
  # sequence and choose an arbitrary split point because this would make the
  # next sentence prediction task too easy. Instead, we split the input into
  # segments "A" and "B" based on the actual "sentences" provided by the user
  # input.
  instances = []
  current_chunk = []
  current_length = 0
  i = 0
  while i < len(document):
    segment = document[i]
    current_chunk.append(segment)
    current_length += len(segment)
    if i == len(document) - 1 or current_length >= target_seq_length:
      if current_chunk:
        # `a_end` is how many segments from `current_chunk` go into the `A`
        # (first) sentence.
        a_end = 1
        if len(current_chunk) >= 2:
          a_end = rng.randint(1, len(current_chunk) - 1)

        tokens_a = []
        for j in range(a_end):
          tokens_a.extend(current_chunk[j])

        tokens_b = []
        # Random next
        is_random_next = False
        if len(current_chunk) == 1 or rng.random() < 0.5:
          is_random_next = True
          target_b_length = target_seq_length - len(tokens_a)

          # This should rarely go for more than one iteration for large
          # corpora. However, just to be careful, we try to make sure that
          # the random document is not the same as the document
          # we're processing.
          for _ in range(10):
            random_document_index = rng.randint(0, len(all_documents) - 1)
            if random_document_index != document_index:
              break

          random_document = all_documents[random_document_index]
          random_start = rng.randint(0, len(random_document) - 1)
          for j in range(random_start, len(random_document)):
            tokens_b.extend(random_document[j])
            if len(tokens_b) >= target_b_length:
              break
          # We didn't actually use these segments so we "put them back" so
          # they don't go to waste.
          num_unused_segments = len(current_chunk) - a_end
          i -= num_unused_segments
        # Actual next
        else:
          is_random_next = False
          for j in range(a_end, len(current_chunk)):
            tokens_b.extend(current_chunk[j])
        truncate_seq_pair(tokens_a, tokens_b, max_num_tokens, rng)

        assert len(tokens_a) >= 1
        assert len(tokens_b) >= 1

        tokens = []
        segment_ids = []
        tokens.append("[CLS]")
        segment_ids.append(0)
        for token in tokens_a:
          tokens.append(token)
          segment_ids.append(0)

        tokens.append("[SEP]")
        segment_ids.append(0)

        for token in tokens_b:
          tokens.append(token)
          segment_ids.append(1)
        tokens.append("[SEP]")
        segment_ids.append(1)

        (tokens, masked_lm_positions,
         masked_lm_labels) = create_masked_lm_predictions(
             tokens, masked_lm_prob, max_predictions_per_seq, vocab_words, rng)
        instance = TrainingInstance(
            tokens=tokens,
            segment_ids=segment_ids,
            is_random_next=is_random_next,
            masked_lm_positions=masked_lm_positions,
            masked_lm_labels=masked_lm_labels)
        instances.append(instance)
      current_chunk = []
      current_length = 0
    i += 1

  return instances



首先确定要从哪个文档生成TrainingInstance对象，接着确定拼接两个segment(segment是基于句子生成的，一个segment可能只有一个句子，也可能由多个句子拼接而成)组成的序列中可容纳的最多token数为max_num_tokens，然后循环遍历该文档中的每一个句子，当遍历的前几个句子对应的token的总数大于等于目标序列的最大值(target_seq_length，不是max_num_tokens)或已遍历到最后一个句子，则从current_chunk中按顺序选取一定数量(随机生成)的句子拼接成tokens_a(segment A)，而tokens_b(segment B)的生成有两种可能(与NSP相对应)。一种是从current_chunk中依次拼接tokens_a剩下的句子，此时tokens_a与tokens_b是连贯的；另一种是随机选择其他文档，并随机地确定要遍历的句子的开始，然后不断拼接直到大于等于target_b_length。需要注意的是，此时需进一步确定current_chunk中未用到的句子，并将遍历该文档句子的索引重新置位到未用到的句子的位置。

至此tokens_a(segment A)与tokens_b(segment B)便分别确定了。在进一步处理前需保证拼接后两个segment的总tokens数小于等于max_num_tokens，对于超过的部分，每次选择较长的句子随机地去掉头或尾，直至符合要求。

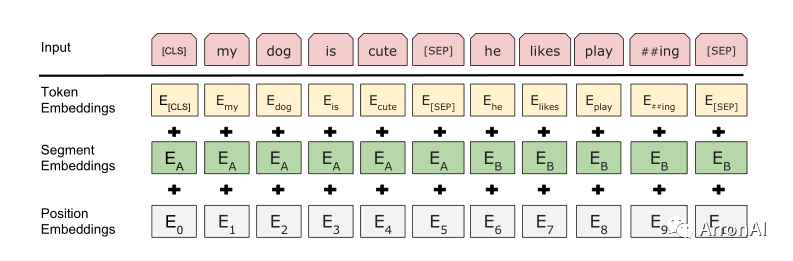

然后将截取后的tokens_a与tokens_b拼接成 [CLS] tokens_a [SEP] tokens_b [SEP]的形式。以上就是Next Sentence Prediction (NSP)任务对应的数据预处理的细节。

接着在最终拼接后的两个segments形成的tokens的基础上做mask操作，生成masked LM任务需要的tokens形式。具体代码如下：


def create_masked_lm_predictions(tokens, masked_lm_prob,
                                 max_predictions_per_seq, vocab_words, rng):
  """Creates the predictions for the masked LM objective."""

  cand_indexes = []
  for (i, token) in enumerate(tokens):
    if token == "[CLS]" or token == "[SEP]":
      continue
    # Whole Word Masking means that if we mask all of the wordpieces
    # corresponding to an original word. When a word has been split into
    # WordPieces, the first token does not have any marker and any subsequence
    # tokens are prefixed with ##. So whenever we see the ## token, we
    # append it to the previous set of word indexes.
    #
    # Note that Whole Word Masking does *not* change the training code
    # at all -- we still predict each WordPiece independently, softmaxed
    # over the entire vocabulary.
    if (FLAGS.do_whole_word_mask and len(cand_indexes) >= 1 and
        token.startswith("##")):
      cand_indexes[-1].append(i)
    else:
      cand_indexes.append([i])

  rng.shuffle(cand_indexes)

  output_tokens = list(tokens)

  num_to_predict = min(max_predictions_per_seq,
                       max(1, int(round(len(tokens) * masked_lm_prob))))

  masked_lms = []
  covered_indexes = set()
  for index_set in cand_indexes:
    if len(masked_lms) >= num_to_predict:
      break
    # If adding a whole-word mask would exceed the maximum number of
    # predictions, then just skip this candidate.
    if len(masked_lms) + len(index_set) > num_to_predict:
      continue
    is_any_index_covered = False
    for index in index_set:
      if index in covered_indexes:
        is_any_index_covered = True
        break
    if is_any_index_covered:
      continue
    for index in index_set:
      covered_indexes.add(index)

      masked_token = None
      # 80% of the time, replace with [MASK]
      if rng.random() < 0.8:
        masked_token = "[MASK]"
      else:
        # 10% of the time, keep original
        if rng.random() < 0.5:
          masked_token = tokens[index]
        # 10% of the time, replace with random word
        else:
          masked_token = vocab_words[rng.randint(0, len(vocab_words) - 1)]

      output_tokens[index] = masked_token

      masked_lms.append(MaskedLmInstance(index=index, label=tokens[index]))
  assert len(masked_lms) <= num_to_predict
  masked_lms = sorted(masked_lms, key=lambda x: x.index)

  masked_lm_positions = []
  masked_lm_labels = []
  for p in masked_lms:
    masked_lm_positions.append(p.index)
    masked_lm_labels.append(p.label)

  return (output_tokens, masked_lm_positions, masked_lm_labels)



首先记录在NSP阶段生成的tokens序列中每个token(除了[CLS]与[SEP])的位置信息([[1],[2],…,[8],[10],[11,12,13],…],mask时考虑了整词mask的情况)，接着随机打乱位置信息，复制一份mask前的tokens序列信息到output_tokens中，确定在该tokens序列中要预测的token的个数(num_to_predict，大概占总tokens数的15%)。然后顺序遍历被打乱的位置，对每个位置的token进行mask操作并记录被mask的位置信息和mask前的token值，其中有80%的概率该token被替换成’[mask]’，10%的概率该token被替换成自己(保持不变)，10%的概率该token被替换成词表中的任一token。 直到被mask的token数大于等于设定值num_to_predict。最后将所有被mask的token按位置信息升序排序后,返回mask后的整个序列、被mask的位置及mask前的token。

以上为masked LM任务对应的数据预处理的细节。

最后将生成的与NSP和masked LM相关的特征赋值给TrainingInstance对象对应属性 (tokens,segment_ids,is_random_next,masked_lm_positions,masked_lm_labels) ，形成最终的 instance。

至此，梳理完了从原始的.txt的语料生成由TrainingInstance对象组成的list的过程。

最后看下如何将上述的list写入到.tfrecord格式的文件中。具体代码如下：


def write_instance_to_example_files(instances, tokenizer, max_seq_length,
                                    max_predictions_per_seq, output_files):
  """Create TF example files from `TrainingInstance`s."""
  writers = []
  for output_file in output_files:
    writers.append(tf.python_io.TFRecordWriter(output_file))

  writer_index = 0

  total_written = 0
  for (inst_index, instance) in enumerate(instances):
    input_ids = tokenizer.convert_tokens_to_ids(instance.tokens)
    input_mask = [1] * len(input_ids)
    segment_ids = list(instance.segment_ids)
    assert len(input_ids) <= max_seq_length

    while len(input_ids) < max_seq_length:
      input_ids.append(0)
      input_mask.append(0)
      segment_ids.append(0)

    assert len(input_ids) == max_seq_length
    assert len(input_mask) == max_seq_length
    assert len(segment_ids) == max_seq_length

    masked_lm_positions = list(instance.masked_lm_positions)
    masked_lm_ids = tokenizer.convert_tokens_to_ids(instance.masked_lm_labels)
    masked_lm_weights = [1.0] * len(masked_lm_ids)

    while len(masked_lm_positions) < max_predictions_per_seq:
      masked_lm_positions.append(0)
      masked_lm_ids.append(0)
      masked_lm_weights.append(0.0)

    next_sentence_label = 1 if instance.is_random_next else 0

    features = collections.OrderedDict()
    features["input_ids"] = create_int_feature(input_ids)
    features["input_mask"] = create_int_feature(input_mask)
    features["segment_ids"] = create_int_feature(segment_ids)
    features["masked_lm_positions"] = create_int_feature(masked_lm_positions)
    features["masked_lm_ids"] = create_int_feature(masked_lm_ids)
    features["masked_lm_weights"] = create_float_feature(masked_lm_weights)
    features["next_sentence_labels"] = create_int_feature([next_sentence_label])

    tf_example = tf.train.Example(features=tf.train.Features(feature=features))

    writers[writer_index].write(tf_example.SerializeToString())
    writer_index = (writer_index + 1) % len(writers)

    total_written += 1

    if inst_index < 20:
      tf.logging.info("*** Example ***")
      tf.logging.info("tokens: %s" % " ".join(
          [tokenization.printable_text(x) for x in instance.tokens]))

      for feature_name in features.keys():
        feature = features[feature_name]
        values = []
        if feature.int64_list.value:
          values = feature.int64_list.value
        elif feature.float_list.value:
          values = feature.float_list.value
        tf.logging.info(
            "%s: %s" % (feature_name, " ".join([str(x) for x in values])))

  for writer in writers:
    writer.close()

  tf.logging.info("Wrote %d total instances", total_written)



首先根据不同的输出文件路径，实例化多个不同的tf.python_io.TFRecordWriter对象。然后依次遍历instances列表中每个TrainingInstance对象，解析其相关属性值，保证input_ids、input_mask与segment_ids的长度等于max_seq_length，masked_lm_positions、masked_lm_ids与masked_lm_weights的长度等于max_predictions_per_seq。(不足补零) 将相关属性值统一放到features的字典(key:特征名，value:tf.train.Feature对象)中，将含多个特征属性值的字典传给tf.train.Example对象后，序列化到.tfrecord格式的文件中(此文件为预训练的输入文件)，并打印前20个样本的相关特征值。

至此，从.txt的原始语料到.tfrecord格式的预训练的输入文件的转化梳理完成。

预训练

以下为预训练的运行脚本。


python run_pretraining.py \
  --input_file=/tmp/tf_examples.tfrecord \
  --output_dir=/tmp/pretraining_output \
  --do_train=True \
  --do_eval=True \
  --bert_config_file=$BERT_BASE_DIR/bert_config.json \
  --init_checkpoint=$BERT_BASE_DIR/bert_model.ckpt \
  --train_batch_size=32 \
  --max_seq_length=128 \
  --max_predictions_per_seq=20 \
  --num_train_steps=20 \
  --num_warmup_steps=10 \
  --learning_rate=2e-5



其中input_file为数据预处理部分生成的.tfrecord格式的文件路径；output_dir为预训练后生成的模型文件的路径；bert_config_file为(预训练)模型的配置文件；init_checkpoint为(预训练)模型的初始检查点，如果想要从头开始训练，那么不要此参数，一般都是在google预训练好的模型基础上微调，即模型相关的初始参数从ckpt文件中加载，除非自己有特别大的某一领域的语料；train_batch_size表示训练阶段每步中最多包含的样本数；max_seq_length表示每个样本中含有token个数的最大值，此值需与数据预处理部分保持一致，该参数类似于RNN中的最大时间步，每次可动态调整。针对某一特定领域的语料，可在通用的语言模型的基础上，每次通过设置不同长度的专业领域的句子对微调语言模型，使最终生成的预训练的语言模型更适合某一特定领域；max_predictions_per_seq表示每个序列中需要预测的token的最大个数，此值需与数据预处理部分保持一致；num_train_steps表示训练阶段的步数；num_warmup_steps表示学习率从0逐渐增加到初始学习率所需的步数，以后的步数保持固定学习率。

接着从源码角度重点分析下预训练模块中BERT模型的内部结构。

首先看下如何从输入的.tfrecord文件中解析出BERT需要的输入数据。代码如下：


def input_fn_builder(input_files,
                     max_seq_length,
                     max_predictions_per_seq,
                     is_training,
                     num_cpu_threads=4):
  """Creates an `input_fn` closure to be passed to TPUEstimator."""

  def input_fn(params):
    """The actual input function."""
    batch_size = params["batch_size"]

    name_to_features = {
        "input_ids":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "input_mask":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "segment_ids":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "masked_lm_positions":
            tf.FixedLenFeature([max_predictions_per_seq], tf.int64),
        "masked_lm_ids":
            tf.FixedLenFeature([max_predictions_per_seq], tf.int64),
        "masked_lm_weights":
            tf.FixedLenFeature([max_predictions_per_seq], tf.float32),
        "next_sentence_labels":
            tf.FixedLenFeature([1], tf.int64),
    }

    # For training, we want a lot of parallel reading and shuffling.
    # For eval, we want no shuffling and parallel reading doesn't matter.
    if is_training:
      tf.logging.info(f'input_files---:{input_files}')
      tf.logging.info(f'tf.constant(input_files)---:{tf.constant(input_files)}')
      d = tf.data.Dataset.from_tensor_slices(tf.constant(input_files))  # ???
      d = d.repeat()
      d = d.shuffle(buffer_size=len(input_files))

      # `cycle_length` is the number of parallel files that get read.
      cycle_length = min(num_cpu_threads, len(input_files))

      # `sloppy` mode means that the interleaving is not exact. This adds
      # even more randomness to the training pipeline.
      d = d.apply(
          tf.contrib.data.parallel_interleave(
              tf.data.TFRecordDataset,
              sloppy=is_training,
              cycle_length=cycle_length))
      d = d.shuffle(buffer_size=100)
    else:
      d = tf.data.TFRecordDataset(input_files)
      # Since we evaluate for a fixed number of steps we don't want to encounter
      # out-of-range exceptions.
      d = d.repeat()

    # We must `drop_remainder` on training because the TPU requires fixed
    # size dimensions. For eval, we assume we are evaluating on the CPU or GPU
    # and we *don't* want to drop the remainder, otherwise we wont cover
    # every sample.
    d = d.apply(
        tf.contrib.data.map_and_batch(
            lambda record: _decode_record(record, name_to_features),
            batch_size=batch_size,
            num_parallel_batches=num_cpu_threads,
            drop_remainder=True))
    return d

  return input_fn



以上代码将.tfrecord文件加载成dataset的对象，接着利用其固有方法进行repeat、shuffle操作后，再利用其map_and_batch方法先将数据集中序列化的Example对象解码成由各个feature组成的features字典，然后将解析后的值分成多组batch，作为模型的输入数据(model_fn中的features)。

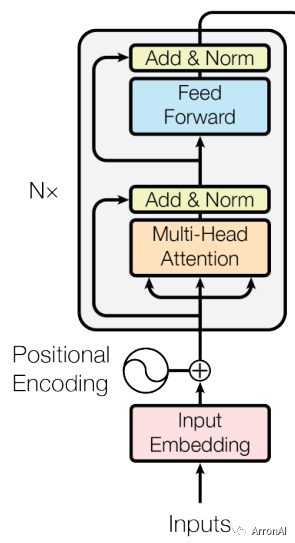

接着重点看下模型的内部结构。从宏观上看，其主要有三部分：embeddings、encoder和输出。其中embeddings包括word_embeddings、token_type_embeddings(segment_embeddings)和position_embeddings三部分；encoder部分由num_hidden_layers(12)个Transformer Encoders堆叠而成；输出部分由两种形式，一种是输出最后一层(Transformer) Encoder的sequence_output(形状为[batch_size, seq_length, hidden_size]，token级别的embedding)，这个输出用于masked LM任务的训练。另一种是取sequence_output中的第一个token，然后接一个带有tanh的激活函数的全连接层作为输出(形状为[batch_size, hidden_size]，句级别的embedding)，此输出用于NSP任务的训练。 上述三部分宏观代码如下：


class BertModel(object):
  """BERT model ("Bidirectional Encoder Representations from Transformers").

  Example usage:

  ```python
  # Already been converted into WordPiece token ids
  input_ids = tf.constant([[31, 51, 99], [15, 5, 0]])
  input_mask = tf.constant([[1, 1, 1], [1, 1, 0]])
  token_type_ids = tf.constant([[0, 0, 1], [0, 2, 0]])

  config = modeling.BertConfig(vocab_size=32000, hidden_size=512,
    num_hidden_layers=8, num_attention_heads=6, intermediate_size=1024)

  model = modeling.BertModel(config=config, is_training=True,
    input_ids=input_ids, input_mask=input_mask, token_type_ids=token_type_ids)

  label_embeddings = tf.get_variable(...)
  pooled_output = model.get_pooled_output()
  logits = tf.matmul(pooled_output, label_embeddings)
  ...
  """
  def __init__(self,
               config,
               is_training,
               input_ids,
               input_mask=None,
               token_type_ids=None,
               use_one_hot_embeddings=False,
               scope=None):
    """Constructor for BertModel.

    Args:
      config: `BertConfig` instance.
      is_training: bool. true for training model, false for eval model. Controls
        whether dropout will be applied.
      input_ids: int32 Tensor of shape [batch_size, seq_length].
      input_mask: (optional) int32 Tensor of shape [batch_size, seq_length].
      token_type_ids: (optional) int32 Tensor of shape [batch_size, seq_length]. <==> segment id
      use_one_hot_embeddings: (optional) bool. Whether to use one-hot word
        embeddings or tf.embedding_lookup() for the word embeddings.
      scope: (optional) variable scope. Defaults to "bert".

    Raises:
      ValueError: The config is invalid or one of the input tensor shapes
        is invalid.
    """
    config = copy.deepcopy(config)
    if not is_training:
      config.hidden_dropout_prob = 0.0
      config.attention_probs_dropout_prob = 0.0

    input_shape = get_shape_list(input_ids, expected_rank=2)
    batch_size = input_shape[0]
    seq_length = input_shape[1]

    if input_mask is None:
      input_mask = tf.ones(shape=[batch_size, seq_length], dtype=tf.int32)

    if token_type_ids is None:
      token_type_ids = tf.zeros(shape=[batch_size, seq_length], dtype=tf.int32)

    with tf.variable_scope(scope, default_name="bert"):
      with tf.variable_scope("embeddings"):
        # Perform embedding lookup on the word ids.
        (self.embedding_output, self.embedding_table) = embedding_lookup(
            input_ids=input_ids,
            vocab_size=config.vocab_size,
            embedding_size=config.hidden_size,
            initializer_range=config.initializer_range,
            word_embedding_name="word_embeddings",
            use_one_hot_embeddings=use_one_hot_embeddings)

        # Add positional embeddings and token type embeddings, then layer
        # normalize and perform dropout.
        self.embedding_output = embedding_postprocessor(
            input_tensor=self.embedding_output,
            use_token_type=True,
            token_type_ids=token_type_ids,
            token_type_vocab_size=config.type_vocab_size,
            token_type_embedding_name="token_type_embeddings",
            use_position_embeddings=True,
            position_embedding_name="position_embeddings",
            initializer_range=config.initializer_range,
            max_position_embeddings=config.max_position_embeddings,
            dropout_prob=config.hidden_dropout_prob)

      with tf.variable_scope("encoder"):
        # This converts a 2D mask of shape [batch_size, seq_length] to a 3D
        # mask of shape [batch_size, seq_length, seq_length] which is used
        # for the attention scores.
        attention_mask = create_attention_mask_from_input_mask(
            input_ids, input_mask)

        # Run the stacked transformer.
        # `sequence_output` shape = [batch_size, seq_length, hidden_size].
        self.all_encoder_layers = transformer_model(
            input_tensor=self.embedding_output,
            attention_mask=attention_mask,
            hidden_size=config.hidden_size,
            num_hidden_layers=config.num_hidden_layers,
            num_attention_heads=config.num_attention_heads,
            intermediate_size=config.intermediate_size,
            intermediate_act_fn=get_activation(config.hidden_act),
            hidden_dropout_prob=config.hidden_dropout_prob,
            attention_probs_dropout_prob=config.attention_probs_dropout_prob,
            initializer_range=config.initializer_range,
            do_return_all_layers=True)

      self.sequence_output = self.all_encoder_layers[-1]
      # The "pooler" converts the encoded sequence tensor of shape
      # [batch_size, seq_length, hidden_size] to a tensor of shape
      # [batch_size, hidden_size]. This is necessary for segment-level
      # (or segment-pair-level) classification tasks where we need a fixed
      # dimensional representation of the segment.
      with tf.variable_scope("pooler"):
        # We "pool" the model by simply taking the hidden state corresponding
        # to the first token. We assume that this has been pre-trained
        first_token_tensor = tf.squeeze(self.sequence_output[:, 0:1, :], axis=1)
        self.pooled_output = tf.layers.dense(
            first_token_tensor,
            config.hidden_size,
            activation=tf.tanh,
            kernel_initializer=create_initializer(config.initializer_range))

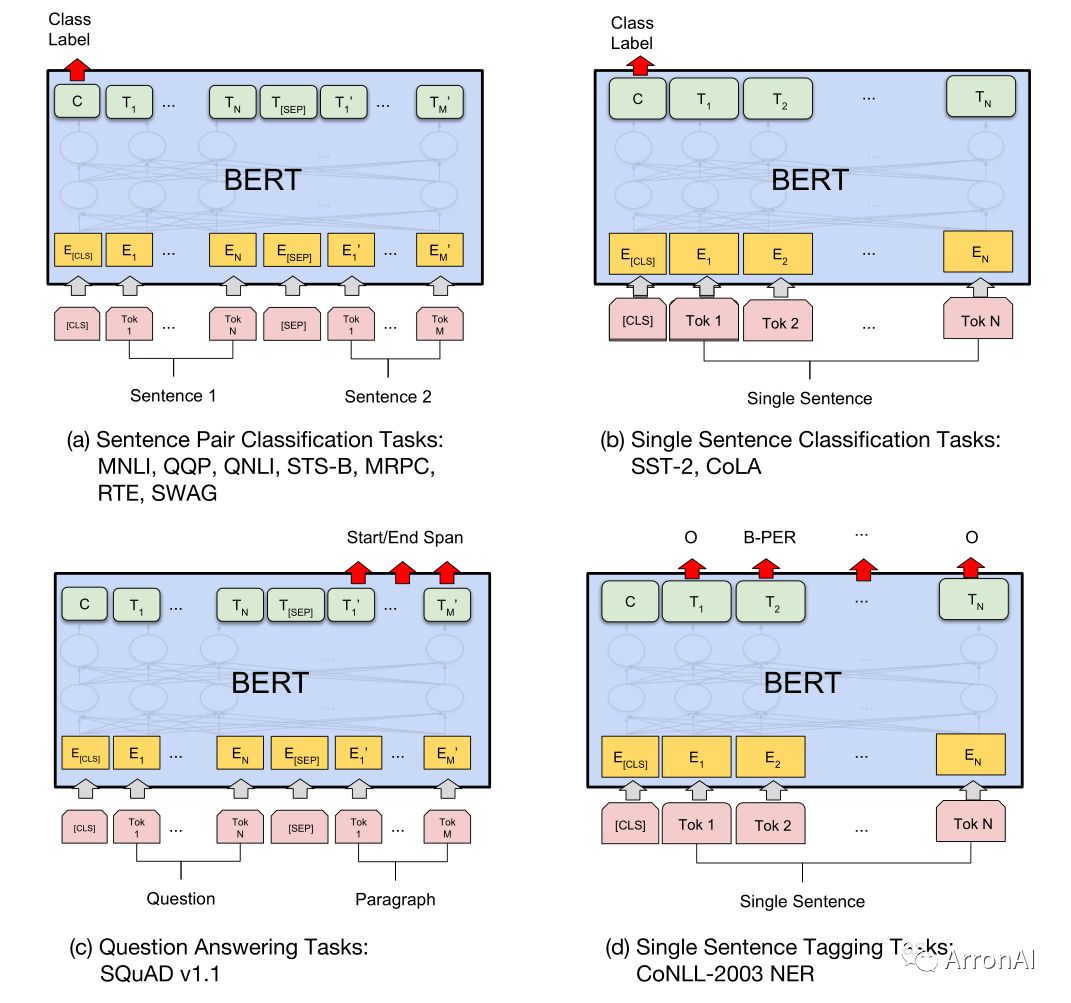

论文中给出了预训练的模型在不同任务上的示意图：

其中(a)、(b)(a)、(b)为句子级别的任务，输出端的第一个token表示句子(/句子对)的embedding，即输入的[CLS]对应的输出。 (c)、(d)(c)、(d)为token级别的任务，输出端每一个位置的embedding与输入端各位置相对应。

下面重点看下embeddings和encoder部分的内部结构。

embeddings部分的embedding_lookup主要用来生成词表中每个token的向量表示，同时将[batch_size, seq_length]的input_ids转换成形状为[batch_size,seq_length,embedding_size]的word_embeddings形式。具体代码如下(embedding_table为模型待学习参数)：


def embedding_lookup(input_ids,
                     vocab_size,
                     embedding_size=128,
                     initializer_range=0.02,
                     word_embedding_name="word_embeddings",
                     use_one_hot_embeddings=False):
  """Looks up words embeddings for id tensor.

  Args:
    input_ids: int32 Tensor of shape [batch_size, seq_length] containing word
      ids.
    vocab_size: int. Size of the embedding vocabulary.
    embedding_size: int. Width of the word embeddings.
    initializer_range: float. Embedding initialization range.
    word_embedding_name: string. Name of the embedding table.
    use_one_hot_embeddings: bool. If True, use one-hot method for word
      embeddings. If False, use `tf.gather()`.

  Returns:
    float Tensor of shape [batch_size, seq_length, embedding_size].
  """
  # This function assumes that the input is of shape [batch_size, seq_length,
  # num_inputs].
  #
  # If the input is a 2D tensor of shape [batch_size, seq_length], we
  # reshape to [batch_size, seq_length, 1].
  if input_ids.shape.ndims == 2:
    input_ids = tf.expand_dims(input_ids, axis=[-1])

  embedding_table = tf.get_variable(
      name=word_embedding_name,
      shape=[vocab_size, embedding_size],
      initializer=create_initializer(initializer_range))

  flat_input_ids = tf.reshape(input_ids, [-1])   # [batch_size*seq_length]
  if use_one_hot_embeddings:
    one_hot_input_ids = tf.one_hot(flat_input_ids, depth=vocab_size)
    output = tf.matmul(one_hot_input_ids, embedding_table)
  else:
    output = tf.gather(embedding_table, flat_input_ids)  # [batch_size*seq_length,embedding_size]

  input_shape = get_shape_list(input_ids)

  output = tf.reshape(output,
                      input_shape[0:-1] + [input_shape[-1] * embedding_size]) # [batch_size,seq_length,embedding_size]
  return (output, embedding_table)



embeddings部分的embedding_postprocessor主要是在word_embeddings的基础上增加segment_id和position信息，最后将叠加后embedding分别进行layer_norm(对每个样本的不同维度进行归一化操作，而batch_norm则是对不同样本的同一特征进行归一化操作)和dropout(一个张量中某几个位置的值变成0)操作。具体代码如下(full_position_embeddings与full_position_embeddings为模型待学习参数)：


def embedding_postprocessor(input_tensor,
                            use_token_type=False,
                            token_type_ids=None,
                            token_type_vocab_size=16,
                            token_type_embedding_name="token_type_embeddings",
                            use_position_embeddings=True,
                            position_embedding_name="position_embeddings",
                            initializer_range=0.02,
                            max_position_embeddings=512,
                            dropout_prob=0.1):
  """Performs various post-processing on a word embedding tensor.

  Args:
    input_tensor: float Tensor of shape [batch_size, seq_length,
      embedding_size].
    use_token_type: bool. Whether to add embeddings for `token_type_ids`.
    token_type_ids: (optional) int32 Tensor of shape [batch_size, seq_length].
      Must be specified if `use_token_type` is True.
    token_type_vocab_size: int. The vocabulary size of `token_type_ids`.
    token_type_embedding_name: string. The name of the embedding table variable
      for token type ids.
    use_position_embeddings: bool. Whether to add position embeddings for the
      position of each token in the sequence.
    position_embedding_name: string. The name of the embedding table variable
      for positional embeddings.
    initializer_range: float. Range of the weight initialization.
    max_position_embeddings: int. Maximum sequence length that might ever be
      used with this model. This can be longer than the sequence length of
      input_tensor, but cannot be shorter.
    dropout_prob: float. Dropout probability applied to the final output tensor.

  Returns:
    float tensor with same shape as `input_tensor`.

  Raises:
    ValueError: One of the tensor shapes or input values is invalid.
  """
  input_shape = get_shape_list(input_tensor, expected_rank=3)
  batch_size = input_shape[0]
  seq_length = input_shape[1]
  width = input_shape[2]

  output = input_tensor  # [batch_size, seq_length,embedding_size]

  if use_token_type:
    if token_type_ids is None:
      raise ValueError("`token_type_ids` must be specified if"
                       "`use_token_type` is True.")
    token_type_table = tf.get_variable(
        name=token_type_embedding_name,
        shape=[token_type_vocab_size, width],
        initializer=create_initializer(initializer_range))
    # This vocab will be small so we always do one-hot here, since it is always
    # faster for a small vocabulary.
    flat_token_type_ids = tf.reshape(token_type_ids, [-1]) # [batch_size, seq_length] --> [batch_size*seq_length]
    one_hot_ids = tf.one_hot(flat_token_type_ids, depth=token_type_vocab_size)  # [batch_size*seq_length,token_type_vocab_size]
    token_type_embeddings = tf.matmul(one_hot_ids, token_type_table)
    token_type_embeddings = tf.reshape(token_type_embeddings,
                                       [batch_size, seq_length, width])
    output += token_type_embeddings

  if use_position_embeddings:
    assert_op = tf.assert_less_equal(seq_length, max_position_embeddings)
    with tf.control_dependencies([assert_op]):
      full_position_embeddings = tf.get_variable(
          name=position_embedding_name,
          shape=[max_position_embeddings, width],
          initializer=create_initializer(initializer_range))
      # Since the position embedding table is a learned variable, we create it
      # using a (long) sequence length `max_position_embeddings`. The actual
      # sequence length might be shorter than this, for faster training of
      # tasks that do not have long sequences.
      #
      # So `full_position_embeddings` is effectively an embedding table
      # for position [0, 1, 2, ..., max_position_embeddings-1], and the current
      # sequence has positions [0, 1, 2, ... seq_length-1], so we can just
      # perform a slice.
      position_embeddings = tf.slice(full_position_embeddings, [0, 0],
                                     [seq_length, -1])  # [max_position_embeddings, width] --> [seq_length, width]
      num_dims = len(output.shape.as_list()) # [batch_size, seq_length,embedding_size]

      # Only the last two dimensions are relevant (`seq_length` and `width`), so
      # we broadcast among the first dimensions, which is typically just
      # the batch size.
      position_broadcast_shape = []
      for _ in range(num_dims - 2):
        position_broadcast_shape.append(1)
      position_broadcast_shape.extend([seq_length, width]) # [1,seq_length,width]
      position_embeddings = tf.reshape(position_embeddings,
                                       position_broadcast_shape)
      output += position_embeddings

  output = layer_norm_and_dropout(output, dropout_prob)
  return output



论文中关于embedding部分的示意图如下：

至此embeddings部分的结构介绍完毕。

接着看下encoder部分，其是BERT模型的核心。上述embeddings部分的最终输出作为第一层的transformer encoder (block)的输入。

而一个transformer encoder (block)由多头注意层(共有hidden_size个单元)和前馈神经网络层(有激活函数的dense层，共有intermediate_size个单元，约定有如下关系intermediate_size=4*hidden_size)两个子层构成。其中每个子层的输出分别进行线性投影(没有激活函数的dense层)、dropout、Resnet(残差，输入与输出直接相加)与layer_norm操作。

前馈神经网络层的输出经layer_norm后的输出为一个transformer encoder (block)的最终输出，保存该输出并将其作为下一个transformer encoder (block)的输入。循环上述过程num_hidden_layers次(堆叠num_hidden_layers个transformer encoder (block))，形成最终encoder部分的输出。值得说明的是，上述数据转换过程都是2D的。 以上描述的整个过程可看作一个transformer model，其简易示意图与具体代码分别如下：


def transformer_model(input_tensor,
                      attention_mask=None,
                      hidden_size=768,
                      num_hidden_layers=12,
                      num_attention_heads=12,
                      intermediate_size=3072,
                      intermediate_act_fn=gelu,
                      hidden_dropout_prob=0.1,
                      attention_probs_dropout_prob=0.1,
                      initializer_range=0.02,
                      do_return_all_layers=False):
  """Multi-headed, multi-layer Transformer from "Attention is All You Need".

  This is almost an exact implementation of the original Transformer encoder.

  See the original paper:
  https://arxiv.org/abs/1706.03762

  Also see:
  https://github.com/tensorflow/tensor2tensor/blob/master/tensor2tensor/models/transformer.py

  Args:
    input_tensor: float Tensor of shape [batch_size, seq_length, hidden_size].
    attention_mask: (optional) int32 Tensor of shape [batch_size, seq_length,
      seq_length], with 1 for positions that can be attended to and 0 in
      positions that should not be.
    hidden_size: int. Hidden size of the Transformer.
    num_hidden_layers: int. Number of layers (blocks) in the Transformer.
    num_attention_heads: int. Number of attention heads in the Transformer.
    intermediate_size: int. The size of the "intermediate" (a.k.a., feed
      forward) layer.
    intermediate_act_fn: function. The non-linear activation function to apply
      to the output of the intermediate/feed-forward layer.
    hidden_dropout_prob: float. Dropout probability for the hidden layers.
    attention_probs_dropout_prob: float. Dropout probability of the attention
      probabilities.
    initializer_range: float. Range of the initializer (stddev of truncated
      normal).
    do_return_all_layers: Whether to also return all layers or just the final
      layer.

  Returns:
    float Tensor of shape [batch_size, seq_length, hidden_size], the final
    hidden layer of the Transformer.

  Raises:
    ValueError: A Tensor shape or parameter is invalid.
  """
  if hidden_size % num_attention_heads != 0:
    raise ValueError(
        "The hidden size (%d) is not a multiple of the number of attention "
        "heads (%d)" % (hidden_size, num_attention_heads))

  attention_head_size = int(hidden_size / num_attention_heads)
  input_shape = get_shape_list(input_tensor, expected_rank=3)
  batch_size = input_shape[0]
  seq_length = input_shape[1]
  input_width = input_shape[2]

  # The Transformer performs sum residuals on all layers so the input needs
  # to be the same as the hidden size.
  if input_width != hidden_size:
    raise ValueError("The width of the input tensor (%d) != hidden size (%d)" %
                     (input_width, hidden_size))

  # We keep the representation as a 2D tensor to avoid re-shaping it back and
  # forth from a 3D tensor to a 2D tensor. Re-shapes are normally free on
  # the GPU/CPU but may not be free on the TPU, so we want to minimize them to
  # help the optimizer.
  prev_output = reshape_to_matrix(input_tensor)

  all_layer_outputs = []
  for layer_idx in range(num_hidden_layers):
    with tf.variable_scope("layer_%d" % layer_idx):
      layer_input = prev_output

      with tf.variable_scope("attention"):
        attention_heads = []
        with tf.variable_scope("self"):
          attention_head = attention_layer(   # [B*F, N*H] / [B, F, N*H]
              from_tensor=layer_input,
              to_tensor=layer_input,
              attention_mask=attention_mask,
              num_attention_heads=num_attention_heads,
              size_per_head=attention_head_size,
              attention_probs_dropout_prob=attention_probs_dropout_prob,
              initializer_range=initializer_range,
              do_return_2d_tensor=True,
              batch_size=batch_size,
              from_seq_length=seq_length,
              to_seq_length=seq_length)
          attention_heads.append(attention_head)

        attention_output = None
        if len(attention_heads) == 1:
          attention_output = attention_heads[0]
        else:  # ??? 什么情况没想到啊。。。先不考率
          # In the case where we have other sequences, we just concatenate
          # them to the self-attention head before the projection.
          attention_output = tf.concat(attention_heads, axis=-1)

        # Run a linear projection of `hidden_size` then add a residual
        # with `layer_input`.
        with tf.variable_scope("output"):
          attention_output = tf.layers.dense(
              attention_output,
              hidden_size,
              kernel_initializer=create_initializer(initializer_range))
          attention_output = dropout(attention_output, hidden_dropout_prob)
          attention_output = layer_norm(attention_output + layer_input)

      # The activation is only applied to the "intermediate" hidden layer.
      with tf.variable_scope("intermediate"):
        intermediate_output = tf.layers.dense(
            attention_output,
            intermediate_size,
            activation=intermediate_act_fn,
            kernel_initializer=create_initializer(initializer_range))

      # Down-project back to `hidden_size` then add the residual.
      with tf.variable_scope("output"):
        layer_output = tf.layers.dense(
            intermediate_output,
            hidden_size,
            kernel_initializer=create_initializer(initializer_range))
        layer_output = dropout(layer_output, hidden_dropout_prob)
        layer_output = layer_norm(layer_output + attention_output)
        prev_output = layer_output
        all_layer_outputs.append(layer_output)

  if do_return_all_layers:
    final_outputs = []
    for layer_output in all_layer_outputs:
      final_output = reshape_from_matrix(layer_output, input_shape)
      final_outputs.append(final_output)
    return final_outputs
  else:
    final_output = reshape_from_matrix(prev_output, input_shape)
    return final_output



其中多头注意层(attention_layer)是transformer encoder (block)的核心，该层从from_tensor到to_tensor进行多头注意的计算(当from_tensor和to_tensor是同一个序列时，称为自注意)。相关流程如下： attention_layer首先将from_tensor投影成query张量，将to_tensor投影成key、value张量。其中query、key和value是由num_attention_heads个张量组成的list，每个张量的形状为[batch_size, seq_length, size_per_head]。然后将映射后的query和key张量进行相应变换后，计算注意力得分，并缩放(防止数值过大，有利于梯度计算)。接着利用attention_mask(根据input_ids(from_tensor)与input_mask(to_mask)进行计算的。由0,1组成的mask张量，表示一个batch的每一个序列(from_tensor)中的每一个token(用1表示)与另一序列(to_mask)中的哪些token有关联，1表示有关联，0表示无关联)进一步对缩放后的注意力得分张量进行变换(关注的位置相应得分不变，不关注的位置得分变低)后，利用softmax操作将得分变成注意力概率值(0-1之间的权重)，并进行dropout操作得到最终的权重值张量。最后利用得到的权重张量与初始的value张量得到attention_layer的输出context_layer。

由上述分析可知，多头注意力是在原有tensor的基础上进行投影、转置、变形等操作完成计算的。相关代码如下：


def attention_layer(from_tensor,
                    to_tensor,
                    attention_mask=None,
                    num_attention_heads=1,
                    size_per_head=512,
                    query_act=None,
                    key_act=None,
                    value_act=None,
                    attention_probs_dropout_prob=0.0,
                    initializer_range=0.02,
                    do_return_2d_tensor=False,
                    batch_size=None,
                    from_seq_length=None,
                    to_seq_length=None):
  """Performs multi-headed attention from `from_tensor` to `to_tensor`.

  This is an implementation of multi-headed attention based on "Attention
  is all you Need". If `from_tensor` and `to_tensor` are the same, then
  this is self-attention. Each timestep in `from_tensor` attends to the
  corresponding sequence in `to_tensor`, and returns a fixed-with vector.

  This function first projects `from_tensor` into a "query" tensor and
  `to_tensor` into "key" and "value" tensors. These are (effectively) a list
  of tensors of length `num_attention_heads`, where each tensor is of shape
  [batch_size, seq_length, size_per_head].

  Then, the query and key tensors are dot-producted and scaled. These are
  softmaxed to obtain attention probabilities. The value tensors are then
  interpolated by these probabilities, then concatenated back to a single
  tensor and returned.

  In practice, the multi-headed attention are done with transposes and
  reshapes rather than actual separate tensors.

  Args:
    from_tensor: float Tensor of shape [batch_size, from_seq_length,
      from_width].
    to_tensor: float Tensor of shape [batch_size, to_seq_length, to_width].
    attention_mask: (optional) int32 Tensor of shape [batch_size,
      from_seq_length, to_seq_length]. The values should be 1 or 0. The
      attention scores will effectively be set to -infinity for any positions in
      the mask that are 0, and will be unchanged for positions that are 1.
    num_attention_heads: int. Number of attention heads.
    size_per_head: int. Size of each attention head.
    query_act: (optional) Activation function for the query transform.
    key_act: (optional) Activation function for the key transform.
    value_act: (optional) Activation function for the value transform.
    attention_probs_dropout_prob: (optional) float. Dropout probability of the
      attention probabilities.
    initializer_range: float. Range of the weight initializer.
    do_return_2d_tensor: bool. If True, the output will be of shape [batch_size
      * from_seq_length, num_attention_heads * size_per_head]. If False, the
      output will be of shape [batch_size, from_seq_length, num_attention_heads
      * size_per_head].
    batch_size: (Optional) int. If the input is 2D, this might be the batch size
      of the 3D version of the `from_tensor` and `to_tensor`.
    from_seq_length: (Optional) If the input is 2D, this might be the seq length
      of the 3D version of the `from_tensor`.
    to_seq_length: (Optional) If the input is 2D, this might be the seq length
      of the 3D version of the `to_tensor`.

  Returns:
    float Tensor of shape [batch_size, from_seq_length,
      num_attention_heads * size_per_head]. (If `do_return_2d_tensor` is
      true, this will be of shape [batch_size * from_seq_length,
      num_attention_heads * size_per_head]).

  Raises:
    ValueError: Any of the arguments or tensor shapes are invalid.
  """

  def transpose_for_scores(input_tensor, batch_size, num_attention_heads,
                           seq_length, width):
    output_tensor = tf.reshape(
        input_tensor, [batch_size, seq_length, num_attention_heads, width])

    output_tensor = tf.transpose(output_tensor, [0, 2, 1, 3])
    return output_tensor

  from_shape = get_shape_list(from_tensor, expected_rank=[2, 3])
  to_shape = get_shape_list(to_tensor, expected_rank=[2, 3])

  if len(from_shape) != len(to_shape):
    raise ValueError(
        "The rank of `from_tensor` must match the rank of `to_tensor`.")

  if len(from_shape) == 3:
    batch_size = from_shape[0]
    from_seq_length = from_shape[1]
    to_seq_length = to_shape[1]
  elif len(from_shape) == 2:
    if (batch_size is None or from_seq_length is None or to_seq_length is None):
      raise ValueError(
          "When passing in rank 2 tensors to attention_layer, the values "
          "for `batch_size`, `from_seq_length`, and `to_seq_length` "
          "must all be specified.")

  # Scalar dimensions referenced here:
  #   B = batch size (number of sequences)
  #   F = `from_tensor` sequence length
  #   T = `to_tensor` sequence length
  #   N = `num_attention_heads`
  #   H = `size_per_head`

  from_tensor_2d = reshape_to_matrix(from_tensor)
  to_tensor_2d = reshape_to_matrix(to_tensor)

  # `query_layer` = [B*F, N*H]
  query_layer = tf.layers.dense(
      from_tensor_2d,
      num_attention_heads * size_per_head,
      activation=query_act,
      name="query",
      kernel_initializer=create_initializer(initializer_range))

  # `key_layer` = [B*T, N*H]
  key_layer = tf.layers.dense(
      to_tensor_2d,
      num_attention_heads * size_per_head,
      activation=key_act,
      name="key",
      kernel_initializer=create_initializer(initializer_range))

  # `value_layer` = [B*T, N*H]
  value_layer = tf.layers.dense(
      to_tensor_2d,
      num_attention_heads * size_per_head,
      activation=value_act,
      name="value",
      kernel_initializer=create_initializer(initializer_range))

  # `query_layer` = [B, N, F, H]
  query_layer = transpose_for_scores(query_layer, batch_size,
                                     num_attention_heads, from_seq_length,
                                     size_per_head)

  # `key_layer` = [B, N, T, H]
  key_layer = transpose_for_scores(key_layer, batch_size, num_attention_heads,
                                   to_seq_length, size_per_head)

  # Take the dot product between "query" and "key" to get the raw
  # attention scores.
  # `attention_scores` = [B, N, F, T]
  attention_scores = tf.matmul(query_layer, key_layer, transpose_b=True)
  attention_scores = tf.multiply(attention_scores,
                                 1.0 / math.sqrt(float(size_per_head)))

  if attention_mask is not None:
    # `attention_mask` = [B, 1, F, T]
    attention_mask = tf.expand_dims(attention_mask, axis=[1])

    # Since attention_mask is 1.0 for positions we want to attend and 0.0 for
    # masked positions, this operation will create a tensor which is 0.0 for
    # positions we want to attend and -10000.0 for masked positions.
    adder = (1.0 - tf.cast(attention_mask, tf.float32)) * -10000.0

    # Since we are adding it to the raw scores before the softmax, this is
    # effectively the same as removing these entirely.
    attention_scores += adder

  # Normalize the attention scores to probabilities.
  # `attention_probs` = [B, N, F, T]
  attention_probs = tf.nn.softmax(attention_scores)

  # This is actually dropping out entire tokens to attend to, which might
  # seem a bit unusual, but is taken from the original Transformer paper.
  attention_probs = dropout(attention_probs, attention_probs_dropout_prob)

  # `value_layer` = [B, T, N, H]
  value_layer = tf.reshape(
      value_layer,
      [batch_size, to_seq_length, num_attention_heads, size_per_head])

  # `value_layer` = [B, N, T, H]
  value_layer = tf.transpose(value_layer, [0, 2, 1, 3])

  # `context_layer` = [B, N, F, H]
  context_layer = tf.matmul(attention_probs, value_layer)

  # `context_layer` = [B, F, N, H]
  context_layer = tf.transpose(context_layer, [0, 2, 1, 3])

  if do_return_2d_tensor:
    # `context_layer` = [B*F, N*H]
    context_layer = tf.reshape(
        context_layer,
        [batch_size * from_seq_length, num_attention_heads * size_per_head])
  else:
    # `context_layer` = [B, F, N*H]
    context_layer = tf.reshape(
        context_layer,
        [batch_size, from_seq_length, num_attention_heads * size_per_head])

  return context_layer



至此encoder部分的相关细节介绍完毕。

基于上述模型结构，可分别得到masked LM任务和NSP任务的预测输出，再结合输入文件中实际的输出，可分别得到相应的损失差值，将两个损失相加作为总的损失。

两个任务的本质都是分类任务，一个是二分类，即两个segment是否是连贯的；一个是多分类，即输入序列中被mask的token为词表中某个token的概率。它们的损失函数都是交叉熵损失。

相关代码如下：


def get\_masked\_lm\_output(bert\_config, input\_tensor, output\_weights, positions,
                         label\_ids, label\_weights):
  """Get loss and log probs for the masked LM.
 input\_tensor --> [batch\_size, seq\_length, hidden\_size]
 output\_weights --> [vocab\_size, embedding\_size]
 positions --> [batch\_size, max\_predictions\_per\_seq]
 label\_ids --> [batch\_size, max\_predictions\_per\_seq]
 label\_weights --> [batch\_size, max\_predictions\_per\_seq]
 """
  tf.logging.info(f'get\_masked\_lm\_output--positions:{positions}')
  input\_tensor = gather\_indexes(input\_tensor, positions) # [batch\_size*max\_predictions\_per\_seq, hidden\_size]

  with tf.variable\_scope("cls/predictions"):
    # We apply one more non-linear transformation before the output layer.
    # This matrix is not used after pre-training.
    with tf.variable\_scope("transform"):
      input\_tensor = tf.layers.dense(
          input\_tensor,
          units=bert\_config.hidden\_size,
          activation=modeling.get\_activation(bert\_config.hidden\_act),
          kernel\_initializer=modeling.create\_initializer(
              bert\_config.initializer\_range))
      input\_tensor = modeling.layer\_norm(input\_tensor)  # [batch\_size*max\_predictions\_per\_seq, hidden\_size]

    # The output weights are the same as the input embeddings, but there is
    # an output-only bias for each token.
    output\_bias = tf.get\_variable(
        "output\_bias",
        shape=[bert\_config.vocab\_size],
        initializer=tf.zeros\_initializer())
    logits = tf.matmul(input\_tensor, output\_weights, transpose\_b=True)  # [batch\_size*max\_predictions\_per\_seq, vocab\_size]
    logits = tf.nn.bias\_add(logits, output\_bias)
    log\_probs = tf.nn.log\_softmax(logits, axis=-1) # [batch\_size*max\_predictions\_per\_seq, vocab\_size]

    label\_ids = tf.reshape(label\_ids, [-1])
    label\_weights = tf.reshape(label\_weights, [-1]) # [batch\_size*max\_predictions\_per\_seq]

    one\_hot\_labels = tf.one\_hot(
        label\_ids, depth=bert\_config.vocab\_size, dtype=tf.float32) # [batch\_size*max\_predictions\_per\_seq, vocab\_size]

    # The `positions` tensor might be zero-padded (if the sequence is too
    # short to have the maximum number of predictions). The `label\_weights`
    # tensor has a value of 1.0 for every real prediction and 0.0 for the
    # padding predictions.
    per\_example\_loss = -tf.reduce\_sum(log\_probs * one\_hot\_labels, axis=[-1])  # 交叉熵 [flat\_positions]
    numerator = tf.reduce\_sum(label\_weights * per\_example\_loss)
    denominator = tf.reduce\_sum(label\_weights) + 1e-5
    loss = numerator / denominator

  return (loss, per\_example\_loss, log\_probs)


def get\_next\_sentence\_output(bert\_config, input\_tensor, labels):
  """Get loss and log probs for the next sentence prediction.
 input\_tensor: [batch\_size, hidden\_size]
 labels: [batch\_size, 1]
 """

  # Simple binary classification. Note that 0 is "next sentence" and 1 is
  # "random sentence". This weight matrix is not used after pre-training.
  with tf.variable\_scope("cls/seq\_relationship"):
    output\_weights = tf.get\_variable(
        "output\_weights",
        shape=[2, bert\_config.hidden\_size],
        initializer=modeling.create\_initializer(bert\_config.initializer\_range))
    output\_bias = tf.get\_variable(
        "output\_bias", shape=[2], initializer=tf.zeros\_initializer())

    logits = tf.matmul(input\_tensor, output\_weights, transpose\_b=True)  # [batch\_size, 2]
    logits = tf.nn.bias\_add(logits, output\_bias)  # [batch\_size, 2]
    log\_probs = tf.nn.log\_softmax(logits, axis=-1) # [batch\_size, 2]
    labels = tf.reshape(labels, [-1])
    one\_hot\_labels = tf.one\_hot(labels, depth=2, dtype=tf.float32) # [batch\_size, 2]
    per\_example\_loss = -tf.reduce\_sum(one\_hot\_labels * log\_probs, axis=-1)  # 交叉熵 [batch\_size]
    loss = tf.reduce\_mean(per\_example\_loss)
    return (loss, per\_example\_loss, log\_probs)



基于上述搭建好的模型结构及相应的损失函数，在训练阶段，利用相应的优化器(AdamWeightDecayOptimizer)优化损失函数，使其减小，并保存不同训练步数对应的模型参数，直到跑完所有步数，从而确定最终的模型结构与参数。由于BERT在预训练中使用了estimator这种高级API形式，在训练完成后会自动生成 ckpt格式的模型文件(结构和数据是分开的) 及可供tensorboard查看的事件文件。具体文件说明如下：

• checkpoint : 记录了模型文件的路径信息列表，可以用来迅速查找最近一次的ckpt文件。(每个ckpt文件对应一个模型)其内容如下所示


  model_checkpoint_path: "model.ckpt-20"
  all_model_checkpoint_paths: "model.ckpt-0"
  all_model_checkpoint_paths: "model.ckpt-20"




• events.out.tfevents.1570029823.04c93f97d224 :事件文件，tensorboard可加载显示
• graph.pbtxt : 以Protobuffer格式描述的模型结构文件(text格式的图文件(.pbtext),二进制格式的图文件为(.pb))，记录了模型中所有的节点信息，内容大致如下：


  node {
    name: "global_step/Initializer/zeros"
    op: "Const"
    attr {
      key: "_class"
      value {
        list {
          s: "loc:@global_step"
        }
      }
    }
    attr {
      key: "_output_shapes"
      value {
        list {
          shape {
          }
        }
      }
    }
    attr {
      key: "dtype"
      value {
        type: DT_INT64
      }
    }
    attr {
      key: "value"
      value {
        tensor {
          dtype: DT_INT64
          tensor_shape {
          }
          int64_val: 0
        }
      }
    }
  }



• model.ckpt-20.data-00000-of-00001 : 模型文件中的数据(the values of all variables)部分 (二进制文件)
• model.ckpt-20.index : 模型文件中的映射表( Each key is a name of a tensor and its value is a serialized BundleEntryProto. Each BundleEntryProto describes the metadata of a tensor: which of the “data” files contains the content of a tensor, the offset into that file, checksum, some auxiliary data, etc.)部分 (二进制文件)
• model.ckpt-20.meta : 模型文件中的(图)结构(由GraphDef, SaverDef, MateInfoDef,SignatureDef,CollectionDef等组成的MetaGraphDef)部分 (二进制文件，内容和graph.pbtxt基本一样，其是一个序列化的MetaGraphDef protocol buffer)

在评估阶段，直接加载训练好的模型结构与参数，对预测样本进行预测即可。

下面解读下优化器(用来更新模型(权重)参数)部分。首先是学习率部分，将学习率设置为线性衰减的形式，接着根据global_step是否达到num_warmup_steps，在原来线性衰减的基础上将学习率进一步分成warmup_learning_rate和learning_rate两种方式。然后是优化器的构建。

先是实例化AdamWeightDecayOptimizer(其是梯度下降法的一种变种，也由待更新参数、学习率和参数更新方向三大要素组成)，接着通过tvars = tf.trainable_variables()解析出模型中所有待训练的参数变量，并给出loss关于所有参数变量的梯度表示grads = tf.gradients(loss, tvars)，同时限制梯度的大小。最后基于上述描述的梯度与变量，进行参数更新操作。更新时，依此遍历每一个待更新的参数，根据标准的Adam更新公式(参考Adam和学习率衰减（learning rate decay）)，先确定参数更新方向，接着在方向的基础上增加衰减参数(这个操作叫纠正的L2 weight decay)，然后在纠正后的方向上移动一定距离(learning_rate * update)后，更新现有的参数。以上更新步骤随着训练步数不断进行，直到走完所有训练步数。相关代码如下：


def create\_optimizer(loss, init\_lr, num\_train\_steps, num\_warmup\_steps, use\_tpu):
  """Creates an optimizer training op."""
  global\_step = tf.train.get\_or\_create\_global\_step()

  learning\_rate = tf.constant(value=init\_lr, shape=[], dtype=tf.float32)

  # Implements linear decay of the learning rate. 计算公式如下

  '''
 global\_step = min(global\_step, decay\_steps)
 decayed\_learning\_rate = (learning\_rate - end\_learning\_rate) *
 (1 - global\_step / decay\_steps) ^ (power) +
 end\_learning\_rate
 '''
  learning\_rate = tf.train.polynomial\_decay(
      learning\_rate,
      global\_step,
      num\_train\_steps,
      end\_learning\_rate=0.0,
      power=1.0,
      cycle=False)

  # Implements linear warmup. I.e., if global\_step < num\_warmup\_steps, the
  # learning rate will be `global\_step/num\_warmup\_steps * init\_lr`.
  if num\_warmup\_steps:
    global\_steps\_int = tf.cast(global\_step, tf.int32)
    warmup\_steps\_int = tf.constant(num\_warmup\_steps, dtype=tf.int32)

    global\_steps\_float = tf.cast(global\_steps\_int, tf.float32)
    warmup\_steps\_float = tf.cast(warmup\_steps\_int, tf.float32)

    warmup\_percent\_done = global\_steps\_float / warmup\_steps\_float
    warmup\_learning\_rate = init\_lr * warmup\_percent\_done

    is\_warmup = tf.cast(global\_steps\_int < warmup\_steps\_int, tf.float32)
    learning\_rate = (
        (1.0 - is\_warmup) * learning\_rate + is\_warmup * warmup\_learning\_rate)

  # It is recommended that you use this optimizer for fine tuning, since this
  # is how the model was trained (note that the Adam m/v variables are NOT
  # loaded from init\_checkpoint.)
  optimizer = AdamWeightDecayOptimizer(
      learning\_rate=learning\_rate,
      weight\_decay\_rate=0.01,
      beta\_1=0.9,
      beta\_2=0.999,
      epsilon=1e-6,
      exclude\_from\_weight\_decay=["LayerNorm", "layer\_norm", "bias"])

  if use\_tpu:
    optimizer = tf.contrib.tpu.CrossShardOptimizer(optimizer)

  tvars = tf.trainable\_variables()
  grads = tf.gradients(loss, tvars)

  # This is how the model was pre-trained.
  (grads, \_) = tf.clip\_by\_global\_norm(grads, clip\_norm=1.0)

  train\_op = optimizer.apply\_gradients(
      zip(grads, tvars), global\_step=global\_step)

  # Normally the global step update is done inside of `apply\_gradients`.
  # However, `AdamWeightDecayOptimizer` doesn't do this. But if you use
  # a different optimizer, you should probably take this line out.
  new\_global\_step = global\_step + 1
  train\_op = tf.group(train\_op, [global\_step.assign(new\_global\_step)])
  return train\_op


class AdamWeightDecayOptimizer(tf.train.Optimizer):
  """A basic Adam optimizer that includes "correct" L2 weight decay."""

  def \_\_init\_\_(self,
               learning\_rate,
               weight\_decay\_rate=0.0,
               beta\_1=0.9,
               beta\_2=0.999,
               epsilon=1e-6,
               exclude\_from\_weight\_decay=None,
               name="AdamWeightDecayOptimizer"):
    """Constructs a AdamWeightDecayOptimizer."""
    super(AdamWeightDecayOptimizer, self).\_\_init\_\_(False, name)

    self.learning\_rate = learning\_rate
    self.weight\_decay\_rate = weight\_decay\_rate
    self.beta\_1 = beta\_1
    self.beta\_2 = beta\_2
    self.epsilon = epsilon
    self.exclude\_from\_weight\_decay = exclude\_from\_weight\_decay

  def apply\_gradients(self, grads\_and\_vars, global\_step=None, name=None):
    """See base class."""
    assignments = []
    for (grad, param) in grads\_and\_vars:  # param：待更新参数
      if grad is None or param is None:
        continue

      param\_name = self.\_get\_variable\_name(param.name)

      m = tf.get\_variable(
          name=param\_name + "/adam\_m",
          shape=param.shape.as\_list(),
          dtype=tf.float32,
          trainable=False,
          initializer=tf.zeros\_initializer())
      v = tf.get\_variable(
          name=param\_name + "/adam\_v",
          shape=param.shape.as\_list(),
          dtype=tf.float32,
          trainable=False,
          initializer=tf.zeros\_initializer())

      # Standard Adam update. 是梯度下降法的一种变种，可对比理解三个要素：待更新参数、学习率、参数更新方向
      next\_m = (
          tf.multiply(self.beta\_1, m) + tf.multiply(1.0 - self.beta\_1, grad))
      next\_v = (
          tf.multiply(self.beta\_2, v) + tf.multiply(1.0 - self.beta\_2,
                                                    tf.square(grad)))
      # 参数更新方向
      update = next\_m / (tf.sqrt(next\_v) + self.epsilon)

      # Just adding the square of the weights to the loss function is *not*
      # the correct way of using L2 regularization/weight decay with Adam,
      # since that will interact with the m and v parameters in strange ways.
      #
      # Instead we want to decay the weights in a manner that doesn't interact
      # with the m/v parameters. This is equivalent to adding the square
      # of the weights to the loss with plain (non-momentum) SGD.
      if self.\_do\_use\_weight\_decay(param\_name):
        update += self.weight\_decay\_rate * param

      update\_with\_lr = self.learning\_rate * update

      next\_param = param - update\_with\_lr

      assignments.extend(
          [param.assign(next\_param),
           m.assign(next\_m),
           v.assign(next\_v)])
    return tf.group(*assignments, name=name)

  def \_do\_use\_weight\_decay(self, param\_name):
    """Whether to use L2 weight decay for `param\_name`."""
    if not self.weight\_decay\_rate:
      return False
    if self.exclude\_from\_weight\_decay:
      for r in self.exclude\_from\_weight\_decay:
        if re.search(r, param\_name) is not None:
          return False
    return True

  def \_get\_variable\_name(self, param\_name):
    """Get the variable name from the tensor name."""
    m = re.match("^(.*):\\d+$", param\_name)
    if m is not None:
      param\_name = m.group(1)
    return param\_name



至此，BERT的整个预训练过程算是梳理完成了。

参考

• https://github.com/google-research/bert
• BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding
• [译]深度双向Transformer预训练【BERT第一作者分享】
• Transformer图解
• BERT大火却不懂Transformer？读这一篇就够了
• layernorm 反向传播推导及代码
• batch normalization 中的 beta 和 gamma参数
• Understand Cross Entropy Loss in Minutes
• Adam和学习率衰减（learning rate decay）

之前总是直接用预训练好的BERT模型，对预训练部分的认识只停留在其同时训练两个无监督的任务：masked LM和Next Sentence Prediction (NSP)。而之后的SOTA模型如XLNet、RoBERTa、ALBERT等都属于BERT的追随者。因此有必要详细了解BERT预训练的细节。

本篇post主要从代码角度解读BERT的预训练的思路与细节。

数据解读

官方给出了一个作为初始训练语料的.txt格式的demo文件sample_text.txt，其中每一行表示一句话，不同文档用空格区分。如果想训练自己的数据，整理成上述形式即可。

数据预处理

先直观地看一下数据预处理时执行脚本。


python create_pretraining_data.py \
  --input_file=./sample_text.txt \
  --output_file=/tmp/tf_examples.tfrecord \
  --vocab_file=$BERT_BASE_DIR/vocab.txt \
  --do_lower_case=True \
  --max_seq_length=128 \
  --max_predictions_per_seq=20 \
  --masked_lm_prob=0.15 \
  --random_seed=12345 \
  --dupe_factor=5



其中input_file为初始训练语料的文件路径，可有多个(用逗号分隔)；output_file指定了生成.tfrecord格式的文件路径，可有多个(用逗号分隔)；vocab_file预训练的词表文件，直接用google提供的即可。若使用自己生成的 词表需重新训练，但需保证自己有足够多的文本语料；max_seq_length 表示拼接后的句子对组成的序列中包含Wordpiece级别的token数的上限，超过部分，需将较长的句子进行首尾截断；max_predictions_per_seq表示每个序列中需要预测的token数的上限；masked_lm_prob表示生成的序列中被masked的token占总token数的比例(这里的masked是广义的mask，即将选中的token替换成[mask]或保持原词汇或随机替换成词表中的另一个词)，且有如下关系max_predictions_per_seq 约等于 max_seq_length * masked_lm_prob；random_seed为随机种子，便于复现结果；dupe_factor表示重复因子，即重复创建TrainingInstance的次数，因每次随机生成mask,所以需预测的mask的token是不同的。

create_pretraining_data.py模块主要是将上述.txt格式的初始训练语料先转化为TrainingInstance对象组成的list，然后将生成的每一个TrainingInstance对象依此转成tf.train.Example对象后，序列化到.tfrecord格式的文件中。最终生成的.tfrecord格式的文件是BERT预训练时的数据源。

下面分步骤依此看下各个处理过程。

首先是从原始的.txt格式的语料中生成由TrainingInstance对象组成的list。其主流程代码如下：


def create_training_instances(input_files, tokenizer, max_seq_length,
                              dupe_factor, short_seq_prob, masked_lm_prob,
                              max_predictions_per_seq, rng):
  """Create `TrainingInstance`s from raw text."""
  all_documents = [[]]

  # Input file format:
  # (1) One sentence per line. These should ideally be actual sentences, not
  # entire paragraphs or arbitrary spans of text. (Because we use the
  # sentence boundaries for the "next sentence prediction" task).
  # (2) Blank lines between documents. Document boundaries are needed so
  # that the "next sentence prediction" task doesn't span between documents.
  for input_file in input_files:
    with tf.gfile.GFile(input_file, "r") as reader:
      while True:
        line = tokenization.convert_to_unicode(reader.readline())
        if not line:
          break
        line = line.strip()

        # Empty lines are used as document delimiters
        if not line:
          all_documents.append([])
        tokens = tokenizer.tokenize(line)
        if tokens:
          all_documents[-1].append(tokens)

  # Remove empty documents
  all_documents = [x for x in all_documents if x]
  rng.shuffle(all_documents)

  vocab_words = list(tokenizer.vocab.keys())
  instances = []
  for _ in range(dupe_factor):
    for document_index in range(len(all_documents)):
      instances.extend(
          create_instances_from_document(
              all_documents, document_index, max_seq_length, short_seq_prob,
              masked_lm_prob, max_predictions_per_seq, vocab_words, rng))

  rng.shuffle(instances)
  return instances



先遍历可用的语料，依次读取每个语料中的每一行，如果没有行可读，停止当前语料的遍历；如果扫描到换行符(空行)，往all_documents中追加一个空list；其他情况则先将读取的行分割成wordpiece级别的list，然后追加到all_documents中的最后一个文档中。最终形成如下形式的文档list:[[[d1_s1],[d1_s2],…,[d1_sn]],[[d2_s1],[d2_s2],…,[d2_sm]],…,[[dk_s1],[dk_s2],…,[dk_sz]]]。上述表示一个语料中有k个文档，第一个文档有n句话，第二个文档有m句话，第k个文档有z句话，d1_s1表示第一个文档中的第一句话被分割成wordpiece级别的list。

接着过滤掉all_documents中的空文档并随机打乱其中的文档顺序。然后对all_documents中的每一个文档生成由TrainingInstance对象组成的instances列表，即create_instances_from_document，并拼接(extend)所有的instances到一个instances中。重复上述all_documents–>instances的过程dupe_factor次。最后再随机打乱生成的instances并返回。

上述最重要的操作是如何从单个文档中生成由TrainingInstance对象组成的instances列表，即create_instances_from_document函数。该函数涉及masked LM和Next Sentence Prediction (NSP)的具体实现细节。 具体代码如下：


def create_instances_from_document(
    all_documents, document_index, max_seq_length, short_seq_prob,
    masked_lm_prob, max_predictions_per_seq, vocab_words, rng):
  """Creates `TrainingInstance`s for a single document."""
  document = all_documents[document_index]

  # Account for [CLS], [SEP], [SEP]
  max_num_tokens = max_seq_length - 3

  # We *usually* want to fill up the entire sequence since we are padding
  # to `max_seq_length` anyways, so short sequences are generally wasted
  # computation. However, we *sometimes*
  # (i.e., short_seq_prob == 0.1 == 10% of the time) want to use shorter
  # sequences to minimize the mismatch between pre-training and fine-tuning.
  # The `target_seq_length` is just a rough target however, whereas
  # `max_seq_length` is a hard limit.
  target_seq_length = max_num_tokens
  if rng.random() < short_seq_prob:
    target_seq_length = rng.randint(2, max_num_tokens)

  # We DON'T just concatenate all of the tokens from a document into a long
  # sequence and choose an arbitrary split point because this would make the
  # next sentence prediction task too easy. Instead, we split the input into
  # segments "A" and "B" based on the actual "sentences" provided by the user
  # input.
  instances = []
  current_chunk = []
  current_length = 0
  i = 0
  while i < len(document):
    segment = document[i]
    current_chunk.append(segment)
    current_length += len(segment)
    if i == len(document) - 1 or current_length >= target_seq_length:
      if current_chunk:
        # `a_end` is how many segments from `current_chunk` go into the `A`
        # (first) sentence.
        a_end = 1
        if len(current_chunk) >= 2:
          a_end = rng.randint(1, len(current_chunk) - 1)

        tokens_a = []
        for j in range(a_end):
          tokens_a.extend(current_chunk[j])

        tokens_b = []
        # Random next
        is_random_next = False
        if len(current_chunk) == 1 or rng.random() < 0.5:
          is_random_next = True
          target_b_length = target_seq_length - len(tokens_a)

          # This should rarely go for more than one iteration for large
          # corpora. However, just to be careful, we try to make sure that
          # the random document is not the same as the document
          # we're processing.
          for _ in range(10):
            random_document_index = rng.randint(0, len(all_documents) - 1)
            if random_document_index != document_index:
              break

          random_document = all_documents[random_document_index]
          random_start = rng.randint(0, len(random_document) - 1)
          for j in range(random_start, len(random_document)):
            tokens_b.extend(random_document[j])
            if len(tokens_b) >= target_b_length:
              break
          # We didn't actually use these segments so we "put them back" so
          # they don't go to waste.
          num_unused_segments = len(current_chunk) - a_end
          i -= num_unused_segments
        # Actual next
        else:
          is_random_next = False
          for j in range(a_end, len(current_chunk)):
            tokens_b.extend(current_chunk[j])
        truncate_seq_pair(tokens_a, tokens_b, max_num_tokens, rng)

        assert len(tokens_a) >= 1
        assert len(tokens_b) >= 1

        tokens = []
        segment_ids = []
        tokens.append("[CLS]")
        segment_ids.append(0)
        for token in tokens_a:
          tokens.append(token)
          segment_ids.append(0)

        tokens.append("[SEP]")
        segment_ids.append(0)

        for token in tokens_b:
          tokens.append(token)
          segment_ids.append(1)
        tokens.append("[SEP]")
        segment_ids.append(1)

        (tokens, masked_lm_positions,
         masked_lm_labels) = create_masked_lm_predictions(
             tokens, masked_lm_prob, max_predictions_per_seq, vocab_words, rng)
        instance = TrainingInstance(
            tokens=tokens,
            segment_ids=segment_ids,
            is_random_next=is_random_next,
            masked_lm_positions=masked_lm_positions,
            masked_lm_labels=masked_lm_labels)
        instances.append(instance)
      current_chunk = []
      current_length = 0
    i += 1

  return instances



首先确定要从哪个文档生成TrainingInstance对象，接着确定拼接两个segment(segment是基于句子生成的，一个segment可能只有一个句子，也可能由多个句子拼接而成)组成的序列中可容纳的最多token数为max_num_tokens，然后循环遍历该文档中的每一个句子，当遍历的前几个句子对应的token的总数大于等于目标序列的最大值(target_seq_length，不是max_num_tokens)或已遍历到最后一个句子，则从current_chunk中按顺序选取一定数量(随机生成)的句子拼接成tokens_a(segment A)，而tokens_b(segment B)的生成有两种可能(与NSP相对应)。一种是从current_chunk中依次拼接tokens_a剩下的句子，此时tokens_a与tokens_b是连贯的；另一种是随机选择其他文档，并随机地确定要遍历的句子的开始，然后不断拼接直到大于等于target_b_length。需要注意的是，此时需进一步确定current_chunk中未用到的句子，并将遍历该文档句子的索引重新置位到未用到的句子的位置。

至此tokens_a(segment A)与tokens_b(segment B)便分别确定了。在进一步处理前需保证拼接后两个segment的总tokens数小于等于max_num_tokens，对于超过的部分，每次选择较长的句子随机地去掉头或尾，直至符合要求。

然后将截取后的tokens_a与tokens_b拼接成 [CLS] tokens_a [SEP] tokens_b [SEP]的形式。以上就是Next Sentence Prediction (NSP)任务对应的数据预处理的细节。

接着在最终拼接后的两个segments形成的tokens的基础上做mask操作，生成masked LM任务需要的tokens形式。具体代码如下：


def create_masked_lm_predictions(tokens, masked_lm_prob,
                                 max_predictions_per_seq, vocab_words, rng):
  """Creates the predictions for the masked LM objective."""

  cand_indexes = []
  for (i, token) in enumerate(tokens):
    if token == "[CLS]" or token == "[SEP]":
      continue
    # Whole Word Masking means that if we mask all of the wordpieces
    # corresponding to an original word. When a word has been split into
    # WordPieces, the first token does not have any marker and any subsequence
    # tokens are prefixed with ##. So whenever we see the ## token, we
    # append it to the previous set of word indexes.
    #
    # Note that Whole Word Masking does *not* change the training code
    # at all -- we still predict each WordPiece independently, softmaxed
    # over the entire vocabulary.
    if (FLAGS.do_whole_word_mask and len(cand_indexes) >= 1 and
        token.startswith("##")):
      cand_indexes[-1].append(i)
    else:
      cand_indexes.append([i])

  rng.shuffle(cand_indexes)

  output_tokens = list(tokens)

  num_to_predict = min(max_predictions_per_seq,
                       max(1, int(round(len(tokens) * masked_lm_prob))))

  masked_lms = []
  covered_indexes = set()
  for index_set in cand_indexes:
    if len(masked_lms) >= num_to_predict:
      break
    # If adding a whole-word mask would exceed the maximum number of
    # predictions, then just skip this candidate.
    if len(masked_lms) + len(index_set) > num_to_predict:
      continue
    is_any_index_covered = False
    for index in index_set:
      if index in covered_indexes:
        is_any_index_covered = True
        break
    if is_any_index_covered:
      continue
    for index in index_set:
      covered_indexes.add(index)

      masked_token = None
      # 80% of the time, replace with [MASK]
      if rng.random() < 0.8:
        masked_token = "[MASK]"
      else:
        # 10% of the time, keep original
        if rng.random() < 0.5:
          masked_token = tokens[index]
        # 10% of the time, replace with random word
        else:
          masked_token = vocab_words[rng.randint(0, len(vocab_words) - 1)]

      output_tokens[index] = masked_token

      masked_lms.append(MaskedLmInstance(index=index, label=tokens[index]))
  assert len(masked_lms) <= num_to_predict
  masked_lms = sorted(masked_lms, key=lambda x: x.index)

  masked_lm_positions = []
  masked_lm_labels = []
  for p in masked_lms:
    masked_lm_positions.append(p.index)
    masked_lm_labels.append(p.label)

  return (output_tokens, masked_lm_positions, masked_lm_labels)



首先记录在NSP阶段生成的tokens序列中每个token(除了[CLS]与[SEP])的位置信息([[1],[2],…,[8],[10],[11,12,13],…],mask时考虑了整词mask的情况)，接着随机打乱位置信息，复制一份mask前的tokens序列信息到output_tokens中，确定在该tokens序列中要预测的token的个数(num_to_predict，大概占总tokens数的15%)。然后顺序遍历被打乱的位置，对每个位置的token进行mask操作并记录被mask的位置信息和mask前的token值，其中有80%的概率该token被替换成’[mask]’，10%的概率该token被替换成自己(保持不变)，10%的概率该token被替换成词表中的任一token。 直到被mask的token数大于等于设定值num_to_predict。最后将所有被mask的token按位置信息升序排序后,返回mask后的整个序列、被mask的位置及mask前的token。

以上为masked LM任务对应的数据预处理的细节。

最后将生成的与NSP和masked LM相关的特征赋值给TrainingInstance对象对应属性 (tokens,segment_ids,is_random_next,masked_lm_positions,masked_lm_labels) ，形成最终的 instance。

至此，梳理完了从原始的.txt的语料生成由TrainingInstance对象组成的list的过程。

最后看下如何将上述的list写入到.tfrecord格式的文件中。具体代码如下：


def write_instance_to_example_files(instances, tokenizer, max_seq_length,
                                    max_predictions_per_seq, output_files):
  """Create TF example files from `TrainingInstance`s."""
  writers = []
  for output_file in output_files:
    writers.append(tf.python_io.TFRecordWriter(output_file))

  writer_index = 0

  total_written = 0
  for (inst_index, instance) in enumerate(instances):
    input_ids = tokenizer.convert_tokens_to_ids(instance.tokens)
    input_mask = [1] * len(input_ids)
    segment_ids = list(instance.segment_ids)
    assert len(input_ids) <= max_seq_length

    while len(input_ids) < max_seq_length:
      input_ids.append(0)
      input_mask.append(0)
      segment_ids.append(0)

    assert len(input_ids) == max_seq_length
    assert len(input_mask) == max_seq_length
    assert len(segment_ids) == max_seq_length

    masked_lm_positions = list(instance.masked_lm_positions)
    masked_lm_ids = tokenizer.convert_tokens_to_ids(instance.masked_lm_labels)
    masked_lm_weights = [1.0] * len(masked_lm_ids)

    while len(masked_lm_positions) < max_predictions_per_seq:
      masked_lm_positions.append(0)
      masked_lm_ids.append(0)
      masked_lm_weights.append(0.0)

    next_sentence_label = 1 if instance.is_random_next else 0

    features = collections.OrderedDict()
    features["input_ids"] = create_int_feature(input_ids)
    features["input_mask"] = create_int_feature(input_mask)
    features["segment_ids"] = create_int_feature(segment_ids)
    features["masked_lm_positions"] = create_int_feature(masked_lm_positions)
    features["masked_lm_ids"] = create_int_feature(masked_lm_ids)
    features["masked_lm_weights"] = create_float_feature(masked_lm_weights)
    features["next_sentence_labels"] = create_int_feature([next_sentence_label])

    tf_example = tf.train.Example(features=tf.train.Features(feature=features))

    writers[writer_index].write(tf_example.SerializeToString())
    writer_index = (writer_index + 1) % len(writers)

    total_written += 1

    if inst_index < 20:
      tf.logging.info("*** Example ***")
      tf.logging.info("tokens: %s" % " ".join(
          [tokenization.printable_text(x) for x in instance.tokens]))

      for feature_name in features.keys():
        feature = features[feature_name]
        values = []
        if feature.int64_list.value:
          values = feature.int64_list.value
        elif feature.float_list.value:
          values = feature.float_list.value
        tf.logging.info(
            "%s: %s" % (feature_name, " ".join([str(x) for x in values])))

  for writer in writers:
    writer.close()

  tf.logging.info("Wrote %d total instances", total_written)



首先根据不同的输出文件路径，实例化多个不同的tf.python_io.TFRecordWriter对象。然后依次遍历instances列表中每个TrainingInstance对象，解析其相关属性值，保证input_ids、input_mask与segment_ids的长度等于max_seq_length，masked_lm_positions、masked_lm_ids与masked_lm_weights的长度等于max_predictions_per_seq。(不足补零) 将相关属性值统一放到features的字典(key:特征名，value:tf.train.Feature对象)中，将含多个特征属性值的字典传给tf.train.Example对象后，序列化到.tfrecord格式的文件中(此文件为预训练的输入文件)，并打印前20个样本的相关特征值。

至此，从.txt的原始语料到.tfrecord格式的预训练的输入文件的转化梳理完成。

预训练

以下为预训练的运行脚本。


python run_pretraining.py \
  --input_file=/tmp/tf_examples.tfrecord \
  --output_dir=/tmp/pretraining_output \
  --do_train=True \
  --do_eval=True \
  --bert_config_file=$BERT_BASE_DIR/bert_config.json \
  --init_checkpoint=$BERT_BASE_DIR/bert_model.ckpt \
  --train_batch_size=32 \
  --max_seq_length=128 \
  --max_predictions_per_seq=20 \
  --num_train_steps=20 \
  --num_warmup_steps=10 \
  --learning_rate=2e-5



其中input_file为数据预处理部分生成的.tfrecord格式的文件路径；output_dir为预训练后生成的模型文件的路径；bert_config_file为(预训练)模型的配置文件；init_checkpoint为(预训练)模型的初始检查点，如果想要从头开始训练，那么不要此参数，一般都是在google预训练好的模型基础上微调，即模型相关的初始参数从ckpt文件中加载，除非自己有特别大的某一领域的语料；train_batch_size表示训练阶段每步中最多包含的样本数；max_seq_length表示每个样本中含有token个数的最大值，此值需与数据预处理部分保持一致，该参数类似于RNN中的最大时间步，每次可动态调整。针对某一特定领域的语料，可在通用的语言模型的基础上，每次通过设置不同长度的专业领域的句子对微调语言模型，使最终生成的预训练的语言模型更适合某一特定领域；max_predictions_per_seq表示每个序列中需要预测的token的最大个数，此值需与数据预处理部分保持一致；num_train_steps表示训练阶段的步数；num_warmup_steps表示学习率从0逐渐增加到初始学习率所需的步数，以后的步数保持固定学习率。

接着从源码角度重点分析下预训练模块中BERT模型的内部结构。

首先看下如何从输入的.tfrecord文件中解析出BERT需要的输入数据。代码如下：


def input_fn_builder(input_files,
                     max_seq_length,
                     max_predictions_per_seq,
                     is_training,
                     num_cpu_threads=4):
  """Creates an `input_fn` closure to be passed to TPUEstimator."""

  def input_fn(params):
    """The actual input function."""
    batch_size = params["batch_size"]

    name_to_features = {
        "input_ids":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "input_mask":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "segment_ids":
            tf.FixedLenFeature([max_seq_length], tf.int64),
        "masked_lm_positions":
            tf.FixedLenFeature([max_predictions_per_seq], tf.int64),
        "masked_lm_ids":
            tf.FixedLenFeature([max_predictions_per_seq], tf.int64),
        "masked_lm_weights":
            tf.FixedLenFeature([max_predictions_per_seq], tf.float32),
        "next_sentence_labels":
            tf.FixedLenFeature([1], tf.int64),
    }

    # For training, we want a lot of parallel reading and shuffling.
    # For eval, we want no shuffling and parallel reading doesn't matter.
    if is_training:
      tf.logging.info(f'input_files---:{input_files}')
      tf.logging.info(f'tf.constant(input_files)---:{tf.constant(input_files)}')
      d = tf.data.Dataset.from_tensor_slices(tf.constant(input_files))  # ???
      d = d.repeat()
      d = d.shuffle(buffer_size=len(input_files))

      # `cycle_length` is the number of parallel files that get read.
      cycle_length = min(num_cpu_threads, len(input_files))

      # `sloppy` mode means that the interleaving is not exact. This adds
      # even more randomness to the training pipeline.
      d = d.apply(
          tf.contrib.data.parallel_interleave(
              tf.data.TFRecordDataset,
              sloppy=is_training,
              cycle_length=cycle_length))
      d = d.shuffle(buffer_size=100)
    else:
      d = tf.data.TFRecordDataset(input_files)
      # Since we evaluate for a fixed number of steps we don't want to encounter
      # out-of-range exceptions.
      d = d.repeat()

    # We must `drop_remainder` on training because the TPU requires fixed
    # size dimensions. For eval, we assume we are evaluating on the CPU or GPU
    # and we *don't* want to drop the remainder, otherwise we wont cover
    # every sample.
    d = d.apply(
        tf.contrib.data.map_and_batch(
            lambda record: _decode_record(record, name_to_features),
            batch_size=batch_size,
            num_parallel_batches=num_cpu_threads,
            drop_remainder=True))
    return d

  return input_fn



以上代码将.tfrecord文件加载成dataset的对象，接着利用其固有方法进行repeat、shuffle操作后，再利用其map_and_batch方法先将数据集中序列化的Example对象解码成由各个feature组成的features字典，然后将解析后的值分成多组batch，作为模型的输入数据(model_fn中的features)。

接着重点看下模型的内部结构。从宏观上看，其主要有三部分：embeddings、encoder和输出。其中embeddings包括word_embeddings、token_type_embeddings(segment_embeddings)和position_embeddings三部分；encoder部分由num_hidden_layers(12)个Transformer Encoders堆叠而成；输出部分由两种形式，一种是输出最后一层(Transformer) Encoder的sequence_output(形状为[batch_size, seq_length, hidden_size]，token级别的embedding)，这个输出用于masked LM任务的训练。另一种是取sequence_output中的第一个token，然后接一个带有tanh的激活函数的全连接层作为输出(形状为[batch_size, hidden_size]，句级别的embedding)，此输出用于NSP任务的训练。 上述三部分宏观代码如下：


class BertModel(object):
  """BERT model ("Bidirectional Encoder Representations from Transformers").

  Example usage:

  ```python
  # Already been converted into WordPiece token ids
  input_ids = tf.constant([[31, 51, 99], [15, 5, 0]])
  input_mask = tf.constant([[1, 1, 1], [1, 1, 0]])
  token_type_ids = tf.constant([[0, 0, 1], [0, 2, 0]])

  config = modeling.BertConfig(vocab_size=32000, hidden_size=512,
    num_hidden_layers=8, num_attention_heads=6, intermediate_size=1024)

  model = modeling.BertModel(config=config, is_training=True,
    input_ids=input_ids, input_mask=input_mask, token_type_ids=token_type_ids)

  label_embeddings = tf.get_variable(...)
  pooled_output = model.get_pooled_output()
  logits = tf.matmul(pooled_output, label_embeddings)
  ...
  """
  def __init__(self,
               config,
               is_training,
               input_ids,
               input_mask=None,
               token_type_ids=None,
               use_one_hot_embeddings=False,
               scope=None):
    """Constructor for BertModel.

    Args:
      config: `BertConfig` instance.
      is_training: bool. true for training model, false for eval model. Controls
        whether dropout will be applied.
      input_ids: int32 Tensor of shape [batch_size, seq_length].
      input_mask: (optional) int32 Tensor of shape [batch_size, seq_length].
      token_type_ids: (optional) int32 Tensor of shape [batch_size, seq_length]. <==> segment id
      use_one_hot_embeddings: (optional) bool. Whether to use one-hot word
        embeddings or tf.embedding_lookup() for the word embeddings.
      scope: (optional) variable scope. Defaults to "bert".

    Raises:
      ValueError: The config is invalid or one of the input tensor shapes
        is invalid.
    """
    config = copy.deepcopy(config)
    if not is_training:
      config.hidden_dropout_prob = 0.0
      config.attention_probs_dropout_prob = 0.0

    input_shape = get_shape_list(input_ids, expected_rank=2)
    batch_size = input_shape[0]
    seq_length = input_shape[1]

    if input_mask is None:
      input_mask = tf.ones(shape=[batch_size, seq_length], dtype=tf.int32)

    if token_type_ids is None:
      token_type_ids = tf.zeros(shape=[batch_size, seq_length], dtype=tf.int32)

    with tf.variable_scope(scope, default_name="bert"):
      with tf.variable_scope("embeddings"):
        # Perform embedding lookup on the word ids.
        (self.embedding_output, self.embedding_table) = embedding_lookup(
            input_ids=input_ids,
            vocab_size=config.vocab_size,
            embedding_size=config.hidden_size,
            initializer_range=config.initializer_range,
            word_embedding_name="word_embeddings",
            use_one_hot_embeddings=use_one_hot_embeddings)

        # Add positional embeddings and token type embeddings, then layer
        # normalize and perform dropout.
        self.embedding_output = embedding_postprocessor(
            input_tensor=self.embedding_output,
            use_token_type=True,
            token_type_ids=token_type_ids,
            token_type_vocab_size=config.type_vocab_size,
            token_type_embedding_name="token_type_embeddings",
            use_position_embeddings=True,
            position_embedding_name="position_embeddings",
            initializer_range=config.initializer_range,
            max_position_embeddings=config.max_position_embeddings,
            dropout_prob=config.hidden_dropout_prob)

      with tf.variable_scope("encoder"):
        # This converts a 2D mask of shape [batch_size, seq_length] to a 3D
        # mask of shape [batch_size, seq_length, seq_length] which is used
        # for the attention scores.
        attention_mask = create_attention_mask_from_input_mask(
            input_ids, input_mask)

        # Run the stacked transformer.
        # `sequence_output` shape = [batch_size, seq_length, hidden_size].
        self.all_encoder_layers = transformer_model(
            input_tensor=self.embedding_output,
            attention_mask=attention_mask,
            hidden_size=config.hidden_size,
            num_hidden_layers=config.num_hidden_layers,
            num_attention_heads=config.num_attention_heads,
            intermediate_size=config.intermediate_size,
            intermediate_act_fn=get_activation(config.hidden_act),
            hidden_dropout_prob=config.hidden_dropout_prob,
            attention_probs_dropout_prob=config.attention_probs_dropout_prob,
            initializer_range=config.initializer_range,
            do_return_all_layers=True)

      self.sequence_output = self.all_encoder_layers[-1]
      # The "pooler" converts the encoded sequence tensor of shape
      # [batch_size, seq_length, hidden_size] to a tensor of shape
      # [batch_size, hidden_size]. This is necessary for segment-level
      # (or segment-pair-level) classification tasks where we need a fixed
      # dimensional representation of the segment.
      with tf.variable_scope("pooler"):
        # We "pool" the model by simply taking the hidden state corresponding
        # to the first token. We assume that this has been pre-trained
        first_token_tensor = tf.squeeze(self.sequence_output[:, 0:1, :], axis=1)
        self.pooled_output = tf.layers.dense(
            first_token_tensor,
            config.hidden_size,
            activation=tf.tanh,
            kernel_initializer=create_initializer(config.initializer_range))



论文中给出了预训练的模型在不同任务上的示意图：

其中(a)、(b)(a)、(b)为句子级别的任务，输出端的第一个token表示句子(/句子对)的embedding，即输入的[CLS]对应的输出。 (c)、(d)(c)、(d)为token级别的任务，输出端每一个位置的embedding与输入端各位置相对应。

下面重点看下embeddings和encoder部分的内部结构。

embeddings部分的embedding_lookup主要用来生成词表中每个token的向量表示，同时将[batch_size, seq_length]的input_ids转换成形状为[batch_size,seq_length,embedding_size]的word_embeddings形式。具体代码如下(embedding_table为模型待学习参数)：


def embedding_lookup(input_ids,
                     vocab_size,
                     embedding_size=128,
                     initializer_range=0.02,
                     word_embedding_name="word_embeddings",
                     use_one_hot_embeddings=False):
  """Looks up words embeddings for id tensor.

  Args:
    input_ids: int32 Tensor of shape [batch_size, seq_length] containing word
      ids.
    vocab_size: int. Size of the embedding vocabulary.
    embedding_size: int. Width of the word embeddings.
    initializer_range: float. Embedding initialization range.
    word_embedding_name: string. Name of the embedding table.
    use_one_hot_embeddings: bool. If True, use one-hot method for word
      embeddings. If False, use `tf.gather()`.

  Returns:
    float Tensor of shape [batch_size, seq_length, embedding_size].
  """
  # This function assumes that the input is of shape [batch_size, seq_length,
  # num_inputs].
  #
  # If the input is a 2D tensor of shape [batch_size, seq_length], we
  # reshape to [batch_size, seq_length, 1].
  if input_ids.shape.ndims == 2:
    input_ids = tf.expand_dims(input_ids, axis=[-1])

  embedding_table = tf.get_variable(
      name=word_embedding_name,
      shape=[vocab_size, embedding_size],
      initializer=create_initializer(initializer_range))

  flat_input_ids = tf.reshape(input_ids, [-1])   # [batch_size*seq_length]
  if use_one_hot_embeddings:
    one_hot_input_ids = tf.one_hot(flat_input_ids, depth=vocab_size)
    output = tf.matmul(one_hot_input_ids, embedding_table)
  else:
    output = tf.gather(embedding_table, flat_input_ids)  # [batch_size*seq_length,embedding_size]

  input_shape = get_shape_list(input_ids)

  output = tf.reshape(output,
                      input_shape[0:-1] + [input_shape[-1] * embedding_size]) # [batch_size,seq_length,embedding_size]
  return (output, embedding_table)



embeddings部分的embedding_postprocessor主要是在word_embeddings的基础上增加segment_id和position信息，最后将叠加后embedding分别进行layer_norm(对每个样本的不同维度进行归一化操作，而batch_norm则是对不同样本的同一特征进行归一化操作)和dropout(一个张量中某几个位置的值变成0)操作。具体代码如下(full_position_embeddings与full_position_embeddings为模型待学习参数)：


def embedding_postprocessor(input_tensor,
                            use_token_type=False,
                            token_type_ids=None,
                            token_type_vocab_size=16,
                            token_type_embedding_name="token_type_embeddings",
                            use_position_embeddings=True,
                            position_embedding_name="position_embeddings",
                            initializer_range=0.02,
                            max_position_embeddings=512,
                            dropout_prob=0.1):
  """Performs various post-processing on a word embedding tensor.

  Args:
    input_tensor: float Tensor of shape [batch_size, seq_length,
      embedding_size].
    use_token_type: bool. Whether to add embeddings for `token_type_ids`.
    token_type_ids: (optional) int32 Tensor of shape [batch_size, seq_length].
      Must be specified if `use_token_type` is True.
    token_type_vocab_size: int. The vocabulary size of `token_type_ids`.
    token_type_embedding_name: string. The name of the embedding table variable
      for token type ids.
    use_position_embeddings: bool. Whether to add position embeddings for the
      position of each token in the sequence.
    position_embedding_name: string. The name of the embedding table variable
      for positional embeddings.
    initializer_range: float. Range of the weight initialization.
    max_position_embeddings: int. Maximum sequence length that might ever be
      used with this model. This can be longer than the sequence length of
      input_tensor, but cannot be shorter.
    dropout_prob: float. Dropout probability applied to the final output tensor.

  Returns:
    float tensor with same shape as `input_tensor`.

  Raises:
    ValueError: One of the tensor shapes or input values is invalid.
  """
  input_shape = get_shape_list(input_tensor, expected_rank=3)
  batch_size = input_shape[0]
  seq_length = input_shape[1]
  width = input_shape[2]

  output = input_tensor  # [batch_size, seq_length,embedding_size]

  if use_token_type:
    if token_type_ids is None:
      raise ValueError("`token_type_ids` must be specified if"
                       "`use_token_type` is True.")
    token_type_table = tf.get_variable(
        name=token_type_embedding_name,
        shape=[token_type_vocab_size, width],
        initializer=create_initializer(initializer_range))
    # This vocab will be small so we always do one-hot here, since it is always
    # faster for a small vocabulary.
    flat_token_type_ids = tf.reshape(token_type_ids, [-1]) # [batch_size, seq_length] --> [batch_size*seq_length]
    one_hot_ids = tf.one_hot(flat_token_type_ids, depth=token_type_vocab_size)  # [batch_size*seq_length,token_type_vocab_size]
    token_type_embeddings = tf.matmul(one_hot_ids, token_type_table)
    token_type_embeddings = tf.reshape(token_type_embeddings,
                                       [batch_size, seq_length, width])
    output += token_type_embeddings

  if use_position_embeddings:
    assert_op = tf.assert_less_equal(seq_length, max_position_embeddings)
    with tf.control_dependencies([assert_op]):
      full_position_embeddings = tf.get_variable(
          name=position_embedding_name,
          shape=[max_position_embeddings, width],
          initializer=create_initializer(initializer_range))
      # Since the position embedding table is a learned variable, we create it
      # using a (long) sequence length `max_position_embeddings`. The actual
      # sequence length might be shorter than this, for faster training of
      # tasks that do not have long sequences.
      #
      # So `full_position_embeddings` is effectively an embedding table
      # for position [0, 1, 2, ..., max_position_embeddings-1], and the current
      # sequence has positions [0, 1, 2, ... seq_length-1], so we can just
      # perform a slice.
      position_embeddings = tf.slice(full_position_embeddings, [0, 0],
                                     [seq_length, -1])  # [max_position_embeddings, width] --> [seq_length, width]
      num_dims = len(output.shape.as_list()) # [batch_size, seq_length,embedding_size]

      # Only the last two dimensions are relevant (`seq_length` and `width`), so
      # we broadcast among the first dimensions, which is typically just
      # the batch size.
      position_broadcast_shape = []
      for _ in range(num_dims - 2):
        position_broadcast_shape.append(1)
      position_broadcast_shape.extend([seq_length, width]) # [1,seq_length,width]
      position_embeddings = tf.reshape(position_embeddings,
                                       position_broadcast_shape)
      output += position_embeddings

  output = layer_norm_and_dropout(output, dropout_prob)
  return output



论文中关于embedding部分的示意图如下：

至此embeddings部分的结构介绍完毕。

接着看下encoder部分，其是BERT模型的核心。上述embeddings部分的最终输出作为第一层的transformer encoder (block)的输入。

而一个transformer encoder (block)由多头注意层(共有hidden_size个单元)和前馈神经网络层(有激活函数的dense层，共有intermediate_size个单元，约定有如下关系intermediate_size=4*hidden_size)两个子层构成。其中每个子层的输出分别进行线性投影(没有激活函数的dense层)、dropout、Resnet(残差，输入与输出直接相加)与layer_norm操作。

前馈神经网络层的输出经layer_norm后的输出为一个transformer encoder (block)的最终输出，保存该输出并将其作为下一个transformer encoder (block)的输入。循环上述过程num_hidden_layers次(堆叠num_hidden_layers个transformer encoder (block))，形成最终encoder部分的输出。值得说明的是，上述数据转换过程都是2D的。 以上描述的整个过程可看作一个transformer model，其简易示意图与具体代码分别如下：


def transformer_model(input_tensor,
                      attention_mask=None,
                      hidden_size=768,
                      num_hidden_layers=12,
                      num_attention_heads=12,
                      intermediate_size=3072,
                      intermediate_act_fn=gelu,
                      hidden_dropout_prob=0.1,
                      attention_probs_dropout_prob=0.1,
                      initializer_range=0.02,
                      do_return_all_layers=False):
  """Multi-headed, multi-layer Transformer from "Attention is All You Need".

  This is almost an exact implementation of the original Transformer encoder.

  See the original paper:
  https://arxiv.org/abs/1706.03762

  Also see:
  https://github.com/tensorflow/tensor2tensor/blob/master/tensor2tensor/models/transformer.py

  Args:
    input_tensor: float Tensor of shape [batch_size, seq_length, hidden_size].
    attention_mask: (optional) int32 Tensor of shape [batch_size, seq_length,
      seq_length], with 1 for positions that can be attended to and 0 in
      positions that should not be.
    hidden_size: int. Hidden size of the Transformer.
    num_hidden_layers: int. Number of layers (blocks) in the Transformer.
    num_attention_heads: int. Number of attention heads in the Transformer.
    intermediate_size: int. The size of the "intermediate" (a.k.a., feed
      forward) layer.
    intermediate_act_fn: function. The non-linear activation function to apply
      to the output of the intermediate/feed-forward layer.
    hidden_dropout_prob: float. Dropout probability for the hidden layers.
    attention_probs_dropout_prob: float. Dropout probability of the attention
      probabilities.
    initializer_range: float. Range of the initializer (stddev of truncated
      normal).
    do_return_all_layers: Whether to also return all layers or just the final
      layer.

  Returns:
    float Tensor of shape [batch_size, seq_length, hidden_size], the final
    hidden layer of the Transformer.

  Raises:
    ValueError: A Tensor shape or parameter is invalid.
  """
  if hidden_size % num_attention_heads != 0:
    raise ValueError(
        "The hidden size (%d) is not a multiple of the number of attention "
        "heads (%d)" % (hidden_size, num_attention_heads))

  attention_head_size = int(hidden_size / num_attention_heads)
  input_shape = get_shape_list(input_tensor, expected_rank=3)
  batch_size = input_shape[0]
  seq_length = input_shape[1]
  input_width = input_shape[2]

  # The Transformer performs sum residuals on all layers so the input needs
  # to be the same as the hidden size.
  if input_width != hidden_size:
    raise ValueError("The width of the input tensor (%d) != hidden size (%d)" %
                     (input_width, hidden_size))

  # We keep the representation as a 2D tensor to avoid re-shaping it back and
  # forth from a 3D tensor to a 2D tensor. Re-shapes are normally free on
  # the GPU/CPU but may not be free on the TPU, so we want to minimize them to
  # help the optimizer.
  prev_output = reshape_to_matrix(input_tensor)

  all_layer_outputs = []
  for layer_idx in range(num_hidden_layers):
    with tf.variable_scope("layer_%d" % layer_idx):
      layer_input = prev_output

      with tf.variable_scope("attention"):
        attention_heads = []
        with tf.variable_scope("self"):
          attention_head = attention_layer(   # [B*F, N*H] / [B, F, N*H]
              from_tensor=layer_input,
              to_tensor=layer_input,
              attention_mask=attention_mask,
              num_attention_heads=num_attention_heads,
              size_per_head=attention_head_size,
              attention_probs_dropout_prob=attention_probs_dropout_prob,
              initializer_range=initializer_range,
              do_return_2d_tensor=True,
              batch_size=batch_size,
              from_seq_length=seq_length,
              to_seq_length=seq_length)
          attention_heads.append(attention_head)

        attention_output = None
        if len(attention_heads) == 1:
          attention_output = attention_heads[0]
        else:  # ??? 什么情况没想到啊。。。先不考率
          # In the case where we have other sequences, we just concatenate
          # them to the self-attention head before the projection.
          attention_output = tf.concat(attention_heads, axis=-1)

        # Run a linear projection of `hidden_size` then add a residual
        # with `layer_input`.
        with tf.variable_scope("output"):
          attention_output = tf.layers.dense(
              attention_output,
              hidden_size,
              kernel_initializer=create_initializer(initializer_range))
          attention_output = dropout(attention_output, hidden_dropout_prob)
          attention_output = layer_norm(attention_output + layer_input)

      # The activation is only applied to the "intermediate" hidden layer.
      with tf.variable_scope("intermediate"):
        intermediate_output = tf.layers.dense(
            attention_output,
            intermediate_size,
            activation=intermediate_act_fn,
            kernel_initializer=create_initializer(initializer_range))

      # Down-project back to `hidden_size` then add the residual.
      with tf.variable_scope("output"):
        layer_output = tf.layers.dense(
            intermediate_output,
            hidden_size,
            kernel_initializer=create_initializer(initializer_range))
        layer_output = dropout(layer_output, hidden_dropout_prob)
        layer_output = layer_norm(layer_output + attention_output)
        prev_output = layer_output
        all_layer_outputs.append(layer_output)

  if do_return_all_layers:
    final_outputs = []
    for layer_output in all_layer_outputs:
      final_output = reshape_from_matrix(layer_output, input_shape)
      final_outputs.append(final_output)
    return final_outputs
  else:
    final_output = reshape_from_matrix(prev_output, input_shape)
    return final_output



其中多头注意层(attention_layer)是transformer encoder (block)的核心，该层从from_tensor到to_tensor进行多头注意的计算(当from_tensor和to_tensor是同一个序列时，称为自注意)。相关流程如下： attention_layer首先将from_tensor投影成query张量，将to_tensor投影成key、value张量。其中query、key和value是由num_attention_heads个张量组成的list，每个张量的形状为[batch_size, seq_length, size_per_head]。然后将映射后的query和key张量进行相应变换后，计算注意力得分，并缩放(防止数值过大，有利于梯度计算)。接着利用attention_mask(根据input_ids(from_tensor)与input_mask(to_mask)进行计算的。由0,1组成的mask张量，表示一个batch的每一个序列(from_tensor)中的每一个token(用1表示)与另一序列(to_mask)中的哪些token有关联，1表示有关联，0表示无关联)进一步对缩放后的注意力得分张量进行变换(关注的位置相应得分不变，不关注的位置得分变低)后，利用softmax操作将得分变成注意力概率值(0-1之间的权重)，并进行dropout操作得到最终的权重值张量。最后利用得到的权重张量与初始的value张量得到attention_layer的输出context_layer。

由上述分析可知，多头注意力是在原有tensor的基础上进行投影、转置、变形等操作完成计算的。相关代码如下：


def attention_layer(from_tensor,
                    to_tensor,
                    attention_mask=None,
                    num_attention_heads=1,
                    size_per_head=512,
                    query_act=None,
                    key_act=None,
                    value_act=None,
                    attention_probs_dropout_prob=0.0,
                    initializer_range=0.02,
                    do_return_2d_tensor=False,
                    batch_size=None,
                    from_seq_length=None,
                    to_seq_length=None):
  """Performs multi-headed attention from `from_tensor` to `to_tensor`.

  This is an implementation of multi-headed attention based on "Attention
  is all you Need". If `from_tensor` and `to_tensor` are the same, then
  this is self-attention. Each timestep in `from_tensor` attends to the
  corresponding sequence in `to_tensor`, and returns a fixed-with vector.

  This function first projects `from_tensor` into a "query" tensor and
  `to_tensor` into "key" and "value" tensors. These are (effectively) a list
  of tensors of length `num_attention_heads`, where each tensor is of shape
  [batch_size, seq_length, size_per_head].

  Then, the query and key tensors are dot-producted and scaled. These are
  softmaxed to obtain attention probabilities. The value tensors are then
  interpolated by these probabilities, then concatenated back to a single
  tensor and returned.

  In practice, the multi-headed attention are done with transposes and
  reshapes rather than actual separate tensors.

  Args:
    from_tensor: float Tensor of shape [batch_size, from_seq_length,
      from_width].
    to_tensor: float Tensor of shape [batch_size, to_seq_length, to_width].
    attention_mask: (optional) int32 Tensor of shape [batch_size,
      from_seq_length, to_seq_length]. The values should be 1 or 0. The
      attention scores will effectively be set to -infinity for any positions in
      the mask that are 0, and will be unchanged for positions that are 1.
    num_attention_heads: int. Number of attention heads.
    size_per_head: int. Size of each attention head.
    query_act: (optional) Activation function for the query transform.
    key_act: (optional) Activation function for the key transform.
    value_act: (optional) Activation function for the value transform.
    attention_probs_dropout_prob: (optional) float. Dropout probability of the
      attention probabilities.
    initializer_range: float. Range of the weight initializer.
    do_return_2d_tensor: bool. If True, the output will be of shape [batch_size
      * from_seq_length, num_attention_heads * size_per_head]. If False, the
      output will be of shape [batch_size, from_seq_length, num_attention_heads
      * size_per_head].
    batch_size: (Optional) int. If the input is 2D, this might be the batch size
      of the 3D version of the `from_tensor` and `to_tensor`.
    from_seq_length: (Optional) If the input is 2D, this might be the seq length
      of the 3D version of the `from_tensor`.
    to_seq_length: (Optional) If the input is 2D, this might be the seq length
      of the 3D version of the `to_tensor`.

  Returns:
    float Tensor of shape [batch_size, from_seq_length,
      num_attention_heads * size_per_head]. (If `do_return_2d_tensor` is
      true, this will be of shape [batch_size * from_seq_length,
      num_attention_heads * size_per_head]).

  Raises:
    ValueError: Any of the arguments or tensor shapes are invalid.
  """

  def transpose_for_scores(input_tensor, batch_size, num_attention_heads,
                           seq_length, width):
    output_tensor = tf.reshape(
        input_tensor, [batch_size, seq_length, num_attention_heads, width])

    output_tensor = tf.transpose(output_tensor, [0, 2, 1, 3])
    return output_tensor

  from_shape = get_shape_list(from_tensor, expected_rank=[2, 3])
  to_shape = get_shape_list(to_tensor, expected_rank=[2, 3])

  if len(from_shape) != len(to_shape):
    raise ValueError(
        "The rank of `from_tensor` must match the rank of `to_tensor`.")

  if len(from_shape) == 3:
    batch_size = from_shape[0]
    from_seq_length = from_shape[1]
    to_seq_length = to_shape[1]
  elif len(from_shape) == 2:
    if (batch_size is None or from_seq_length is None or to_seq_length is None):
      raise ValueError(
          "When passing in rank 2 tensors to attention_layer, the values "
          "for `batch_size`, `from_seq_length`, and `to_seq_length` "
          "must all be specified.")

  # Scalar dimensions referenced here:
  #   B = batch size (number of sequences)
  #   F = `from_tensor` sequence length
  #   T = `to_tensor` sequence length
  #   N = `num_attention_heads`
  #   H = `size_per_head`

  from_tensor_2d = reshape_to_matrix(from_tensor)
  to_tensor_2d = reshape_to_matrix(to_tensor)

  # `query_layer` = [B*F, N*H]
  query_layer = tf.layers.dense(
      from_tensor_2d,
      num_attention_heads * size_per_head,
      activation=query_act,
      name="query",
      kernel_initializer=create_initializer(initializer_range))

  # `key_layer` = [B*T, N*H]
  key_layer = tf.layers.dense(
      to_tensor_2d,
      num_attention_heads * size_per_head,
      activation=key_act,
      name="key",
      kernel_initializer=create_initializer(initializer_range))

  # `value_layer` = [B*T, N*H]
  value_layer = tf.layers.dense(
      to_tensor_2d,
      num_attention_heads * size_per_head,
      activation=value_act,
      name="value",
      kernel_initializer=create_initializer(initializer_range))

  # `query_layer` = [B, N, F, H]
  query_layer = transpose_for_scores(query_layer, batch_size,
                                     num_attention_heads, from_seq_length,
                                     size_per_head)

  # `key_layer` = [B, N, T, H]
  key_layer = transpose_for_scores(key_layer, batch_size, num_attention_heads,
                                   to_seq_length, size_per_head)

  # Take the dot product between "query" and "key" to get the raw
  # attention scores.
  # `attention_scores` = [B, N, F, T]
  attention_scores = tf.matmul(query_layer, key_layer, transpose_b=True)
  attention_scores = tf.multiply(attention_scores,
                                 1.0 / math.sqrt(float(size_per_head)))

  if attention_mask is not None:
    # `attention_mask` = [B, 1, F, T]
    attention_mask = tf.expand_dims(attention_mask, axis=[1])

    # Since attention_mask is 1.0 for positions we want to attend and 0.0 for
    # masked positions, this operation will create a tensor which is 0.0 for
    # positions we want to attend and -10000.0 for masked positions.
    adder = (1.0 - tf.cast(attention_mask, tf.float32)) * -10000.0

    # Since we are adding it to the raw scores before the softmax, this is
    # effectively the same as removing these entirely.
    attention_scores += adder

  # Normalize the attention scores to probabilities.
  # `attention_probs` = [B, N, F, T]
  attention_probs = tf.nn.softmax(attention_scores)

  # This is actually dropping out entire tokens to attend to, which might
  # seem a bit unusual, but is taken from the original Transformer paper.
  attention_probs = dropout(attention_probs, attention_probs_dropout_prob)

  # `value_layer` = [B, T, N, H]
  value_layer = tf.reshape(
      value_layer,
      [batch_size, to_seq_length, num_attention_heads, size_per_head])

  # `value_layer` = [B, N, T, H]
  value_layer = tf.transpose(value_layer, [0, 2, 1, 3])

  # `context_layer` = [B, N, F, H]
  context_layer = tf.matmul(attention_probs, value_layer)

  # `context_layer` = [B, F, N, H]
  context_layer = tf.transpose(context_layer, [0, 2, 1, 3])

  if do_return_2d_tensor:
    # `context_layer` = [B*F, N*H]
    context_layer = tf.reshape(
        context_layer,
        [batch_size * from_seq_length, num_attention_heads * size_per_head])
  else:
    # `context_layer` = [B, F, N*H]
    context_layer = tf.reshape(
        context_layer,
        [batch_size, from_seq_length, num_attention_heads * size_per_head])

  return context_layer



至此encoder部分的相关细节介绍完毕。

基于上述模型结构，可分别得到masked LM任务和NSP任务的预测输出，再结合输入文件中实际的输出，可分别得到相应的损失差值，将两个损失相加作为总的损失。

两个任务的本质都是分类任务，一个是二分类，即两个segment是否是连贯的；一个是多分类，即输入序列中被mask的token为词表中某个token的概率。它们的损失函数都是交叉熵损失。

相关代码如下：


def get\_masked\_lm\_output(bert\_config, input\_tensor, output\_weights, positions,
                         label\_ids, label\_weights):
  """Get loss and log probs for the masked LM.
 input\_tensor --> [batch\_size, seq\_length, hidden\_size]
 output\_weights --> [vocab\_size, embedding\_size]
 positions --> [batch\_size, max\_predictions\_per\_seq]
 label\_ids --> [batch\_size, max\_predictions\_per\_seq]
 label\_weights --> [batch\_size, max\_predictions\_per\_seq]
 """
  tf.logging.info(f'get\_masked\_lm\_output--positions:{positions}')
  input\_tensor = gather\_indexes(input\_tensor, positions) # [batch\_size*max\_predictions\_per\_seq, hidden\_size]

  with tf.variable\_scope("cls/predictions"):
    # We apply one more non-linear transformation before the output layer.
    # This matrix is not used after pre-training.
    with tf.variable\_scope("transform"):
      input\_tensor = tf.layers.dense(
          input\_tensor,
          units=bert\_config.hidden\_size,
          activation=modeling.get\_activation(bert\_config.hidden\_act),
          kernel\_initializer=modeling.create\_initializer(
              bert\_config.initializer\_range))
      input\_tensor = modeling.layer\_norm(input\_tensor)  # [batch\_size*max\_predictions\_per\_seq, hidden\_size]

    # The output weights are the same as the input embeddings, but there is
    # an output-only bias for each token.
    output\_bias = tf.get\_variable(
        "output\_bias",
        shape=[bert\_config.vocab\_size],
        initializer=tf.zeros\_initializer())
    logits = tf.matmul(input\_tensor, output\_weights, transpose\_b=True)  # [batch\_size*max\_predictions\_per\_seq, vocab\_size]
    logits = tf.nn.bias\_add(logits, output\_bias)
    log\_probs = tf.nn.log\_softmax(logits, axis=-1) # [batch\_size*max\_predictions\_per\_seq, vocab\_size]

    label\_ids = tf.reshape(label\_ids, [-1])
    label\_weights = tf.reshape(label\_weights, [-1]) # [batch\_size*max\_predictions\_per\_seq]

    one\_hot\_labels = tf.one\_hot(
        label\_ids, depth=bert\_config.vocab\_size, dtype=tf.float32) # [batch\_size*max\_predictions\_per\_seq, vocab\_size]

    # The `positions` tensor might be zero-padded (if the sequence is too
    # short to have the maximum number of predictions). The `label\_weights`
    # tensor has a value of 1.0 for every real prediction and 0.0 for the
    # padding predictions.
    per\_example\_loss = -tf.reduce\_sum(log\_probs * one\_hot\_labels, axis=[-1])  # 交叉熵 [flat\_positions]
    numerator = tf.reduce\_sum(label\_weights * per\_example\_loss)
    denominator = tf.reduce\_sum(label\_weights) + 1e-5
    loss = numerator / denominator

  return (loss, per\_example\_loss, log\_probs)


def get\_next\_sentence\_output(bert\_config, input\_tensor, labels):
  """Get loss and log probs for the next sentence prediction.
 input\_tensor: [batch\_size, hidden\_size]
 labels: [batch\_size, 1]
 """

  # Simple binary classification. Note that 0 is "next sentence" and 1 is
  # "random sentence". This weight matrix is not used after pre-training.
  with tf.variable\_scope("cls/seq\_relationship"):
    output\_weights = tf.get\_variable(
        "output\_weights",
        shape=[2, bert\_config.hidden\_size],
        initializer=modeling.create\_initializer(bert\_config.initializer\_range))
    output\_bias = tf.get\_variable(
        "output\_bias", shape=[2], initializer=tf.zeros\_initializer())

    logits = tf.matmul(input\_tensor, output\_weights, transpose\_b=True)  # [batch\_size, 2]
    logits = tf.nn.bias\_add(logits, output\_bias)  # [batch\_size, 2]
    log\_probs = tf.nn.log\_softmax(logits, axis=-1) # [batch\_size, 2]
    labels = tf.reshape(labels, [-1])
    one\_hot\_labels = tf.one\_hot(labels, depth=2, dtype=tf.float32) # [batch\_size, 2]
    per\_example\_loss = -tf.reduce\_sum(one\_hot\_labels * log\_probs, axis=-1)  # 交叉熵 [batch\_size]
    loss = tf.reduce\_mean(per\_example\_loss)
    return (loss, per\_example\_loss, log\_probs)



基于上述搭建好的模型结构及相应的损失函数，在训练阶段，利用相应的优化器(AdamWeightDecayOptimizer)优化损失函数，使其减小，并保存不同训练步数对应的模型参数，直到跑完所有步数，从而确定最终的模型结构与参数。由于BERT在预训练中使用了estimator这种高级API形式，在训练完成后会自动生成 ckpt格式的模型文件(结构和数据是分开的) 及可供tensorboard查看的事件文件。具体文件说明如下：

• checkpoint : 记录了模型文件的路径信息列表，可以用来迅速查找最近一次的ckpt文件。(每个ckpt文件对应一个模型)其内容如下所示


  model_checkpoint_path: "model.ckpt-20"
  all_model_checkpoint_paths: "model.ckpt-0"
  all_model_checkpoint_paths: "model.ckpt-20"




• events.out.tfevents.1570029823.04c93f97d224 :事件文件，tensorboard可加载显示
• graph.pbtxt : 以Protobuffer格式描述的模型结构文件(text格式的图文件(.pbtext),二进制格式的图文件为(.pb))，记录了模型中所有的节点信息，内容大致如下：


  node {
    name: "global_step/Initializer/zeros"
    op: "Const"
    attr {
      key: "_class"
      value {
        list {
          s: "loc:@global_step"
        }
      }
    }
    attr {
      key: "_output_shapes"
      value {
        list {
          shape {
          }
        }
      }
    }
    attr {
      key: "dtype"
      value {
        type: DT_INT64
      }
    }
    attr {
      key: "value"
      value {
        tensor {
          dtype: DT_INT64
          tensor_shape {
          }
          int64_val: 0
        }
      }
    }
  }



• model.ckpt-20.data-00000-of-00001 : 模型文件中的数据(the values of all variables)部分 (二进制文件)
• model.ckpt-20.index : 模型文件中的映射表( Each key is a name of a tensor and its value is a serialized BundleEntryProto. Each BundleEntryProto describes the metadata of a tensor: which of the “data” files contains the content of a tensor, the offset into that file, checksum, some auxiliary data, etc.)部分 (二进制文件)
• model.ckpt-20.meta : 模型文件中的(图)结构(由GraphDef, SaverDef, MateInfoDef,SignatureDef,CollectionDef等组成的MetaGraphDef)部分 (二进制文件，内容和graph.pbtxt基本一样，其是一个序列化的MetaGraphDef protocol buffer)

在评估阶段，直接加载训练好的模型结构与参数，对预测样本进行预测即可。

下面解读下优化器(用来更新模型(权重)参数)部分。首先是学习率部分，将学习率设置为线性衰减的形式，接着根据global_step是否达到num_warmup_steps，在原来线性衰减的基础上将学习率进一步分成warmup_learning_rate和learning_rate两种方式。然后是优化器的构建。

先是实例化AdamWeightDecayOptimizer(其是梯度下降法的一种变种，也由待更新参数、学习率和参数更新方向三大要素组成)，接着通过tvars = tf.trainable_variables()解析出模型中所有待训练的参数变量，并给出loss关于所有参数变量的梯度表示grads = tf.gradients(loss, tvars)，同时限制梯度的大小。最后基于上述描述的梯度与变量，进行参数更新操作。更新时，依此遍历每一个待更新的参数，根据标准的Adam更新公式(参考Adam和学习率衰减（learning rate decay）)，先确定参数更新方向，接着在方向的基础上增加衰减参数(这个操作叫纠正的L2 weight decay)，然后在纠正后的方向上移动一定距离(learning_rate * update)后，更新现有的参数。以上更新步骤随着训练步数不断进行，直到走完所有训练步数。相关代码如下：


def create\_optimizer(loss, init\_lr, num\_train\_steps, num\_warmup\_steps, use\_tpu):
  """Creates an optimizer training op."""
  global\_step = tf.train.get\_or\_create\_global\_step()

  learning\_rate = tf.constant(value=init\_lr, shape=[], dtype=tf.float32)

  # Implements linear decay of the learning rate. 计算公式如下

  '''
 global\_step = min(global\_step, decay\_steps)
 decayed\_learning\_rate = (learning\_rate - end\_learning\_rate) *
 (1 - global\_step / decay\_steps) ^ (power) +
 end\_learning\_rate
 '''
  learning\_rate = tf.train.polynomial\_decay(
      learning\_rate,
      global\_step,
      num\_train\_steps,
      end\_learning\_rate=0.0,
      power=1.0,
      cycle=False)

  # Implements linear warmup. I.e., if global\_step < num\_warmup\_steps, the
  # learning rate will be `global\_step/num\_warmup\_steps * init\_lr`.
  if num\_warmup\_steps:
    global\_steps\_int = tf.cast(global\_step, tf.int32)
    warmup\_steps\_int = tf.constant(num\_warmup\_steps, dtype=tf.int32)

    global\_steps\_float = tf.cast(global\_steps\_int, tf.float32)
    warmup\_steps\_float = tf.cast(warmup\_steps\_int, tf.float32)

    warmup\_percent\_done = global\_steps\_float / warmup\_steps\_float
    warmup\_learning\_rate = init\_lr * warmup\_percent\_done

    is\_warmup = tf.cast(global\_steps\_int < warmup\_steps\_int, tf.float32)
    learning\_rate = (
        (1.0 - is\_warmup) * learning\_rate + is\_warmup * warmup\_learning\_rate)

  # It is recommended that you use this optimizer for fine tuning, since this
  # is how the model was trained (note that the Adam m/v variables are NOT
  # loaded from init\_checkpoint.)
  optimizer = AdamWeightDecayOptimizer(
      learning\_rate=learning\_rate,
      weight\_decay\_rate=0.01,
      beta\_1=0.9,
      beta\_2=0.999,
      epsilon=1e-6,
      exclude\_from\_weight\_decay=["LayerNorm", "layer\_norm", "bias"])

  if use\_tpu:
    optimizer = tf.contrib.tpu.CrossShardOptimizer(optimizer)

  tvars = tf.trainable\_variables()
  grads = tf.gradients(loss, tvars)

  # This is how the model was pre-trained.
  (grads, \_) = tf.clip\_by\_global\_norm(grads, clip\_norm=1.0)

  train\_op = optimizer.apply\_gradients(
      zip(grads, tvars), global\_step=global\_step)

  # Normally the global step update is done inside of `apply\_gradients`.
  # However, `AdamWeightDecayOptimizer` doesn't do this. But if you use
  # a different optimizer, you should probably take this line out.
  new\_global\_step = global\_step + 1
  train\_op = tf.group(train\_op, [global\_step.assign(new\_global\_step)])
  return train\_op


class AdamWeightDecayOptimizer(tf.train.Optimizer):
  """A basic Adam optimizer that includes "correct" L2 weight decay."""

  def \_\_init\_\_(self,
               learning\_rate,
               weight\_decay\_rate=0.0,
               beta\_1=0.9,
               beta\_2=0.999,
               epsilon=1e-6,
               exclude\_from\_weight\_decay=None,
               name="AdamWeightDecayOptimizer"):
    """Constructs a AdamWeightDecayOptimizer."""
    super(AdamWeightDecayOptimizer, self).\_\_init\_\_(False, name)

    self.learning\_rate = learning\_rate
    self.weight\_decay\_rate = weight\_decay\_rate
    self.beta\_1 = beta\_1
    self.beta\_2 = beta\_2
    self.epsilon = epsilon
    self.exclude\_from\_weight\_decay = exclude\_from\_weight\_decay

  def apply\_gradients(self, grads\_and\_vars, global\_step=None, name=None):
    """See base class."""
    assignments = []
    for (grad, param) in grads\_and\_vars:  # param：待更新参数
      if grad is None or param is None:
        continue

      param\_name = self.\_get\_variable\_name(param.name)

      m = tf.get\_variable(
          name=param\_name + "/adam\_m",
          shape=param.shape.as\_list(),
          dtype=tf.float32,
          trainable=False,
          initializer=tf.zeros\_initializer())
      v = tf.get\_variable(
          name=param\_name + "/adam\_v",
          shape=param.shape.as\_list(),
          dtype=tf.float32,
          trainable=False,
          initializer=tf.zeros\_initializer())

      # Standard Adam update. 是梯度下降法的一种变种，可对比理解三个要素：待更新参数、学习率、参数更新方向
      next\_m = (
          tf.multiply(self.beta\_1, m) + tf.multiply(1.0 - self.beta\_1, grad))
      next\_v = (
          tf.multiply(self.beta\_2, v) + tf.multiply(1.0 - self.beta\_2,
                                                    tf.square(grad)))
      # 参数更新方向
      update = next\_m / (tf.sqrt(next\_v) + self.epsilon)

      # Just adding the square of the weights to the loss function is *not*
      # the correct way of using L2 regularization/weight decay with Adam,
      # since that will interact with the m and v parameters in strange ways.
      #
      # Instead we want to decay the weights in a manner that doesn't interact
      # with the m/v parameters. This is equivalent to adding the square
      # of the weights to the loss with plain (non-momentum) SGD.
      if self.\_do\_use\_weight\_decay(param\_name):
        update += self.weight\_decay\_rate * param

      update\_with\_lr = self.learning\_rate * update

      next\_param = param - update\_with\_lr

      assignments.extend(
          [param.assign(next\_param),
           m.assign(next\_m),
           v.assign(next\_v)])
    return tf.group(*assignments, name=name)

  def \_do\_use\_weight\_decay(self, param\_name):
    """Whether to use L2 weight decay for `param\_name`."""
    if not self.weight\_decay\_rate:
      return False
    if self.exclude\_from\_weight\_decay:
      for r in self.exclude\_from\_weight\_decay:
        if re.search(r, param\_name) is not None:
          return False
    return True

  def \_get\_variable\_name(self, param\_name):
    """Get the variable name from the tensor name."""
    m = re.match("^(.*):\\d+$", param\_name)
    if m is not None:
      param\_name = m.group(1)
    return param\_name



至此，BERT的整个预训练过程算是梳理完成了。

参考

• https://github.com/google-research/bert

• BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding

• [译]深度双向Transformer预训练【BERT第一作者分享】

• Transformer图解

• BERT大火却不懂Transformer？读这一篇就够了

• layernorm 反向传播推导及代码

• batch normalization 中的 beta 和 gamma参数

• Understand Cross Entropy Loss in Minutes

• Adam和学习率衰减（learning rate decay）
