Traefik 架构

picture.image

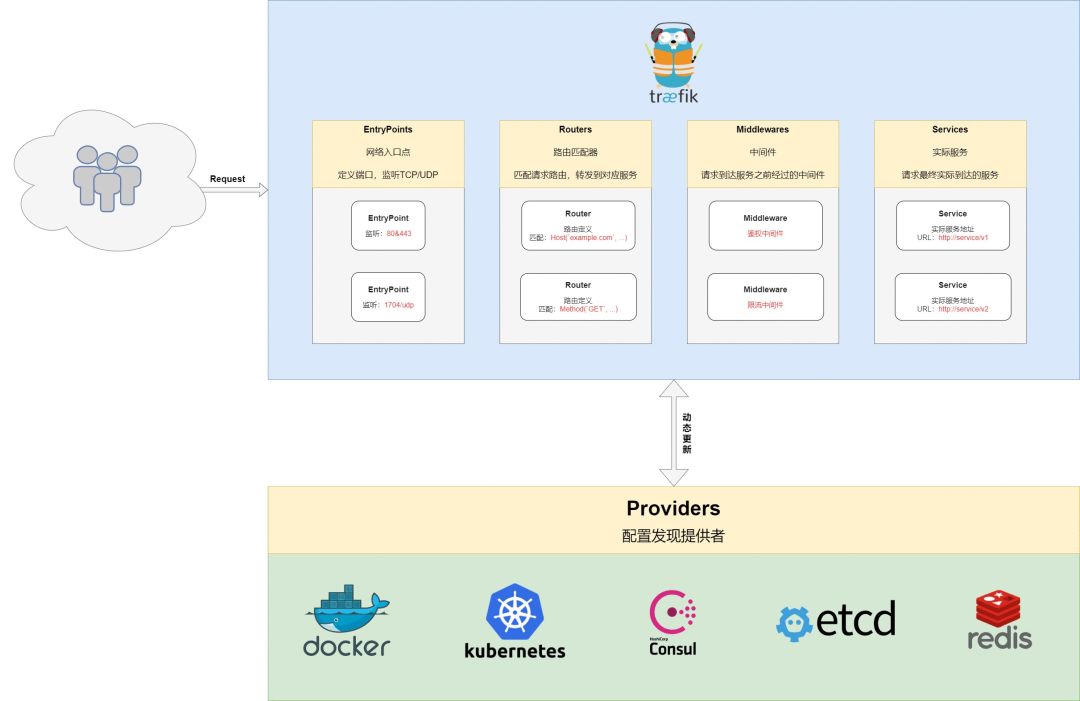

traefik架构图

EntryPoints

Traefik 的网络入口点。定义接收数据包的端口，以及是侦听 TCP 还是 UDP。

Routers

路由器通过分析规则（主机、路径、标头、SSL 等）将请求连接到对应的服务。

Middlewares

中间件是一种在请求发送到服务之前（或在客户端收到服务的响应之前）调整请求的方法，可以组合成链以适应各种场景。

Services

实际的服务，最终请求（根据负载均衡策略）会转发到该服务。

Providers

Traefik 会查询提供者 API 以找到有关路由的相关信息，当 Traefik 检测到更改时，会动态更新路由配置。

Traefik 安装

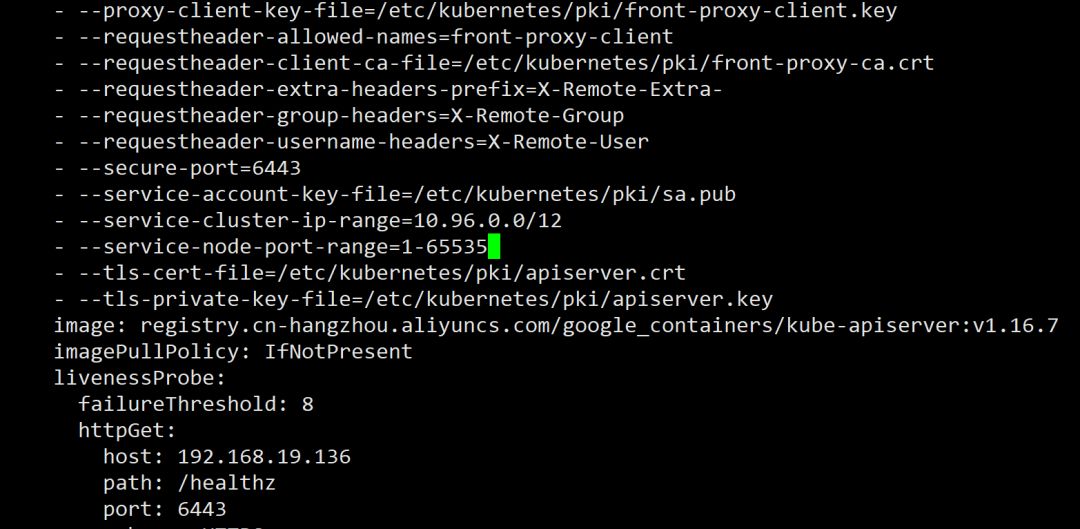

修改 k8s 的 nodeport 类型端口范围：




vi /etc/kubernetes/manifests/kube-apiserver.yaml

在 - --service-cluster-ip-range 下一行增加：




- --service-node-port-range=1-65535

picture.image

重启 kubelet ：




systemctl daemon-reload
systemctl restart kubelet

添加 helm traefik 仓库：




helm repo add traefik https://helm.traefik.io/traefik

更新 helm 仓库：




helm repo update

新建 traefik 配置，保存为 traefik-config.yaml ：




ports:
  traefik:
    expose: true
  web:
    nodePort: 80
  websecure:
    nodePort: 443

使用 helm 安装 traefik ：




kubectl create ns traefik
helm install traefik traefik/traefik -n traefik -f traefik-config.yaml

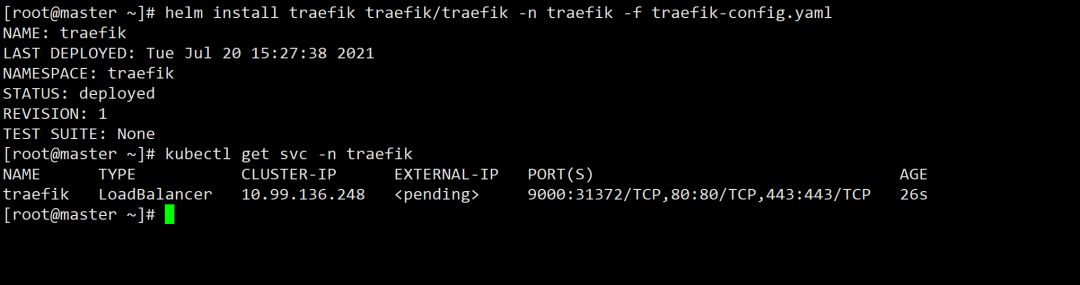

查看 svc 端口：




kubectl get svc -n traefik

picture.image

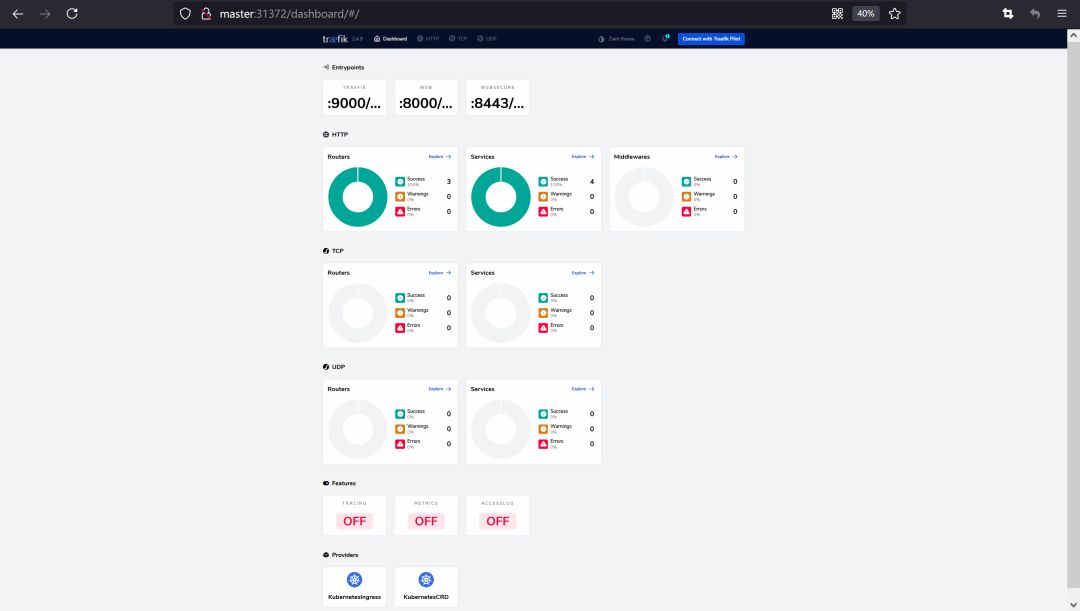

浏览器访问 http://master:31372/dashboard/#/ ：

picture.image

Traefik 配置发现

准备一个 ClusterIP 类型的 Service ，并提供 IngressRoute 给 traefik 配置发现，保存为 whoami.yaml ：




apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: whoamiingressroute # 入口路由名称
spec:
  entryPoints: # 网络入口点
    - web
  routes:
  - match: Host(`master`) && PathPrefix(`/whoami/`) # 路由匹配器，匹配 http://master/whoami/
    kind: Rule
    services: # 代理服务
    - name: whoami
      port: 80
---
apiVersion: v1
kind: Service
metadata:
  name: whoami
spec:
  ports:
    - protocol: TCP
      name: web
      port: 80
  selector:
    app: whoami
---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: whoami
  labels:
    app: whoami
spec:
  replicas: 2
  selector:
    matchLabels:
      app: whoami
  template:
    metadata:
      labels:
        app: whoami
    spec:
      containers:
        - name: whoami
          image: containous/whoami
          ports:
            - name: web
              containerPort: 80

使用 kubectl 创建：




kubectl apply -f whoami.yaml

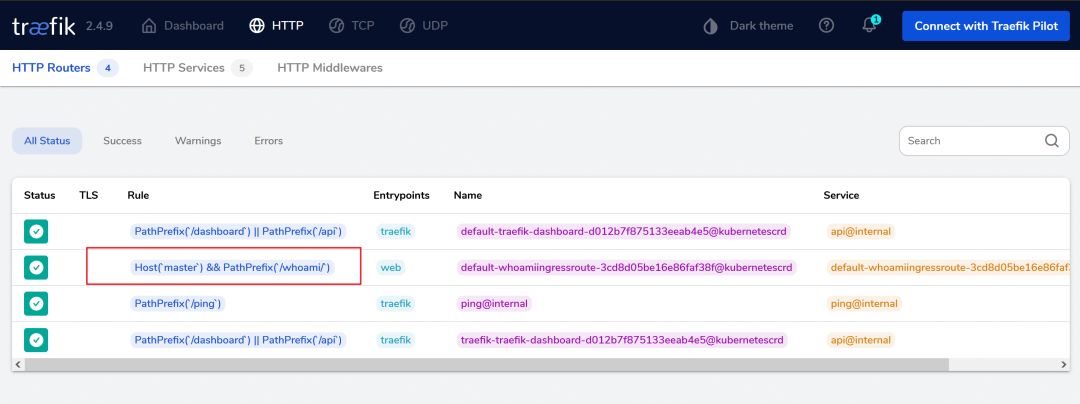

traefik 已自动发现配置：

picture.image

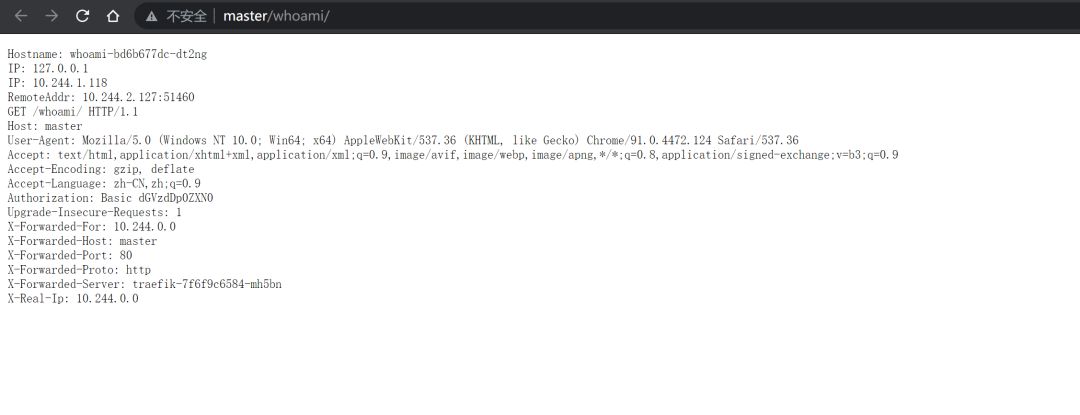

访问 http://master/whoami/ ：

picture.image

Traefik 中间件使用

更改 whoami.yaml ：




apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: whoami-auth
spec:
  basicAuth:
    secret: authsecret
---
# 用户名密码生成方法：
# yum -y install httpd
# htpasswd -nb admin 123456 | openssl base64
apiVersion: v1
kind: Secret
metadata:
  name: authsecret
data:
  users: |
    YWRtaW46JGFwcjEka1FzN0dwcS4kZlFQQlllNlJQOFZCUFkyOGpZRW5jMQoK
---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: whoamiingressroute # 入口路由名称
spec:
  entryPoints: # 网络入口点
    - web
  routes:
  - match: Host(`master`) && PathPrefix(`/whoami/`) # 路由匹配器，匹配 http://master/whoami/
    middlewares: # 使用中间件
    - name: whoami-auth
    kind: Rule
    services: # 代理服务
    - name: whoami
      port: 80
---
apiVersion: v1
kind: Service
metadata:
  name: whoami
spec:
  ports:
    - protocol: TCP
      name: web
      port: 80
  selector:
    app: whoami
---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: whoami
  labels:
    app: whoami
spec:
  replicas: 2
  selector:
    matchLabels:
      app: whoami
  template:
    metadata:
      labels:
        app: whoami
    spec:
      containers:
        - name: whoami
          image: containous/whoami
          ports:
            - name: web
              containerPort: 80

更新 whoami 服务配置：




kubectl apply -f whoami.yaml

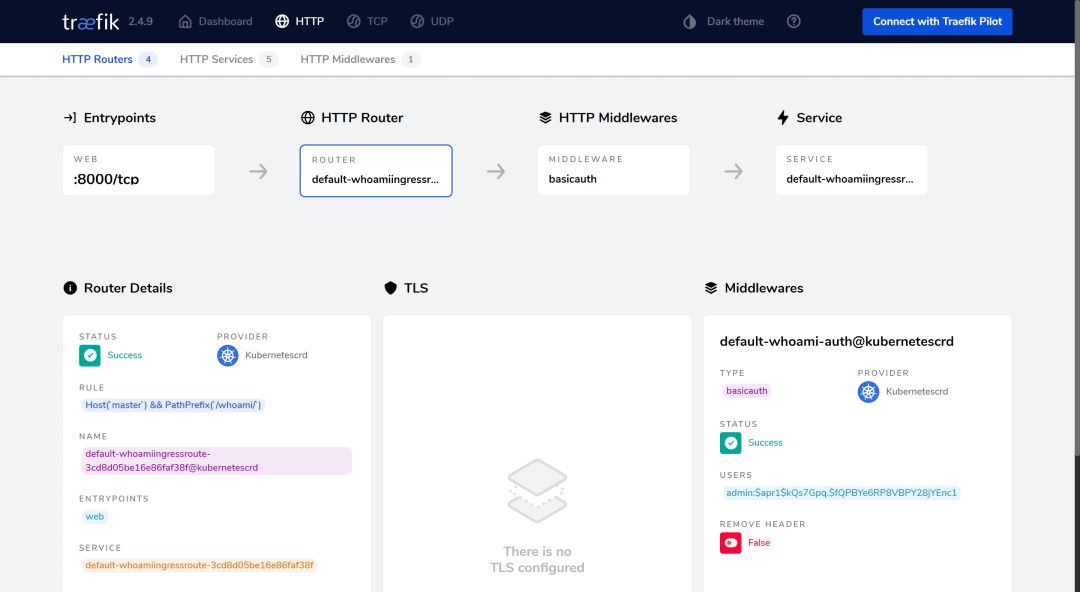

traefik 面板可以观察到已经生成了一个中间件：

picture.image

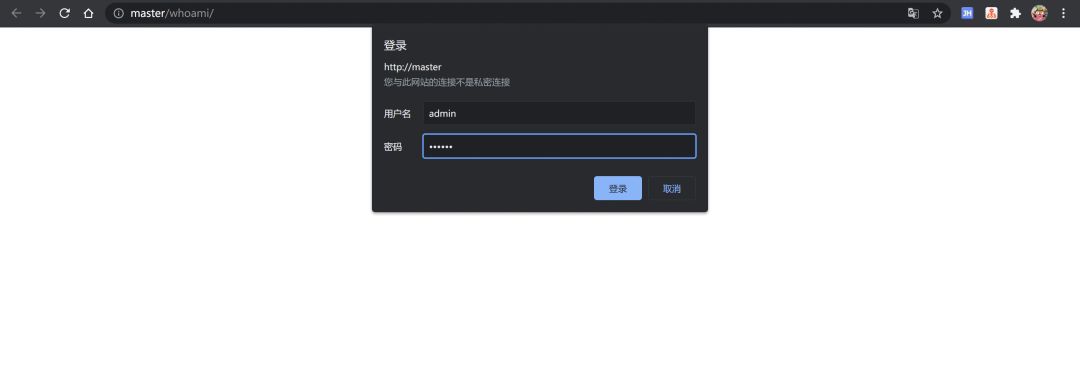

再次访问 http://master/whoami/ 需要键入用户名密码（admin/123456）：

picture.image

Traefik 对接更多提供者

以 consul 为例，更改 traefik 配置 traefik-config.yaml ：




additionalArguments:
  - "--providers.consulcatalog=true"
  - "--providers.consulcatalog.endpoint.address=10.97.117.24"
ports:
  traefik:
    expose: true
  web:
    nodePort: 80
  websecure:
    nodePort: 443

使用 helm 更新 traefik ：




helm upgrade --install traefik traefik/traefik -n traefik -f traefik-config.yaml

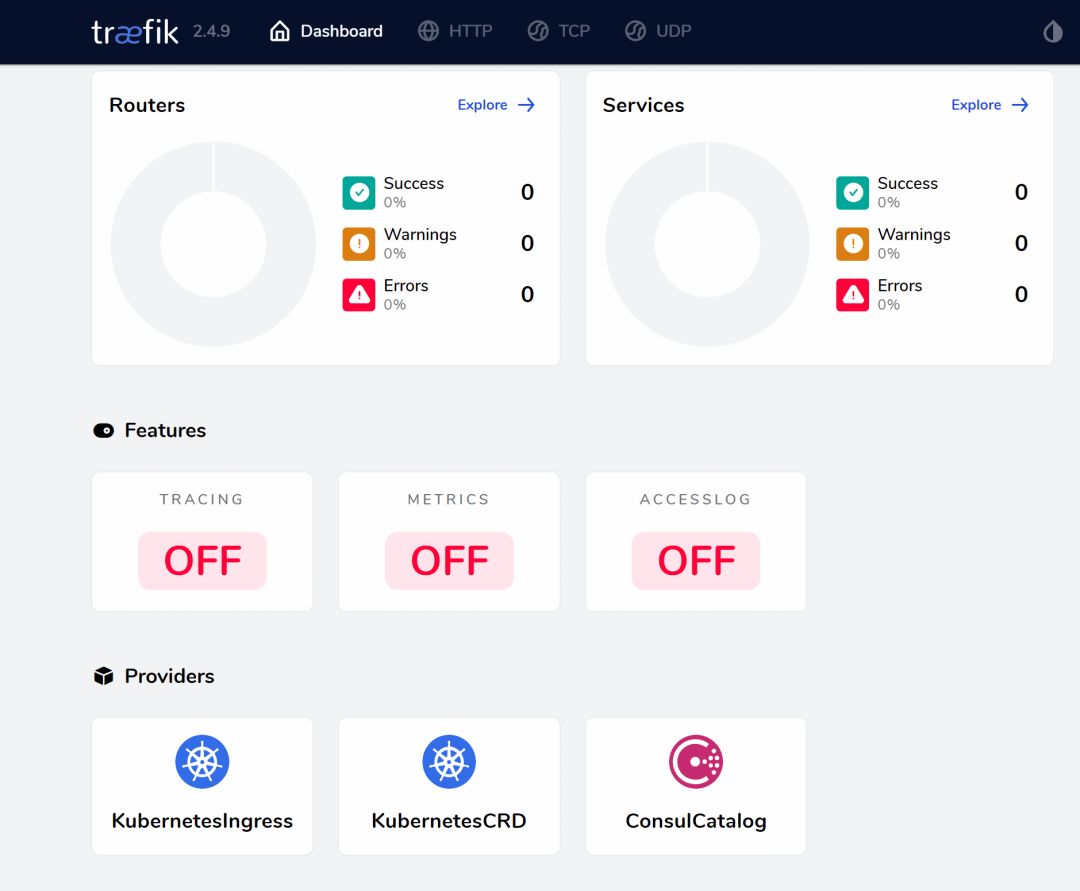

查看 traefik 面板，Providers 已新增 ConsulCatalog：

picture.image

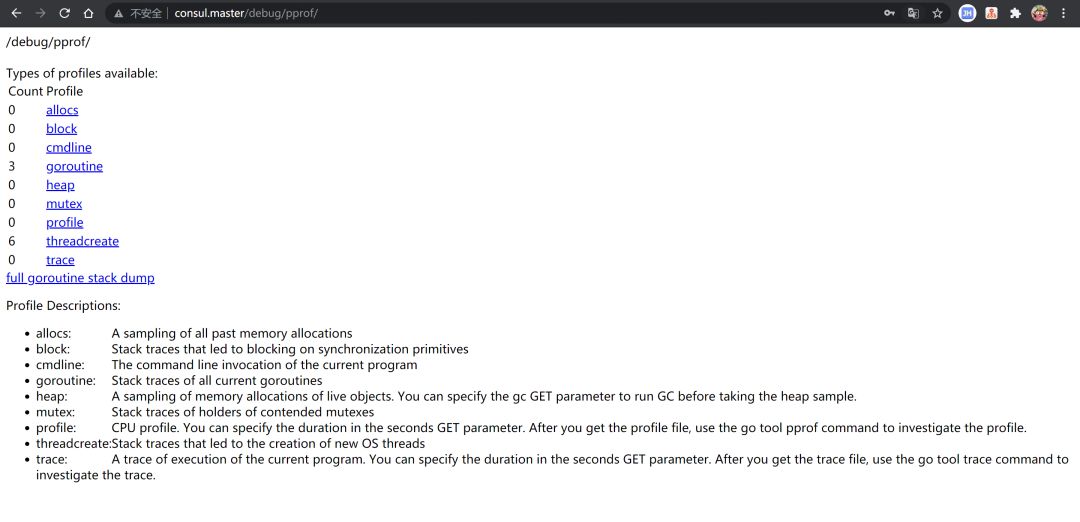

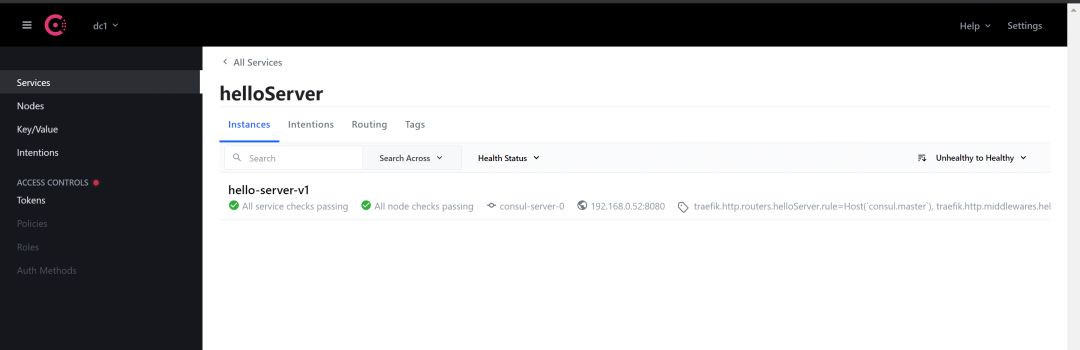

go run main.go 注册一个服务到 consul ：




package main

import (
 "fmt"
 "log"
 "net/http"
 _ "net/http/pprof"

 consulapi "github.com/hashicorp/consul/api"
)

func consulCheck(w http.ResponseWriter, r *http.Request) {
 s := "[consulCheck]" + "remote:" + r.RemoteAddr + " " + r.URL.String()
 fmt.Println(s)
 fmt.Fprintln(w, s)
}

func registerServer() {
 config := consulapi.DefaultConfig()
 config.Address = "master:708"
 client, err := consulapi.NewClient(config)
 if err != nil {
  log.Fatal("consul client error : ", err)
 }

 registration := new(consulapi.AgentServiceRegistration)
 registration.ID = "hello-server-v1"
 registration.Name = "helloServer"
 registration.Port = 8080
 registration.Tags = []string{
  "traefik.http.routers.helloServer.rule=Host(`consul.master`)",
  "traefik.http.middlewares.hello-auth.basicauth.users=admin:$apr1$acnT.3Rd$gGL7hvoyrNOU27L4XcEnO/",
  "traefik.http.routers.helloServer.middlewares=hello-auth",
 } // tag，配置 traefik
 registration.Address = "192.168.0.52"

 registration.Check = &consulapi.AgentServiceCheck{ // 健康检查
  HTTP:                           fmt.Sprintf("http://%s:%d%s", registration.Address, registration.Port, "/check"),
  Timeout:                        "3s",
  Interval:                       "5s",
  DeregisterCriticalServiceAfter: "30s",
 }

 err = client.Agent().ServiceRegister(registration)
 if err != nil {
  log.Fatal("register server error : ", err)
 }

 http.HandleFunc("/check", consulCheck)
 http.ListenAndServe(fmt.Sprintf(":%d", registration.Port), nil)

}

func main() {
 registerServer()
}
