单卡4090上部署的DeepSeek-R1小模型的并发性能 - 文章 - 开发者社区

网上找了一圈性能评测工具，很多都要自己把模型拉起来，还动不动就想去HuggingFace下载，都不太好用。考虑到目前不管是开源还是闭源，各大模型的推理服务，基本都遵循 OpenAI 的 API 接口。所以针对该接口编写一个简单的脚本，应该即可评测各种模型的性能了。这种任务，对于我这种20多年的老码农来说，当然要用AI帮忙了：）因此用AI生成了一个初始版本，调试了1个多小时可以跑通了。但是结果数据有问题，隐藏的一个逻辑错误，OpenAI 和 DeepSeek 都没发现。解决这个问题之后，又花时间把结果调测到自己满意的程度，加上中间的反复测试和参数调整，又花了1天半的时间。。。但是总体来说呢，比我自己从0开始写，还是要快很多。写代码其实时间大头还是调测和完善等工作，这个不管初始版本是AI写的，还是自己写的，都是少不了的。有时AI写的，这一步可能还更花时间，因为要把AI不小心埋的坑给找出来填平。

来看下成品的使用样例：


python3 simple-bench-to-api.py \
  --url http://10.96.0.188:11434/v1 \
  --model deepseek-r1:32b \
  --api_key "any-string-if-no-apikey-on-sever" \
  --concurrency 1 \
  --prompt "Tell me a story" \
  --max_tokens 100 \
  --duration_seconds 30

其中参数的含义：

--url 推理服务的基础地址，路径以 /v1 结束
--model 推理服务的模型名称
--concurrency 并发数，如果这个设置了，则忽略 --concurrencys 参数内容
--prompt 每个请求的用户问题
--max_tokens 最大 token 数
--duration_seconds 持续时间，单位秒
--concurrencys 逗号分隔的并发数列表，如 1,5,10,15,20,30；不设置 concurrency 时才生效。会分别按设置的并发数发起压力，两个并发批次中间间隔5秒

输出样例：

针对一个并发值的压测结果：


压测结果：
并发数: 1
总请求数: 9
成功率: 100.00%
平均延迟: 3.3685s
最大延迟: 3.4171s
最小延迟: 3.3369s
平均首字延迟: 0.0767s
P90延迟: 3.3893s
P95延迟: 3.4032s
P99延迟: 3.4143s
总生成tokens数     : 918
单并发最小吞吐量  : 30.71 tokens/s
单并发最大吞吐量  : 31.26 tokens/s
单并发平均吞吐量  : 30.99 tokens/s
总体吞吐量: 30.24 tokens/s

如果通过 --concurrencys 设置了多个并发值，除了每个并发值输出结果之外，最后还会输出一个 Markdown 格式的汇总表：

picture.image

其中有几个概念需要解释下

”延迟“：从发出请求，到接收到最后一个token/字符的时间
“P90延迟”：分位数90的延迟，计算方法为延迟从小到大排序，前90%的最大延迟值，和下一个延迟值，基于线性插值计算的一个介于2者之间的值。
“首字延迟”：从发出请求，到接收到第一个返回字符的时间。
“单并发吞吐量”的概念，是指站在每个并发用户/通道的角度看，从首token返回后，token的生成速度。统计时间不包含首字延迟。即一个通道的吞吐量 = 该通道生成的token数/除首token延迟外的生成时间。个人觉得，这个指标加上平均首字延迟，能反映真实的用户体感。

具体指标的含义：

平均首字延迟(avg_ttft)：所有通道的首字延迟的平均值
单并发最小吞吐量(min) ：所有并发通道中，吞吐量最小的通道的吞吐量
单并发最大吞吐量(max) ：所有并发通道中，吞吐量最大的通道的吞吐量
单并发平均吞吐量(avg)：所有并发通道的吞吐量的平均值
总体吞吐量(total throughput) ：在压测期间所有通道生成的tokens总数/压测开始到结束的时间
P90延迟(p90_latency): 3.3893s：表示有90%的请求延迟低于这个数值
P95延迟(p95_latency): 3.4032s：表示有95%的请求延迟低于这个数值
P99延迟(p99_latency): 3.4143s：表示有95%的请求延迟低于这个数值

接下来分别对部署在单卡 RTX 4090（24G显存）上的 DeepSeek 针对 qwen2.5-7B 和 qwen2.5-32B 的蒸馏版本做压测

DeepSeek-R1-Distill-Qwen-7B

模型地址：https://huggingface.co/deepseek-ai/DeepSeek-R1-Distill-Qwen-7B
部署方式：vLLM 0.7.3
压测发起地：与模型推理同一台机器，这样就消除了远程网络开销的影响。

参数组合1

服务端：


  --gpu_memory_utilization 0.95 \
  --max-num-seqs 512 \
  --max-model-len 65536

客户端压测命令：


python3 simple-bench-to-api.py \
  --url http://10.96.2.221:7869/v1 \
  --model DeepSeek-R1-Distill-Qwen-7B \
  --concurrencys 1,10,50,100,150,200 \
  --prompt "Tell me a story" \
  --max_tokens 100 \
  --api_key 服务端配置的 API Key \
  --duration_seconds 30

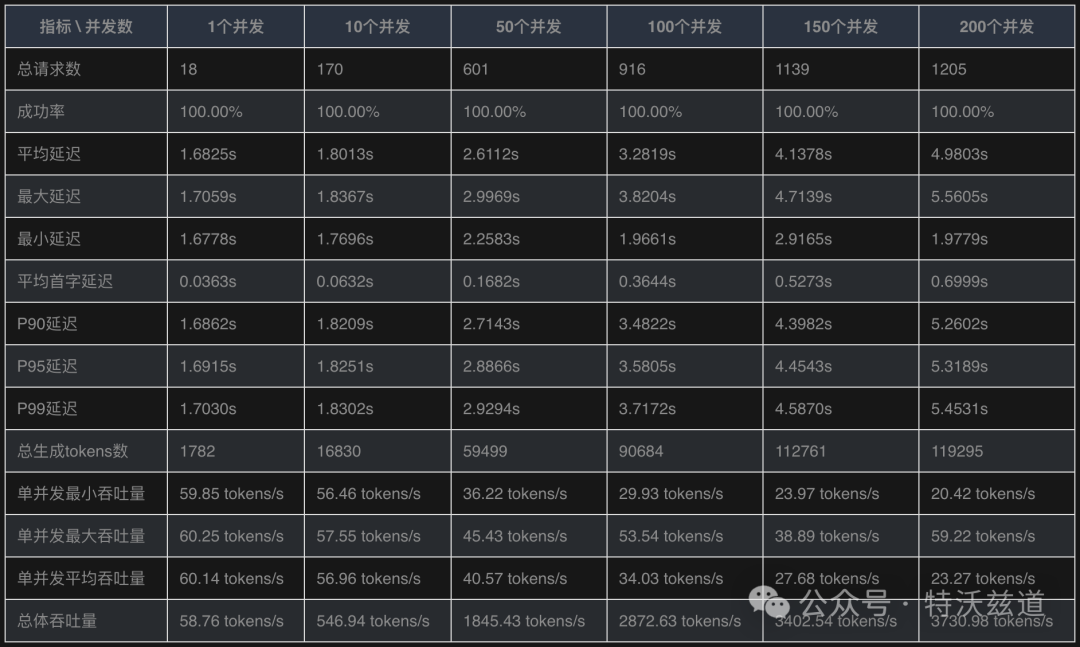

压测结果（脚本会汇总每个并发的结果，生成Markdown表格）：

picture.image

从这个结果汇总看，当并发从1到200时

平均首字延迟(avg_ttft)从0.0363s增长到了0.6999s，仍然很快。
单并发平均吞吐量(avg)从 60.14 tokens/s 下降到了 23.27 tokens/s；说明在200个并发时，单用户的延迟会变慢1倍多，符合预期。
总体吞吐量从 58.76 tokens/s 上升到了 3730.98 tokens/s，并越大，总体吞吐量增长越缓慢，符合一般规律。
平均延迟(avg_latency)从1.6825s 增长到了4.9803s，还算不错的。

总体说明，单卡 4090 跑 R1-7B 模型，在200并发之内都是很流畅的。

服务端日志：


# 1并发
INFO 03-03 03:59:21 metrics.py:455] Avg prompt throughput: 1.3 tokens/s, Avg generation throughput: 0.1 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.0%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:26 metrics.py:455] Avg prompt throughput: 3.6 tokens/s, Avg generation throughput: 59.7 tokens/s, Running: 0 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.0%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:31 metrics.py:455] Avg prompt throughput: 5.4 tokens/s, Avg generation throughput: 59.5 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:36 metrics.py:455] Avg prompt throughput: 5.4 tokens/s, Avg generation throughput: 59.5 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:41 metrics.py:455] Avg prompt throughput: 5.4 tokens/s, Avg generation throughput: 59.4 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:46 metrics.py:455] Avg prompt throughput: 5.4 tokens/s, Avg generation throughput: 59.5 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.
INFO 03-03 03:59:51 metrics.py:455] Avg prompt throughput: 5.4 tokens/s, Avg generation throughput: 59.5 tokens/s, Running: 1 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.

# 10并发
INFO 03-03 03:59:57 metrics.py:455] Avg prompt throughput: 3.4 tokens/s, Avg generation throughput: 2.4 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.2%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:02 metrics.py:455] Avg prompt throughput: 50.3 tokens/s, Avg generation throughput: 561.9 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 1.0%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:07 metrics.py:455] Avg prompt throughput: 53.9 tokens/s, Avg generation throughput: 553.2 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:12 metrics.py:455] Avg prompt throughput: 54.0 tokens/s, Avg generation throughput: 553.3 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.5%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:17 metrics.py:455] Avg prompt throughput: 54.0 tokens/s, Avg generation throughput: 554.3 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.3%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:22 metrics.py:455] Avg prompt throughput: 39.6 tokens/s, Avg generation throughput: 557.7 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:27 metrics.py:455] Avg prompt throughput: 50.3 tokens/s, Avg generation throughput: 556.0 tokens/s, Running: 10 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:32 metrics.py:455] Avg prompt throughput: 6.1 tokens/s, Avg generation throughput: 50.9 tokens/s, Running: 50 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.

# 50并发
INFO 03-03 04:00:37 metrics.py:455] Avg prompt throughput: 172.2 tokens/s, Avg generation throughput: 1967.8 tokens/s, Running: 49 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 5.5%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:42 metrics.py:455] Avg prompt throughput: 180.0 tokens/s, Avg generation throughput: 1775.5 tokens/s, Running: 50 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 4.9%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:47 metrics.py:455] Avg prompt throughput: 178.7 tokens/s, Avg generation throughput: 1923.5 tokens/s, Running: 50 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 4.2%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:52 metrics.py:455] Avg prompt throughput: 181.2 tokens/s, Avg generation throughput: 1939.9 tokens/s, Running: 47 reqs, Swapped: 0 reqs, Pending: 1 reqs, GPU KV cache usage: 3.3%, CPU KV cache usage: 0.0%.
INFO 03-03 04:00:58 metrics.py:455] Avg prompt throughput: 186.5 tokens/s, Avg generation throughput: 1942.9 tokens/s, Running: 50 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 3.3%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:03 metrics.py:455] Avg prompt throughput: 172.2 tokens/s, Avg generation throughput: 1946.6 tokens/s, Running: 45 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 2.8%, CPU KV cache usage: 0.0%.

# 100并发
INFO 03-03 04:01:10 metrics.py:455] Avg prompt throughput: 3.6 tokens/s, Avg generation throughput: 321.9 tokens/s, Running: 62 reqs, Swapped: 0 reqs, Pending: 38 reqs, GPU KV cache usage: 1.0%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:15 metrics.py:455] Avg prompt throughput: 352.8 tokens/s, Avg generation throughput: 3194.2 tokens/s, Running: 100 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 8.0%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:20 metrics.py:455] Avg prompt throughput: 190.3 tokens/s, Avg generation throughput: 2817.9 tokens/s, Running: 6 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.3%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:25 metrics.py:455] Avg prompt throughput: 352.9 tokens/s, Avg generation throughput: 3163.5 tokens/s, Running: 100 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 8.1%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:30 metrics.py:455] Avg prompt throughput: 197.2 tokens/s, Avg generation throughput: 2960.1 tokens/s, Running: 13 reqs, Swapped: 0 reqs, Pending: 2 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:35 metrics.py:455] Avg prompt throughput: 358.0 tokens/s, Avg generation throughput: 3230.8 tokens/s, Running: 100 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 7.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:40 metrics.py:455] Avg prompt throughput: 185.1 tokens/s, Avg generation throughput: 2847.4 tokens/s, Running: 3 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.2%, CPU KV cache usage: 0.0%.

# 150并发
INFO 03-03 04:01:47 metrics.py:455] Avg prompt throughput: 2.7 tokens/s, Avg generation throughput: 25.5 tokens/s, Running: 39 reqs, Swapped: 0 reqs, Pending: 22 reqs, GPU KV cache usage: 0.6%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:52 metrics.py:455] Avg prompt throughput: 535.9 tokens/s, Avg generation throughput: 3599.7 tokens/s, Running: 150 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 4.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:01:57 metrics.py:455] Avg prompt throughput: 268.1 tokens/s, Avg generation throughput: 3613.7 tokens/s, Running: 150 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 9.7%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:02 metrics.py:455] Avg prompt throughput: 273.3 tokens/s, Avg generation throughput: 3520.0 tokens/s, Running: 150 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 11.7%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:07 metrics.py:455] Avg prompt throughput: 280.3 tokens/s, Avg generation throughput: 3703.8 tokens/s, Running: 150 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 14.1%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:12 metrics.py:455] Avg prompt throughput: 278.9 tokens/s, Avg generation throughput: 3685.7 tokens/s, Running: 11 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.8%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:17 metrics.py:455] Avg prompt throughput: 406.6 tokens/s, Avg generation throughput: 3176.2 tokens/s, Running: 81 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 2.0%, CPU KV cache usage: 0.0%.

# 200并发
INFO 03-03 04:02:25 metrics.py:455] Avg prompt throughput: 13.0 tokens/s, Avg generation throughput: 867.2 tokens/s, Running: 58 reqs, Swapped: 0 reqs, Pending: 44 reqs, GPU KV cache usage: 0.9%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:30 metrics.py:455] Avg prompt throughput: 472.7 tokens/s, Avg generation throughput: 4012.6 tokens/s, Running: 157 reqs, Swapped: 0 reqs, Pending: 29 reqs, GPU KV cache usage: 2.7%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:35 metrics.py:455] Avg prompt throughput: 244.4 tokens/s, Avg generation throughput: 3969.8 tokens/s, Running: 12 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.2%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:40 metrics.py:455] Avg prompt throughput: 439.9 tokens/s, Avg generation throughput: 4022.8 tokens/s, Running: 93 reqs, Swapped: 0 reqs, Pending: 32 reqs, GPU KV cache usage: 1.6%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:45 metrics.py:455] Avg prompt throughput: 258.5 tokens/s, Avg generation throughput: 3944.5 tokens/s, Running: 6 reqs, Swapped: 0 reqs, Pending: 20 reqs, GPU KV cache usage: 0.1%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:50 metrics.py:455] Avg prompt throughput: 405.5 tokens/s, Avg generation throughput: 4000.0 tokens/s, Running: 68 reqs, Swapped: 0 reqs, Pending: 22 reqs, GPU KV cache usage: 1.1%, CPU KV cache usage: 0.0%.
INFO 03-03 04:02:55 metrics.py:455] Avg prompt throughput: 320.2 tokens/s, Avg generation throughput: 4016.7 tokens/s, Running: 5 reqs, Swapped: 0 reqs, Pending: 0 reqs, GPU KV cache usage: 0.2%, CPU KV cache usage: 0.0%.

GPU KV cache usage在1%以内，说明缓存还没有充分利用，系统还有潜力

资源稳态消耗：


# 1并发
|=========================================+======================+======================|
|   7  NVIDIA GeForce RTX 4090        Off | 00000000:E1:00.0 Off |                  Off |
| 30%   50C    P2             291W / 450W |  22736MiB / 24564MiB |     94%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 10并发
|=========================================+======================+======================|
|   7  NVIDIA GeForce RTX 4090        Off | 00000000:E1:00.0 Off |                  Off |
| 30%   56C    P2             297W / 450W |  22736MiB / 24564MiB |     89%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 50并发
|=========================================+======================+======================|
|   7  NVIDIA GeForce RTX 4090        Off | 00000000:E1:00.0 Off |                  Off |
| 30%   57C    P2             298W / 450W |  22736MiB / 24564MiB |     84%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+


# 150并发
|=========================================+======================+======================|
|   7  NVIDIA GeForce RTX 4090        Off | 00000000:E1:00.0 Off |                  Off |
| 46%   61C    P2             342W / 450W |  22736MiB / 24564MiB |     83%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 200并发
|=========================================+======================+======================|
|   7  NVIDIA GeForce RTX 4090        Off | 00000000:E1:00.0 Off |                  Off |
| 35%   60C    P2             323W / 450W |  22736MiB / 24564MiB |     78%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

符合预期，并发越大，系统调度的上下文切换消耗就越多，显卡的算力使用就会下降

参数组合2

服务端：


 --gpu_memory_utilization 0.95 \
 --max-num-seqs 512 \
 --max-model-len 65536

客户端：


python3 simple-bench-to-api.py \
  --url http://10.96.2.221:7869/v1 \
  --model DeepSeek-R1-Distill-Qwen-7B \
  --concurrencys 1,10,50,100,150,200 \
  --prompt "Tell me a story" \
  --max_tokens 1024 \
  --api_key 服务端配置的 API Key \
  --duration_seconds 30

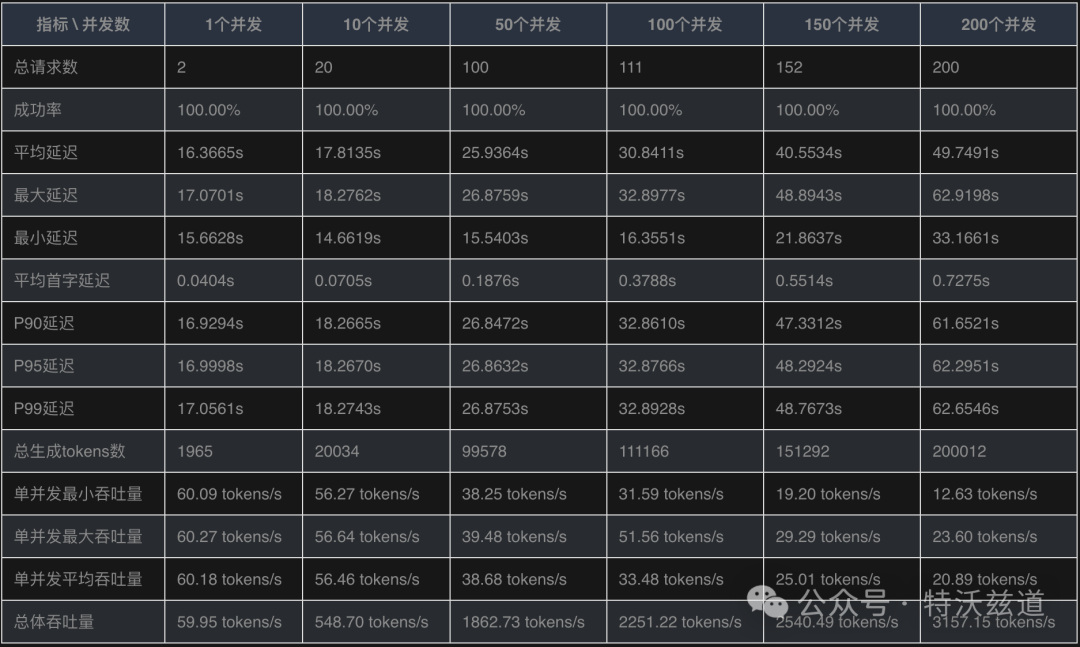

服务不变，客户端 max_tokens 从参数组合1的100，变成了 1024，压测结果：

picture.image

可以看到平均延迟在100个token的时候1个并发只有1.7秒，当上下文增加了10倍到1k后，1个并发下的平均延迟到了16到17秒，正好也变为原来的10倍，符合预期。

当设置为1k上下文后，从1个并发到200个并发，变化规律和100个token的上下文是基本一样的：

平均首字延迟(avg_ttft)从0.0404s增长到了0.7275s，仍然很快。
单并发平均吞吐量(avg)从 60.18 tokens/s 下降到了 20.89 tokens/s；说明在200个并发时，单用户的延迟会变慢1倍多，符合预期。
总体吞吐量从 59.95 tokens/s 上升到了 3157.15 tokens/s，并发越大，总体吞吐量增长越缓慢，符合一般规律。
平均延迟(avg_latency)从16.3665s 增长到了49.7491s，符合预期

服务端日志：略

   并发从1到200的过程中，GPU KV cache usage 从个位数增长到了99.9%

资源稳态情况：略

参数组合3

服务端：


  --gpu_memory_utilization 0.95 \
  --max-num-seqs 512 \
  --max-model-len 65536

客户端：


# python3 simple-bench-to-api.py \
  --url http://10.96.2.221:7869/v1 \
  --model DeepSeek-R1-Distill-Qwen-7B \
  --concurrencys 1,10,50,100,150,200 \
  --prompt "Tell me a story" \
  --max_tokens 16384 \
  --api_key 服务端配置的 API Key \
  --duration_seconds 30

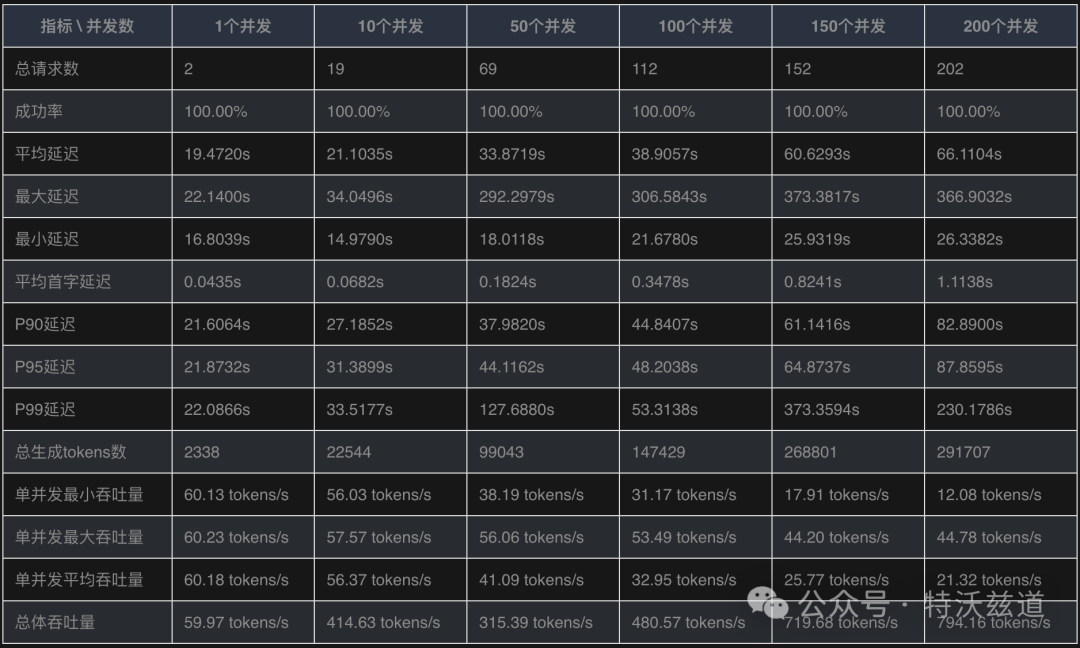

服务端不变，客户端 max_tokens 改为 16k，压测结果如下：

picture.image

可以看到，在16k上下文时，200个并发和150个并发比较，吞吐量上升已经不明显了。平均延迟66秒，P99的延迟已经比较高。16k下，7B还是在100个并发内质量比较稳定。另外我测试的时候，服务同时有个别小伙伴有调用，可能有些结果并不准确。

服务端日志：略

资源情况：略

参数组合4

服务端：


  --gpu_memory_utilization 0.95 \
  --max-num-seqs 256 \
  --max-model-len 103632

客户端：


python3 simple-bench-to-api.py \
  --url http://10.96.2.221:7869/v1 \
  --model DeepSeek-R1-Distill-Qwen-7B \
  --concurrencys 1,10,50,100,150,200 \
  --prompt "Introduce the history of China" \
  --max_tokens 100 \
  --api_key 服务端配置的APIKEY \
  --duration_seconds 30

服务端 max-num-seqs 设为 256，max-model-len 设为103632，客户端 max_tokens 设为 100

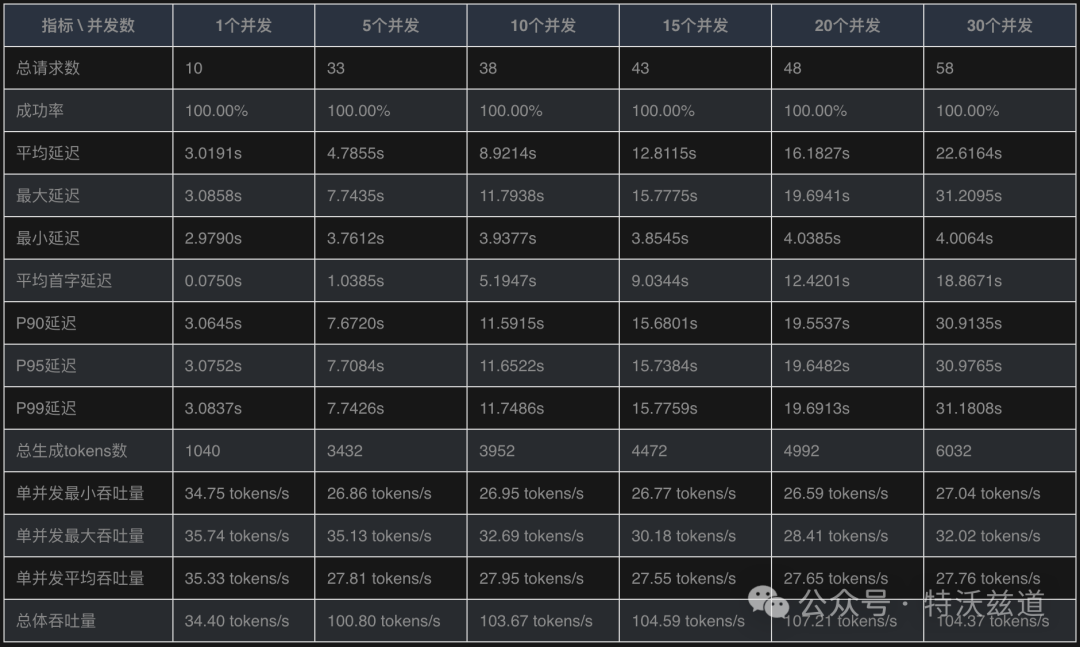

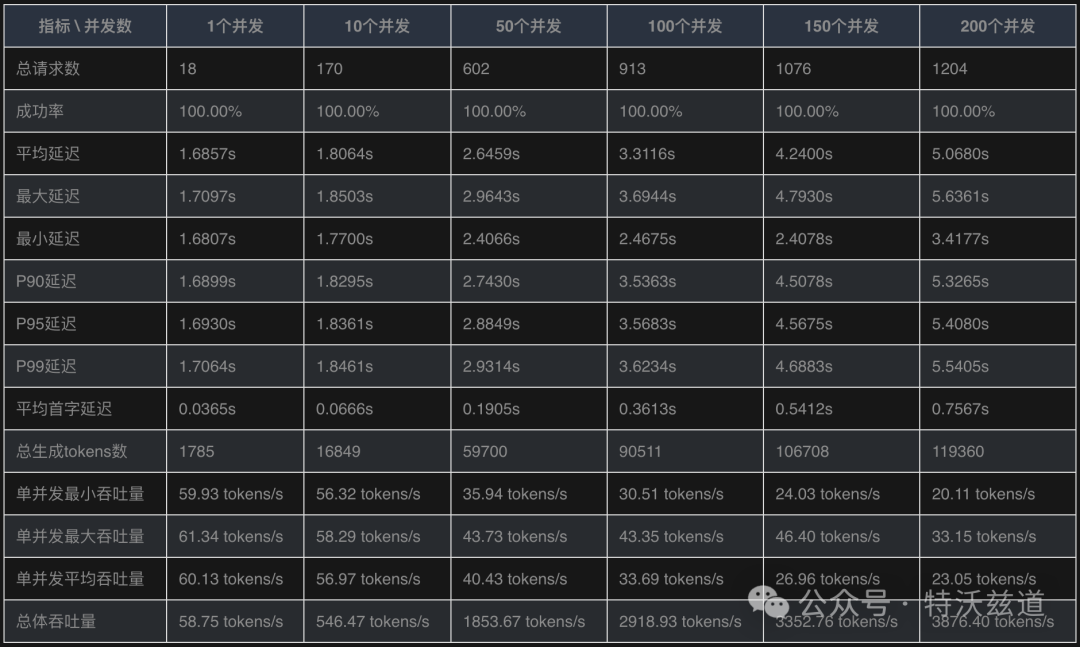

压测结果：

picture.image

服务端日志：略

资源情况：略

参数组合5

服务端：


  --gpu_memory_utilization 0.95 \
  --max-num-seqs 256 \
  --max-model-len 103632

客户端：


python3 simple-bench-to-api.py --url http://10.96.2.221:7869/v1 \
                   --model DeepSeek-R1-Distill-Qwen-7B \
                   --concurrencys 1,10,50,100,150,200 \
                   --prompt "Introduce the history of China" \
                   --max_tokens 1024 \
                   --api_key 服务端配置的APIKEY \
                   --duration_seconds 30

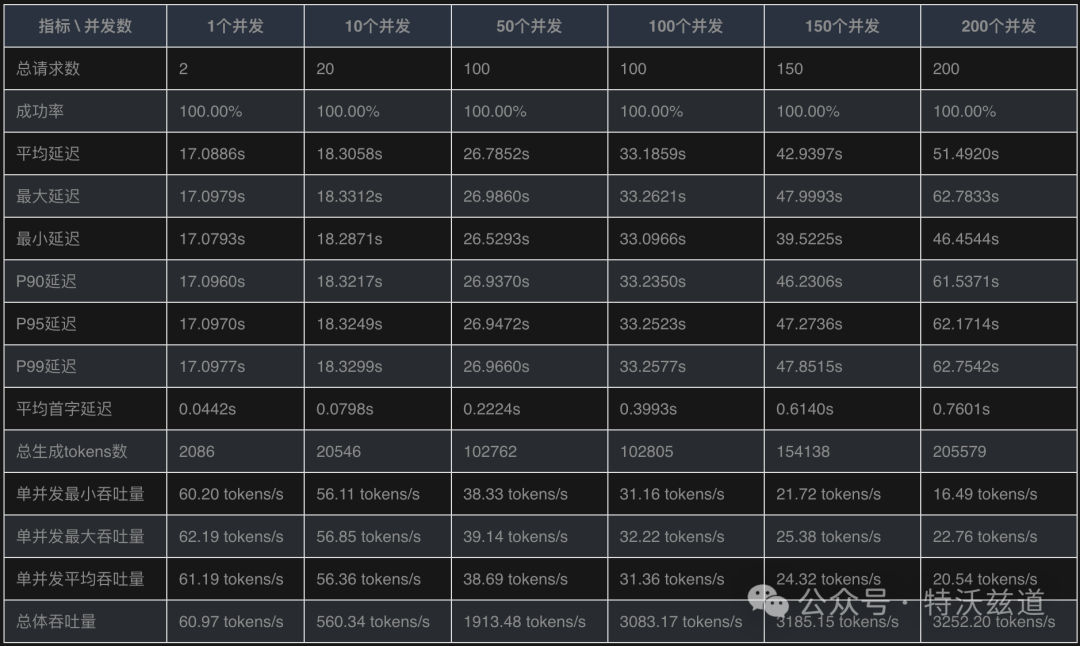

服务端不变，客户端 max_tokens 设为 1024，压测结果

picture.image

服务端日志：略

资源稳态消耗：略

参数组合6

服务端：


  --gpu_memory_utilization 0.95 \
  --max-num-seqs 256 \
  --max-model-len 103632

客户端：


python3 simple-bench-to-api.py --url http://10.96.2.221:7869/v1 \
                   --model DeepSeek-R1-Distill-Qwen-7B \
                   --concurrencys 1,10,50,100,150,200 \
                   --prompt "Introduce the history of China" \
                   --max_tokens 16384 \
                   --api_key 服务端配置的APIKEY \
                   --duration_seconds 30

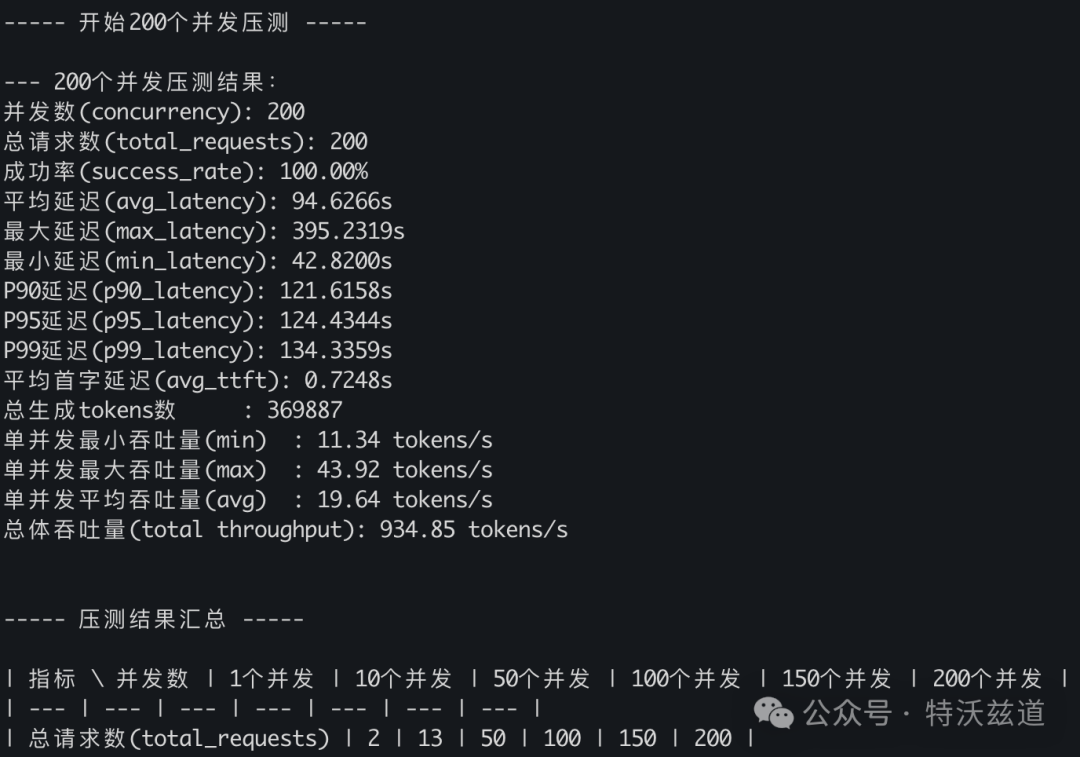

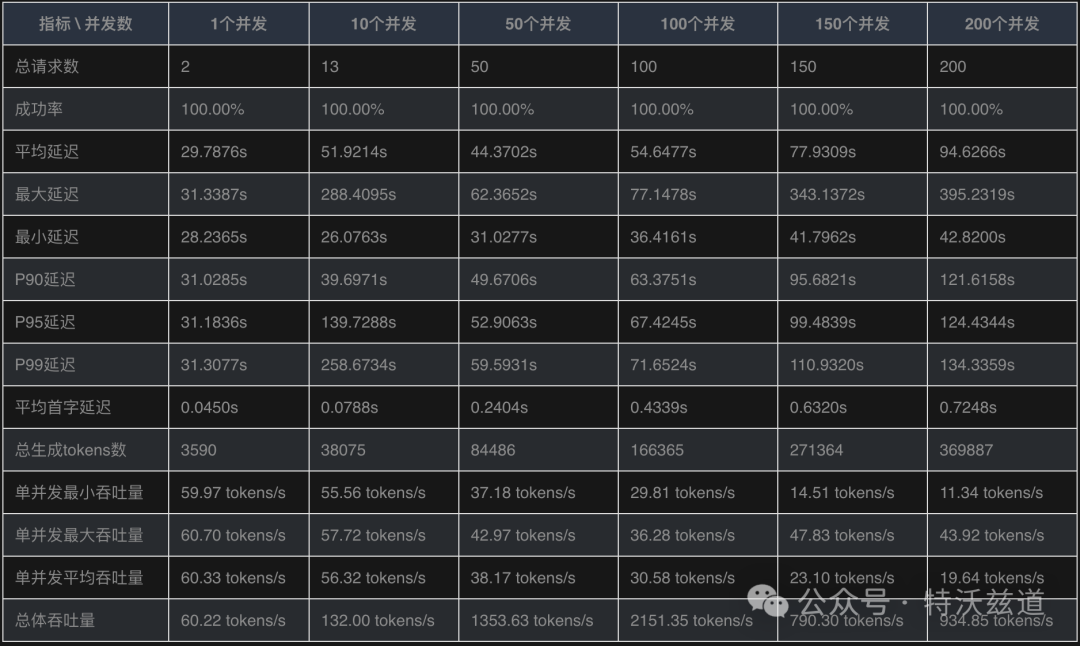

服务端不变，客户端 max_tokens 设为 16384（16k上下文），压测结果：

picture.image

可以看到，同样是16k的max_tokens，服务端参数调整后，200个并发下的吞吐量934，比调整前的794增加了 17% 多，且P99延迟下降了近一半。这个原因还在分析，也不排除是两次压测期间，受到的干扰不同造成的。

服务端日志：略

资源情况：略

DeepSeek-R1-Distill-Qwen-32B

模型地址：https://huggingface.co/deepseek-ai/DeepSeek-R1-Distill-Qwen-32B
部署方式： ollama 官方模型 deepseek-r1:32b，基于 deepseek-ai/DeepSeek-R1-Distill-Qwen-32B 做的 4-bit （Q4_K_M）量化的 gguf 版本；ollama版本： 0.5.10
压测发起地：与模型推理同一台机器，这样就消除了远程网络开销的影响。

参数组合A


python3 simple-bench-to-api.py \
  --url http://10.96.0.188:11434/v1 \
  --model deepseek-r1:32b \
  --concurrencys 1,5,10,15,20,30 \
  --prompt "Introduce the history of China" \
  --max_tokens 100 \
  --api_key 服务端设置的APIKEY，没有随便填一个 \
  --duration_seconds 30

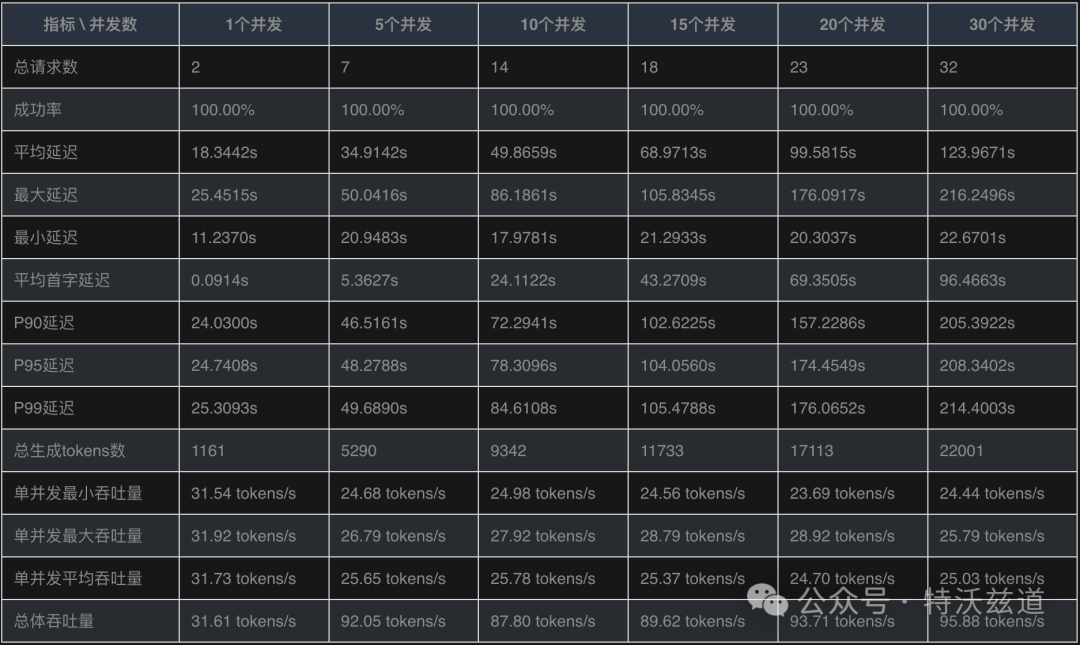

压测结果：

picture.image

资源情况：


# 1并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 30%   49C    P2             340W / 450W |  23012MiB / 24564MiB |     79%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 5并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 30%   53C    P2             379W / 450W |  23012MiB / 24564MiB |     75%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 10并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 42%   61C    P2             372W / 450W |  23012MiB / 24564MiB |     76%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 15并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 53%   58C    P2             356W / 450W |  23012MiB / 24564MiB |     72%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 20并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 53%   61C    P2             378W / 450W |  23012MiB / 24564MiB |     76%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 30并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 55%   62C    P2             382W / 450W |  23012MiB / 24564MiB |     76%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

参数组合B


python3 simple-bench-to-api.py \
  --url http://10.96.0.188:11434/v1 \
  --model deepseek-r1:32b \
  --concurrencys 1,5,10,15,20,30 \
  --prompt "Introduce the history of China" \
  --max_tokens 1024 \
  --api_key 服务端设置的APIKEY，没有随便填一个 \
  --duration_seconds 30

压测结果：

picture.image

资源情况：


# 1并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 30%   52C    P2             333W / 450W |  23012MiB / 24564MiB |     87%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 5并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 33%   57C    P2             370W / 450W |  23012MiB / 24564MiB |     79%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 10并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 53%   60C    P2             376W / 450W |  23012MiB / 24564MiB |     77%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 15并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 54%   63C    P2             385W / 450W |  23012MiB / 24564MiB |     78%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 20并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 65%   62C    P2             376W / 450W |  23012MiB / 24564MiB |     77%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

# 30并发
|=========================================+======================+======================|
|   2  NVIDIA GeForce RTX 4090        Off | 00000000:41:00.0 Off |                  Off |
| 63%   59C    P2             371W / 450W |  23012MiB / 24564MiB |     76%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

参数组合C


python3 simple-bench-to-api.py \
  --url http://10.96.0.188:11434/v1 \
  --model deepseek-r1:32b \
  --concurrencys 1,5,10,15,20,30 \
  --prompt "Introduce the history of China" \
  --max_tokens 16384 \
  --api_key 服务端设置的APIKEY，没有随便填一个 \
  --duration_seconds 30

压测结果：

picture.image

资源情况：略

结论

单卡4090跑deepseek-ai/DeepSeek-R1-Distill-Qwen-7B在100并发下比较流畅，16k的整体吞吐量可到 2151.35 tokens/s，单通道/用户的体感吞吐量可稳定在 30 tokens/s
单卡4090跑deepseek-ai/DeepSeek-R1-Distill-Qwen-32B在20并发下比较流畅，16k的整体吞吐量可到 93 tokens/s，单通道/用户的体感吞吐量可稳定在 24 tokens/s

后面就没什么内容了，只有压测工具 simple-bench-to-api.py 的源码内容，有需要的小伙伴可以自取。
