分布式日志采集产生背景

在传统项目中，如果在生产环境中，有多台不同的服务器集群，如果生产环境需要通过日志定位项目的Bug的话，需要在每台节点上使用传统的命令方式查询，这样效率非常低下。

因此我们需要集中化的管理日志，ELK则应运而生。

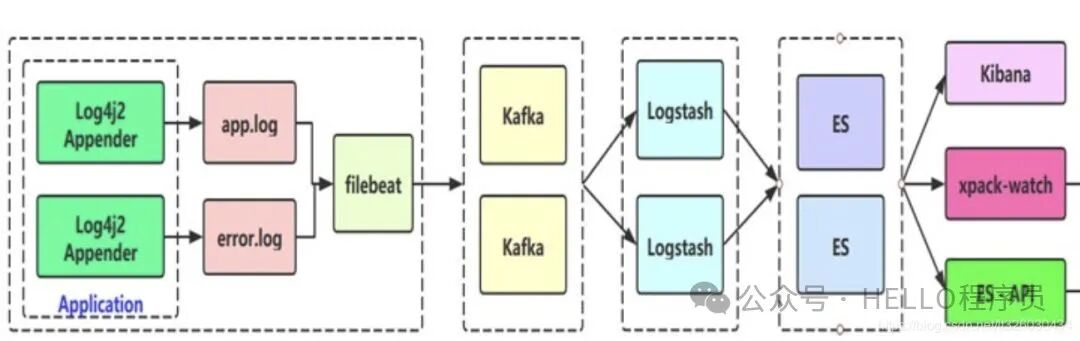

为什么ELK需要结合Kafka

如果只整合elk 不结合kafka这样的话每个服务器节点上都会安装Logstash做读写日志IO操作，可能性能不是很好，而且比较冗余。

picture.image

ELK+Kafka环境构建

基于docker-compose构建ELK+Kafka环境

注：所有的ip地址不能是localhost或者127.0.0.1


version: '3'
services:
 elasticsearch:
 image: docker.elastic.co/elasticsearch/elasticsearch:7.15.0
 container_name: elasticsearch
 environment:
 - discovery.type=single-node
 ports:
 - "9200:9200"
 - "9300:9300"

 kibana:
 image: docker.elastic.co/kibana/kibana:7.15.0
 container_name: kibana
 depends_on:
 - elasticsearch
 ports:
 - "5601:5601"

 logstash:
 image: docker.elastic.co/logstash/logstash:7.15.0
 container_name: logstash
# command: --config /etc/logstash/conf.d/*.conf
 volumes:
 - ./logstash/logstash.conf:/usr/share/logstash/pipeline/logstash.conf
 ports:
 - "5044:5044"

 zookeeper:
 image: wurstmeister/zookeeper
 container_name: zookeeper
 ports:
 - "2181:2181"

 kafka:
 image: wurstmeister/kafka
 container_name: kafka
 depends_on:
 - zookeeper
 ports:
 - "9092:9092"
 environment:
 - KAFKA_ZOOKEEPER_CONNECT=zookeeper:2181
 - KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://192.168.137.1:9092
 - KAFKA_LISTENERS=PLAINTEXT://:9092

 kafka-manager:
 image: sheepkiller/kafka-manager ## 镜像：开源的web管理kafka集群的界面
 environment:
 ZK_HOSTS: 192.168.137.1:2181 ## 修改:宿主机IP
 ports:
 - "9001:9000"

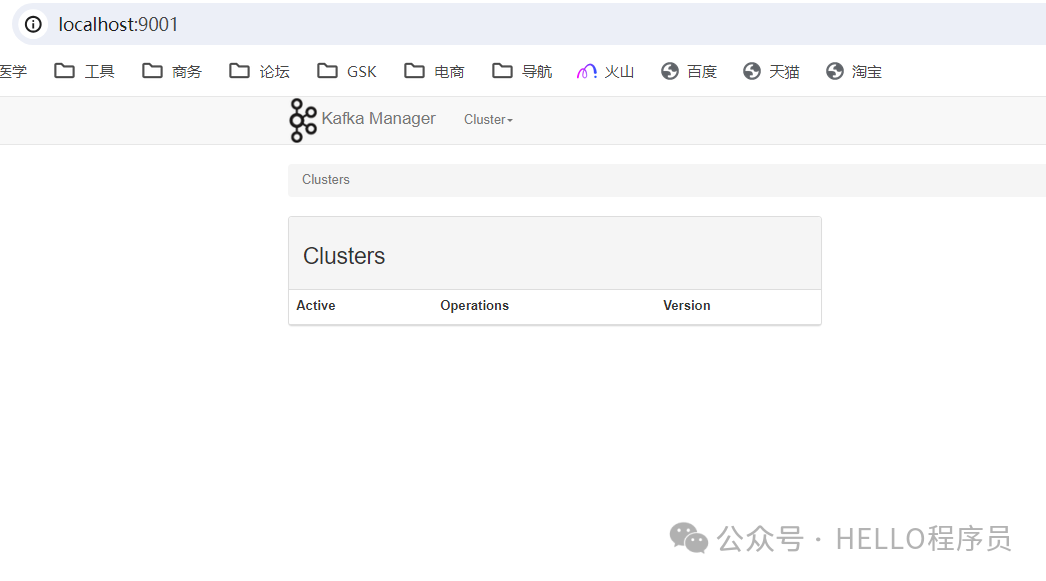

验证elk+kafka 环境


访问:zk http://127.0.0.1:2181

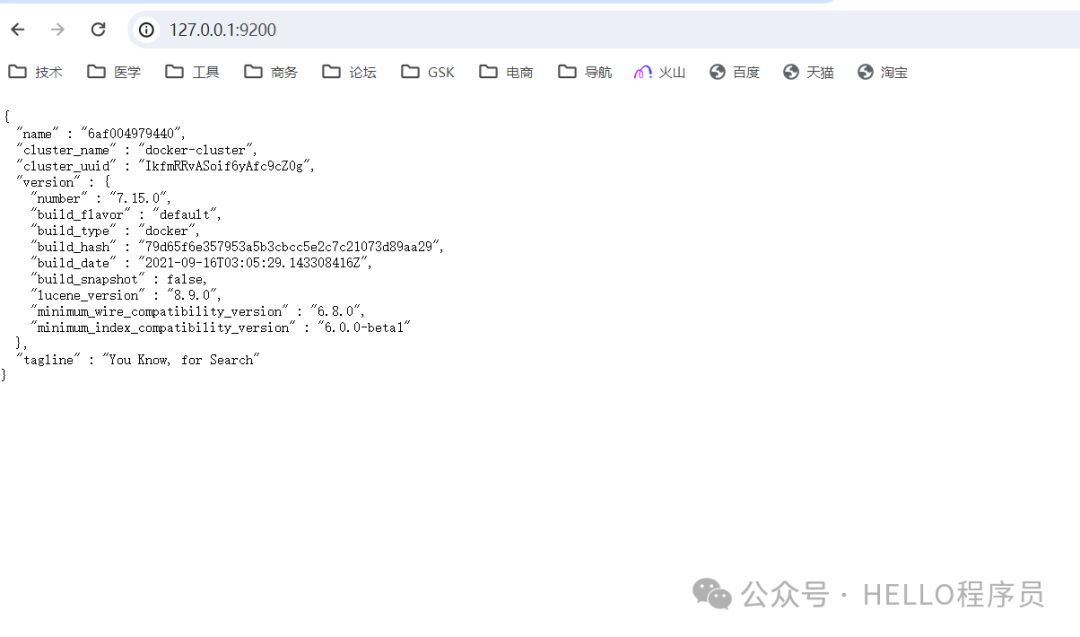

访问:es http://127.0.0.1:9200/

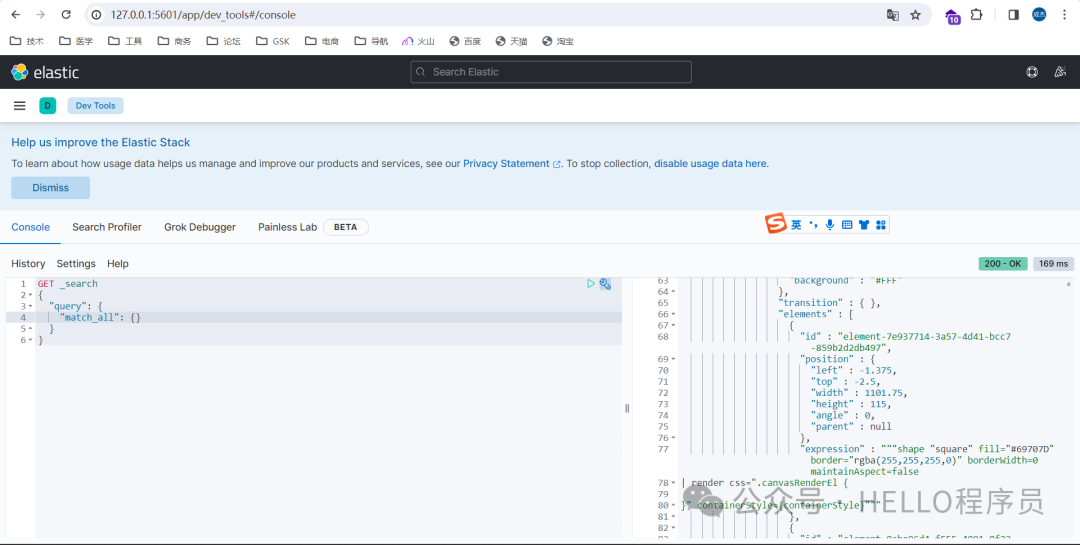

访问:kibana http://127.0.0.1:5601/app/kibana#/dev_tools/console?_g=()

picture.image

SpringBoot项目整合ELK+Kafka

添加maven依赖


<!-- kafka -->
 <dependency>
 <groupId>org.springframework.kafka</groupId>
 <artifactId>spring-kafka</artifactId>
 </dependency>

 <!--logstash 整合logback-->

 <dependency>
 <groupId>net.logstash.logback</groupId>
 <artifactId>logstash-logback-encoder</artifactId>
 <version>7.4</version>
 <exclusions>
 <exclusion>
 <groupId>ch.qos.logback</groupId>
 <artifactId>logback-core</artifactId>
 </exclusion>
 </exclusions>
 </dependency>

 <!--logback 整合 kafka-->
 <dependency>
 <groupId>com.github.danielwegener</groupId>
 <artifactId>logback-kafka-appender</artifactId>
 <version>0.2.0-RC2</version>
 <scope>runtime</scope>
 </dependency>

配置文件配置


spring:
 kafka:
 listener:
 #设置是否批量消费，默认 single（单条），batch（批量）
 type: single
 # 集群地址 不能是localhost/127.0.0.1
 bootstrap-servers: 192.168.137.1:9092
 # 生产者配置
 producer:
 # 重试次数
 retries: 3
 # 应答级别
 # acks=0 把消息发送到kafka就认为发送成功
 # acks=1 把消息发送到kafka leader分区，并且写入磁盘就认为发送成功
 # acks=all 把消息发送到kafka leader分区，并且leader分区的副本follower对消息进行了同步就任务发送成功
 acks: all
 # 批量处理的最大大小 单位 byte
 batch-size: 4096
 # 发送延时,当生产端积累的消息达到batch-size或接收到消息linger.ms后,生产者就会将消息提交给kafka
 buffer-memory: 33554432
 # 客户端ID
 client-id: logstash
 # Key 序列化类
 key-serializer: org.apache.kafka.common.serialization.StringSerializer
 # Value 序列化类
 value-serializer: org.apache.kafka.common.serialization.StringSerializer
 # 消息压缩：none、lz4、gzip、snappy，默认为 none。
 compression-type: gzip
 properties:
 linger:
 # 发送延时,当生产端积累的消息达到batch-size或接收到消息linger.ms后,生产者就会将消息提交给kafka
 ms: 1000
 max:
 block:
 # KafkaProducer.send() 和 partitionsFor() 方法的最长阻塞时间 单位 ms
 ms: 6000
 # 消费者配置
 consumer:
 # 默认消费者组
 group-id: logstash
 # 自动提交 offset 默认 true
 enable-auto-commit: false
 # 自动提交的频率 单位 ms
 auto-commit-interval: 1000
 # 批量消费最大数量
 max-poll-records: 100
 # Key 反序列化类
 key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
 # Value 反序列化类
 value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
 # 当kafka中没有初始offset或offset超出范围时将自动重置offset
 # earliest:重置为分区中最小的offset
 # latest:重置为分区中最新的offset(消费分区中新产生的数据)
 # none:只要有一个分区不存在已提交的offset,就抛出异常
 auto-offset-reset: latest
 properties:
 session:
 timeout:
 # session超时，超过这个时间consumer没有发送心跳,就会触发rebalance操作
 ms: 120000
 request:
 timeout:
 # 请求超时
 ms: 120000
 template:
 default-topic: tiger-log

# 指定logback配置文件，因为查找优先级问题，最好手动配置上，避免其他依赖导致未使用到自定义的logback文件
logging:
 config: classpath:logback-spring.xml

配置logback-spring.xml


<?xml version="1.0" encoding="UTF-8"?>
<configuration>
 <include resource="org/springframework/boot/logging/logback/defaults.xml"/>
 <include resource="org/springframework/boot/logging/logback/console-appender.xml"/>

 <!-- 这里把整个测试环境的 模块复制过来了，里面包含 输入到 kafka 的配置-->
 <springProfile name="dev">

 <!-- 日志输出格式 -->
 <property name="console.log.pattern"
 value="%d{yyyy-MM-dd HH:mm:ss.SSS} %highlight(%-5level) --- [%green(%thread)] %cyan(%-40.40(%logger{40})) : %msg%n"/>

 <property name="log.pattern" value="%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n"/>


 <property name="log_name_prefix" value="tiger-ucenter"/>

 <property name="log.path" value="logs/tiger-ucenter"/>

 <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
 <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
 <pattern>${console.log.pattern}</pattern>
 </encoder>
 <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
 <level>INFO</level>
 </filter>
 </appender>
 <appender name="file_info" class="ch.qos.logback.core.rolling.RollingFileAppender">
 <File>${log.path}/${log_name_prefix}-info.log</File>
 <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
 <pattern>${log.pattern}</pattern>
 </encoder>
 <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
 <level>INFO</level>
 </filter>
 <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
 <FileNamePattern>${log.path}/backup/${log_name_prefix}-info.%d{yyyy-MM-dd}.log
 </FileNamePattern>
 </rollingPolicy>
 </appender>
 <appender name="file_error"
 class="ch.qos.logback.core.rolling.RollingFileAppender">
 <File>${log.path}/${log_name_prefix}-error.log</File>
 <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
 <pattern>${log.pattern}</pattern>
 </encoder>
 <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
 <level>ERROR</level>
 </filter>
 <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
 <FileNamePattern>${log.path}/backup/${log_name_prefix}-error.%d{yyyy-MM-dd}.log
 </FileNamePattern>
 </rollingPolicy>
 </appender>

 <!-- kafka的appender配置-->
 <appender name="kafkaAppender" class="com.github.danielwegener.logback.kafka.KafkaAppender">
 <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
 <providers class="net.logstash.logback.composite.loggingevent.LoggingEventJsonProviders">
 <pattern>
 <pattern>
 {"app":"${APP}",
 "profile":"${PROFILES_ACTIVE}",
 "thread": "%thread",
 "logger": "%logger{5}",
 "message":"%msg",
 "app_name":"${APP_NAME}",
 "env_name":"${ENV_NAME}",
 "hostname":"${HOSTNAME}",
 "captain_seq":"${CAPTAIN_SEQ}",
 "captain_gen":"${CAPTAIN_GEN}",
 "build_name":"${BUILD_NAME}",
 "build_git_version":"${BUILD_GIT_VERSION}",
 "build_git_hash":"${BUILD_GIT_HASH}",
 "build_timestamp":"${BUILD_TIMESTAMP}",
 "date":"%d{yyyy-MM-dd HH:mm:ss.SSS}",
 "level":"%level",
 "stack_trace":"%exception"
 }
 </pattern>
 </pattern>
 </providers>
 </encoder>
 <topic>tiger-log</topic>
 <keyingStrategy class="com.github.danielwegener.logback.kafka.keying.NoKeyKeyingStrategy"/>
 <deliveryStrategy class="com.github.danielwegener.logback.kafka.delivery.AsynchronousDeliveryStrategy"/>
 <producerConfig>bootstrap.servers=192.168.137.1:9092</producerConfig>

 　　　 　
 <producerConfig>retries=1</producerConfig>
 　　　 　
 <producerConfig>batch-size=16384</producerConfig>
 　　　 　
 <producerConfig>buffer-memory=33554432</producerConfig>
 　　　 　
 <producerConfig>properties.max.request.size==2097152</producerConfig>
 <appender-ref ref="console"/>
 </appender>


 <root level="INFO">
 <appender-ref ref="console"/>
 <appender-ref ref="file_error"/>
 <appender-ref ref="file_info"/>
 <appender-ref ref="kafkaAppender"/>
 </root>
 </springProfile>


</configuration>

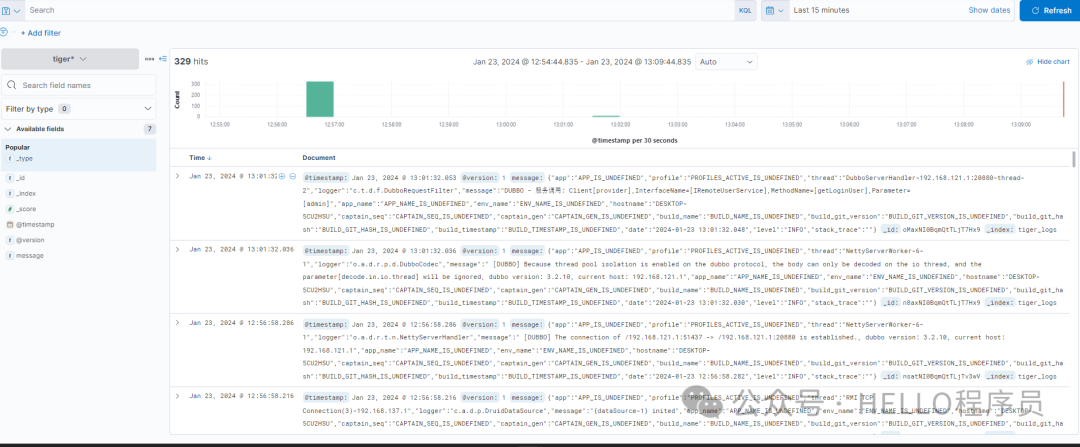

打开kibana查看收集的日志

picture.image
