作者丨王晶晶@知乎 来源丨https://zhuanlan.zhihu.com/p/583233222 编辑丨小书童

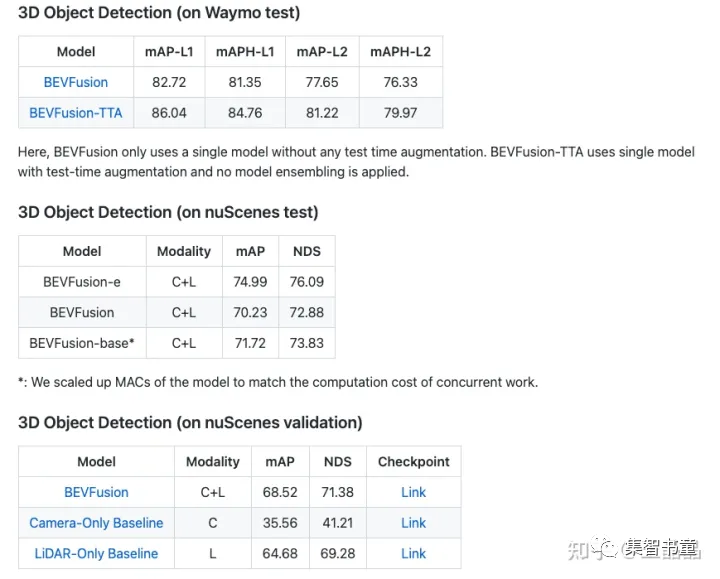

结合上一篇对于BEVFusion理论部分的理解，这一篇对于代码细节进行分析与记录。
其中，camera-only检测网络是BEVDet的变体，其中view transformer和超参数有差异。因为采用了新提出的efficient bev pooling方式，实现比BEVDet更快和更高精度的性能。
fusion_models的定义
在bevfusion.py中定义**「pipeline」**
class BEVFusion(Base3DFisionModel):
def \_\_init\_\_(encoders,fuser,decoder,heads):
# 判断是否使用camera encoder
if encoders.get("camera") is not None:
self.encoders["camera"] = nn.ModuleDict(
{
"backbone": build_backbone(encoders["camera"]["backbone"]),
"neck": build_neck(encoders["camera"]["neck"]),
"vtransform": build_vtransform(encoders["camera"]["vtransform"]),
}
)
# 判断是否使用lidar encoder
if encoders.get("lidar") is not None:
if encoders["lidar"]["voxelize"].get("max\_num\_points", -1) > 0:
voxelize_module = Voxelization(**encoders["lidar"]["voxelize"])
else:
voxelize_module = DynamicScatter(**encoders["lidar"]["voxelize"])
self.encoders["lidar"] = nn.ModuleDict(
{
"voxelize": voxelize_module,
"backbone": build_backbone(encoders["lidar"]["backbone"]),
}
)
self.voxelize_reduce = encoders["lidar"].get("voxelize\_reduce", True)
# 判断是否需要fuse
if fuser is not None:
self.fuser = build_fuser(fuser)
else:
self.fuser = None
self.decoder = nn.ModuleDict(
{
"backbone": build_backbone(decoder["backbone"]),
"neck": build_neck(decoder["neck"]),
}
)
self.heads = nn.ModuleDict()
for name in heads:
if heads[name] is not None:
self.heads[name] = build_head(heads[name])
.......
def extract\_camera\_features(
self,
x,
points,
camera2ego,
lidar2ego,
lidar2camera,
lidar2image,
camera\_intrinsics,
camera2lidar,
img\_aug\_matrix,
lidar\_aug\_matrix,
img\_metas,
) -> torch.Tensor:
def extract\_lidar\_features(self, x) -> torch.Tensor:
feats, coords, sizes = self.voxelize(x)
batch_size = coords[-1, 0] + 1
x = self.encoders["lidar"]["backbone"](feats, coords, batch_size, sizes=sizes)
return x
@force\_fp32()
def voxelize(self, points):
def forward(
self,
img,
points,
camera2ego,
lidar2ego,
lidar2camera,
lidar2image,
camera\_intrinsics,
camera2lidar,
img\_aug\_matrix,
lidar\_aug\_matrix,
metas,
gt\_masks\_bev=None,
gt\_bboxes\_3d=None,
gt\_labels\_3d=None,
**kwargs,):
...
@auto\_fp16(apply\_to=("img", "points"))
def forward\_single(
self,
img,
points,
camera2ego,
lidar2ego,
lidar2camera,
lidar2image,
camera\_intrinsics,
camera2lidar,
img\_aug\_matrix,
lidar\_aug\_matrix,
metas,
gt\_masks\_bev=None,
gt\_bboxes\_3d=None,
gt\_labels\_3d=None,
**kwargs,
):
...
LSS的应用与实现
在./mmdet3d/models/vtransforms/base.py中定义**「LSS转换」**
注意函数gen_dx_bx(),根据设定的xbound,ybound,zbound计算每个voxel grid对应的dx,bx,nx
def gen\_dx\_bx(xbound, ybound, zbound):
dx = torch.Tensor([row[2] for row in [xbound, ybound, zbound]])
bx = torch.Tensor([row[0] + row[2] / 2.0 for row in [xbound, ybound, zbound]])
nx = torch.LongTensor(
[(row[1] - row[0]) / row[2] for row in [xbound, ybound, zbound]]
)
return dx, bx, nx
BaseTransform实现将图像和Lidar点云转换到bev space的流程，具体定义如下：
class BaseTransform(nn.Module):
def __init__(
self,
in_channels: int,
out_channels: int,
image_size: Tuple[int, int],
feature_size: Tuple[int, int],
xbound: Tuple[float, float, float],
ybound: Tuple[float, float, float],
zbound: Tuple[float, float, float],
dbound: Tuple[float, float, float],
) -> None:
super().__init__()
self.in_channels = in_channels
self.image_size = image_size
self.feature_size = feature_size
self.xbound = xbound
self.ybound = ybound
self.zbound = zbound
self.dbound = dbound
# 预先计算图像中pixel与3D voxel之间的对应关系
dx, bx, nx = gen_dx_bx(self.xbound, self.ybound, self.zbound)
self.dx = nn.Parameter(dx, requires_grad=False)
self.bx = nn.Parameter(bx, requires_grad=False)
self.nx = nn.Parameter(nx, requires_grad=False)
self.C = out_channels
self.frustum = self.create_frustum()
self.D = self.frustum.shape[0]
self.fp16_enabled = False
@force_fp32()
# 构建相机坐标系下的视锥体
def create_frustum(self):
iH, iW = self.image_size
fH, fW = self.feature_size
ds = (
torch.arange(*self.dbound, dtype=torch.float)
.view(-1, 1, 1)
.expand(-1, fH, fW)
)
D, _, _ = ds.shape
xs = (
torch.linspace(0, iW - 1, fW, dtype=torch.float)
.view(1, 1, fW)
.expand(D, fH, fW)
)
ys = (
torch.linspace(0, iH - 1, fH, dtype=torch.float)
.view(1, fH, 1)
.expand(D, fH, fW)
)
frustum = torch.stack((xs, ys, ds), -1)
return nn.Parameter(frustum, requires_grad=False)
@force_fp32()
def get_geometry(
self,
camera2lidar_rots,
camera2lidar_trans,
intrins,
post_rots,
post_trans,
**kwargs,
):
B, N, _ = camera2lidar_trans.shape
# undo post-transformation
# B x N x D x H x W x 3
# 平移转换，旋转转换
points = self.frustum - post_trans.view(B, N, 1, 1, 1, 3)
points = (
torch.inverse(post_rots)
.view(B, N, 1, 1, 1, 3, 3)
.matmul(points.unsqueeze(-1))
)
# cam\_to\_lidar
points = torch.cat(
(
points[:, :, :, :, :, :2] * points[:, :, :, :, :, 2:3],
points[:, :, :, :, :, 2:3],
),
5,
)
# 坐标系转换
combine = camera2lidar_rots.matmul(torch.inverse(intrins))
points = combine.view(B, N, 1, 1, 1, 3, 3).matmul(points).squeeze(-1)
points += camera2lidar_trans.view(B, N, 1, 1, 1, 3)
if "extra\_rots" in kwargs:
extra_rots = kwargs["extra\_rots"]
points = (
extra_rots.view(B, 1, 1, 1, 1, 3, 3)
.repeat(1, N, 1, 1, 1, 1, 1)
.matmul(points.unsqueeze(-1))
.squeeze(-1)
)
if "extra\_trans" in kwargs:
extra_trans = kwargs["extra\_trans"]
points += extra_trans.view(B, 1, 1, 1, 1, 3).repeat(1, N, 1, 1, 1, 1)
return points
def get_cam_feats(self, x):
raise NotImplementedError
@force_fp32()
def bev_pool(self, geom_feats, x):
B, N, D, H, W, C = x.shape
Nprime = B * N * D * H * W
# flatten x
x = x.reshape(Nprime, C)
# flatten indices
geom_feats = ((geom_feats - (self.bx - self.dx / 2.0)) / self.dx).long()
geom_feats = geom_feats.view(Nprime, 3)
batch_ix = torch.cat(
[
torch.full([Nprime // B, 1], ix, device=x.device, dtype=torch.long)
for ix in range(B)
]
)
geom_feats = torch.cat((geom_feats, batch_ix), 1)
# 明确self.nx的含义，此处将box之外的点去掉
# filter out points that are outside box
kept = (
(geom_feats[:, 0] >= 0)
& (geom_feats[:, 0] < self.nx[0])
& (geom_feats[:, 1] >= 0)
& (geom_feats[:, 1] < self.nx[1])
& (geom_feats[:, 2] >= 0)
& (geom_feats[:, 2] < self.nx[2])
)
x = x[kept]
geom_feats = geom_feats[kept]
x = bev_pool(x, geom_feats, B, self.nx[2], self.nx[0], self.nx[1])
# collapse Z
final = torch.cat(x.unbind(dim=2), 1)
return final
@force_fp32()
def forward(
self,
img,
points,
camera2ego,
lidar2ego,
lidar2camera,
lidar2image,
camera_intrinsics,
camera2lidar,
img_aug_matrix,
lidar_aug_matrix,
**kwargs,
):
rots = camera2ego[..., :3, :3]
trans = camera2ego[..., :3, 3]
intrins = camera_intrinsics[..., :3, :3]
post_rots = img_aug_matrix[..., :3, :3]
post_trans = img_aug_matrix[..., :3, 3]
lidar2ego_rots = lidar2ego[..., :3, :3]
lidar2ego_trans = lidar2ego[..., :3, 3]
camera2lidar_rots = camera2lidar[..., :3, :3]
camera2lidar_trans = camera2lidar[..., :3, 3]
extra_rots = lidar_aug_matrix[..., :3, :3]
extra_trans = lidar_aug_matrix[..., :3, 3]
#
geom = self.get_geometry(
camera2lidar_rots,
camera2lidar_trans,
intrins,
post_rots,
post_trans,
extra_rots=extra_rots,
extra_trans=extra_trans,
)
x = self.get_cam_feats(img)
x = self.bev_pool(geom, x)
return x
LSSFPN的实现
# 注册NECK
class LSSFPN(nn.Module):
def \_\_init\_\_(
self,
in\_indices: Tuple[int, int],
in\_channels: Tuple[int, int],
out\_channels: int,
scale\_factor: int = 1,
) -> None:
super().__init__()
self.in_indices = in_indices
self.in_channels = in_channels
self.out_channels = out_channels
self.scale_factor = scale_factor
self.fuse = nn.Sequential(
nn.Conv2d(in_channels[0] + in_channels[1], out_channels, 1, bias=False),
nn.BatchNorm2d(out_channels),
nn.ReLU(True),
nn.Conv2d(out_channels, out_channels, 3, padding=1, bias=False),
nn.BatchNorm2d(out_channels),
nn.ReLU(True),
)
if scale_factor > 1:
self.upsample = nn.Sequential(
nn.Upsample(
scale_factor=scale_factor,
mode="bilinear",
align_corners=True,
),
nn.Conv2d(out_channels, out_channels, 3, padding=1, bias=False),
nn.BatchNorm2d(out_channels),
nn.ReLU(True),
)
def forward(self, x: List[torch.Tensor]) -> torch.Tensor:
x1 = x[self.in_indices[0]]
assert x1.shape[1] == self.in_channels[0]
x2 = x[self.in_indices[1]]
assert x2.shape[1] == self.in_channels[1]
x1 = F.interpolate(
x1,
size=x2.shape[-2:],
mode="bilinear",
align_corners=True,
)
x = torch.cat([x1, x2], dim=1)
x = self.fuse(x)
if self.scale_factor > 1:
x = self.upsample(x)
return
Lidar-Encoder
Lidar 点云的feature encoder:
class PointPillarsEncoder(nn.Module):
def \_\_init\_\_(
self,
pts\_voxel\_encoder: Dict[str, Any],
pts\_middle\_encoder: Dict[str, Any],
**kwargs,
):
super().__init__()
self.pts_voxel_encoder = build_backbone(pts_voxel_encoder)
self.pts_middle_encoder = build_backbone(pts_middle_encoder)
def forward(self, feats, coords, batch\_size, sizes):
x = self.pts_voxel_encoder(feats, sizes, coords)
x = self.pts_middle_encoder(x, coords, batch_size)
return x
PillarFeatureNet类的定义:
class PillarFeatureNet():
“”“similar role to second.pytorch.voxelnet.VoxelFeatureExtractor”“”“
def forward(self, features, num\_voxels, coors):
......
# Find distance of x, y, and z from cluster center
# 计算相对于cluster center的x,y,z偏移作为f\_cluster
points_mean = features[:, :, :3].sum(dim=1, keepdim=True) / num_voxels.type_as(
features).view(-1, 1, 1)
f_cluster = features[:, :, :3] - points_mean
# Find distance of x, y, and z from pillar center
# 计算相对于pillar center的x,y,z偏移量
# modified according to xyz coords
f_center = torch.zeros_like(features[:, :, :2])
f_center[:, :, 0] = features[:, :, 0] - (
coors[:, 1].to(dtype).unsqueeze(1) * self.vx + self.x_offset
)
f_center[:, :, 1] = features[:, :, 1] - (
coors[:, 2].to(dtype).unsqueeze(1) * self.vy + self.y_offset
)
# Combine together feature decorations
features_ls = [features, f_cluster, f_center]
if self._with_distance:
points_dist = torch.norm(features[:, :, :3], 2, 2, keepdim=True)
features_ls.append(points_dist)
features = torch.cat(features_ls, dim=-1)
# The feature decorations were calculated without regard to whether pillar was empty. Need to ensure that
# empty pillars remain set to zeros.
voxel_count = features.shape[1]
mask = get_paddings_indicator(num_voxels, voxel_count, axis=0)
mask = torch.unsqueeze(mask, -1).type_as(features)
features *= mask
# Forward pass through PFNLayers
for pfn in self.pfn_layers:
features = pfn(features)
return features.squeeze()
