浅谈LLM的长度外推

写在前面

大家好，我是刘聪NLP。

随着大模型应用的不断发展，知识外挂已经成为了重要手段。但只是外挂手段往往受限于模型本身可接受长度，以及模型外推能力。今天给大家带来一篇LLM的长度外推浅谈，来自@uuuuu（知乎）。


https://zhuanlan.zhihu.com/p/645770522



涉及到更新至20230724的外推策略，NBCE，线性内插，NTK-Aware Scaled RoPE，Dynamically Scaled RoPE，consistent of Dynamically Scaled RoPE。

从第二个开始，基本上后一个都是基于前一个的基础上优化得到的，适用于所有使用ROPE的语言模型。

一、NBCE


NBCE：使用朴素贝叶斯扩展LLM的Context处理长度
https://kexue.fm/archives/9617



苏神最早提出的扩展LLM的context方法，基于bayes启发得到的公式：在问答下实测确实不错，在较长context下的阅读理解还算好用。

局限性是，无序性，即无法识别Context的输入顺序，这在续写故事等场景可能表现欠佳，做一些依赖每个context生成答案，比如提取文档摘要，效果较差。


outputs = model(input_ids=input_ids,
                        attention_mask=attention_mask,
                        return_dict=True,
                        use_cache=True,
                        past_key_values=past_key_values
                       )
past_key_values = outputs.past_key_values

# ===== 核心代码开始 =====
beta = 0.25
probas = torch.nn.functional.softmax(outputs.logits[:, -1], dim=-1)
logits = probas.log()
k = (probas * logits).sum(dim=-1)[1:].argmax() + 1
logits_max = logits[k]
logits_uncond = logits[0]
logits = (1 + beta) * logits_max - beta * logits_uncond
# ===== 核心代码结束 =====

# 构建分布，采样
tau = 0.01  # tau = 1是标准的随机采样，tau->0则是贪心搜索
probas = torch.nn.functional.softmax(logits[None] / tau , dim=-1)
next_tokens = torch.multinomial(probas, num_samples=1).squeeze(1)



此处代码，图片，文本均选自科学空间。

二、线性内插


https://kaiokendev.github.io/context
https://lmsys.org/blog/2023-06-29-longchat/
https://arxiv.org/abs/2306.15595



llama基于rotary embedding在2048长度上预训练，该方法通过将position压缩到0~2048之间，从而达到长度外推的目的。

longchat将模型微调为上下文长度外扩为16384，压缩比为 8。例如，position_ids = 10000 的 token 变为position_ids = 10000 / 8 = 1250，相邻 token 10001 变为 10001 / 8 = 1250.125

该方法的缺陷是需要进行一定量的微调，让模型来适应这种改变。


import torch
import transformers
import transformers.models.llama.modeling_llama
from einops import rearrange

from functools import partial

class CondenseRotaryEmbedding(torch.nn.Module):
    def \_\_init\_\_(self, dim, ratio, max\_position\_embeddings=2048, base=10000, device=None):
        super().__init__()
        inv_freq = 1.0 / (base ** (torch.arange(0, dim, 2).float().to(device) / dim))
        self.register_buffer("inv\_freq", inv_freq)

        # Build here to make `torch.jit.trace` work.
        self.ratio = ratio
        max_position_embeddings *= ratio
        print(f"Condensing Positional embeddings from {max\_position\_embeddings} to {max\_position\_embeddings // ratio}")
        self.max_seq_len_cached = max_position_embeddings
        t = torch.arange(self.max_seq_len_cached, device=self.inv_freq.device, dtype=self.inv_freq.dtype) / ratio
        freqs = torch.einsum("i,j->ij", t, self.inv_freq)
        # Different from paper, but it uses a different permutation in order to obtain the same calculation
        emb = torch.cat((freqs, freqs), dim=-1)
        dtype = torch.get_default_dtype()
        self.register_buffer("cos\_cached", emb.cos()[None, None, :, :].to(dtype), persistent=False)
        self.register_buffer("sin\_cached", emb.sin()[None, None, :, :].to(dtype), persistent=False)

    def forward(self, x, seq\_len=None):
        # x: [bs, num\_attention\_heads, seq\_len, head\_size]
        # This `if` block is unlikely to be run after we build sin/cos in `\_\_init\_\_`. Keep the logic here just in case.
        if seq_len > self.max_seq_len_cached:
            self.max_seq_len_cached = seq_len
            t = torch.arange(self.max_seq_len_cached, device=x.device, dtype=self.inv_freq.dtype) / self.ratio
            freqs = torch.einsum("i,j->ij", t, self.inv_freq)
            # Different from paper, but it uses a different permutation in order to obtain the same calculation
            emb = torch.cat((freqs, freqs), dim=-1).to(x.device)
            self.register_buffer("cos\_cached", emb.cos()[None, None, :, :].to(x.dtype), persistent=False)
            self.register_buffer("sin\_cached", emb.sin()[None, None, :, :].to(x.dtype), persistent=False)
        return (
            self.cos_cached[:, :, :seq_len, ...].to(dtype=x.dtype),
            self.sin_cached[:, :, :seq_len, ...].to(dtype=x.dtype),
        )

def replace\_llama\_with\_condense(ratio):
    transformers.models.llama.modeling_llama.LlamaRotaryEmbedding = partial(CondenseRotaryEmbedding, ratio=ratio)



三、NTK-Aware Scaled RoPE


NTK-Aware Scaled RoPE allows LLaMA models to have extended (8k+) context size without any fine-tuning and minimal perplexity degradation.
https://www.reddit.com/r/LocalLLaMA/comments/14lz7j5/ntkaware_scaled_rope_allows_llama_models_to_have/

RoPE是一种β进制编码:https://spaces.ac.cn/archives/9675



有意思的解释一下，RoPE 的行为就像一个时钟。12小时时钟基本上是一个维度为 3、底数为 60 的 RoPE。因此，每秒钟，分针转动 1/60 分钟，每分钟，时针转动 1/60。现在，如果将时间减慢 4 倍，那就是二使用的线性RoPE 缩放。不幸的是，现在区分每一秒，因为现在秒针几乎每秒都不会移动。因此，如果有人给你两个不同的时间，仅相差一秒，你将无法从远处区分它们。NTK-Aware RoPE 扩展不会减慢时间。一秒仍然是一秒，但它会使分钟减慢 1.5 倍，将小时减慢 2 倍。这样，您可以将 90 分钟容纳在一个小时中，将 24 小时容纳在半天中。所以现在你基本上有了一个可以测量 129.6k 秒而不是 43.2k 秒的时钟。由于在查看时间时不需要精确测量时针，因此与秒相比，更大程度地缩放小时至关重要。不想失去秒针的精度，但可以承受分针甚至时针的精度损失。


import transformers

old_init = transformers.models.llama.modeling_llama.LlamaRotaryEmbedding.__init__
def ntk\_scaled\_init(self, dim, max\_position\_embeddings=2048, base=10000, device=None):

    #The method is just these three lines
    max_position_embeddings = 16384
    a = 8 #Alpha value
    base = base * a ** (dim / (dim-2)) #Base change formula

    old_init(self, dim, max_position_embeddings, base, device)
transformers.models.llama.modeling_llama.LlamaRotaryEmbedding.__init__ = ntk_scaled_init



四、Dynamically Scaled RoPE


https://www.reddit.com/r/LocalLLaMA/comments/14mrgpr/dynamically_scaled_rope_further_increases/

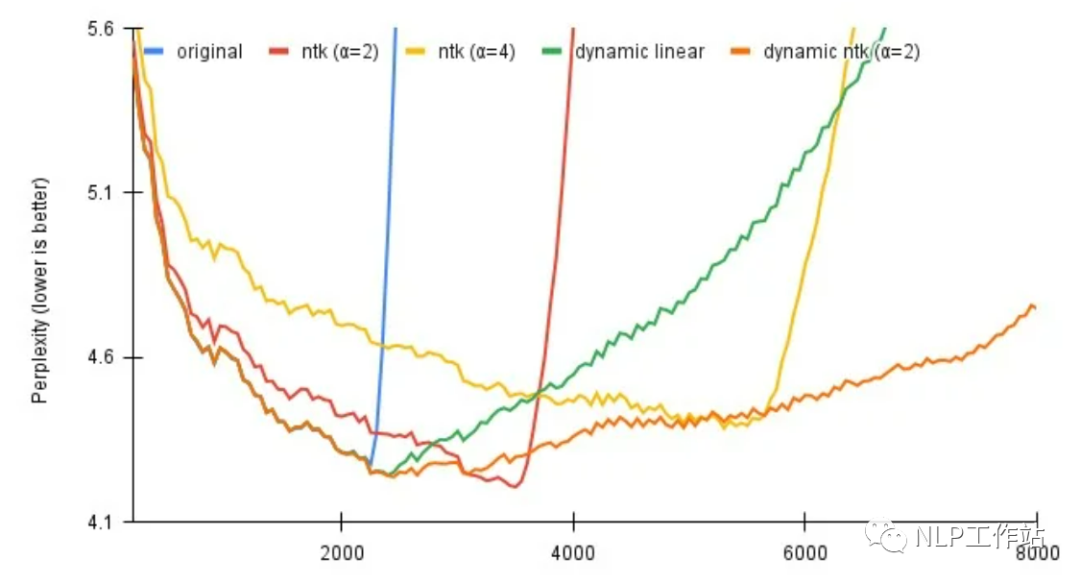

对于上面的方法二、三，都涉及到一个超参数α，用于调节缩放比例，该方法是通过序列长度动态选择正确的比例参数，效果可以看上图。

对于线性插值，前 2k 上下文的精确位置值，然后在模型逐个生成标记时重新计算每个新序列长度的位置向量。本质上，将比例设置为原始模型上下文长度/当前序列长度。

对于动态 NTK，α 的缩放设置为 (α * 当前序列长度 / 原始模型上下文长度) - (α - 1)。随着序列长度的增加动态缩放超参数。


import math
import torch

class LlamaDynamicScaledRotaryEmbedding(torch.nn.Module):
    def __init__(self, dim, max_position_embeddings=2048, base=10000, ntk=False, device=None):
        super().__init__()
        self.ntk = ntk
        self.base = base
        self.dim = dim
        self.max_position_embeddings = max_position_embeddings
        inv_freq = 1.0 / (base ** (torch.arange(0, dim, 2).float().to(device) / dim))
        self.register_buffer("inv\_freq", inv_freq)

        # Build here to make `torch.jit.trace` work.
        self.max_seq_len_cached = max_position_embeddings
        t = torch.arange(self.max_seq_len_cached, device=self.inv_freq.device, dtype=self.inv_freq.dtype)
        freqs = torch.einsum("i,j->ij", t, self.inv_freq)
        # Different from paper, but it uses a different permutation in order to obtain the same calculation
        emb = torch.cat((freqs, freqs), dim=-1)
        dtype = torch.get_default_dtype()
        self.register_buffer("cos\_cached", emb.cos()[None, None, :, :].to(dtype), persistent=False)
        self.register_buffer("sin\_cached", emb.sin()[None, None, :, :].to(dtype), persistent=False)

    def forward(self, x, seq_len=None):
        # x: [bs, num\_attention\_heads, seq\_len, head\_size]
        # This `if` block is unlikely to be run after we build sin/cos in `\_\_init\_\_`. Keep the logic here just in case.
        if seq_len > self.max_seq_len_cached:
            self.max_seq_len_cached = seq_len
            if self.ntk:
                base = self.base * ((self.ntk * seq_len / self.max_position_embeddings) - (self.ntk - 1)) ** (self.dim / (self.dim-2))
                inv_freq = 1.0 / (base ** (torch.arange(0, self.dim, 2).float().to(x.device) / self.dim))
                self.register_buffer("inv\_freq", inv_freq)
            t = torch.arange(self.max_seq_len_cached, device=x.device, dtype=self.inv_freq.dtype)
            if not self.ntk:
                t *= self.max_position_embeddings / seq_len
            freqs = torch.einsum("i,j->ij", t, self.inv_freq)
            # Different from paper, but it uses a different permutation in order to obtain the same calculation
            emb = torch.cat((freqs, freqs), dim=-1).to(x.device)
            self.register_buffer("cos\_cached", emb.cos()[None, None, :, :].to(x.dtype), persistent=False)
            self.register_buffer("sin\_cached", emb.sin()[None, None, :, :].to(x.dtype), persistent=False)
        return (
            self.cos_cached[:, :, :seq_len, ...].to(dtype=x.dtype),
            self.sin_cached[:, :, :seq_len, ...].to(dtype=x.dtype),
        )

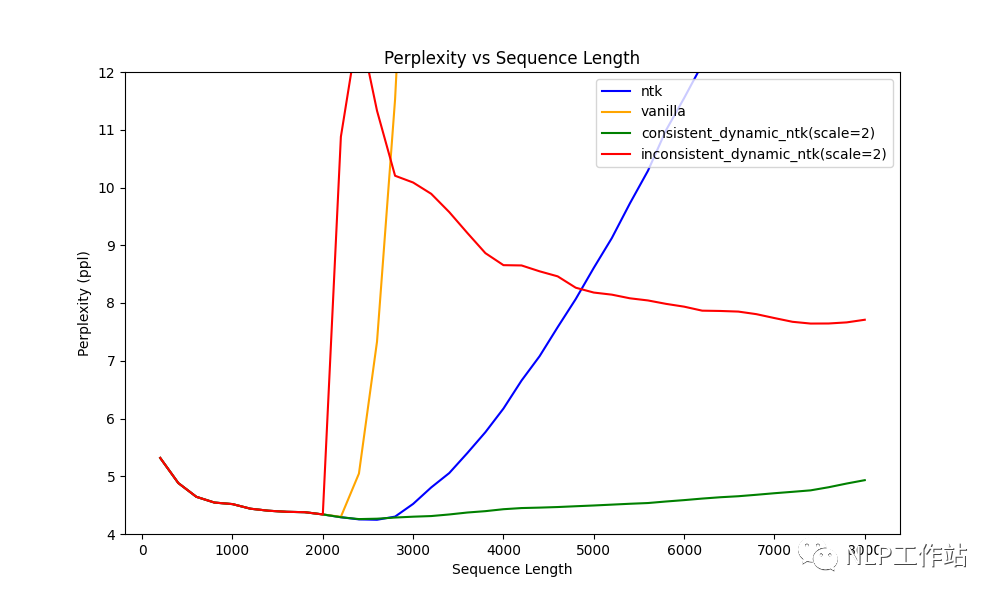

五、consistent of Dynamically Scaled RoPE


https://github.com/NormXU/Consistent-DynamicNTKRoPE




import math
from typing import List, Optional, Tuple, Union

import torch
import torch.nn.functional as F
import torch.utils.checkpoint
from torch import nn
from transformers.models.llama.modeling_llama import repeat_kv, apply_rotary_pos_emb
from transformers.models.llama.modeling_llama import LlamaAttention

def forward(
        self,
        hidden\_states: torch.Tensor,
        attention\_mask: Optional[torch.Tensor] = None,
        position\_ids: Optional[torch.LongTensor] = None,
        past\_key\_value: Optional[Tuple[torch.Tensor]] = None,
        output\_attentions: bool = False,
        use\_cache: bool = False,
) -> Tuple[torch.Tensor, Optional[torch.Tensor], Optional[Tuple[torch.Tensor]]]:
    bsz, q_len, _ = hidden_states.size()

    if self.pretraining_tp > 1:
        key_value_slicing = (self.num_key_value_heads * self.head_dim) // self.pretraining_tp
        query_slices = self.q_proj.weight.split((self.num_heads * self.head_dim) // self.pretraining_tp, dim=0)
        key_slices = self.k_proj.weight.split(key_value_slicing, dim=0)
        value_slices = self.v_proj.weight.split(key_value_slicing, dim=0)

        query_states = [F.linear(hidden_states, query_slices[i]) for i in range(self.pretraining_tp)]
        query_states = torch.cat(query_states, dim=-1)

        key_states = [F.linear(hidden_states, key_slices[i]) for i in range(self.pretraining_tp)]
        key_states = torch.cat(key_states, dim=-1)

        value_states = [F.linear(hidden_states, value_slices[i]) for i in range(self.pretraining_tp)]
        value_states = torch.cat(value_states, dim=-1)

    else:
        query_states = self.q_proj(hidden_states)
        key_states = self.k_proj(hidden_states)
        value_states = self.v_proj(hidden_states)

    query_states = query_states.view(bsz, q_len, self.num_heads, self.head_dim).transpose(1, 2)
    key_states = key_states.view(bsz, q_len, self.num_key_value_heads, self.head_dim).transpose(1, 2)
    value_states = value_states.view(bsz, q_len, self.num_key_value_heads, self.head_dim).transpose(1, 2)

    kv_seq_len = key_states.shape[-2]
    if past_key_value is not None:
        kv_seq_len += past_key_value[0].shape[-2]
    cos, sin = self.rotary_emb(value_states, seq_len=kv_seq_len)

    if past_key_value is not None:
        # reuse k w/o RoPE
        key_states = torch.cat([past_key_value[0], key_states], dim=2)

    # apply RoPE after retrieving all keys and queries
    query_states, rotated_key_states = apply_rotary_pos_emb(query_states, key_states, cos, sin, position_ids)

    if past_key_value is not None:
        # reuse v, self\_attention
        value_states = torch.cat([past_key_value[1], value_states], dim=2)

    past_key_value = (key_states, value_states) if use_cache else None # cache the key w/o RoPE

    # repeat k/v heads if n\_kv\_heads < n\_heads
    rotated_key_states = repeat_kv(rotated_key_states, self.num_key_value_groups)
    value_states = repeat_kv(value_states, self.num_key_value_groups)

    attn_weights = torch.matmul(query_states, rotated_key_states.transpose(2, 3)) / math.sqrt(self.head_dim)

    if attn_weights.size() != (bsz, self.num_heads, q_len, kv_seq_len):
        raise ValueError(
            f"Attention weights should be of size {(bsz, self.num\_heads, q\_len, kv\_seq\_len)}, but is"
            f" {attn\_weights.size()}"
        )

    if attention_mask is not None:
        if attention_mask.size() != (bsz, 1, q_len, kv_seq_len):
            raise ValueError(
                f"Attention mask should be of size {(bsz, 1, q\_len, kv\_seq\_len)}, but is {attention\_mask.size()}"
            )
        attn_weights = attn_weights + attention_mask

    # upcast attention to fp32
    attn_weights = nn.functional.softmax(attn_weights, dim=-1, dtype=torch.float32).to(query_states.dtype)
    attn_output = torch.matmul(attn_weights, value_states)

    if attn_output.size() != (bsz, self.num_heads, q_len, self.head_dim):
        raise ValueError(
            f"`attn\_output` should be of size {(bsz, self.num\_heads, q\_len, self.head\_dim)}, but is"
            f" {attn\_output.size()}"
        )

    attn_output = attn_output.transpose(1, 2).contiguous()
    attn_output = attn_output.reshape(bsz, q_len, self.hidden_size)

    if self.pretraining_tp > 1:
        attn_output = attn_output.split(self.hidden_size // self.pretraining_tp, dim=2)
        o_proj_slices = self.o_proj.weight.split(self.hidden_size // self.pretraining_tp, dim=1)
        attn_output = sum([F.linear(attn_output[i], o_proj_slices[i]) for i in range(self.pretraining_tp)])
    else:
        attn_output = self.o_proj(attn_output)

    if not output_attentions:


        attn_weights = None

    return attn_output, attn_weights, past_key_value


def replace\_llama\_attn\_with\_consistent\_ntk\_rope():
    LlamaAttention.forward = forward



总结

请多多关注知乎「刘聪NLP」，有问题的朋友也欢迎加我微信「logCong」私聊，交个朋友吧，一起学习，一起进步。我们的口号是“生命不止，学习不停”。

PS：交流群4天就加满了，没有进群的小伙伴不要着急，过几天搞个2群。
