Kafdrop是Apache Kafka的开源Web UI可视化工具。

主要功能

查看Kafka代理 -主题和分区分配以及控制器状态
查看主题 -分区数，复制状态和自定义配置
浏览消息 -JSON，纯文本和Avro编码
查看消费者组 -每个分区的停放偏移量，合并延迟和每个分区滞后
创建新主题
查看ACL

1、编排文件



[administrator@JavaLangOutOfMemory luga]% vi docker-compose-kafdrop.yml

version: "2"

services:

kafdrop:

image: obsidiandynamics/kafdrop

restart: "no"

ports:

- "9000:9000"

environment:

KAFKA_BROKERCONNECT: "kafka:29092"

JVM_OPTS: "-Xms16M -Xmx48M -Xss180K -XX:-TieredCompilation -XX:+UseStringDeduplication -noverify"

depends_on:

- "kafka"

kafka:

image: obsidiandynamics/kafka

restart: "no"

ports:

- "2181:2181"

- "9092:9092"

environment:

KAFKA_LISTENERS: "INTERNAL://:29092,EXTERNAL://:9092"

KAFKA_ADVERTISED_LISTENERS: "INTERNAL://kafka:29092,EXTERNAL://localhost:9092"

KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT"

KAFKA_INTER_BROKER_LISTENER_NAME: "INTERNAL"

KAFKA_ZOOKEEPER_SESSION_TIMEOUT: "6000"

KAFKA_RESTART_ATTEMPTS: "10"

KAFKA_RESTART_DELAY: "5"

ZOOKEEPER_AUTOPURGE_PURGE_INTERVAL: "0"

2、启动服务





          [administrator@JavaLangOutOfMemory luga]% docker-compose -f docker-compose-kafdrop.yaml up -d

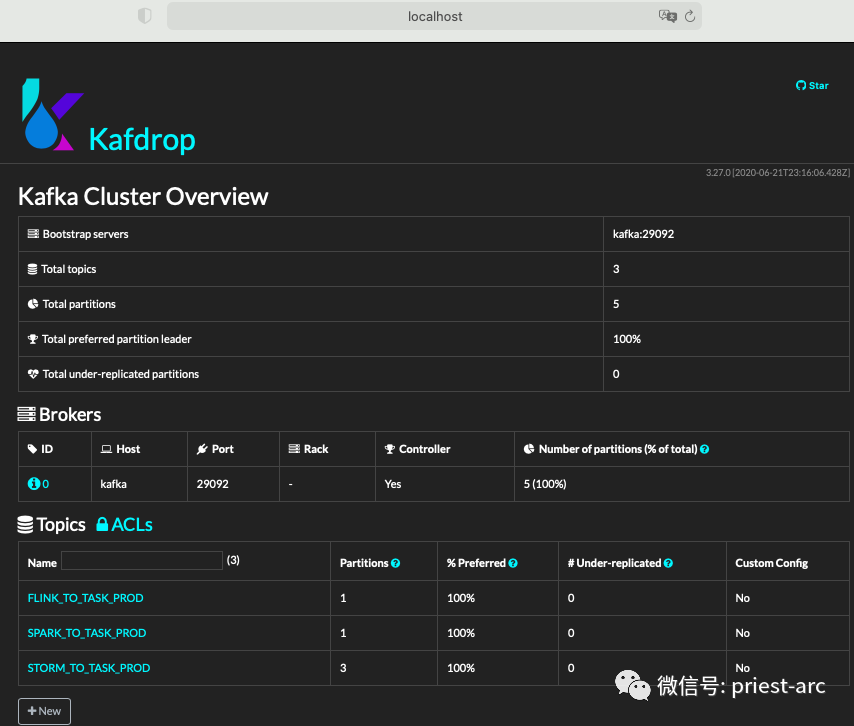

3、访问web页面 http://ip:9000

picture.image

4、模拟生产者生产消息



bash-4.4# ./kafka-console-producer.sh --broker-list localhost:9092 --topic FLINK_TO_TASK_PROD

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020202'

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020203'

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020205'

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020208'

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020200'

>'Merchant-2020-001' Values:'111111111111100000000000000','MerID:20200202020207'

>

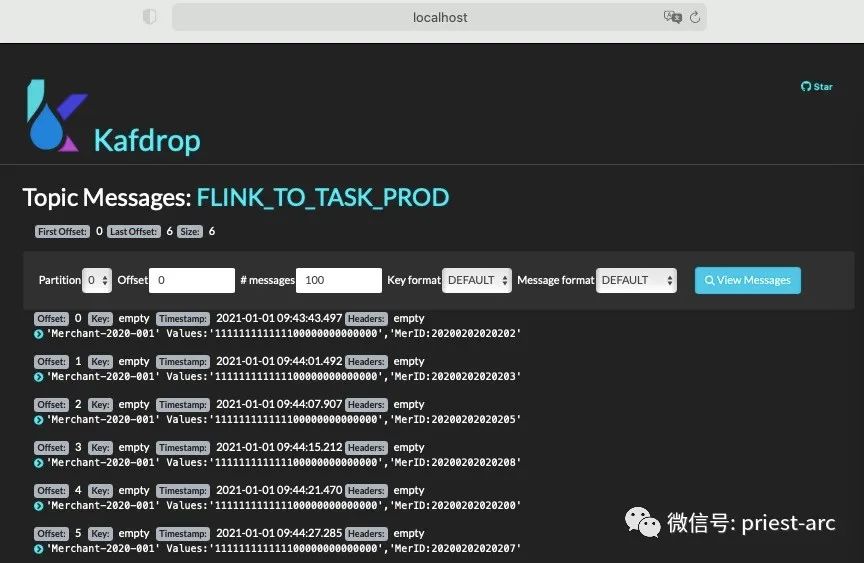

5、查看及检索消息

picture.image
