tensorrtx 是由开发者 wang-xinyu 维护的一个针对 NVIDIA TensorRT 的示例项目集合。它提供了多种常用深度学习模型（主要涵盖 目标检测、图像分割、分类 等）的 TensorRT 推理实现示例。这些示例可以帮助开发者把在 PyTorch、TensorFlow 等深度学习框架下训练好的模型，快速转换并部署到 TensorRT 中，从而获得 低延迟、高吞吐量 的推理性能。

核心价值

简洁、直观的示例工程：

每个模型都对应一个独立的文件夹和项目配置，涵盖 模型转换（通常是 .pth / .onnx → TensorRT engine）、推理代码、后处理 等完整流程。

高效部署参考：

tensorrtx 提供了最佳实践示例，许多优化技巧（如 INT8/FP16、Plugins、Cuda Stream 等）在示例中都有体现，能帮助你在实际项目中快速验证和应用。

可持续更新：

该项目随 TensorRT 和 各大主流网络版本 的迭代而不断更新，紧跟前沿模型（如 YOLOv11）的部署需求。

适配多种平台：

tensorrtx 一般在 Linux + NVIDIA GPU 环境下使用。也有部分开发者把它迁移到 Windows 或 Jetson 设备上，通过 CMake 配置可灵活切换。

windows10下yolov11 tensorrtx推理加速

1. 一. yolov11 python环境安装

---

1. 基础环境

CUDA：cuda_11.8.0_522.06_windows

cudnn：cudnn-windows-x86_64-8.6.0.163_cuda11-archive


##创建python环境
conda create --name yolov11 python=3.10 -y
##安装pytorch
pip install torch==2.6.0 torchvision==0.21.0 torchaudio==2.6.0 --index-url https://download.pytorch.org/whl/cu118
##安装yolov11
pip install ultralytics -i https://pypi.mirrors.ustc.edu.cn/simple/
##安装必要的库
pip install -r requirements.txt -i https://pypi.mirrors.ustc.edu.cn/simple/

二. windows10下yolov11 tensorrtx推理加速


##官网下载tensorrtx
git clone https://github.com/wang-xinyu/tensorrtx.git

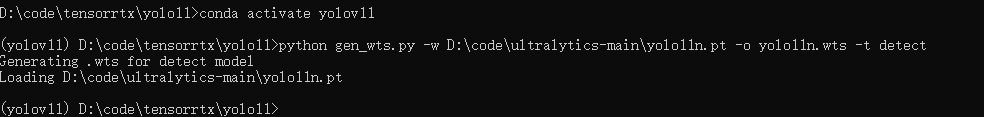

##进入yolov11文件夹，转换模型.pt转.wts
python gen_wts.py -w D:\code\ultralytics-main\yolo11n.pt -o yolo11n.wts -t detect

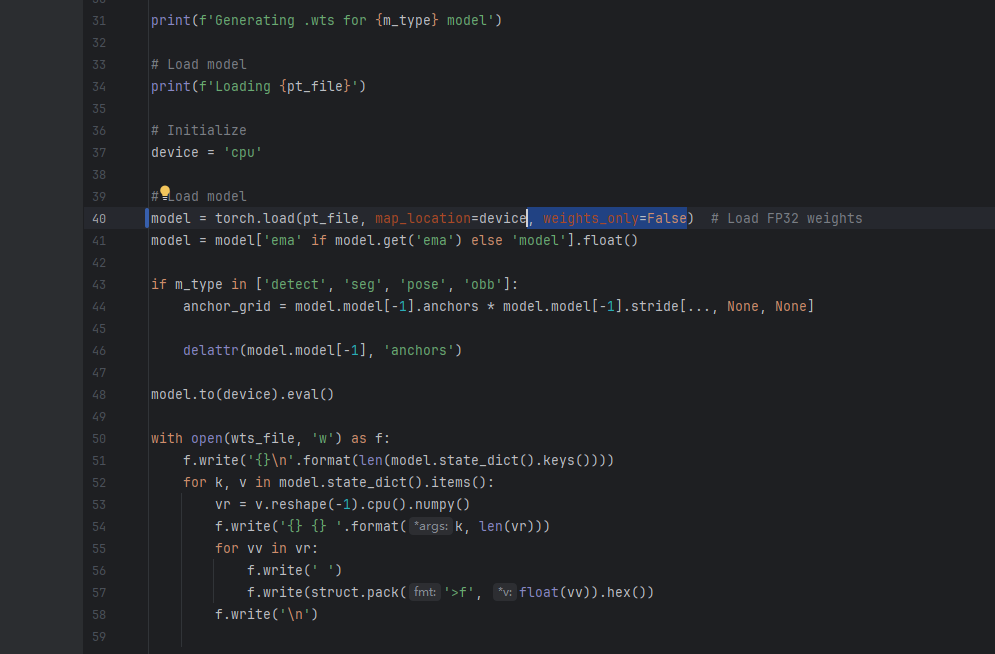

注意：pytorch2.6需要修改代码中的torch.load，在里面添加weigths_only=False

修改cmakeList.txt文件

根据自己的opencv ，tensort，dirent所在目录路径，修改以下文件路径


cmake_minimum_required(VERSION 3.10)

project(yolov11)

add_definitions(-std=c++11)
add_definitions(-DAPI_EXPORTS)
add_compile_definitions(NOMINMAX)

set(CMAKE_CXX_STANDARD 11)
set(CMAKE_BUILD_TYPE Debug)

set(CMAKE_CUDA_ARCHITECTURES 70 75 80 86)
set(CMAKE_CUDA_COMPILER "C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8/bin/nvcc.exe")
enable_language(CUDA)

include_directories(${PROJECT_SOURCE_DIR}/include)
include_directories(${PROJECT_SOURCE_DIR}/plugin)

# include and link dirs of cuda and tensorrt, you need adapt them if yours are different
if(CMAKE_SYSTEM_PROCESSOR MATCHES "aarch64")
    message("embed_platform on")
    include_directories(/usr/local/cuda/targets/aarch64-linux/include)
    link_directories(/usr/local/cuda/targets/aarch64-linux/lib)
else()
    message("embed_platform off")
    # cuda
    find_package(CUDA REQUIRED)
    include_directories(${CUDA_INCLUDE_DIRS})

    # tensorrt
    set(TRT_DIR "C:\\Program Files\\NVIDIA GPU Computing Toolkit\\CUDA\\TensorRT-8.6.0.12")
    set(TRT_INCLUDE_DIRS ${TRT_DIR}\\include)
    set(TRT_LIB_DIRS ${TRT_DIR}\\lib)
    include_directories(${TRT_INCLUDE_DIRS})
    link_directories(${TRT_LIB_DIRS})

    # opencv
    set(OpenCV_DIR "D:\\Program Files\\opencv\\build")
    set(OpenCV_INCLUDE_DIRS ${OpenCV_DIR}\\include)
    set(OpenCV_LIB_DIRS ${OpenCV_DIR}\\x64\\vc16\\lib)
    set(OpenCV_Debug_LIBS "opencv_world4110d.lib")
    set(OpenCV_Release_LIBS "opencv_world4110.lib")
    include_directories(${OpenCV_INCLUDE_DIRS})
    link_directories(${OpenCV_LIB_DIRS})

    # dirent
    set(Dirent_INCLUDE_DIRS "D:\\Program Files\\dirent\\include")
    include_directories(${Dirent_INCLUDE_DIRS})
endif()

add_library(myplugins SHARED ${PROJECT_SOURCE_DIR}/plugin/yololayer.cu)
target_link_libraries(myplugins nvinfer cudart)

file(GLOB_RECURSE SRCS ${PROJECT_SOURCE_DIR}/src/*.cpp ${PROJECT_SOURCE_DIR}/src/*.cu)

add_executable(yolo11_det ${PROJECT_SOURCE_DIR}/yolo11_det.cpp ${SRCS})
target_link_libraries(yolo11_det nvinfer)
target_link_libraries(yolo11_det cudart)
target_link_libraries(yolo11_det myplugins)
target_link_libraries(yolo11_det ${OpenCV_Debug_LIBS})
target_link_libraries(yolo11_det ${OpenCV_Release_LIBS})

add_executable(yolo11_cls ${PROJECT_SOURCE_DIR}/yolo11_cls.cpp ${SRCS})
target_link_libraries(yolo11_cls nvinfer)
target_link_libraries(yolo11_cls cudart)
target_link_libraries(yolo11_cls myplugins)
target_link_libraries(yolo11_cls ${OpenCV_Debug_LIBS})
target_link_libraries(yolo11_cls ${OpenCV_Release_LIBS})

add_executable(yolo11_seg ${PROJECT_SOURCE_DIR}/yolo11_seg.cpp ${SRCS})
target_link_libraries(yolo11_seg nvinfer)
target_link_libraries(yolo11_seg cudart)
target_link_libraries(yolo11_seg myplugins)
target_link_libraries(yolo11_seg ${OpenCV_Debug_LIBS})
target_link_libraries(yolo11_seg ${OpenCV_Release_LIBS})

add_executable(yolo11_pose ${PROJECT_SOURCE_DIR}/yolo11_pose.cpp ${SRCS})
target_link_libraries(yolo11_pose nvinfer)
target_link_libraries(yolo11_pose cudart)
target_link_libraries(yolo11_pose myplugins)
target_link_libraries(yolo11_pose ${OpenCV_Debug_LIBS})
target_link_libraries(yolo11_pose ${OpenCV_Release_LIBS})

add_executable(yolo11_obb ${PROJECT_SOURCE_DIR}/yolo11_obb.cpp ${SRCS})
target_link_libraries(yolo11_obb nvinfer)
target_link_libraries(yolo11_obb cudart)
target_link_libraries(yolo11_obb myplugins)
target_link_libraries(yolo11_obb ${OpenCV_Debug_LIBS})
target_link_libraries(yolo11_obb ${OpenCV_Release_LIBS})

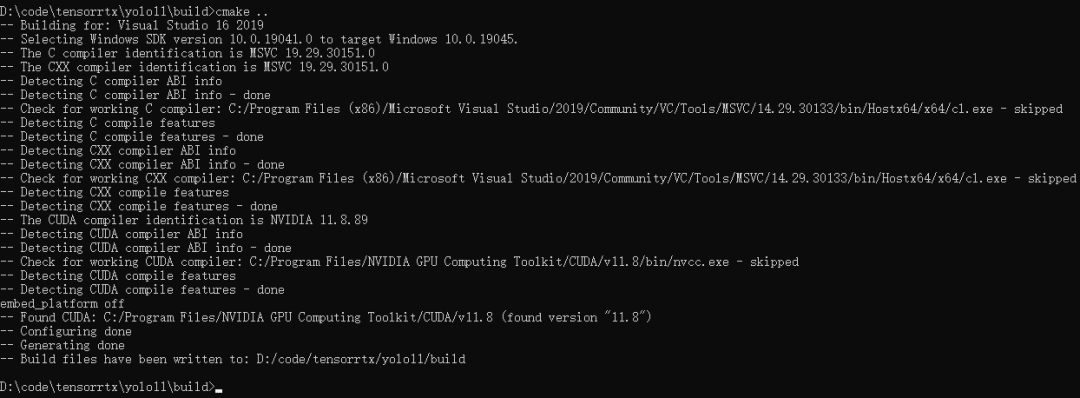

构建项目


mkdir build
cd build
cmake ..

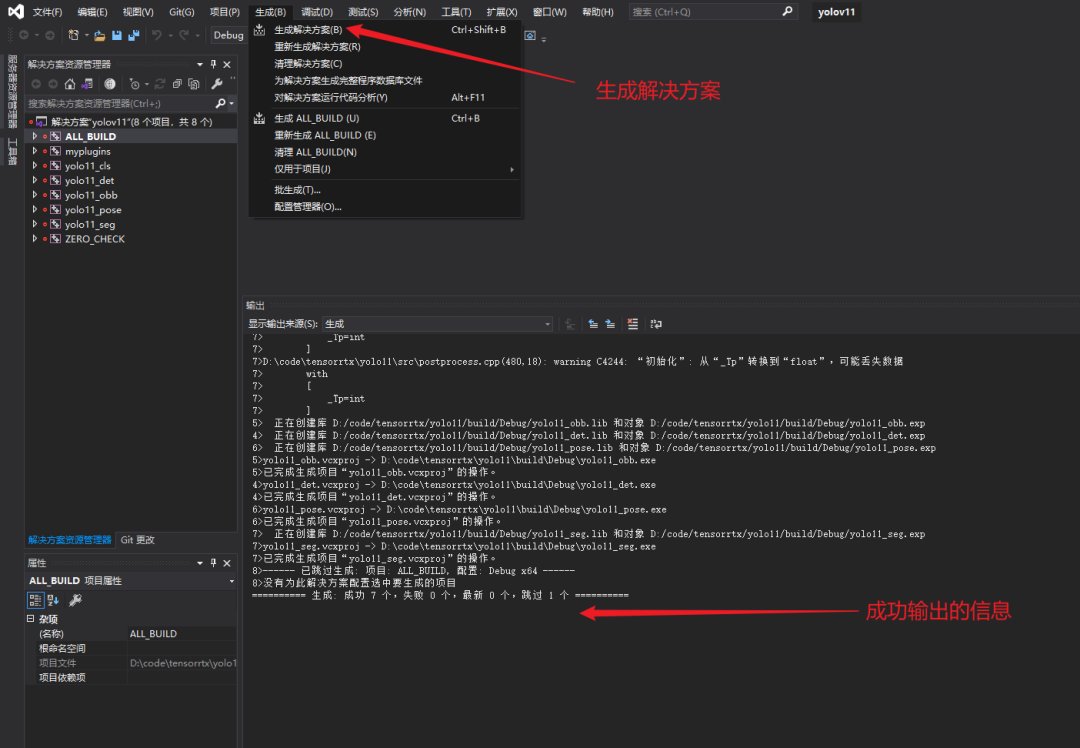

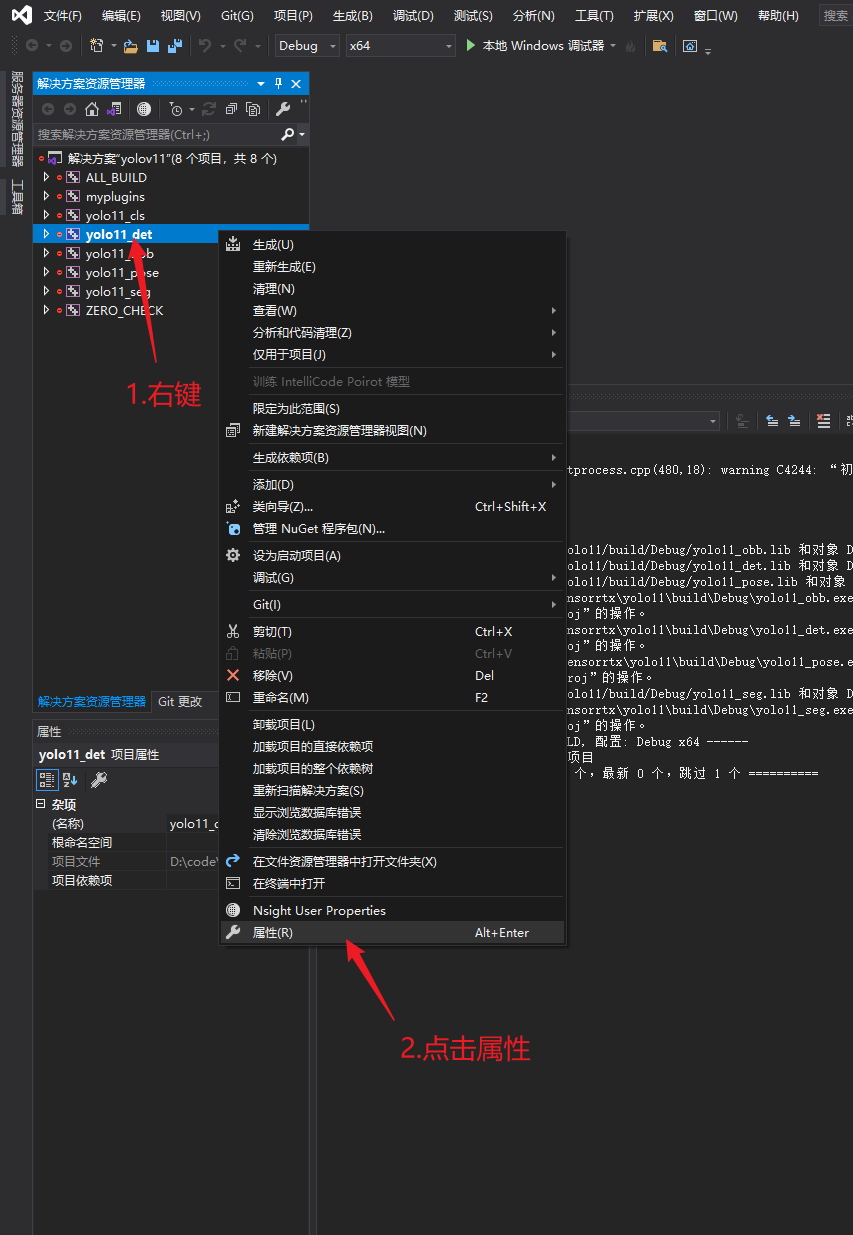

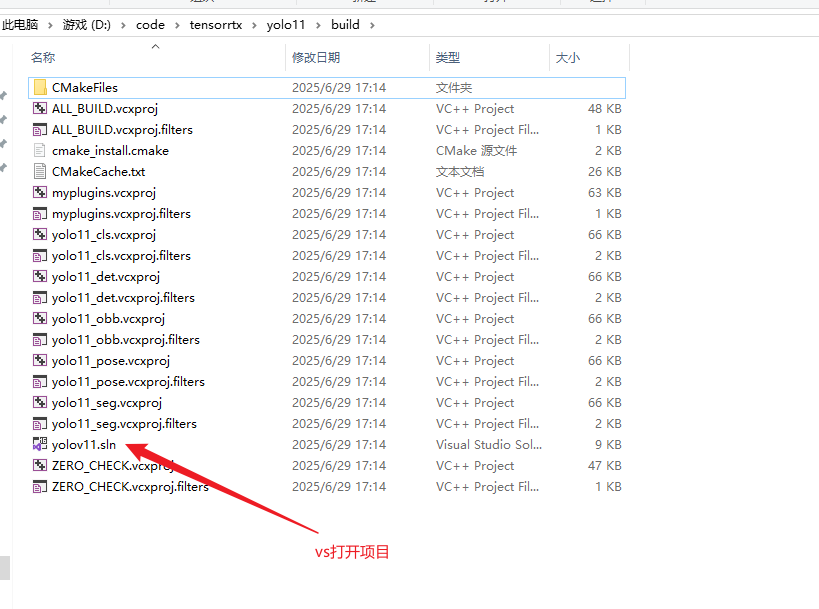

vs打开项目，生成解决方案

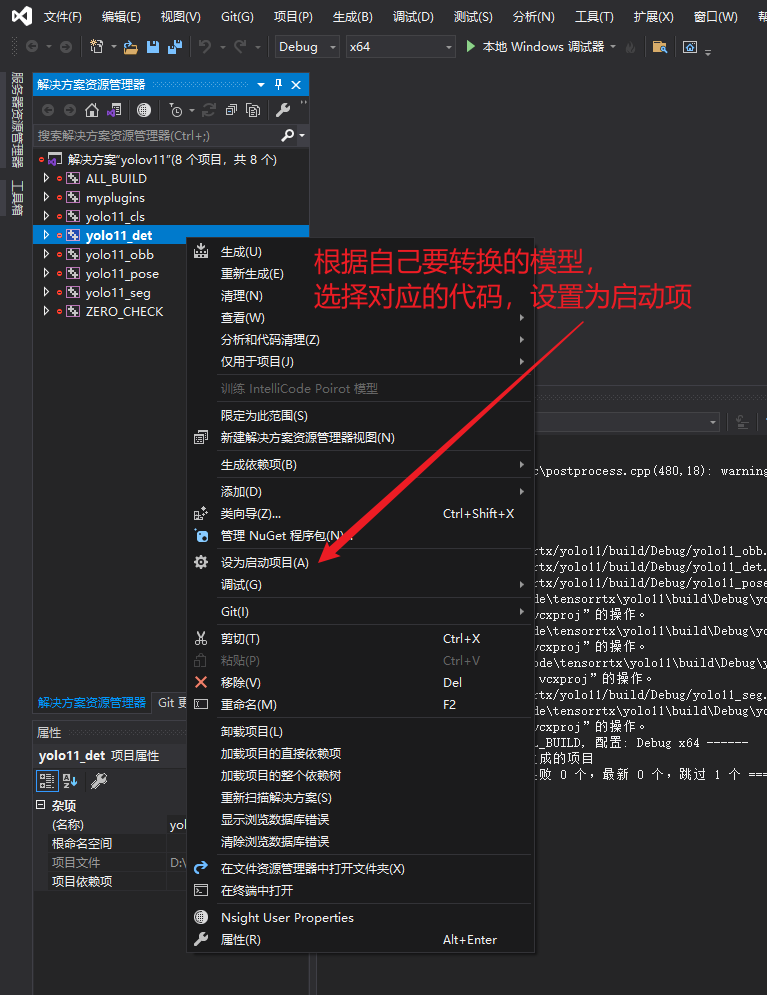

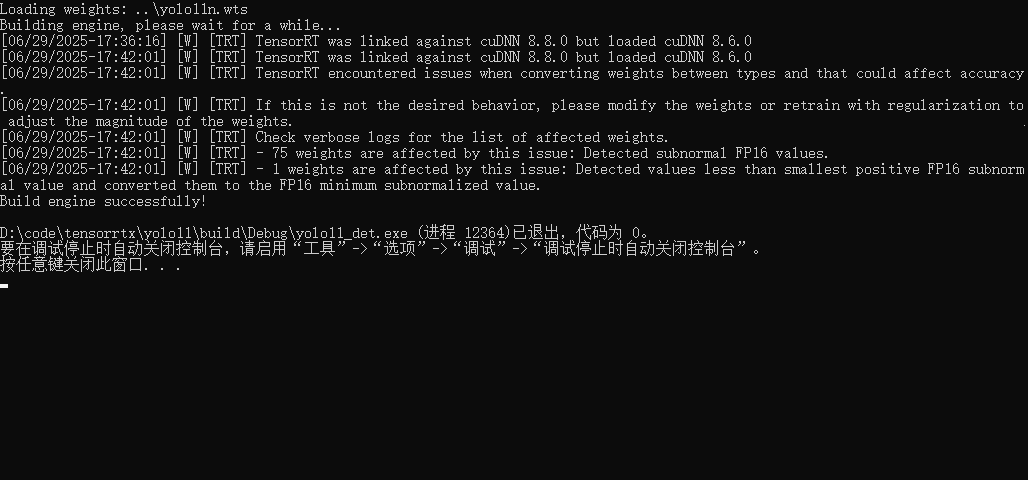

装换.wts为.engine

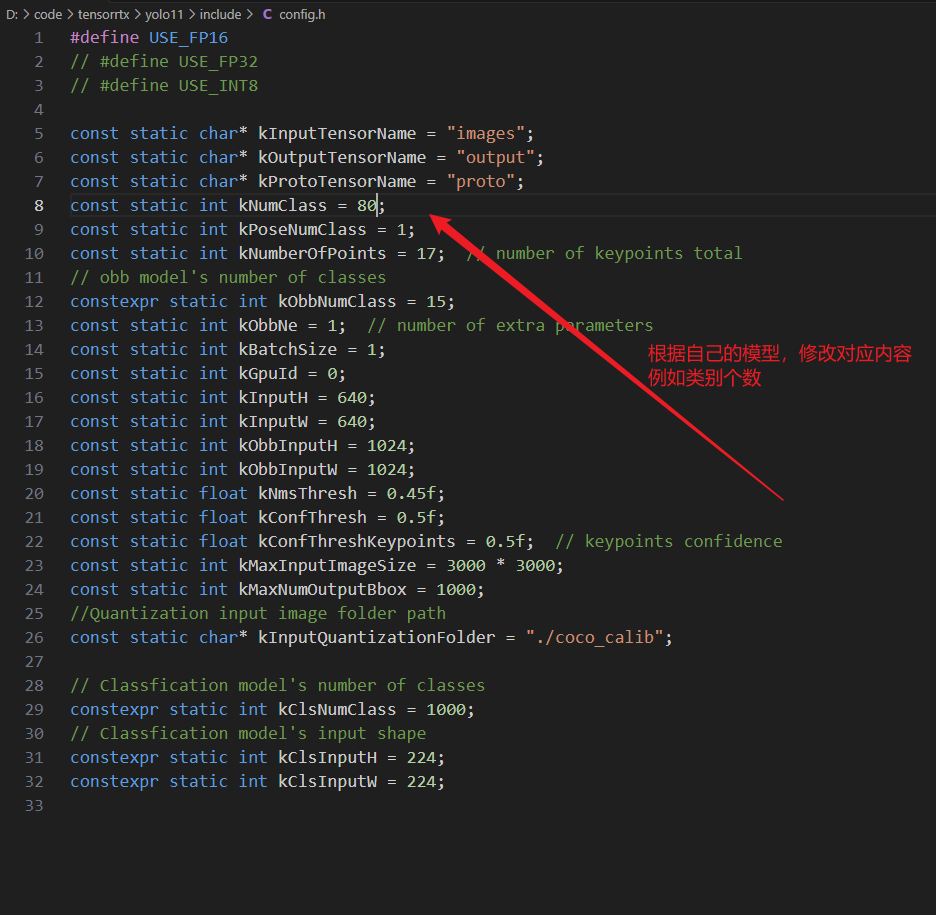

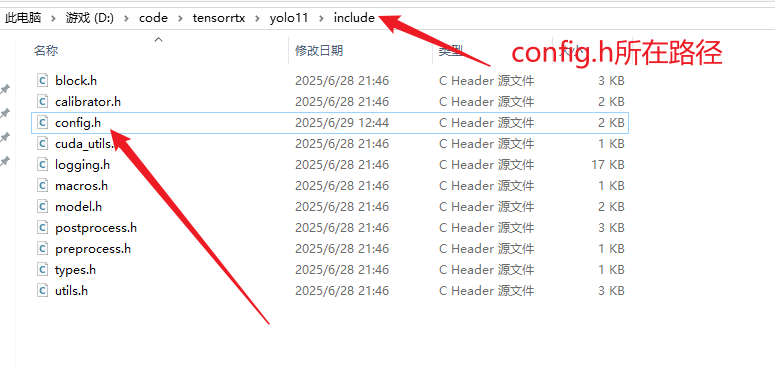

转换前，这里需要根据自己的模型，修改对应的配置，配置文件在以下位置

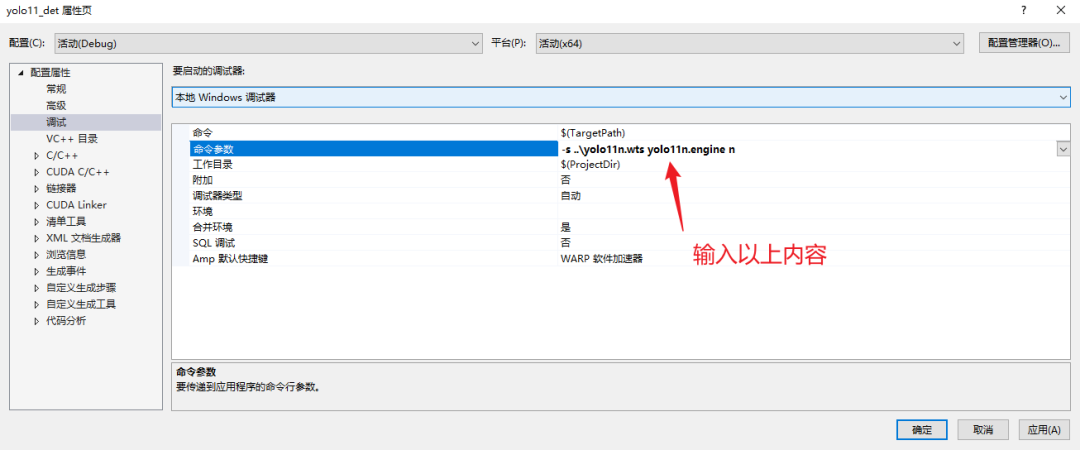

-s ..\yolo11n.wts yolo11n.engine n

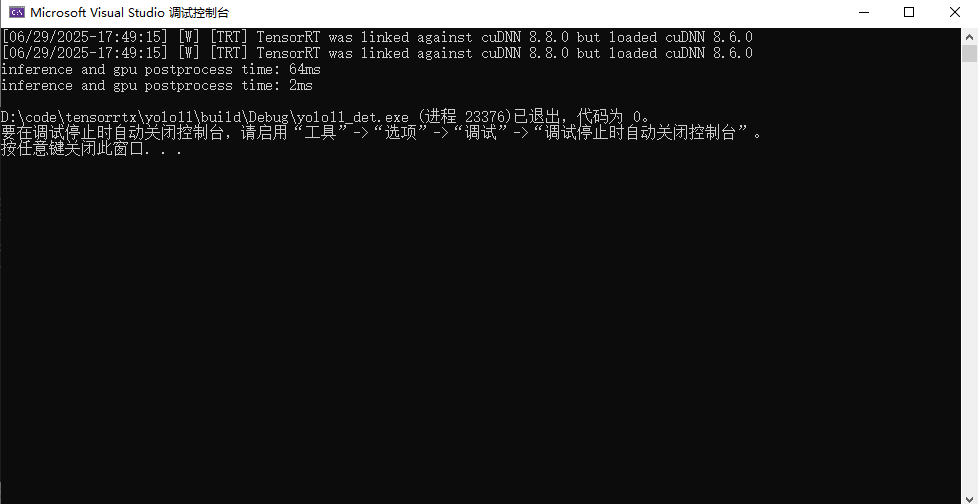

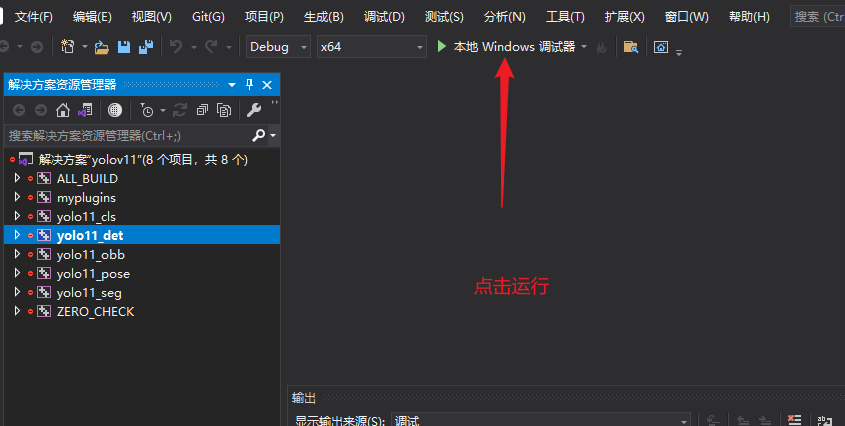

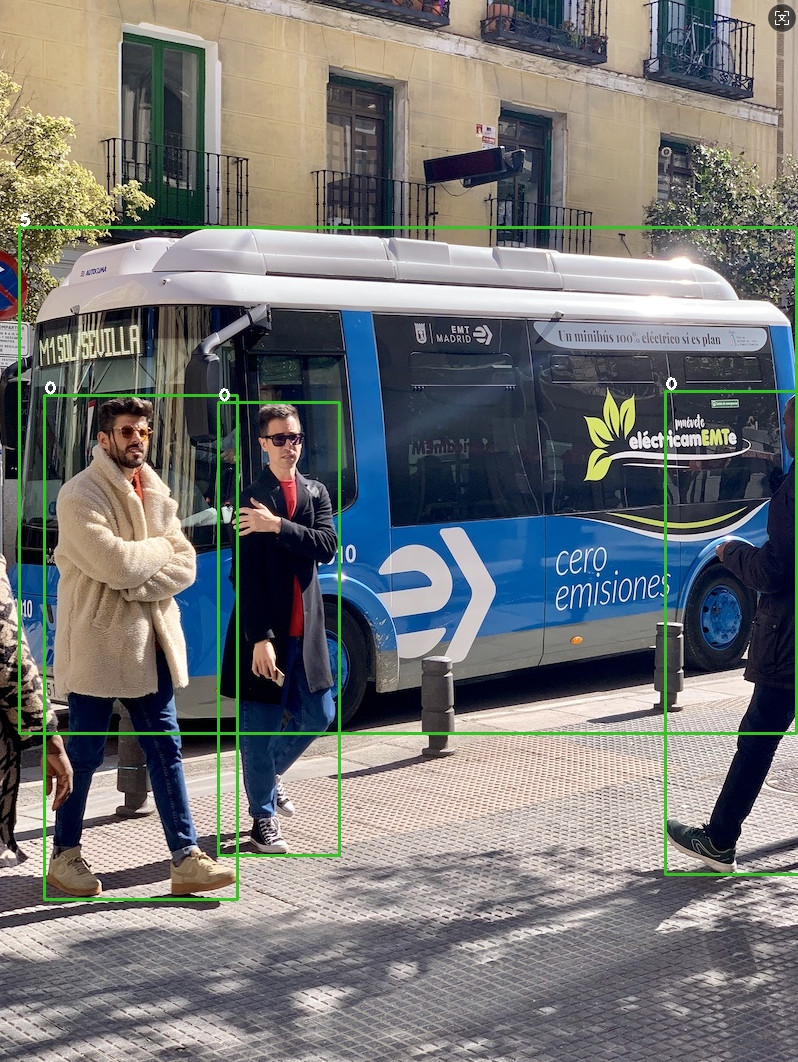

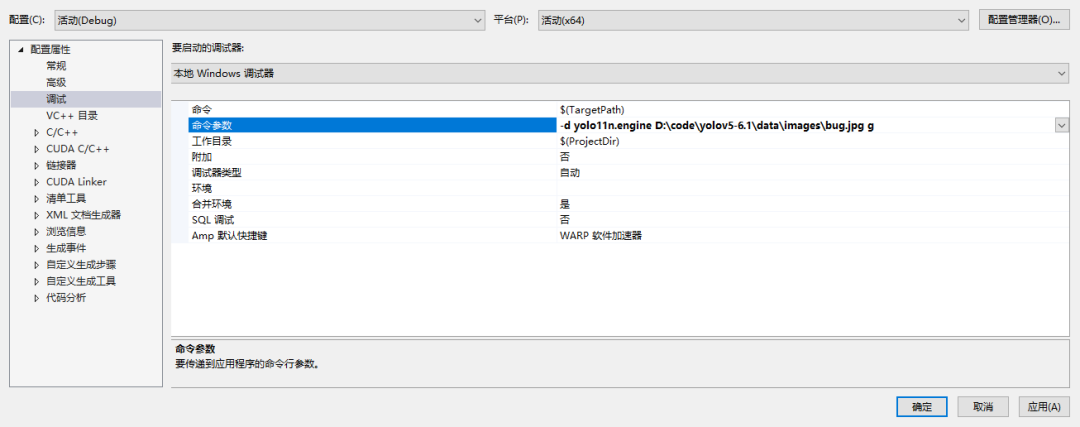

利用转换好的.engine进行推理


-d yolo11n.engine D:\code\yolov5-6.1\data\images g

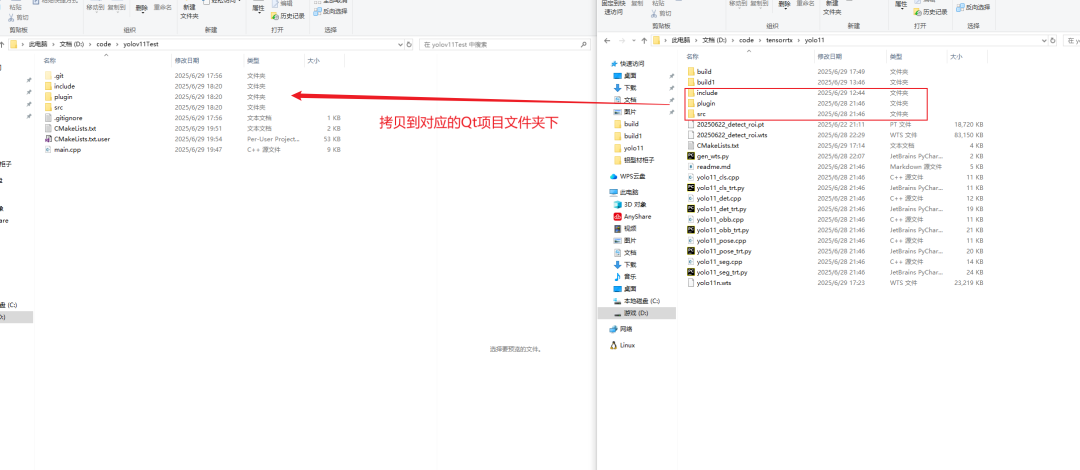

windows10下qt调用tensorrtx加速的yolov11进行检测

修改Qt项目中的cmakeList.txt文件如下：


cmake_minimum_required(VERSION 3.5)

project(yolov11Test LANGUAGES CXX)

add_definitions(-std=c++11)
add_definitions(-DAPI_EXPORTS)
add_compile_definitions(NOMINMAX)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

set(CMAKE_CUDA_ARCHITECTURES 70 75 80 86)
set(CMAKE_CUDA_COMPILER "C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8/bin/nvcc.exe")
enable_language(CUDA)

include_directories(${PROJECT_SOURCE_DIR}/include)
include_directories(${PROJECT_SOURCE_DIR}/plugin)

# cuda
find_package(CUDA REQUIRED)
include_directories(${CUDA_INCLUDE_DIRS})

# tensorrt
set(TRT_DIR "C:\\Program Files\\NVIDIA GPU Computing Toolkit\\CUDA\\TensorRT-8.6.0.12")
set(TRT_INCLUDE_DIRS ${TRT_DIR}\\include)
set(TRT_LIB_DIRS ${TRT_DIR}\\lib)
include_directories(${TRT_INCLUDE_DIRS})
link_directories(${TRT_LIB_DIRS})

# opencv
set(OpenCV_DIR "D:\\Program Files\\opencv\\build")
set(OpenCV_INCLUDE_DIRS ${OpenCV_DIR}\\include)
set(OpenCV_LIB_DIRS ${OpenCV_DIR}\\x64\\vc16\\lib)
set(OpenCV_Debug_LIBS "opencv_world4110d.lib")
set(OpenCV_Release_LIBS "opencv_world4110.lib")
include_directories(${OpenCV_INCLUDE_DIRS})
link_directories(${OpenCV_LIB_DIRS})

# dirent
set(Dirent_INCLUDE_DIRS "D:\\Program Files\\dirent\\include")
include_directories(${Dirent_INCLUDE_DIRS})

add_library(myplugins SHARED ${PROJECT_SOURCE_DIR}/plugin/yololayer.cu)
target_link_libraries(myplugins nvinfer cudart)

file(GLOB_RECURSE SRCS ${PROJECT_SOURCE_DIR}/src/*.cpp ${PROJECT_SOURCE_DIR}/src/*.cu)

add_executable(yolov11Test main.cpp ${SRCS})

target_link_libraries(yolov11Test nvinfer)
target_link_libraries(yolov11Test cudart)
target_link_libraries(yolov11Test myplugins)
target_link_libraries(yolov11Test ${OpenCV_Debug_LIBS})
target_link_libraries(yolov11Test ${OpenCV_Release_LIBS})

install(TARGETS yolov11Test
    LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}
    RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR}
)


main函数代码如下：


#include <fstream>
#include <iostream>
#include <opencv2/opencv.hpp>
#include "cuda_utils.h"
#include "logging.h"
#include "model.h"
#include "postprocess.h"
#include "preprocess.h"
#include "utils.h"

Logger gLogger;
using namespace nvinfer1;
const int kOutputSize = kMaxNumOutputBbox * sizeof(Detection) / sizeof(float) + 1;

void deserialize_engine(std::string& engine_name, IRuntime** runtime, ICudaEngine** engine, IExecutionContext** context)
{
    std::ifstream file(engine_name, std::ios::binary);
    if (!file.good())
    {
        std::cerr << "read " << engine_name << " error!" << std::endl;
        assert(false);
    }
    size_t size = 0;
    file.seekg(0, file.end);
    size = file.tellg();
    file.seekg(0, file.beg);
    char* serialized_engine = new char[size];
    assert(serialized_engine);
    file.read(serialized_engine, size);
    file.close();

    *runtime = createInferRuntime(gLogger);
    assert(*runtime);
    *engine = (*runtime)->deserializeCudaEngine(serialized_engine, size);
    assert(*engine);
    *context = (*engine)->createExecutionContext();
    assert(*context);
    delete[] serialized_engine;
}

void prepare_buffer(ICudaEngine* engine, float** input_buffer_device, float** output_buffer_device, float** output_buffer_host, float** decode_ptr_host, float** decode_ptr_device, std::string cuda_post_process)
{
    assert(engine->getNbBindings() == 2);
    // In order to bind the buffers, we need to know the names of the input and output tensors.
    // Note that indices are guaranteed to be less than IEngine::getNbBindings()
    const int inputIndex = engine->getBindingIndex(kInputTensorName);
    const int outputIndex = engine->getBindingIndex(kOutputTensorName);
    assert(inputIndex == 0);
    assert(outputIndex == 1);
    // Create GPU buffers on device
    CUDA_CHECK(cudaMalloc((void**)input_buffer_device, kBatchSize * 3 * kInputH * kInputW * sizeof(float)));
    CUDA_CHECK(cudaMalloc((void**)output_buffer_device, kBatchSize * kOutputSize * sizeof(float)));
    if (cuda_post_process == "c") {
        *output_buffer_host = new float[kBatchSize * kOutputSize];
    } else if (cuda_post_process == "g") {
        if (kBatchSize > 1) {
            std::cerr << "Do not yet support GPU post processing for multiple batches" << std::endl;
            exit(0);
        }
        // Allocate memory for decode_ptr_host and copy to device
        *decode_ptr_host = new float[1 + kMaxNumOutputBbox * bbox_element];
        CUDA_CHECK(cudaMalloc((void**)decode_ptr_device, sizeof(float) * (1 + kMaxNumOutputBbox * bbox_element)));
    }
}

void infer(IExecutionContext& context, cudaStream_t& stream, void** buffers, float* output, int batchsize,
           float* decode_ptr_host, float* decode_ptr_device, int model_bboxes, std::string cuda_post_process) {
    // infer on the batch asynchronously, and DMA output back to host
    auto start = std::chrono::system_clock::now();
    context.enqueueV2(buffers, stream, nullptr);
    if (cuda_post_process == "c") {
        CUDA_CHECK(cudaMemcpyAsync(output, buffers[1], batchsize * kOutputSize * sizeof(float), cudaMemcpyDeviceToHost,
                                   stream));
        auto end = std::chrono::system_clock::now();
        std::cout << "inference time: " << std::chrono::duration_cast<std::chrono::milliseconds>(end - start).count()
                  << "ms" << std::endl;
    } else if (cuda_post_process == "g") {
        CUDA_CHECK(
            cudaMemsetAsync(decode_ptr_device, 0, sizeof(float) * (1 + kMaxNumOutputBbox * bbox_element), stream));
        cuda_decode((float*)buffers[1], model_bboxes, kConfThresh, decode_ptr_device, kMaxNumOutputBbox, stream);
        cuda_nms(decode_ptr_device, kNmsThresh, kMaxNumOutputBbox, stream);  //cuda nms
        CUDA_CHECK(cudaMemcpyAsync(decode_ptr_host, decode_ptr_device,
                                   sizeof(float) * (1 + kMaxNumOutputBbox * bbox_element), cudaMemcpyDeviceToHost,
                                   stream));
        auto end = std::chrono::system_clock::now();
        std::cout << "inference and gpu postprocess time: "
                  << std::chrono::duration_cast<std::chrono::milliseconds>(end - start).count() << "ms" << std::endl;
    }

    CUDA_CHECK(cudaStreamSynchronize(stream));
}

int main(int argc, char** argv) {
    // yolo11_det -s ../models/yolo11n.wts ../models/yolo11n.fp32.trt n
    // yolo11_det -d ../models/yolo11n.fp32.trt ../images c
    cudaSetDevice(kGpuId);
    std::string engine_name= "D:\\code\\tensorrtx\\yolo11\\build\\yolo11n.engine"; //转换好的模型文件路径
    std::string img_dir= "D:\\code\\yolov5-6.1\\data\\images\\"; //要预测的图像文件夹所在路径
    std::string cuda_post_process = "g";
    int model_bboxes;
    float gd = 0, gw = 0;
    int max_channels = 0;

    // 反序列化模型文件 Deserialize the engine from file
    IRuntime* runtime = nullptr;
    ICudaEngine* engine = nullptr;
    IExecutionContext* context = nullptr;
    deserialize_engine(engine_name, &runtime, &engine, &context);
    cudaStream_t stream;
    CUDA_CHECK(cudaStreamCreate(&stream));
    cuda_preprocess_init(kMaxInputImageSize);
    auto out_dims = engine->getBindingDimensions(1);
    model_bboxes = out_dims.d[0];

    // 准备cpu和gpu缓存 Prepare cpu and gpu buffers
    float* device_buffers[2];
    float* output_buffer_host = nullptr;
    float* decode_ptr_host = nullptr;
    float* decode_ptr_device = nullptr;

    // 从文件夹中读取图像 Read images from directory
    std::vector<std::string> file_names;
    if (read_files_in_dir(img_dir.c_str(), file_names) < 0) {
        std::cerr << "read_files_in_dir failed." << std::endl;
        return -1;
    }

    prepare_buffer(engine, &device_buffers[0], &device_buffers[1], &output_buffer_host, &decode_ptr_host,
                   &decode_ptr_device, cuda_post_process);

    // 批预测batch predict
    for (size_t i = 0; i < file_names.size(); i += kBatchSize)
    {
        // 通过opencv读取一批图像Get a batch of images
        std::vector<cv::Mat> img_batch;
        std::vector<std::string> img_name_batch;
        for (size_t j = i; j < i + kBatchSize && j < file_names.size(); j++)
        {
            cv::Mat img = cv::imread(img_dir + "/" + file_names[j]);
            img_batch.push_back(img);
            img_name_batch.push_back(file_names[j]);
        }
        // Preprocess
        cuda_batch_preprocess(img_batch, device_buffers[0], kInputW, kInputH, stream);
        // 进行推理Run inference
        infer(*context, stream, (void**)device_buffers, output_buffer_host, kBatchSize, decode_ptr_host,
              decode_ptr_device, model_bboxes, cuda_post_process);
        // 保存output_buffer_host的前100个值，一行一个
        //        std::ofstream out("../models/output.txt");
        //        for (int j = 0; j < 100; j++) {
        //            out << output_buffer_host[j] << std::endl;
        //        }
        //        out.close();
        std::vector<std::vector<Detection>> res_batch;
        if (cuda_post_process == "c")
        {
            // NMS非极大值抑制
            batch_nms(res_batch, output_buffer_host, img_batch.size(), kOutputSize, kConfThresh, kNmsThresh);
        } else if (cuda_post_process == "g")
        {
            //GPU非极大值抑制Process gpu decode and nms results
            batch_process(res_batch, decode_ptr_host, img_batch.size(), bbox_element, img_batch);
        }

        // 绘制结果Draw bounding boxes
        draw_bbox(img_batch, res_batch);
        //显示图像
        for (size_t j = 0; j < img_batch.size(); j++)
        {
            cv::imshow("results", img_batch[j]);
            cv::waitKey(0);
        }

        // 保存图像Save images
        for (size_t j = 0; j < img_batch.size(); j++)
        {
            cv::imwrite("_" + img_name_batch[j], img_batch[j]);
        }
    }

    // Release stream and buffers
    cudaStreamDestroy(stream);
    CUDA_CHECK(cudaFree(device_buffers[0]));
    CUDA_CHECK(cudaFree(device_buffers[1]));
    CUDA_CHECK(cudaFree(decode_ptr_device));
    delete[] decode_ptr_host;
    delete[] output_buffer_host;
    cuda_preprocess_destroy();
    // Destroy the engine
    delete context;
    delete engine;
    delete runtime;

    // Print histogram of the output distribution
    //std::cout << "\nOutput:\n\n";
    //for (unsigned int i = 0; i < kOutputSize; i++)
    //{
    //    std::cout << prob[i] << ", ";
    //    if (i % 10 == 0) std::cout << std::endl;
    //}
    //std::cout << std::endl;

    return 0;
}


机器学习算法AI大数据技术

搜索公众号添加： datanlp

长按图片，识别二维码

阅读过本文的人还看了以下文章：

实时语义分割ENet算法，提取书本/票据边缘

整理开源的中文大语言模型，以规模较小、可私有化部署、训练成本较低的模型为主

《大语言模型》PDF下载

动手学深度学习-（李沐）PyTorch版本

YOLOv9电动车头盔佩戴检测，详细讲解模型训练

TensorFlow 2.0深度学习案例实战

基于40万表格数据集TableBank，用MaskRCNN做表格检测

《基于深度学习的自然语言处理》中/英PDF

Deep Learning 中文版初版-周志华团队

【全套视频课】最全的目标检测算法系列讲解，通俗易懂！

《美团机器学习实践》_美团算法团队.pdf

《深度学习入门：基于Python的理论与实现》高清中文PDF+源码

《深度学习：基于Keras的Python实践》PDF和代码

特征提取与图像处理(第二版).pdf

python就业班学习视频，从入门到实战项目

2019最新《PyTorch自然语言处理》英、中文版PDF+源码

《21个项目玩转深度学习：基于TensorFlow的实践详解》完整版PDF+附书代码

《深度学习之pytorch》pdf+附书源码

PyTorch深度学习快速实战入门《pytorch-handbook》

【下载】豆瓣评分8.1,《机器学习实战:基于Scikit-Learn和TensorFlow》

《Python数据分析与挖掘实战》PDF+完整源码

汽车行业完整知识图谱项目实战视频(全23课)

李沐大神开源《动手学深度学习》，加州伯克利深度学习（2019春）教材

笔记、代码清晰易懂！李航《统计学习方法》最新资源全套！

《神经网络与深度学习》最新2018版中英PDF+源码

将机器学习模型部署为REST API

FashionAI服装属性标签图像识别Top1-5方案分享

重要开源！CNN-RNN-CTC 实现手写汉字识别

yolo3 检测出图像中的不规则汉字

同样是机器学习算法工程师，你的面试为什么过不了？

前海征信大数据算法：风险概率预测

【Keras】完整实现‘交通标志’分类、‘票据’分类两个项目，让你掌握深度学习图像分类

VGG16迁移学习，实现医学图像识别分类工程项目

特征工程(一)

特征工程(二) :文本数据的展开、过滤和分块

特征工程(三):特征缩放,从词袋到 TF-IDF

特征工程(四): 类别特征

特征工程(五): PCA 降维

特征工程(六): 非线性特征提取和模型堆叠

特征工程(七)：图像特征提取和深度学习

如何利用全新的决策树集成级联结构gcForest做特征工程并打分？

Machine Learning Yearning 中文翻译稿

蚂蚁金服2018秋招-算法工程师（共四面）通过

全球AI挑战-场景分类的比赛源码(多模型融合)

斯坦福CS230官方指南：CNN、RNN及使用技巧速查（打印收藏）

python+flask搭建CNN在线识别手写中文网站

中科院Kaggle全球文本匹配竞赛华人第1名团队-深度学习与特征工程

不断更新资源

深度学习、机器学习、数据分析、python

搜索公众号添加： datayx
