经典面试题之HashMap(一)

火山方舟向量数据库大模型

picture.image

一 HashMap的loadFactor为什么是0.75?

先说一下什么是loadFactor :

loadFactor即装载因子,装载因子的计算公式是: 散列表的装载因子 = 填入表中的元素个数 / 散列表长度 ,如果有人问你0.75的分子分母是什么,依据这个公式回答就可以了。一般情况下,我们会尽可能保证散列表中有一定比例的空闲槽位。我们用装载因子来表示空位的多少。

装载因子越大,说明空闲位置越少,冲突越多,散列表的性能会下降 。所以如果装载因子是1,显然不合适。

那如果是0.5呢? 如果是0.5 , 那么每次达到容量的一半就进行扩容,默认容量是16, 达到8就扩容成32,达到16就扩容成64, 最终使用空间和未使用空间的差值会逐渐增加,空间利用率低下,也不合适。

那为什么是0.75?

我们来看看源码注释


 * Because TreeNodes are about twice the size of regular nodes, we
 * use them only when bins contain enough nodes to warrant use
 * (see TREEIFY_THRESHOLD). And when they become too small (due to
 * removal or resizing) they are converted back to plain bins. In
 * usages with well-distributed user hashCodes, tree bins are
 * rarely used. Ideally, under random hashCodes, the frequency of
 * nodes in bins follows a Poisson distribution
 * (http://en.wikipedia.org/wiki/Poisson_distribution) with a
 * parameter of about 0.5 on average for the default resizing
 * threshold of 0.75, although with a large variance because of
 * resizing granularity. Ignoring variance, the expected
 * occurrences of list size k are (exp(-0.5) * pow(0.5, k) /
 * factorial(k)). The first values are:
 *
 * 0: 0.60653066
 * 1: 0.30326533
 * 2: 0.07581633
 * 3: 0.01263606
 * 4: 0.00157952
 * 5: 0.00015795
 * 6: 0.00001316
 * 7: 0.00000094
 * 8: 0.00000006
 * more: less than 1 in ten million

你可能看过注释或听说过泊松分布,如果不知道的,可以看这里(http://www.ruanyifeng.com/blog/2015/06/poisson-distribution.html#comment-356111)简单学习一下。不过上面这段注释 没有解释load factory默认值是0.75的原因 ,而是说load factor的值会影响泊松分布PMF函数公式中的参数λ的值。例如load factor=0.75f时λ=0.5。按照泊松分布公式来看,期望放入bin中数据的数量k=8,e是一个无理常数,λ的值受load factor的值的影响。

picture.image

DEFAULT_LOAD_FACTOR =0.75f的真正原因是什么?

我们还是回到源码注释中,来看这一段:


* <p>As a general rule, the default load factor (.75) offers a good
 * tradeoff between time and space costs. Higher values decrease the
 * space overhead but increase the lookup cost (reflected in most of
 * the operations of the <tt>HashMap</tt> class, including
 * <tt>get</tt> and <tt>put</tt>). The expected number of entries in
 * the map and its load factor should be taken into account when
 * setting its initial capacity, so as to minimize the number of
 * rehash operations. If the initial capacity is greater than the
 * maximum number of entries divided by the load factor, no rehash
 * operations will ever occur.

简单翻译下:

通常,默认负载因子(.75)在时间和空间成本之间提供了一个很好的权衡。较高的值会减少空间开销,但会增加查找成本(在HashMap类的大多数操作中都得到体现,包括get和put)。设置其初始容量时,应考虑映射中的预期条目数及其负载因子,以最大程度地减少重新哈希操作的数量。如果初始容量大于最大条目数除以负载因子,则不会发生任何哈希操作。

所以,0.75只是一个折中的选择,和泊松分布没有什么关系

再有,根据HashMap的扩容机制 capacity 是2的幂,我们用 loadFactor * capacity 的结果就正好是一个整数,所以从这个角度来说0.75也是比较合适的。

二 HashMap的数据结构是什么?

jdk1.7 是数组+链表的结构 ,jdk1.8是数组+链表+红黑树

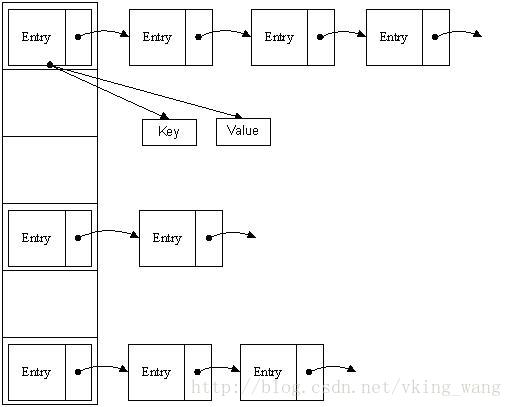

如图所示,为1.7版本的

picture.image

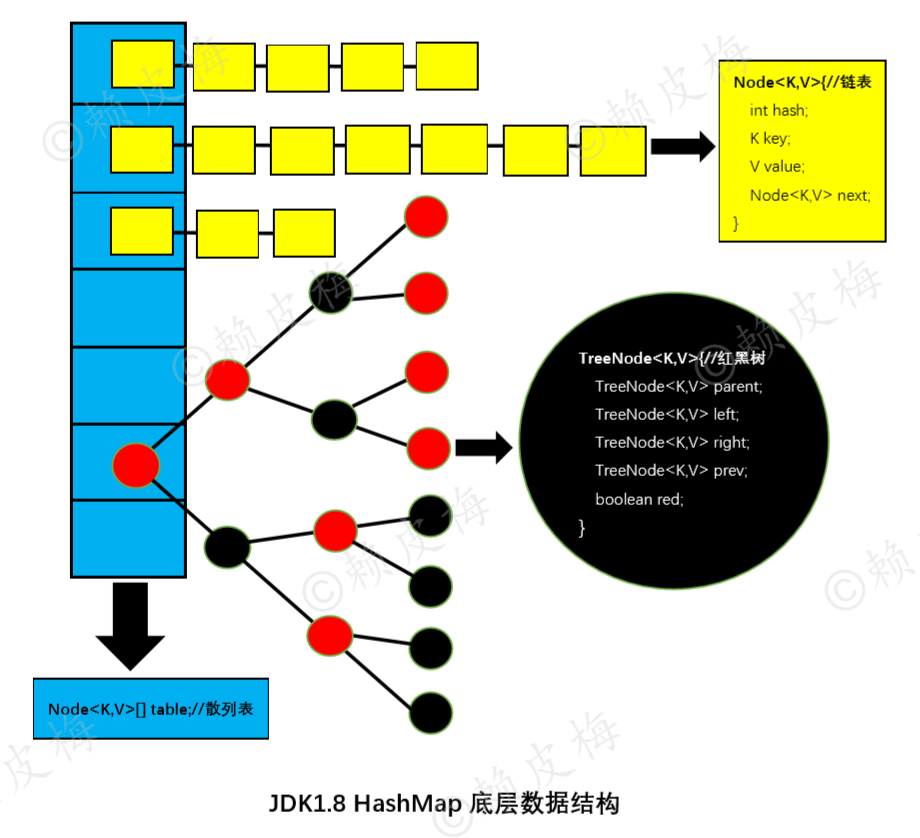

下图为1.8版本的:

picture.image

在jdk1.8之后,HashMap初始化的时候也是线性表+链表,只是当 链表的长度超过一定数量之后,会把链表转换成红黑树来增加代码运行时的性能 。在源码中用TREEIFY_THRESHOLD这个参数来指定这个数量。

TREEIFY_THRESHOLD的值为8。


/**
 * The bin count threshold for using a tree rather than list for a
 * bin. Bins are converted to trees when adding an element to a
 * bin with at least this many nodes. The value must be greater
 * than 2 and should be at least 8 to mesh with assumptions in
 * tree removal about conversion back to plain bins upon
 * shrinkage.
 */
 static final int TREEIFY_THRESHOLD = 8;
/**
 * The bin count threshold for untreeifying a (split) bin during a
 * resize operation. Should be less than TREEIFY_THRESHOLD, and at
 * most 6 to mesh with shrinkage detection under removal.
 */
 static final int UNTREEIFY_THRESHOLD = 6;

我们注意到上面源码注释中还有一个值 UNTREEIFY_THRESHOLD,它是一个 红黑树到链表的还原阈值 ,当扩容时,桶中元素个数小于这个值,就会把树形的桶元素 还原(切分)为链表结构。把时间复杂度从O(n)变成O(logN)提高了效率)

那么,为什么是8和6这两个数字?

如果选择6和8(如果链表小于等于6树还原转为链表,大于等于8转为树),中间有个差值7可以有效防止链表和树频繁转换。假设一下,如果设计成链表个数超过8则链表转换成树结构,链表个数小于8则树结构转换成链表,如果一个HashMap不停的插入、删除元素,链表个数在8左右徘徊,就会频繁的发生树转链表、链表转树,效率会很低。

那8是怎么来的?

还记得上文说的泊松分布吗?我们把源码注释再拿来看一看


* Because TreeNodes are about twice the size of regular nodes, we
 * use them only when bins contain enough nodes to warrant use
 * (see TREEIFY_THRESHOLD). And when they become too small (due to
 * removal or resizing) they are converted back to plain bins. In
 * usages with well-distributed user hashCodes, tree bins are
 * rarely used. Ideally, under random hashCodes, the frequency of
 * nodes in bins follows a Poisson distribution
 * (http://en.wikipedia.org/wiki/Poisson_distribution) with a
 * parameter of about 0.5 on average for the default resizing
 * threshold of 0.75, although with a large variance because of
 * resizing granularity. Ignoring variance, the expected
 * occurrences of list size k are (exp(-0.5) * pow(0.5, k) /
 * factorial(k)). The first values are:
 *
 * 0: 0.60653066
 * 1: 0.30326533
 * 2: 0.07581633
 * 3: 0.01263606
 * 4: 0.00157952
 * 5: 0.00015795
 * 6: 0.00001316
 * 7: 0.00000094
 * 8: 0.00000006
 * more: less than 1 in ten million

我们用白话文翻译一下,大概意思就是说:

因为树结构是链表结构的两倍大小左右,所以当节点足够多的时候我们才会转换为树结构存储,而当它节点足够少的时候,我们又从树结构转换为链表结构。当使用良好的哈希码时,树结构是很少使用到的,理想的情况下,在随机的哈希码下,节点在链表中出现的频率符合泊松分布,在数组调整阈值为0.75的时候,该泊松分布的平均参数约为0.5,因为数组调整的阈值大小对平均参数有很大影响。如果忽略这个影响,列表长度k出现的次数按照泊松分布依次为:

0: 0.60653066;

1: 0.30326533;

2: 0.07581633;

3: 0.01263606;

4: 0.00157952;

5: 0.00015795;

6: 0.00001316;

7: 0.00000094;

8: 0.00000006;

更大:不足千万分之一;

因为长度出现8的概率已经足够足够小了,所以说,按照泊松分布,大部分的HashMap其实还是数组+链表结果,不会转换为红黑树。当链表长度为8的时候,概率的计算,就是把8带入到公式中,因为默认调整阈值是0.75的时候,平均值是0.5,所以,求得的概率即为链表长度为8的概率。

总结 :容器中节点分布在hash桶中的频率遵循泊松分布,桶的长度超过8的概率非常非常小。所以作者应该是根据概率统计而选择了8作为阀值。

picture.image
