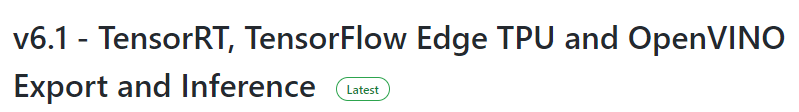

YOLOV5 v6.1更新 | TensorRT+TPU+OpenVINO+TFJS+TFLite等平台一键导出和部署

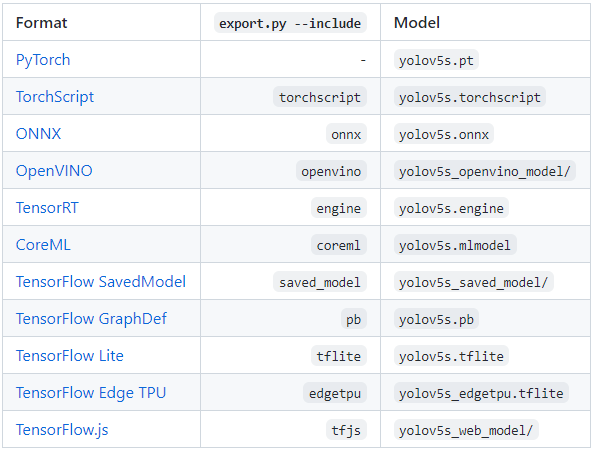

yolov5 release 6.1版本增加了TensorRT、Edge TPU和OpenVINO的支持，并提供了新的默认单周期线性LR调度器，以128批处理大小的再训练模型。YOLOv5现在正式支持11种不同的权重，不仅可以直接导出，还可以用于推理(detect.py和PyTorch Hub)，以及在导出后对mAP配置文件和速度结果进行验证。

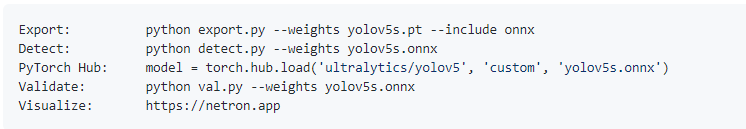

比如，onnx文件的导出：

onnx导出

1

重大更新

• TensorRT支持 :TensorFlow, Keras, TFLite, TF.js模型导出现在完全集成使用python export.py -include saved_model pb TFLite tfjs
• TensorFlow Edge TPU :新的更小的YOLOv5n(1.9M params)模型低于YOLOv5s(7.5M params)，导出到2.1 MB INT8大小，理想的超轻边缘解决方案。
• OpenVINO支持 :YOLOv5 ONNX模型现在兼容OpenCV DNN和ONNX运行。
• Export Benchmarks :使用python utils/ Benchmark.py导出所有YOLOv5格式(mAP和速度)。目前在CPU上运行，未来的更新将实现GPU支持。
• 架构 :无更改。
• 超参数 :小更改。Yaml LRF从0.2降至0.1。
• 训练 :默认学习速率(LR)调度器更新了一个周期的余弦替换为一个周期的线性，以改善结果。

新版模型导出

1、onnx



def export\_onnx(model, im, file, opset, train, dynamic, simplify, prefix=colorstr('ONNX:')):
    # YOLOv5 ONNX export
    try:
        check_requirements(('onnx',))
        import onnx

        LOGGER.info(f'\n{prefix} starting export with onnx {onnx.\_\_version\_\_}...')
        f = file.with_suffix('.onnx')

        torch.onnx.export(model, im, f, verbose=False, opset_version=opset,
                          training=torch.onnx.TrainingMode.TRAINING if train else torch.onnx.TrainingMode.EVAL,
                          do_constant_folding=not train,
                          input_names=['images'],
                          output_names=['output'],
                          dynamic_axes={'images': {0: 'batch', 2: 'height', 3: 'width'},  # shape(1,3,640,640)
                                        'output': {0: 'batch', 1: 'anchors'}  # shape(1,25200,85)
                                        } if dynamic else None)

        # Checks
        model_onnx = onnx.load(f)  # load onnx model
        onnx.checker.check_model(model_onnx)  # check onnx model
        # LOGGER.info(onnx.helper.printable\_graph(model\_onnx.graph))  # print

        # Simplify
        if simplify:
            try:
                check_requirements(('onnx-simplifier',))
                import onnxsim

                LOGGER.info(f'{prefix} simplifying with onnx-simplifier {onnxsim.\_\_version\_\_}...')
                model_onnx, check = onnxsim.simplify(
                    model_onnx,
                    dynamic_input_shape=dynamic,
                    input_shapes={'images': list(im.shape)} if dynamic else None)
                assert check, 'assert check failed'
                onnx.save(model_onnx, f)
            except Exception as e:
                LOGGER.info(f'{prefix} simplifier failure: {e}')
        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'{prefix} export failure: {e}')



2、 openvino



def export\_openvino(model, im, file, prefix=colorstr('OpenVINO:')):
    # YOLOv5 OpenVINO export
    try:
        check_requirements(('openvino-dev',))  # requires openvino-dev: https://pypi.org/project/openvino-dev/
        import openvino.inference_engine as ie

        LOGGER.info(f'\n{prefix} starting export with openvino {ie.\_\_version\_\_}...')
        f = str(file).replace('.pt', '\_openvino\_model' + os.sep)

        cmd = f"mo --input\_model {file.with\_suffix('.onnx')} --output\_dir {f}"
        subprocess.check_output(cmd, shell=True)

        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



3、 coreml



def export\_coreml(model, im, file, prefix=colorstr('CoreML:')):
    # YOLOv5 CoreML export
    try:
        check_requirements(('coremltools',))
        import coremltools as ct

        LOGGER.info(f'\n{prefix} starting export with coremltools {ct.\_\_version\_\_}...')
        f = file.with_suffix('.mlmodel')

        ts = torch.jit.trace(model, im, strict=False)  # TorchScript model
        ct_model = ct.convert(ts, inputs=[ct.ImageType('image', shape=im.shape, scale=1 / 255, bias=[0, 0, 0])])
        ct_model.save(f)

        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return ct_model, f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')
        return None, None




4、TensorRT



def export\_engine(model, im, file, train, half, simplify, workspace=4, verbose=False, prefix=colorstr('TensorRT:')):
    # YOLOv5 TensorRT export https://developer.nvidia.com/tensorrt
    try:
        check_requirements(('tensorrt',))
        import tensorrt as trt

        if trt.__version__[0] == '7':  # TensorRT 7 handling https://github.com/ultralytics/yolov5/issues/6012
            grid = model.model[-1].anchor_grid
            model.model[-1].anchor_grid = [a[..., :1, :1, :] for a in grid]
            export_onnx(model, im, file, 12, train, False, simplify)  # opset 12
            model.model[-1].anchor_grid = grid
        else:  # TensorRT >= 8
            check_version(trt.__version__, '8.0.0', hard=True)  # require tensorrt>=8.0.0
            export_onnx(model, im, file, 13, train, False, simplify)  # opset 13
        onnx = file.with_suffix('.onnx')

        LOGGER.info(f'\n{prefix} starting export with TensorRT {trt.\_\_version\_\_}...')
        assert im.device.type != 'cpu', 'export running on CPU but must be on GPU, i.e. `python export.py --device 0`'
        assert onnx.exists(), f'failed to export ONNX file: {onnx}'
        f = file.with_suffix('.engine')  # TensorRT engine file
        logger = trt.Logger(trt.Logger.INFO)
        if verbose:
            logger.min_severity = trt.Logger.Severity.VERBOSE

        builder = trt.Builder(logger)
        config = builder.create_builder_config()
        config.max_workspace_size = workspace * 1 << 30

        flag = (1 << int(trt.NetworkDefinitionCreationFlag.EXPLICIT_BATCH))
        network = builder.create_network(flag)
        parser = trt.OnnxParser(network, logger)
        if not parser.parse_from_file(str(onnx)):
            raise RuntimeError(f'failed to load ONNX file: {onnx}')

        inputs = [network.get_input(i) for i in range(network.num_inputs)]
        outputs = [network.get_output(i) for i in range(network.num_outputs)]
        LOGGER.info(f'{prefix} Network Description:')
        for inp in inputs:
            LOGGER.info(f'{prefix}\tinput "{inp.name}" with shape {inp.shape} and dtype {inp.dtype}')
        for out in outputs:
            LOGGER.info(f'{prefix}\toutput "{out.name}" with shape {out.shape} and dtype {out.dtype}')

        half &= builder.platform_has_fast_fp16
        LOGGER.info(f'{prefix} building FP{16 if half else 32} engine in {f}')
        if half:
            config.set_flag(trt.BuilderFlag.FP16)
        with builder.build_engine(network, config) as engine, open(f, 'wb') as t:
            t.write(engine.serialize())
        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



5、TensorFlow



def export\_pb(keras\_model, im, file, prefix=colorstr('TensorFlow GraphDef:')):
    # YOLOv5 TensorFlow GraphDef *.pb export https://github.com/leimao/Frozen\_Graph\_TensorFlow
    try:
        import tensorflow as tf
        from tensorflow.python.framework.convert_to_constants import convert_variables_to_constants_v2

        LOGGER.info(f'\n{prefix} starting export with tensorflow {tf.\_\_version\_\_}...')
        f = file.with_suffix('.pb')

        m = tf.function(lambda x: keras_model(x))  # full model
        m = m.get_concrete_function(tf.TensorSpec(keras_model.inputs[0].shape, keras_model.inputs[0].dtype))
        frozen_func = convert_variables_to_constants_v2(m)
        frozen_func.graph.as_graph_def()
        tf.io.write_graph(graph_or_graph_def=frozen_func.graph, logdir=str(f.parent), name=f.name, as_text=False)

        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



6、TensorFlow-Lite



def export\_tflite(keras\_model, im, file, int8, data, ncalib, prefix=colorstr('TensorFlow Lite:')):
    # YOLOv5 TensorFlow Lite export
    try:
        import tensorflow as tf

        LOGGER.info(f'\n{prefix} starting export with tensorflow {tf.\_\_version\_\_}...')
        batch_size, ch, *imgsz = list(im.shape)  # BCHW
        f = str(file).replace('.pt', '-fp16.tflite')

        converter = tf.lite.TFLiteConverter.from_keras_model(keras_model)
        converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS]
        converter.target_spec.supported_types = [tf.float16]
        converter.optimizations = [tf.lite.Optimize.DEFAULT]
        if int8:
            from models.tf import representative_dataset_gen
            dataset = LoadImages(check_dataset(data)['train'], img_size=imgsz, auto=False)  # representative data
            converter.representative_dataset = lambda: representative_dataset_gen(dataset, ncalib)
            converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]
            converter.target_spec.supported_types = []
            converter.inference_input_type = tf.uint8  # or tf.int8
            converter.inference_output_type = tf.uint8  # or tf.int8
            converter.experimental_new_quantizer = False
            f = str(file).replace('.pt', '-int8.tflite')

        tflite_model = converter.convert()
        open(f, "wb").write(tflite_model)
        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



7、Egde TPU



def export\_edgetpu(keras\_model, im, file, prefix=colorstr('Edge TPU:')):
    # YOLOv5 Edge TPU export https://coral.ai/docs/edgetpu/models-intro/
    try:
        cmd = 'edgetpu\_compiler --version'
        help_url = 'https://coral.ai/docs/edgetpu/compiler/'
        assert platform.system() == 'Linux', f'export only supported on Linux. See {help\_url}'
        if subprocess.run(cmd + ' >/dev/null', shell=True).returncode != 0:
            LOGGER.info(f'\n{prefix} export requires Edge TPU compiler. Attempting install from {help\_url}')
            sudo = subprocess.run('sudo --version >/dev/null', shell=True).returncode == 0  # sudo installed on system
            for c in ['curl https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add -',
                      'echo "deb https://packages.cloud.google.com/apt coral-edgetpu-stable main" | sudo tee /etc/apt/sources.list.d/coral-edgetpu.list',
                      'sudo apt-get update',
                      'sudo apt-get install edgetpu-compiler']:
                subprocess.run(c if sudo else c.replace('sudo ', ''), shell=True, check=True)
        ver = subprocess.run(cmd, shell=True, capture_output=True, check=True).stdout.decode().split()[-1]

        LOGGER.info(f'\n{prefix} starting export with Edge TPU compiler {ver}...')
        f = str(file).replace('.pt', '-int8\_edgetpu.tflite')  # Edge TPU model
        f_tfl = str(file).replace('.pt', '-int8.tflite')  # TFLite model

        cmd = f"edgetpu\_compiler -s {f\_tfl}"
        subprocess.run(cmd, shell=True, check=True)

        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



8、TensorFlow.js



def export\_tfjs(keras\_model, im, file, prefix=colorstr('TensorFlow.js:')):
    # YOLOv5 TensorFlow.js export
    try:
        check_requirements(('tensorflowjs',))
        import re

        import tensorflowjs as tfjs

        LOGGER.info(f'\n{prefix} starting export with tensorflowjs {tfjs.\_\_version\_\_}...')
        f = str(file).replace('.pt', '\_web\_model')  # js dir
        f_pb = file.with_suffix('.pb')  # *.pb path
        f_json = f + '/model.json'  # *.json path

        cmd = f'tensorflowjs\_converter --input\_format=tf\_frozen\_model ' \
              f'--output\_node\_names="Identity,Identity\_1,Identity\_2,Identity\_3" {f\_pb} {f}'
        subprocess.run(cmd, shell=True)

        json = open(f_json).read()
        with open(f_json, 'w') as j:  # sort JSON Identity\_* in ascending order
            subst = re.sub(
                r'{"outputs": {"Identity.?.?": {"name": "Identity.?.?"}, '
                r'"Identity.?.?": {"name": "Identity.?.?"}, '
                r'"Identity.?.?": {"name": "Identity.?.?"}, '
                r'"Identity.?.?": {"name": "Identity.?.?"}}}',
                r'{"outputs": {"Identity": {"name": "Identity"}, '
                r'"Identity\_1": {"name": "Identity\_1"}, '
                r'"Identity\_2": {"name": "Identity\_2"}, '
                r'"Identity\_3": {"name": "Identity\_3"}}}',
                json)
            j.write(subst)

        LOGGER.info(f'{prefix} export success, saved as {f} ({file\_size(f):.1f} MB)')
        return f
    except Exception as e:
        LOGGER.info(f'\n{prefix} export failure: {e}')



新版检测推理



python path/to/detect.py --weights yolov5s.pt                 # PyTorch
                                   yolov5s.torchscript        # TorchScript
                                   yolov5s.onnx               # ONNX Runtime or OpenCV DNN with --dnn
                                   yolov5s.xml                # OpenVINO
                                   yolov5s.engine             # TensorRT
                                   yolov5s.mlmodel            # CoreML (MacOS-only)
                                   yolov5s_saved_model        # TensorFlow SavedModel
                                   yolov5s.pb                 # TensorFlow GraphDef
                                   yolov5s.tflite             # TensorFlow Lite
                                   yolov5s_edgetpu.tflite     # TensorFlow Edge TPU



2

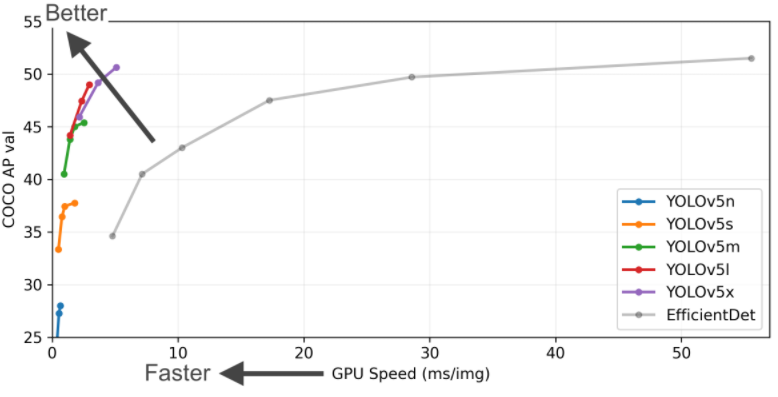

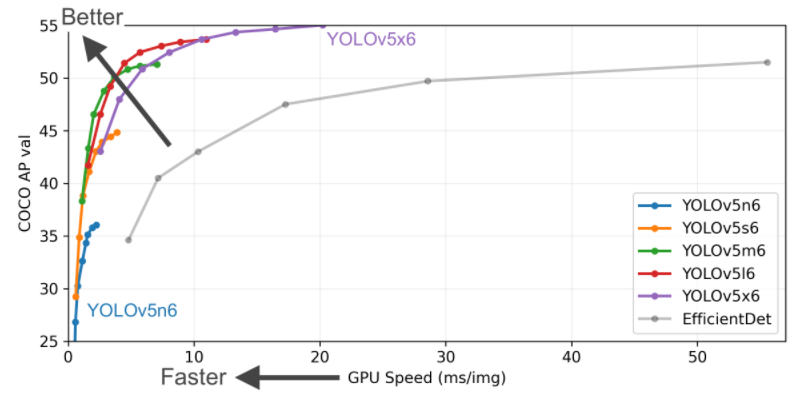

最新结果

3

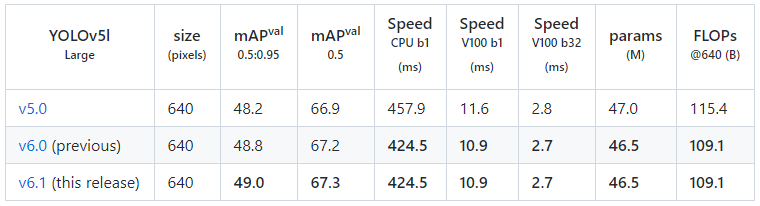

与6.0版本的精度对比

4

参考

[1].https://github.com/ultralytics/yolov5
