安装部署 RocketMQ
采用源码编译安装，注意请提前将 maven 安装调试好。
- 操作系统 macOS
- RocketMQ 版本：4.9.2
- Maven 版本 3.3.9
- JDK 版本 1.8.0_181
以下安装是单 Master 模式，非集群模式，仅适用于本地开发和测试环境。
下载源码包
wget https://dlcdn.apache.org/rocketmq/4.9.2/rocketmq-all-4.9.2-source-release.zip
解压源码并进行编译
> unzip rocketmq-all-4.9.2-source-release.zip
> cd rocketmq-all-4.9.2/
> mvn -Prelease-all -DskipTests clean install -U
> cd distribution/target/rocketmq-4.9.2/rocketmq-4.9.2
启动 Name Server
在上一步的目录下，执行：
> nohup sh bin/mqnamesrv &
> tail -f ~/logs/rocketmqlogs/namesrv.log
021-11-24 16:50:14 INFO main - tls.client.keyPassword = null
2021-11-24 16:50:14 INFO main - tls.client.certPath = null
2021-11-24 16:50:14 INFO main - tls.client.authServer = false
2021-11-24 16:50:14 INFO main - tls.client.trustCertPath = null
2021-11-24 16:50:14 INFO main - Using JDK SSL provider
2021-11-24 16:50:15 INFO main - SSLContext created for server
2021-11-24 16:50:15 INFO NettyEventExecutor - NettyEventExecutor service started
2021-11-24 16:50:15 INFO main - Try to start service thread:FileWatchService started:false lastThread:null
2021-11-24 16:50:15 INFO FileWatchService - FileWatchService service started
2021-11-24 16:50:15 INFO main - The Name Server boot success. serializeType=JSON
启动 Broker
> nohup sh bin/mqbroker -n localhost:9876 &
> tail -f ~/logs/rocketmqlogs/broker.log
2021-11-24 16:52:22 INFO main - The broker[localhost, 10.3.10.244:10911] boot success. serializeType=JSON and name server is localhost:9876
2021-11-24 16:52:32 INFO BrokerControllerScheduledThread1 - dispatch behind commit log 0 bytes
2021-11-24 16:52:32 INFO BrokerControllerScheduledThread1 - Slave fall behind master: 202890 bytes
2021-11-24 16:52:32 INFO brokerOutApi_thread_2 - register broker[0]to name server localhost:9876 OK
2021-11-24 16:53:02 INFO brokerOutApi_thread_3 - register broker[0]to name server localhost:9876 OK
安装 RocketMQ-Dashboard

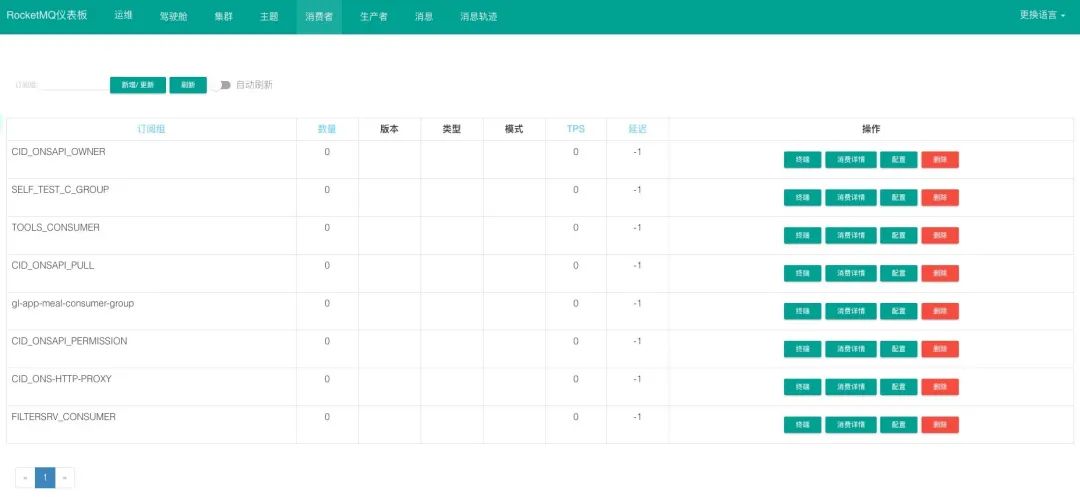

可视化工具，可以在浏览器中查看消息队列的状态。
同样用源码安装，当然也可以用 docker 安装。
下载源码包
wget https://github.com/apache/rocketmq-dashboard/archive/refs/tags/rocketmq-dashboard-1.0.0.zip
编译运行
> unzip rocketmq-dashboard-1.0.0.zip
> cd rocketmq-dashboard-rocketmq-dashboard-1.0.0
> mvn spring-boot:run
这时候会出现如下错误：
Caused by: org.apache.rocketmq.remoting.exception.RemotingConnectException: connect to null failed
at org.apache.rocketmq.remoting.netty.NettyRemotingClient.invokeSync(NettyRemotingClient.java:394)
at org.apache.rocketmq.client.impl.MQClientAPIImpl.getBrokerClusterInfo(MQClientAPIImpl.java:1333)
at org.apache.rocketmq.tools.admin.DefaultMQAdminExtImpl.examineBrokerClusterInfo(DefaultMQAdminExtImpl.java:306)
at org.apache.rocketmq.tools.admin.DefaultMQAdminExt.examineBrokerClusterInfo(DefaultMQAdminExt.java:257)
at org.apache.rocketmq.dashboard.service.client.MQAdminExtImpl.examineBrokerClusterInfo(MQAdminExtImpl.java:204)
at org.apache.rocketmq.dashboard.service.client.MQAdminExtImpl$$FastClassBySpringCGLIB$$a15c4ca6.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:769)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:747)
at org.springframework.aop.aspectj.MethodInvocationProceedingJoinPoint.proceed(MethodInvocationProceedingJoinPoint.java:88)
at org.apache.rocketmq.dashboard.aspect.admin.MQAdminAspect.aroundMQAdminMethod(MQAdminAspect.java:52)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
明显是连不上服务器，需要修改配置文件：
> cd src/main/resources/
打开 application.properties 文件
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
server.address=0.0.0.0
server.port=8080
### SSL setting
#server.ssl.key-store=classpath:rmqcngkeystore.jks
#server.ssl.key-store-password=rocketmq
#server.ssl.keyStoreType=PKCS12
#server.ssl.keyAlias=rmqcngkey
#spring.application.index=true
spring.application.name=rocketmq-dashboard
spring.http.encoding.charset=UTF-8
spring.http.encoding.enabled=true
spring.http.encoding.force=true
logging.level.root=INFO
logging.config=classpath:logback.xml
#if this value is empty,use env value rocketmq.config.namesrvAddr NAMESRV_ADDR | now, you can set it in ops page.default localhost:9876
rocketmq.config.namesrvAddr=
#if you use rocketmq version < 3.5.8, rocketmq.config.isVIPChannel should be false.default true
rocketmq.config.isVIPChannel=
#timeout for mqadminExt, default 5000ms
rocketmq.config.timeoutMillis=
#rocketmq-console's data path:dashboard/monitor
rocketmq.config.dataPath=/tmp/rocketmq-console/data
#set it false if you don't want use dashboard.default true
rocketmq.config.enableDashBoardCollect=true
#set the message track trace topic if you don't want use the default one
rocketmq.config.msgTrackTopicName=
rocketmq.config.ticketKey=ticket
#Must create userInfo file: ${rocketmq.config.dataPath}/users.properties if the login is required
rocketmq.config.loginRequired=false
#set the accessKey and secretKey if you used acl
#rocketmq.config.accessKey=
#rocketmq.config.secretKey=
rocketmq.config.useTLS=false
根据注释我们得知，需要将 rocketmq.config.namesrvAddr 设置为：localhost:9876, 再次启动成功。
访问：http://localhost:8080/ ，当然你也可以修改地址或者更改端口号。同样是修改 application.properties 文件，修改成类似这样的配置：
server.port=8083
server.servlet.context-path=/rocketmq-dashboard
测试消息的发送和接收
> export NAMESRV\_ADDR=localhost:9876
> sh bin/tools.sh org.apache.rocketmq.example.quickstart.Producer
SendResult [sendStatus=SEND_OK, msgId= ...
> sh bin/tools.sh org.apache.rocketmq.example.quickstart.Consumer
ConsumeMessageThread\_%d Receive New Messages: [MessageExt...
关闭 nameServer 和 broker
> sh bin/mqshutdown broker
The mqbroker(36695) is running...
Send shutdown request to mqbroker(36695) OK
> sh bin/mqshutdown namesrv
The mqnamesrv(36664) is running...
Send shutdown request to mqnamesrv(36664) OK
其他高可用部署方式
- 多 Master 模式
- 多 Master 多 Slave 模式-异步复制
- 多 Master 多 Slave 模式-同步双写
具体部署方式可参考：文档
这里贴一个比较完整的生产 K8S 部署方案：
https://cloud.tencent.com/developer/article/1785729
上面这个方案是一个双主双从的配置，每个 statefulset 只有一个副本，每个 Pod 拥有自己的配置文件，根据 RocketMQ 文档的说明来配置，没有什么问题。但当我们要扩展多 Master, 多 Slave 的时候，就会比较麻烦，要再建 Master Slave 对，增加 statefulset。
下面有一个部署技巧可以解决这个的问题。
通过 statefulset 副本扩展集群规模
“ 以上 Broker 与 Slave 配对是通过指定相同的 BrokerName 参数来配对，Master 的 BrokerId 必须是 0，Slave 的 BrokerId 必须是大于 0 的数。
”
根据文档得知 Master 和 Slave 是根据 BrokerName 来配对的，所以上面的部署配置中也对同一对的主从设置了相同的 BrokerName。
如果没有配置 BrokerName 有默认值吗？
我们来看下 RocketMQ 的源码：
public class BrokerConfig {
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.COMMON_LOGGER_NAME);
private String rocketmqHome = System.getProperty(MixAll.ROCKETMQ_HOME_PROPERTY, System.getenv(MixAll.ROCKETMQ_HOME_ENV));
@ImportantField
private String namesrvAddr = System.getProperty(MixAll.NAMESRV_ADDR_PROPERTY, System.getenv(MixAll.NAMESRV_ADDR_ENV));
@ImportantField
private String brokerIP1 = RemotingUtil.getLocalAddress();
private String brokerIP2 = RemotingUtil.getLocalAddress();
@ImportantField
private String brokerName = localHostName();
@ImportantField
private String brokerClusterName = "DefaultCluster";
*/
@ImportantField
private boolean aclEnable = false;
private boolean storeReplyMessageEnable = true;
private boolean autoDeleteUnusedStats = false;
public static String localHostName() {
try {
return InetAddress.getLocalHost().getHostName();
} catch (UnknownHostException e) {
log.error("Failed to obtain the host name", e);
}
return "DEFAULT\_BROKER";
}
可见，brokerName 有默认值 ，即如果没有主动 set brokerName，那么获取的是 localhostName。
pod 的 hostname 即为 pod 的名字，如果我们的 pod 名字是 broker-0，那么它的 hostname 就是 broker-0。联系上面 RocketMQ 的源码，brokerName 的值如果不设置拿到的就是 hostname, 即 pod Name。
由于我们部署 RocketMQ 时用的是有状态服务 (statefulset)，statefulset 的 Pod 的命名是有规则的：
“ 对于一个拥有 N 个副本的 StatefulSet，Pod 被部署时是按照 {0 …… N-1} 的序号顺序创建的。
”
于是我们就可以利用 statefulset 的命名规则进行集群的扩展了，例如我要设置一个双主双从的集群，那么只需要将 master 和 slave 的 statefulset 的副本数设置为 2 就可以了，结果类似这样：
rocketmq-broker-master-0 1/1 Running 1 462d
rocketmq-broker-master-1 1/1 Running 0 462d
rocketmq-broker-slave-0 1/1 Running 1 462d
rocketmq-broker-slave-1 1/1 Running 0 462d
可见，根据命名规则 RocketMQ 的 Master 和 Slave 可以根据 brokerName（即 pod name）配对正确。那么如果我想要扩展集群，那么我只需要把 master 和 slave 的 statefulset 的副本数设置为 2、3、4、5... 就可以了。
以上就完成了只需要改两个 statefulset 的副本数就可以扩展集群的操作。一个小技巧分享给大家。
